| Brand | CNOPTEC |
|---|---|
| Origin | Chongqing, China |

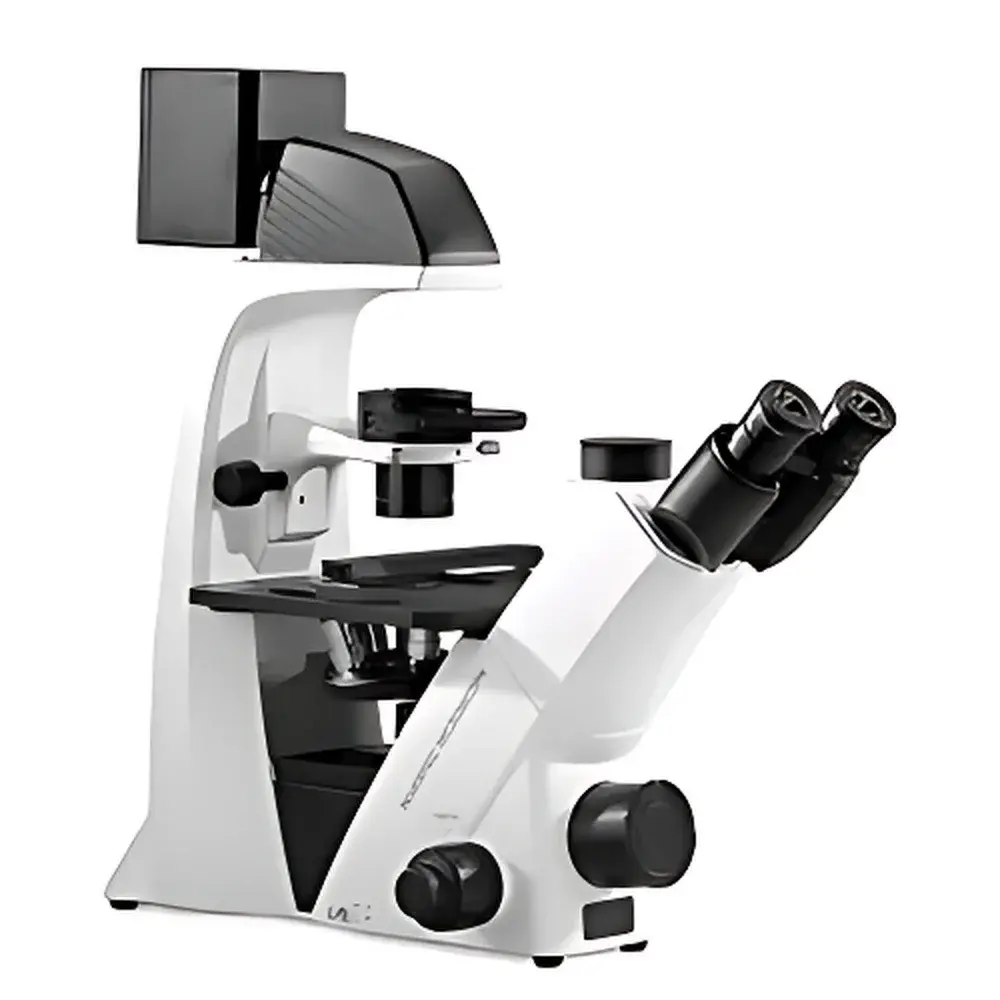

| Model | BDS500 |
| Optical System | OTICS Infinity-Corrected Achromatic Optics |
| Magnification Range | 40×–600× |
| Eyepieces | 10× Wide-Field, High-Eyepoint Plan Eyepieces (Field Number Φ22 mm) |
| Objectives | Long Working Distance Infinity-Plan Achromatic Objectives (4×, 10×, 20×, 40×) and Phase Contrast Objectives (4×, 10×, 20×, 40×) |
| Observation Tube | Hinged Trinocular Tube with Interpupillary Adjustment (48–76 mm), Dual-Mode Beam Splitter (100% viewing / 20% viewing + 80% imaging) |
| Camera Port | C-Mount Options (1×, 0.75×, 0.5×) |
| Nosepiece | Internal-Positioning Quintuple Objective Turret |
| Focus Mechanism | Coaxial Coarse/Fine Focus |
| Stage | Mechanical Stage (210 × 241 mm Platform |
| Condenser | Four-Position Phase Contrast Condenser (NA 0.4, WD 45 mm, Vertical Adjustment) |
| Illumination | Köhler Illumination with 12 V/50 W Halogen or 5 W LED (100–240 V AC Input) |
| Fluorescence Module | DC 100 W Mercury Lamp (OSRAM) or 5 W LED Excitation Source |
| Smart IR Sensor | Automatic Lamp Power-Down After 10 Minutes of User Absence |
| Digital Imaging Interface | DV/TP Series Digital Camera Systems |
