| Brand | Sundly |
|---|---|
| Model | SDTGA520 |
| Origin | Hunan, China |
| Application | Coal, coke, ores, solid biomass fuels |
| Standards Compliance | GB/T 212–2008, GB/T 211–2017, DL/T 2029–2019 |
| Sample Capacity | 20 positions |
| Temperature Range | Ambient to 200 °C |
| Temperature Control Accuracy | ±2 °C |
| Max Power | 2 kW |
| Sample Mass (Analytical Moisture) | 0.9–1.1 g |
| Sample Mass (Total Moisture) | 10–12 g |
| Test Duration (Analytical Moisture) | 15–40 min |
| Test Duration (Total Moisture) | 25–60 min |
| Particle Size Compatibility | 0.2 mm, 3 mm, 6 mm |
| Power Supply | AC 220 V ±10 %, 50 Hz ±1 Hz |
| Dimensions (W×D×H) | 651 mm × 636 mm × 451 mm |
| Net Weight | ~67 kg |
| Heating Modes | Forced-air convection + infrared radiant heating |
| Optional Atmosphere | Nitrogen purge capability |
| Data Logging | Environmental temperature & humidity auto-captured and embedded in reports |
| Software Features | Batch configuration, custom test protocols, power-interruption recovery, GLP-compliant audit trail |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

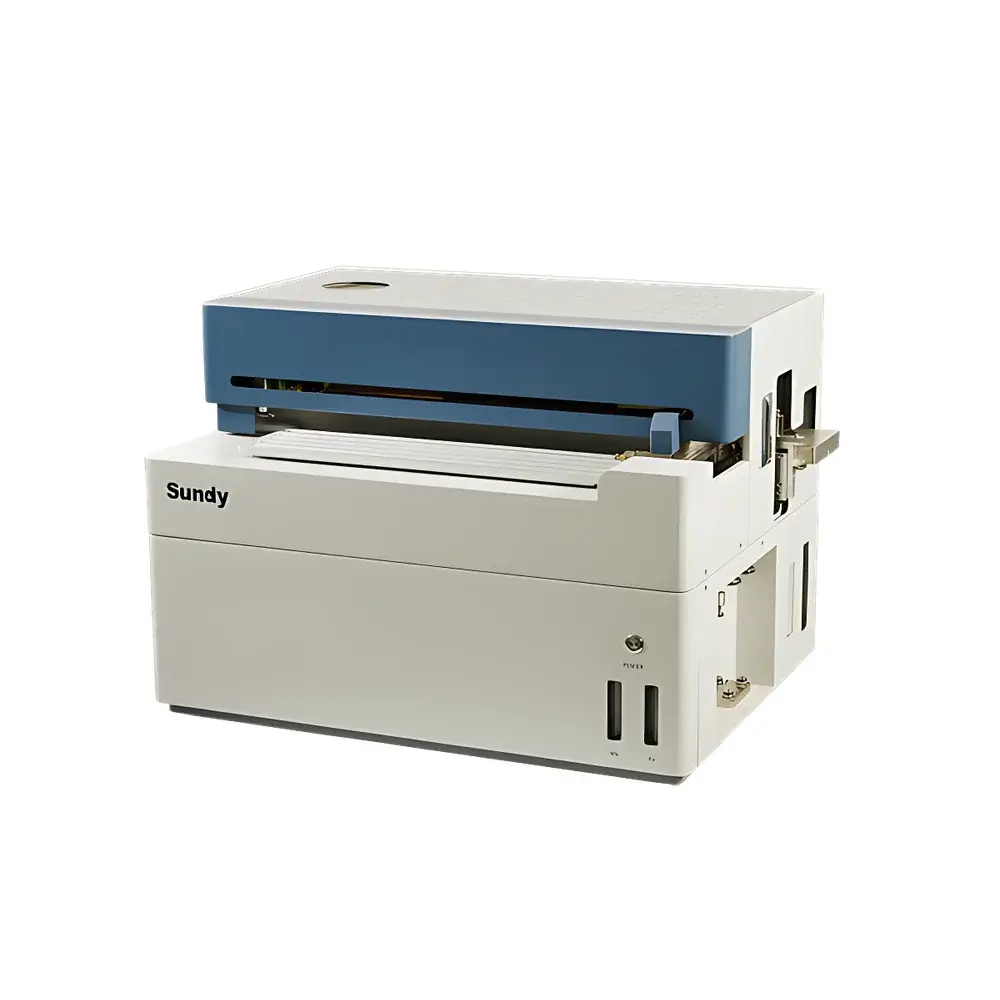

| Model | SDICS450 Infrared Carbon-Sulfur Analyzer / SDIS450 Infrared Sulfur Analyzer |
| Measurement Principle | Non-Dispersive Infrared (NDIR) Absorption |
| Heating System | High-Temperature Resistance Furnace |
| Carbon Range | 0.1–100 wt% |
| Sulfur Range | 0.01–50 wt% (extendable to 100 wt%) |
| Sensitivity | 0.01 wt% |
| Accuracy | ±0.01 wt% |
| Analysis Time | ≤110 s per sample (typical full-cycle time ≤180 s depending on sample matrix) |
| Combustion Furnace Power Output | 4 kW |
| Operating Temperature | 1250–1350 °C (recommended: 1300 °C) |
| Sample Mass | 200 mg (standard) |
| Max. Batch Capacity | 50 samples per auto-loading cycle |
| Dimensions (W×D×H) | 670 × 890 × 650 mm |
| Weight | ~135 kg |
| Power Supply | AC 220 V ±10%, 50 Hz ±1 Hz |
| Brand | Sundy |
|---|---|
| Model | SDTGA500 |
| Origin | Hunan, China |
| Instrument Type | Automatic Thermogravimetric Moisture Analyzer |
| Standards Compliance | GB/T 212–2008, GB/T 211–2017, DL/T 2029–2019 |
| Sample Capacity | 12 positions |
| Analytical Water Sample Mass | 0.9–1.1 g |
| Total Moisture Sample Mass | 10–12 g (user-definable range) |
| Test Duration | 15–40 min (analytical moisture), 25–60 min (total moisture) |
| Temperature Control Range | Ambient to 150 °C |
| Temperature Accuracy | ±2 °C |
| Max Power Consumption | 1.5 kW |
| Sample Particle Size Compatibility | ≤0.2 mm, 3 mm, 6 mm |
| Balance Resolution | 0.1 mg (imported high-precision weighing module) |
| Dimensions (W×D×H) | 450 mm × 480 mm × 450 mm |
| Net Weight | ~40 kg |
| Power Supply | AC 220 V ±10 %, 50 Hz ±1 Hz |
| Nitrogen Purge Function | Yes, with optimized flow control |
| Safety Features | Auto-diagnostic, power-fail recovery, thermal self-protection |
| Data Output | Real-time mass tracking, GLP-compliant audit trail, CSV/PDF report export, LAN-enabled remote monitoring |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Model | SDFCl3000 (dual-channel F/Cl) / SDF3000 (F-only) / SDCl3000 (Cl-only) |
| Measurement Range | F: 50–5000 ppm, Cl: 50–5000 ppm |
| Sample Mass | 0.5 g (typical) |
| Combustion Temperature | 1100 °C ±5 °C |
| Digestion & Collection Time | ~30 min (incl. rinse cycle) |
| Analysis Time per Solution | ~5 min (F), ~5 min (Cl) |
| Power Consumption | ≤4 kW |
| Voltage | AC 220 V ±10 %, 50 Hz ±1 Hz |
| Dimensions (L×W×H) | 1160 × 550 × 570 mm |
| Weight | ~75 kg |
| Compliance | GB/T 3558-2014, GB/T 4633-2014 |
| Brand | Sundy |
|---|---|
| Model | SDHFCS1000 |
| Origin | Hunan, China |
| Measurement Principle | Infrared Absorption |
| Heating System | High-Frequency Induction Furnace |
| Carbon Range | Low-C: 0.00001–0.3 wt%, High-C: 0.1–99.99 wt% |
| Sulfur Range | Low-S: 0.00001–0.3 wt%, High-S: 0.1–99.99 wt% |
| Sensitivity | C: 0.00001 wt% or RSD ≤ 0.5% |
| S | 0.00001 wt% or RSD ≤ 1.0% |
| Analysis Time | Adjustable from 25–99 s (typical: 35 s) |
| Sample Mass | 0.05–1.0 g |
| Max Power | 4 kW |
| Voltage | AC 220 V ±10%, 50 Hz ±1 Hz |
| Compliance | ISO 9556:1989, ISO 4935:1989, ISO 15350:2000, GB/T 20123–2006, JJG 395–2016 |
