| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SDASC Automated Sample Storage and Retrieval System |
| Pricing | Available Upon Request |
| Operating Relative Humidity | 5–95% RH (non-condensing, no dew formation) |
| Sample Storage/Retrieval Time | ≤60 seconds per sample |
| Maximum Gripping Weight | ≤5 kg |
| Vial Grip Diameter Range | Φ78–Φ128 mm (for Φ140 mm column), Φ98–Φ148 mm (for Φ160 mm column) |
| RFID Reader | High-frequency 13.56 MHz, ISO/IEC 14443 Type A compliant |
| Standard Vial Dimensions | Ø128 × 280 mm (screw-cap, bottom-embedded RFID chip), Ø128 × 160 mm (screw-cap, bottom-embedded RFID chip) |
| Standard Capacity | 1,200 vials (modularly expandable) |
| Footprint (Φ140 mm configuration) | 3.9 m (L) × 2.0 m (W) × 3.2 m (H) |
| (Φ160 mm configuration) | 4.0 m (L) × 1.94 m (W) × 3.2 m (H) |
| Power Supply | 380 V AC, 50/60 Hz |
| Max Power Consumption | 4 kW |
| Floor Load Requirement | ≥500 kg/m² (hardened concrete surface) |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | SDTS Sample Collection & Preparation Integration System |
| Pricing | Available Upon Request |
| Brand | Sundhy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic |
| Model | SDIAS |
| Pricing | Available Upon Request |
| Brand | SundY |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | SDFPCQ Intelligent Coal Acceptance & Supervision System |
| Pricing | Available Upon Request |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Model | SDS-V |
| Measurement Principle | Coulometric Titration |
| Sulfur Range | 0.01–40 wt% |
| Resolution | 0.001 wt% |
| Temperature Control Accuracy | ±1 °C |
| Sample Mass | ~50 mg (adjustable) |
| Combustion Furnace Temp | 1150 ±5 °C (coal & coke), 900 ±5 °C (oil & pyrite), 1150–1200 °C (cement) |
| Test Duration | ~200 s per sample |
| Max Power | 3.5 kW |
| Voltage | AC 220 V ±10%, 50 Hz ±1 Hz |
| Dimensions (L×W×H) | 680 × 520 × 395 mm |
| Weight | ~78 kg |
| Compliance | GB/T 214–2007, JJG 1006–2005 |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | SDDCC Digital Intelligent Control Center |
| Pricing | Available Upon Request |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SDCD1000 |
| Pricing | Available Upon Request |
| Brand | SUNDY |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | SDRPS |
| Pricing | Upon Request |
| Max. Feed Size | ≤100 mm |
| Feed Mass Range | 30–1000 kg (for 13 mm top size), 25–1000 kg (for 6 mm top size) |
| Output Samples | 6 mm total moisture sample ≥1.25 kg (1–5 portions) |
| Max. Power Consumption | 85 kW |
| Drying Method | Low-temperature forced-air drying (WindTec® technology, 40–50 °C) |
| Sample Throughput | ~30 min inter-sample interval (standard configuration) |
| Milling Recovery Rate | ≥98% (except for atypical coal types) |
| Division Methods | Primary & secondary mass-based division |
| Division Error | ≤10% |
| Robot Axes | 6-axis industrial robot |
| Compliance | GB/T 474, GB/T 19494.2, GB/T 19494.3, GB/T 12642 |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SDABW Fully Automatic Bottle Washer |
| Quotation | Available Upon Request |
| Washing Efficiency | 40 bottles/h |
| Total Power Consumption | < 50 kW |
| Water Tank Capacity | 450 L |
| Cleaning Chamber Volume | 400 L |
| Ultrasonic Generator Power | 2.4 kW |
| Ultrasonic Frequency | 40 kHz |
| Ultrasonic Cleaning Temperature Range | 40–50 °C |
| Water Consumption | 0.2 m³/h |
| Dimensions (L×W×H) | 1900 mm × 1420 mm × 1790 mm |
| Compatible Bottle Sizes | Small (Φ128 mm × 160 mm), Large (Φ128 mm × 280 mm) |
| Cleaning Method | High-Pressure Spray + Ultrasonic Cleaning |
| Automatic Lid Opening | Not Supported |
| Automatic Sample Dumping | Not Supported |
| Integrated Drying Function | Yes |
| Bottle Return to Sample Preparation System | Not Supported |
| Lid Return to Sample Preparation System | Not Supported |
| Automatic Bottle-Lid Separation & Sorting at Prep Station | Not Supported |
| Waste Collection Integration | Not Supported |
| Lid Cleaning Capability | Not Supported |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SDED |
| Pricing | Available Upon Request |
| Airflow Capacity | 6000 m³/h or 10000 m³/h |
| Cleaning Method | Pulse-jet Reverse-air Filtration |
| Power Supply | 380 V AC, 7.5 kW / 11 kW |
| Control System | PLC-based Automated Control |
| Dust Removal Efficiency | ≥99.9% |
| Exhaust Emission Concentration | <4 mg/m³ |
| Minimum Capturable Particle Size | >0.5 µm |
| Operating Noise Level | <75 dB(A) |
| Vibration Acceleration | <6.5 mm/s² |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic |
| Model | SDEW100 |
| Pricing | Upon Request |
| Brand | Sundhy |
|---|---|
| Origin | Hunan, China |
| Model | SDLOI2000 |
| Sample Capacity | 20 positions |
| Sample Mass Range | 0.1–10 g (user-definable) |
| Temperature Range | Ambient to 1050 °C |
| Temperature Control Accuracy | ±2 °C |
| Balance Resolution | 0.0001 g |
| Maximum Power Consumption | 4 kW |
| Dimensions (L×W×H) | 550 × 590 × 530 mm |
| Net Weight | ~70 kg |
| Power Supply | AC 220 V ±10 %, 50 Hz ±1 Hz |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SDSCB Batch Consolidation and Sample Bucket Sorting System |
| Pricing | Available Upon Request |
| Bucket Cache Capacity | ≤32 / 48 / 64 (Configurable) |
| Sorting Cycle Time per Bucket | ≤1 minute |
| Trolley Docking Width | 4-lane configuration |
| Sorting Module Rows | 2 / 3 / 4 rows (Configurable) |
| Sample Bucket Format | RFID-embedded lid |
| Bucket Volume | 25 L |
| Power Supply | 380 V AC |
| Infeed/Outfeed Mode | Fully Automatic or Manual Hybrid |
| Max. Power Consumption | 3.5 kW |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China-made) |
| Model | SDFMIS Fuel Management Information System |
| Pricing | Available Upon Request |
| Brand | Sundhy |
|---|---|
| Model | SDS720 |
| Principle | Coulometric Titration |
| Origin | Hunan, China |
| Measuring Range | 0.01–40% S |
| Sulfur Resolution | 0.001% |
| Temperature Control Accuracy | ±1°C |
| Sample Mass | ~50 mg (adjustable) |
| Combustion Furnace Temperature | (1150±5)°C for coal & coke |
| Max. Sample Capacity | 21 positions |
| Avg. Analysis Time | ~200 s per sample |
| Max. Power Consumption | 4 kW |
| Supply Voltage | AC 220 V ±10%, 50 Hz ±1 Hz |
| Dimensions (W×D×H) | 610 × 890 × 410 mm |
| Net Weight | ~81 kg |
| Compliance | GB/T 214–2007, JJG 1006–2005 |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

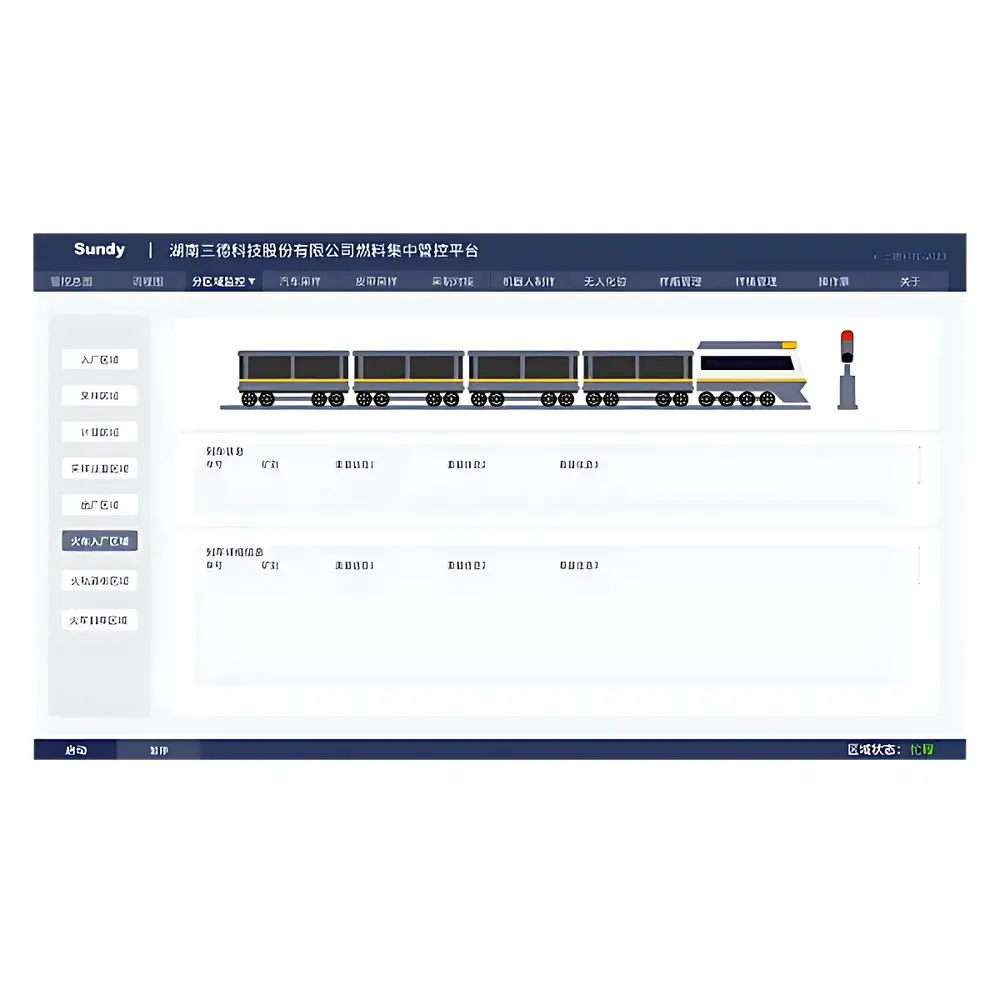

| Model | SDFPCH Intelligent Railcar Coal Acceptance & Supervisory Control System |
| Pricing | Available Upon Request |
| Brand | Sundhy |
|---|---|
| Model | SDCHN636 |
| Origin | Hunan, China |
| Measurement Principle | Infrared Absorption (for C/H) & Thermal Conductivity Detection (for N) |
| Sample Capacity | 36 positions (single tray) / 72 positions (dual tray) |
| Carbon Range | 0.005–100 wt% |
| Hydrogen Range | 0.01–50 wt% |
| Nitrogen Range | 0.01–50 wt% |
| Sample Mass | 75–105 mg (recommended: 100 mg) |
| Repeatability | Compliant with GB/T 30733-2014 and ASTM D5373-08 |
| Analysis Time per Sample | 6–8 min |
| Power Consumption | ≤4.5 kW |
| Supply Voltage | AC 220 V ±10%, 50 Hz ±1 Hz |
| Gas Requirements | O₂ (≥99.99%, ≥1 MPa) |
| Dimensions (L×W×H) | 710 × 660 × 1045 mm |
| Weight | ~140 kg |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Model | SDTGA6000V/6001V/6002V |
| Sample Mass Range | 0.5–10 g (user-definable) |
| Sample Capacity | 26 positions (25 samples + 1 blank) |
| Furnace Temperature Range | Ambient to 1000 °C |
| Temperature Control Accuracy | ±2 °C |
| Balance Resolution | 0.0001 g |
| Max Power Consumption | 2.5 kW |
| Input Voltage | AC 220 V ±10 %, 50 Hz ±1 Hz |
| Volatile Matter Test Duration | ~130 min |
| Dimensions (L×W×H) | 550 × 650 × 815 mm |
| Weight | ~95 kg |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SDAST Pneumatic Sample Transport System |
| Pricing | Upon Request |
| Transport Direction | Unidirectional or Bidirectional |
| Conduit Material | PVC or Steel Pipe |
| Conduit Diameter | Φ140 mm or Φ160 mm |
| Minimum Bend Radius | R = 1000 mm (Φ140 mm), R = 800 mm (Φ160 mm) |
| Transport Velocity | High-Speed Mode: 5–8 m/s |
| Low-Speed Mode | 2–3 m/s |
| Maximum Sample Bottle Payload | 3 kg (Φ140 mm), 4 kg (Φ160 mm) |
| Horizontal Reach | <1000 m (single blower), Vertical Lift: <20 m (single blower) |
| Supported Stations | Automatic Sample Preparation Lab, Manual Sample Preparation Lab, Analytical Lab, Retention Sample Storage Cabinet, Waste/Reject Sample Disposal Station |
| Power Supply | 380 V AC, 11 kW (configurable based on system scale) |
| Brand | Sundhy |
|---|---|
| Model | SDIS401 |
| Measurement Principle | Ultraviolet-Fluorescence (UVF) with Infrared Detection |
| Standard Compliance | GB/T 25214–2010, ISO 19579:2006, ASTM D4239–2018 |
| Test Range | 0.01–50 wt% (extendable) |
| Analysis Time | ~120 s per sample |
| Combustion Temperature | 1250–1350 °C (recommended: 1300 °C) |
| Sample Mass | 200 mg (nominal) |
| Furnace Power | 4 kW |
| Dimensions (L×W×H) | 760 × 434 × 752 mm |
| Weight | ~80 kg |
| Power Supply | AC 220 V ±10%, 50 Hz ±1 Hz |
| Sample Capacity | 1 position (manual loading) |
| Detector Type | Low-drift infrared absorption cell |
| Gas Conditioning | Integrated desiccant and particulate filtration |
| Gas Path Design | Patented low-dead-volume, temperature-stabilized flow path |
| Brand | Sundyl |
|---|---|
| Origin | Hunan, China |
| Model | SDFCl4200 |
| Dimensions (Analyzer) | 1266 mm × 560 mm × 570 mm (L×W×H) |
| Weight (Analyzer) | ~80 kg |
| Cooling Water Tank Dimensions | 310 mm × 606 mm × 420 mm |
| Water Tank Weight | ~17 kg |
| Fluorine Range | 10–2000 ppm |
| Chlorine Range | 30–4000 ppm |
| Single-Sample Analysis Time (F + Cl) | 35 min |
| Full Cycle Time (including digestion & analysis) | 59 min |
| Furnace Ramp Time | 25–30 min |
| Operating Temperature | 1100 ± 5 °C |
| Temperature Control Accuracy | ±5 °C |
| Power Supply | AC 220 ± 22 V, 50/60 Hz |
| Max. Power Consumption | 3.5 kW |
| Sample Particle Size | ≤0.2 mm |
| Compliant Standards | GB/T 3558, GB/T 4633 |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | SDSSC Mid-Belt Automatic Sampling System |
| Pricing | Available Upon Request |
| Structural Configuration | Mid-belt Sampling |
| Total Weight | ~6,000 kg |
| Control Mode | Fully Automatic / Manual |
| Maximum Feed Particle Size | ≤100 mm |
| Splitting Ratio | 1/4 to 1/32 |
| Reject Disposal | Returned via conveyor belt to main coal conveying belt |
| Sampling Method | Scraper-sweep type |
| Sampling Interval | Adjustable from 2 to 60 minutes |
| Subsample Mass | 5–40 kg (user-configurable) |
| Moisture Tolerance | Anthracite ≤12%, Bituminous Coal ≤20%, Lignite ≤40% |
| Output Particle Size | ≤6 mm or ≤13 mm (max feed ≤20 mm) |
| Crushing Capacity | 3.5 t/h or 7 t/h (optional) |
| Number of Sample Collection Canisters | 6 / 8 / 16 |
| Power Supply | 380 V AC, 30 kW (configurable based on layout and options) |
| Optional Integration | Bottom-discharge divider with direct linkage to adjacent sample preparation system |
| Brand | Sundy |
|---|---|
| Origin | Hunan, China |
| Model | SDMF300 |
| Operating Temperature Range | Ambient to 1000 °C |
| Max Heating Rate | 100 °C/min |
| Temperature Control Accuracy | ±1 °C |
| Temperature Resolution | 1 °C |
| Max Power Consumption | 3.5 kW |
| Chamber Dimensions (L×W×H) | 298 mm × 203 mm × 121 mm |
| External Dimensions (L×W×H) | 600 mm × 460 mm × 575 mm |
| Net Weight | ~65 kg |
| Power Supply | AC 220 V ±10 %, 50 Hz ±1 Hz |
| Compliance | GB/T 212–2008 |
| Brand | Sundhy |
|---|---|
| Origin | Hunan, China |
| Model | SDTGA6000 / SDTGA6001 / SDTGA6002 |
| Sample Mass Range | 0.5–10 g (user-definable) |
| Balance Resolution | 0.0001 g |
| Water/Ash Capacity | SDTGA6000/6002: 20 samples |
| SDTGA6001 | 16 samples |
| Volatile Matter Capacity | 26 samples |
| Furnace Temperature Range | Ambient to 1000 °C |
| Temperature Control Accuracy | ±2 °C |
| Power Supply | AC 220 V ±10 %, 50 Hz ±1 Hz |
| Max. Power Consumption | Water/Ash Module: 4 kW |
| Volatile Matter Module | 2.5 kW |
| Typical Test Duration | Water/Ash (fast method): ~100 min |
| Volatile Matter | ~130 min |
Show next
