| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

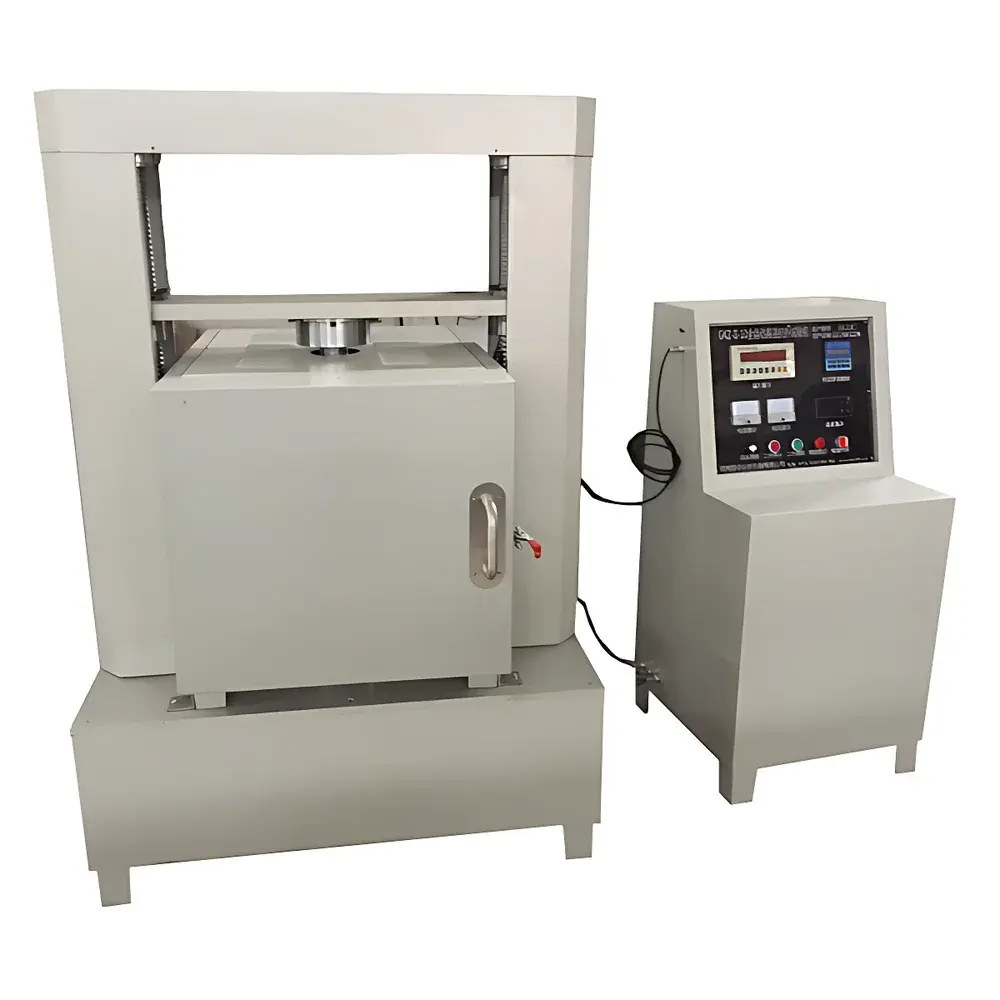

| Model | GKZ-II- |
| Price Range | USD 7,000 – 14,000 |
| Maximum Test Load | 10 kN / 20 kN |
| Loading Speed Range | 0.01–700 mm/min (adjustable via servo motor) |
| Relative Indication Error | ±1% |
| Operating Temperature | Up to 1600 °C |
| Support Span | 100 mm or 125 mm (customizable) |
| Sample Capacity | 4 specimens (40 × 40 × 160 mm) |
| Atmosphere Control | Oxidizing, reducing, and programmable inert/reactive gas environments (N₂, H₂, Ar, He, CO, NH₃, H₂O vapor) |
| Loading Mechanism | Precision ball-screw actuator with closed-loop servo control |
| Data Acquisition | Industrial PC with Windows OS, proprietary software compliant with ASTM C1161, ISO 5013/5014, GB/T 3002, and GB/T 13243 |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Model | SKZ-1000B |
| Max Test Load | 1 kN / 5 kN / 10 kN / 20 kN |
| Loading Rate Range | 5–700 N/s |
| Specimen Size Range | 50×60 mm to 1200×1200 mm |
| Power Supply | 220 V, 0.8 kW |
| Data Output | PC-connected digital acquisition with automatic peak detection and storage |
| Display | Dual-mode digital interface showing real-time load, auto-captured peak load, and adjustable loading rate |
