| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

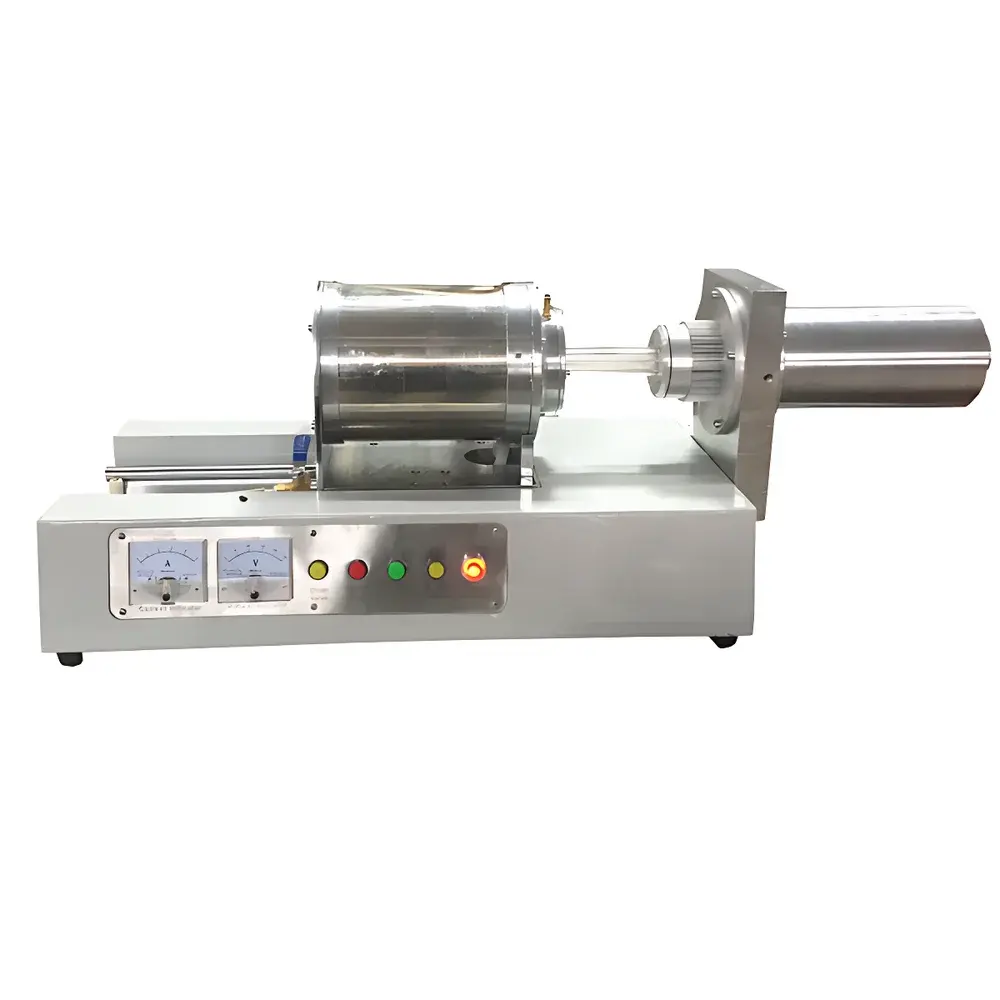

| Model | PCY-SL-30 |
| Price Range | USD 1,400–7,000 |
| Temperature Range | −30 °C to 30 °C |
| Heating Rate | 5 °C/min |
| Temperature Accuracy | ±0.1 °C |
| Sample Diameter | 6–10 mm |
| Measurement Range | 5 mm |
| Resolution | 1 µm |
| Atmosphere Options | Air, Vacuum, Inert Gas |
| Brand | ZHENHUAFENXI |
|---|---|
| Model | XPY |
| Temperature Range | RT to 1000 °C |
| Heating Rate | 0.1–20 °C/min |
| Temperature Accuracy | ±1 °C (at 1000 °C) |
| Sample Dimensions | Ø6–8 mm × up to 50 mm L |
| Measurement Range | ±5 mm |
| Resolution | 1 µm |
| Sample Holder Material | Fused Quartz |
| Compliance Standards | GB/T 4100–2015, GB/T 3810.9–2016 |
| Software Platform | Windows 10/7/XP |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

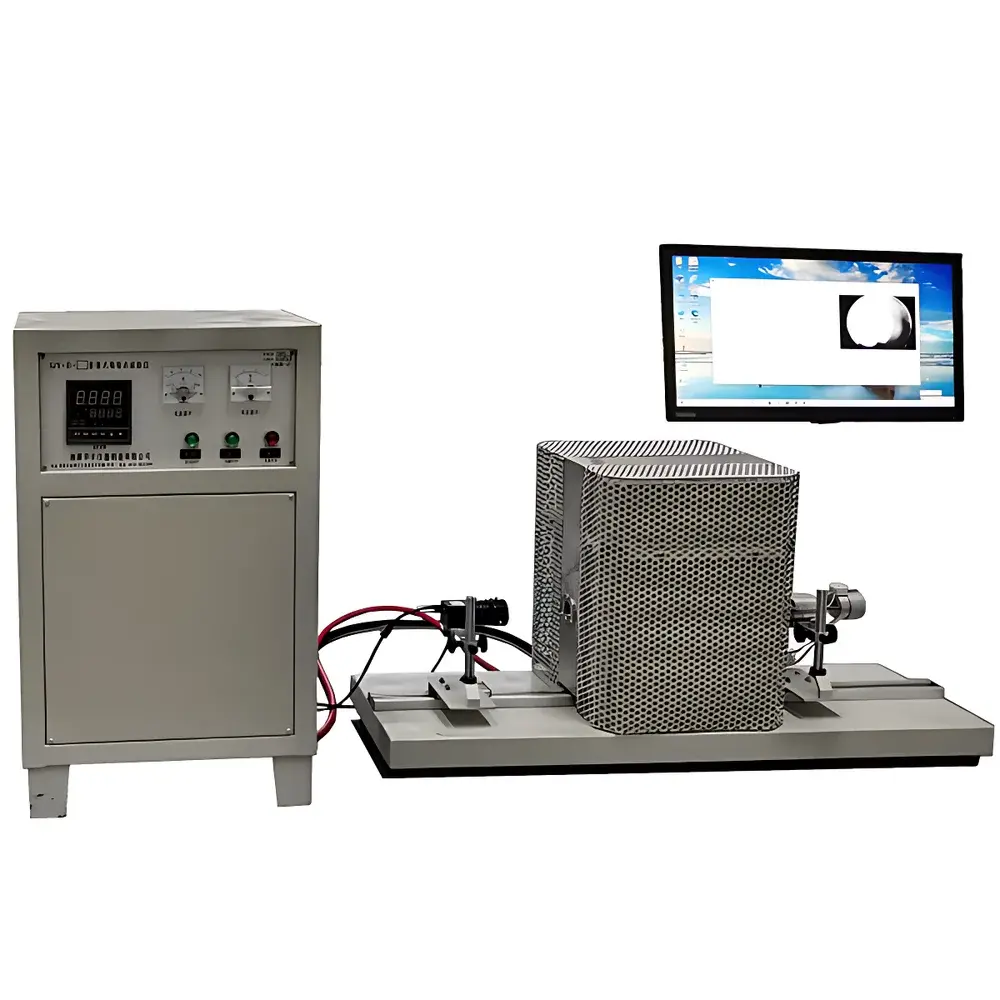

| Model | SJY-II-14/17 |
| Price Range | USD 1,400–7,200 (FOB) |
| Max. Temperature | 1400 °C / 1700 °C |
| Heating Rate | 0–10 °C/min |
| Temp. Accuracy | ±1 °C |
| Sample Dimensions | Ø6 mm × 8 mm (cylindrical) |
| Linear Measurement Range | 5 mm |
| Resolution | 0.1 nm |
| Atmosphere Options | Vacuum (≤1.0×10⁻² Pa), Inert Gas (N₂, Ar), or Ambient Air |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

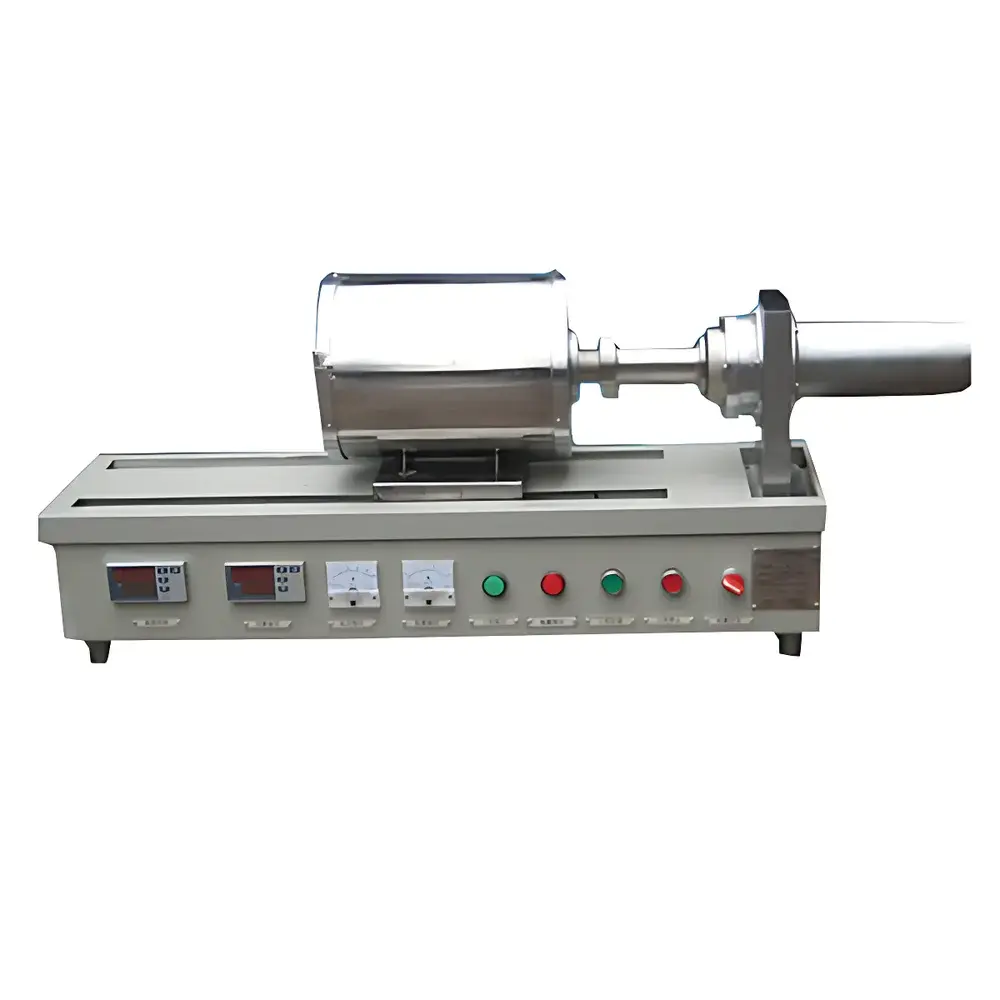

| Model | PCY-III-X |
| Price Range | USD 1,400–7,200 (FOB) |
| Temperature Range (°C) | -30 to 1700 (selectable configurations) |
| Heating Rate (°C/min) | 0.1–20 (standard setpoint: 5) |
| Temperature Accuracy (°C) | ±1 |
| Sample Diameter (mm) | 5–10 |
| Sample Length (mm) | ≤50 |
| Measurement Range | 5 mm |
| Resolution | 1 µm (optional 0.1 µm digitization) |
| Atmosphere Options | Air, Vacuum (down to 10⁻¹ mbar), Static/Dynamic Inert (N₂, Ar), Reactive Gas (customizable) |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PZY-III-1000 |
| Temperature Range | RT to 1000 °C |
| Heating Rate | 0–30 °C/min (programmable) |
| Displacement Resolution | 0.1 µm |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Regional Origin | Domestic (PRC) |

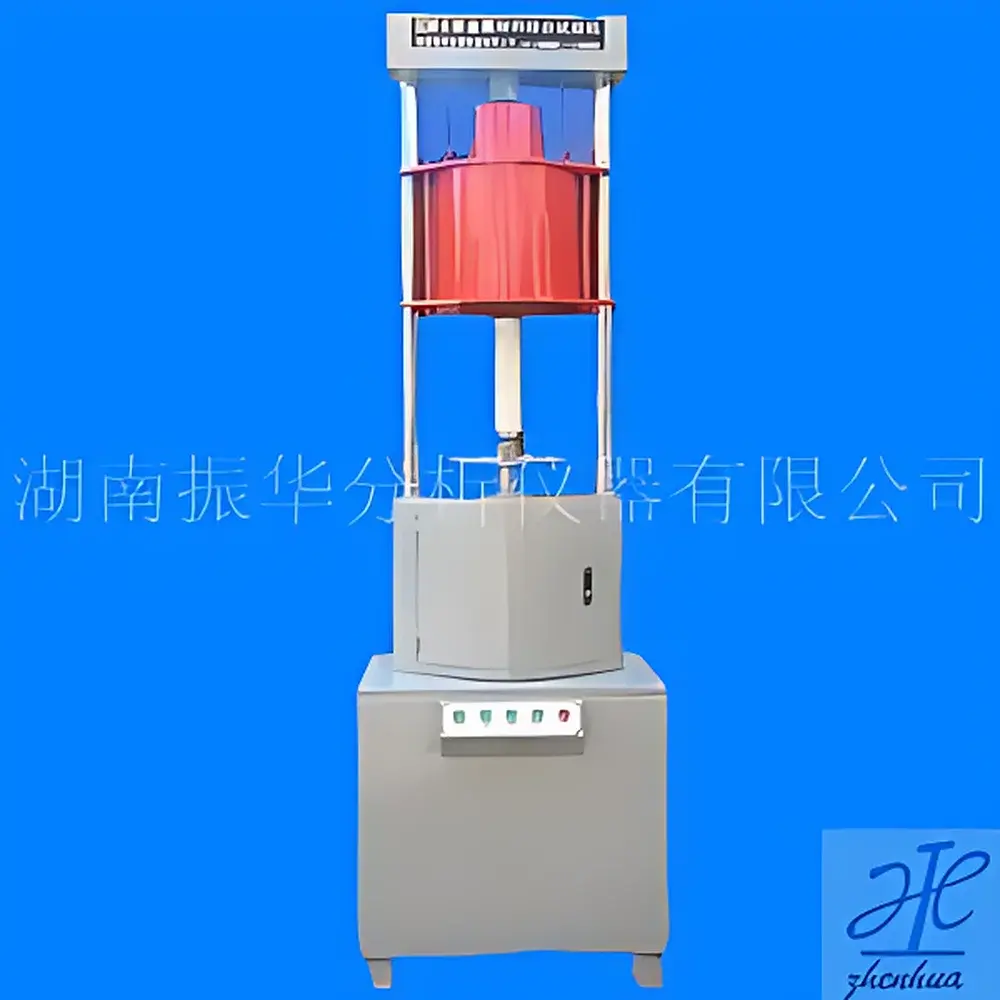

| Model | SQW-II-14 |
| Price Range | USD 7,000 – 14,000 |
| Temperature Range | Ambient to 1350 °C (short-term up to 1400 °C) |
| Max Load Capacity | 0–28.29 MPa (0–2000 kgf) |
| Deformation Measurement Range | 0–5 mm (resolution: 0.01 mm) |
| Force Accuracy | ±1 % FS |
| Deformation Accuracy | ±1 % FS |
| Heating Rate | Programmable, two-segment linear ramp |
| Furnace Type | Silicon Carbide (SiC) tube furnace, bore Ø50 mm, power 2.5 kW |
| Loading Speed | 0.8–8 mm/min (manually adjustable) |
| Dimensions (main unit) | 720 × 500 × 1644 mm |
| Weight | 500 kg |
| Power Consumption | <3 kW |
| Ambient Operating Conditions | 0–40 °C, RH <85 %, 220 V ±10 %, 50 Hz, grounded supply, no strong magnetic fields/vibration/corrosive gases |
| Control System | PC-based real-time control with data acquisition, automated report generation, and SQL-compatible database storage |
| Mechanical Drive | Precision ball-screw loading mechanism |
| Sample Geometry | Ø30 × 50 mm truncated cone |
| Compliance | Designed for ASTM E228, ISO 7991, GB/T 4339, and DIN 51045 testing protocols |
| Software Features | GLP-compliant audit trail, user-level access control, experimental sequence scripting, export to CSV/PDF/Excel |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Model | HF-PJ-12 |
| Temperature Range | 1200 °C |
| Heating Rate | 5 °C/min (standard), up to 20 °C/min (customizable) |
| Temperature Accuracy | ±1 °C |
| Sample Diameter/Width | 6 mm (cylindrical or square cross-section) |
| Sample Length | 50 mm |
| Expansion Measurement Range | 0–5 mm |
| Resolution | 0.1 µm |
| Atmosphere Options | Vacuum (base pressure −0.1 MPa), Argon, Inert Gas |
| Cooling Rates | 30–200 °C/s (air, gas, liquid nitrogen options) |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic |
| Model | DIL0806 A/B |
| Price Range | USD 7,000–14,000 |
| Temperature Range | RT to 1000 °C |
| Heating Rate | 0–20 °C/min |
| Temperature Accuracy | ±1 °C |
| Max. Sample Length | 50 mm |
| Stroke Range | 5 mm |
| Measurement Resolution | 0.1 µm |
| Atmosphere Options | Air, Reducing, Inert |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Model | DIL0806A |
| Temperature Range | RT–1000 °C |
| Heating Rate | 0–20 °C/min |
| Temperature Accuracy | ±0.1 °C |
| Sample Dimensions | 10 mm × 50 mm |
| Atmosphere Compatibility | Inert, Oxidizing, Reducing Gases |
| Measurement Resolution (ΔL) | 0.1 µm |
| Sample Holder Material | Fused Quartz / Alumina |
| c-DTA® Function | Optional |
| Compliance Standards | ASTM E831, ASTM D696, ASTM D3386, DIN 51045 |
| Brand | Huafeng |
|---|---|
| Origin | Hunan, China |

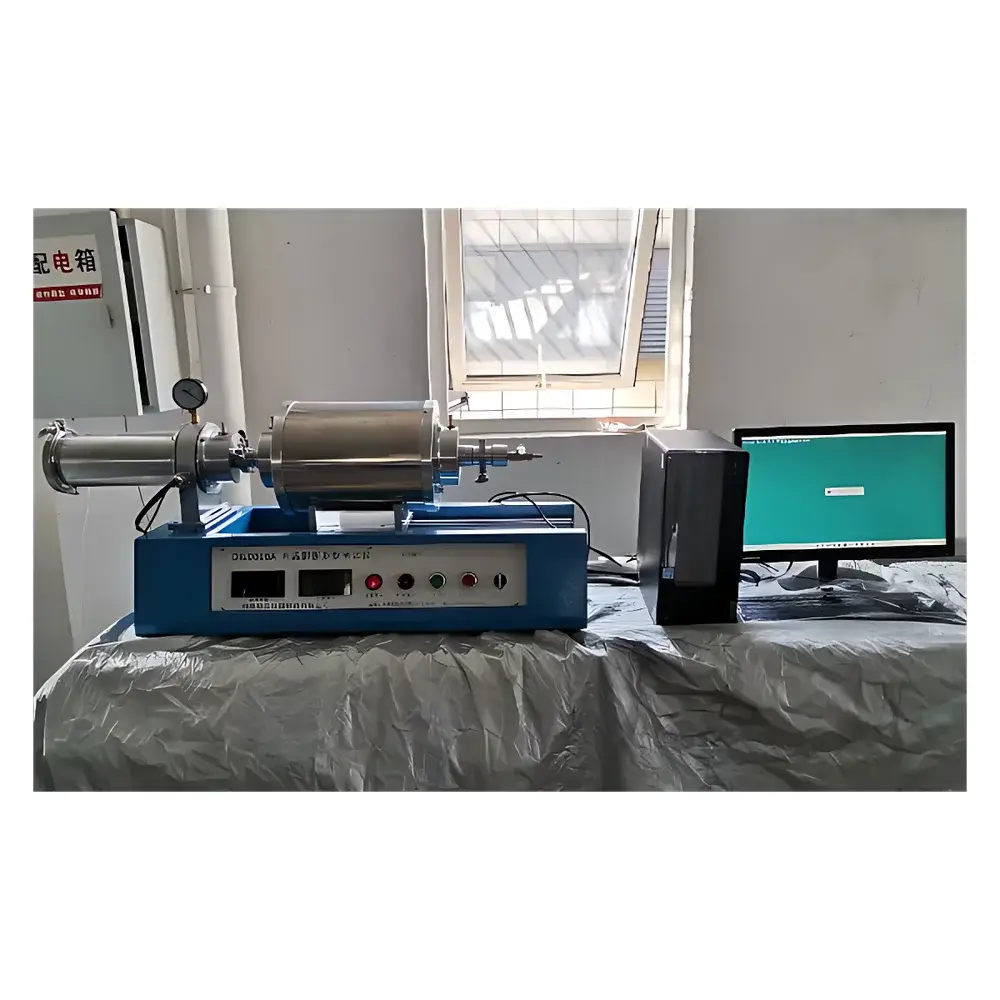

| Model | DIL0806A-1400 |
| Temperature Range | RT to 1400 °C |
| Heating Rate | 0–20 °C/min |
| Temperature Accuracy | ±0.1 °C |
| Displacement Resolution | 0.1 µm |
| Atmosphere Options | Vacuum and Controlled Gas |
| Sample Holder Material | Alumina |
| Maximum Displacement Range | 5000 µm |
| Sample Dimensions | Ø5–8 mm × 25–50 mm (cylindrical or rectangular) |
| Thermal Expansion Coefficient Resolution | 0.001 × 10⁻⁶ K⁻¹ |
| System Measurement Uncertainty | ±0.1% |
| Interface | USB 2.0 |
| Compliance | ASTM E831, ASTM D696, ASTM D3386, DIN 51045 |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

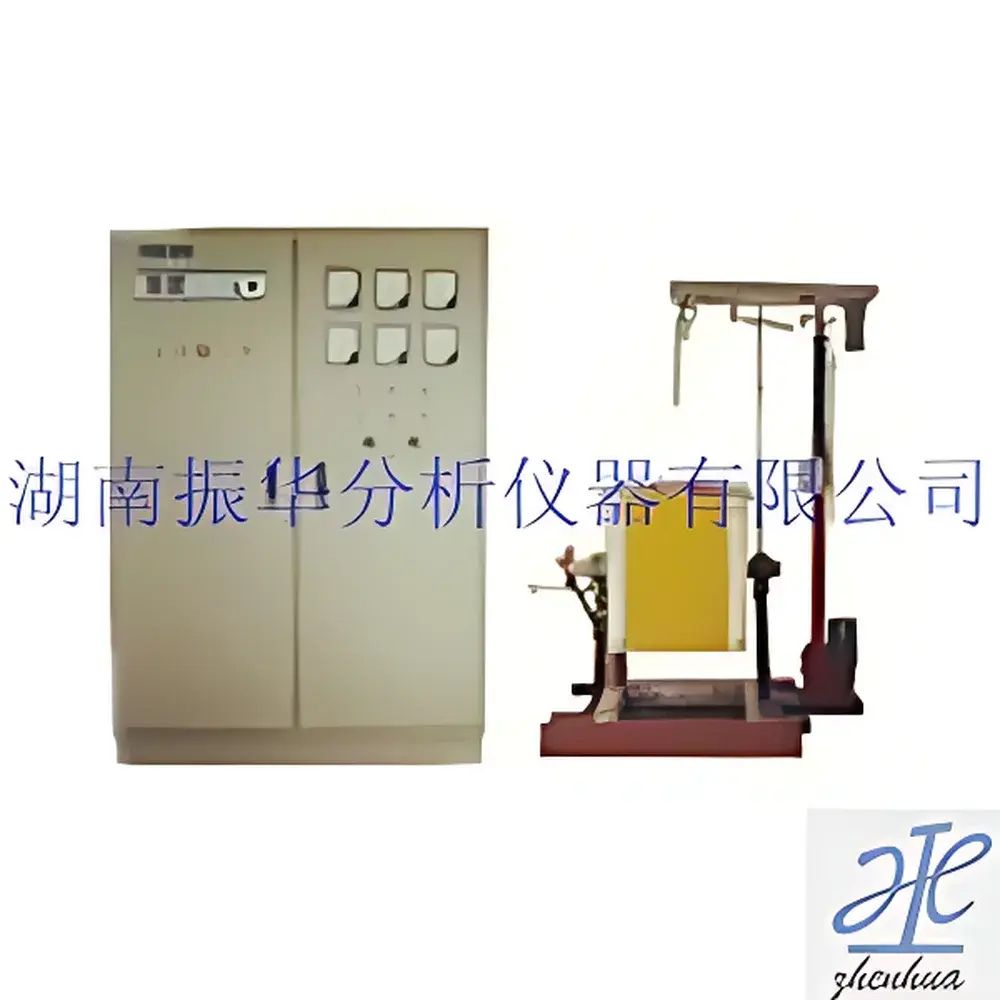

| Model | GYH-A |
| Quotation | Available Upon Request |
| Operating Temperature Range | Up to 800 °C (short-term max 1000 °C) |
| Heating Rate | 0–30 °C/min |
| Temperature Uniformity & Stability | ±2 °C at setpoint |
| Rated Power | 10 kW |
| Electrical Supply | 380 V, 50 Hz, 50 A |
