| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | GYH-A |
| Pricing | Available Upon Request |
| Max Operating Temperature | 1650 °C |
| Heating Rate | 0–10 °C/min |
| Temperature Uniformity at Hold | ±2 °C |
| Gas Flow Control Range | 1–10 L/min |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | GTM-1 / GTM-2 |
| Load Capacity Options | 0–5 kN, 0–10 kN, 0–20 kN, 0–50 kN |
| Measurement Accuracy (Load) | ±0.15% FS |
| Deflection Range | ±5 mm |
| Deflection Accuracy | ±0.5% FS |
| Crosshead Speed | 0–1 mm/min (adjustable) |
| Temperature Capability | GTM-1 — Ambient only |
| Sample Dimension Tolerance per GB/T 1182 & GB/T 1031 | Parallelism ≤0.02 mm, Perpendicularity ≤0.02 mm, Surface Roughness Rz ≤1.60 µm |
| Compliance Standards | GB 10700–2006, GB/T 6569, GB/T 1182, GB/T 1031 |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | GKZ-II- |
| Price Range | USD 7,000 – 14,000 |
| Maximum Test Load | 10 kN / 20 kN |
| Loading Speed Range | 0.01–700 mm/min (adjustable via servo motor) |
| Relative Indication Error | ±1% |
| Operating Temperature | Up to 1600 °C |
| Support Span | 100 mm or 125 mm (customizable) |
| Sample Capacity | 4 specimens (40 × 40 × 160 mm) |
| Atmosphere Control | Oxidizing, reducing, and programmable inert/reactive gas environments (N₂, H₂, Ar, He, CO, NH₃, H₂O vapor) |
| Loading Mechanism | Precision ball-screw actuator with closed-loop servo control |
| Data Acquisition | Industrial PC with Windows OS, proprietary software compliant with ASTM C1161, ISO 5013/5014, GB/T 3002, and GB/T 13243 |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Model | WM |
| Instrument Type | End-Face Tribological Tester |
| Rotational Speed of Abrading Wheel | 75 ± 4 rpm |
| Abrading Wheel 1 Diameter | 200 ± 0.2 mm, Thickness: 10 ± 0.1 mm, Hardness: ≥ HB 500 (per GB/T 3810.7–2006) |
| Abrading Wheel 2 Diameter | 200 ± 0.2 mm, Thickness: 70 ± 0.1 mm, Hardness: ≥ HB 500 (per GB/T 12988–1991) |
| Abrasive Feed Rate | 100 ± 10 g per 100 revolutions |
| Specimen Size | 100 × 150 mm |
| Abrasive Material | F80 white fused alumina (per ISO 8486–1986) |
| Hopper Capacity | > 5 L |
| Applied Loads | 2.5 kg (for GB/T 3810.7–2016), 14 kg (for GB/T 12988–1991) |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | KJY-A |
| Pricing | Available Upon Request |
| Max Operating Temperature | 1650 °C |
| Short-Term Peak Temperature | 1700 °C |
| Chamber Dimensions (L×W×H) | 320 mm × 210 mm × 190 mm |
| Heating Rate | 0–15 °C/min |
| Temperature Uniformity (at Setpoint) | ±2 °C |
| Transformer Capacity | 12 kVA |
| Rated Power | 12 kW |
| Input Supply | Dual-Voltage Configuration — 380 V AC, 50 A, 50 Hz (single-phase) or 220 V AC, 5 A, 50 Hz (single-phase) |
| Overall Dimensions (L×W×H) | Furnace Unit: 0.8 m × 0.7 m × 1.7 m |
| Control Cabinet | 0.55 m × 0.55 m × 1.6 m |
| Net Weight | 600 kg |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | RPY-B |
| Quotation | USD 9,800 (FOB) |
| Instrument Type | Thermal-Mechanical Fatigue Tester |
| Maximum Test Load | 1 kN |
| Temperature Range | Ambient to 1100 °C |
| Temperature Uniformity | ±2 °C at setpoint |
| Thermal Cycling Range | Room temperature ↔ 1100 °C |
| Heating Method | Resistance Wire (Ni-Cr Alloy) |
| Specimen Dimensions | Ø36 mm × 50 mm |
| Axial Deformation Measurement Range | 0–10 mm |
| Cooling Time per Cycle | 5–15 min |
| Power Consumption | 12 kW |
| Overall Dimensions (L×W×H) | 1200 × 650 × 1650 mm |
| Net Weight | 160 kg |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | DTM-II |
| Price | USD 7,000 (FOB) |
| Frequency Range | 100–20 kHz |
| Frequency Resolution | 1 Hz |
| Frequency Accuracy | ±0.5% |
| Dynamic Elastic Modulus Range | Corresponding to measured resonance frequency |
| Modulus Resolution | 0.05 GPa |
| Modulus Accuracy | ±0.1 GPa |
| System Relative Error | ±0.15% |
| Damping/Internal Friction (Q⁻¹) | 1×10⁻⁵ to 0.1 |
| Test Temperature | Ambient to 1750 °C |
| Shear Modulus Measurement | Yes |
| Poisson’s Ratio Calculation | Yes |
| Data Interface | RS-232/USB (optional) |
| Display Modes | Resonance Frequency, Dynamic Elastic Modulus, Spectral Plot, Damping Index |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Distributor |
| Product Origin | Domestic |

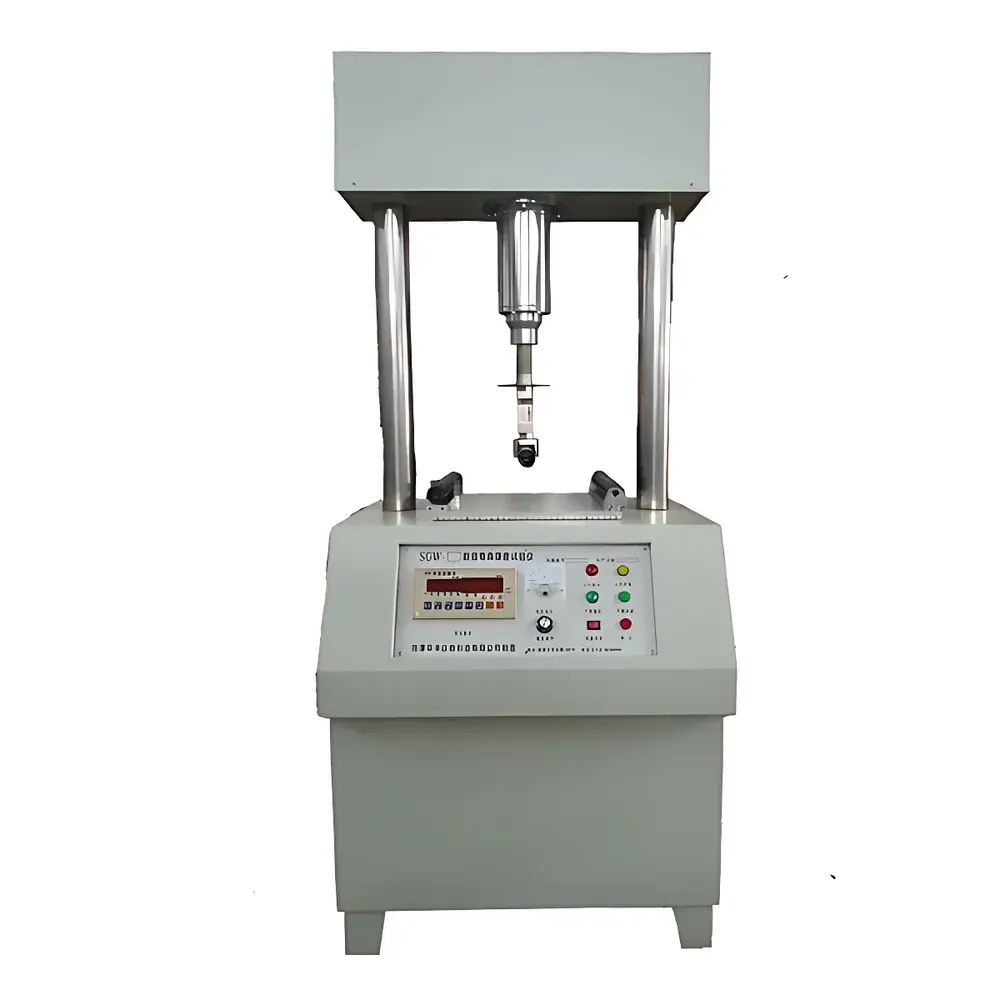

| Model | SGW |
| Price Range | USD 1,400 – 7,000 (FOB) |
| Max Test Load | 10 kN |
| Load Application Rate | 5–700 N/s |
| Platen Spacing | 200 mm |
| Platen Dimensions | 300 × 300 mm |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China-made) |
| Model | GZL-B |
| Pricing | Upon Request |
| Max Operating Temperature | 1600 °C |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Temperature Sensor | Type B Platinum–Rhodium Thermocouple |
| Heating Rate | 1–15 °C/min (RT–1300 °C), 1–5 °C/min (1300–1600 °C) |
| Rated Power | ~16 kW |
| Control System | 50-Stage Programmable PID Controller with Auto-Tuning |
| Temperature Uniformity | ±1 °C (Control), ±2 °C (Soak) |
| Atmosphere Options | Air, N₂, Ar |
| Gas Flow Range | 0–10 L/min |
| Sample Dimensions | 40 × 40 × 230 mm (4 specimens per run) |
| Rotation Mechanism | Planetary motion |
| Crucible | Graphite |
| Slag Addition Port | Integrated top-access port |
| Crucible Lift | Bottom-entry vertical hydraulic/pneumatic lift mechanism |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic |

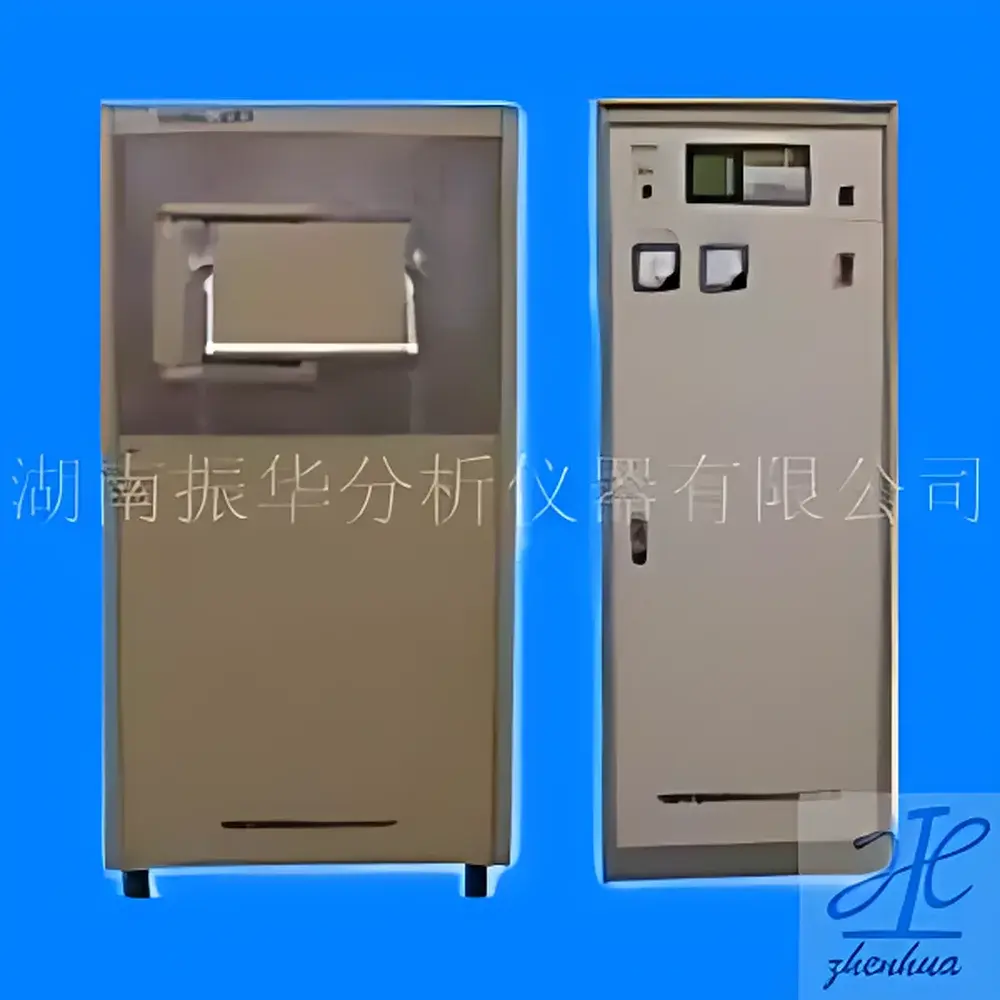

| Model | CSL-II |
| Pricing | Upon Request |
| Maximum Operating Temperature | 1700 °C (short-term up to 1750 °C) |
| Temperature Uniformity in Soak Zone | ±1 °C |
| Ramp Rate | 0–10 °C/min (programmable) |
| Hold Temperature Accuracy | ±2 °C |
| Control System | 50-Step Intelligent PID Programmable Controller |
| Power Rating | 6–36 kW |
| Interface | RS485/RS232 or Ethernet for PC Integration |
| Compliance | Designed per GB/T 5988–2007 “Test Method for Reheating Linear Change of Dense Shaped Refractory Products” |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Model | BLP-10 |
| Sensor Range | 0–6 MPa (safety overload: 7.2 MPa) |
| Accuracy | <0.5% FS |
| Display Resolution | 0.001 MPa |
| Pressure Ramp Rate | 0.58 ± 0.1 MPa/s (4 ± 1 bar/s) |
| Test Media | Deionized Water |
| Operating Temperature | 5–40 °C |
| Power Supply | 220 V, 50 Hz, 0.6 kW |
| Test Modes | Pass/Fail (Method A), Incremental (Method A), Destructive (Method B) |
| Compliance | GB/T 4546–2008, ISO 7458:1989 |
| [Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | CHY-II-17/16 |
| Heating Capacity | 1650 °C / 1750 °C (selectable) |
| Max. Operating Temperature | 1600 °C / 1700 °C |
| Temperature Control Accuracy | ±2 °C during ramp |
| Heating Rate | 0–20 °C/min (programmable) |
| Programmable Ramp Segments | ≥30 |
| Deformation Measurement Range | 0–10 mm |
| Deformation Resolution | ≤0.03 mm |
| Specimen Dimensions | 50 ±0.5 mm height × 36 ±0.15 mm or 50 ±0.35 mm diameter |
| Uniform Temperature Zone Height | ≥75 mm (ΔT ≤20 °C) |
| Applied Load Options | 0.1 MPa, 0.2 MPa |
| Load Application Range | 100–1000 N (digital force display, 1 N resolution) |
| Power Rating | 3.5–6 kW |
| Compliance Standards | YB/T 370, GB/T 5989, ISO 1893:1989] |
| Key | Max Sample Mass: 1500 g |
|---|---|
| Mass Resolution | 0.01 g |
| Max Operating Temperature | 1600 °C (short-term up to 1650 °C) |
| Heating Rate | 0–10 °C/min |
| Isothermal Temperature Stability | ±2 °C |
| Atmosphere Options | Air, N₂, Ar |
| Chamber Pressure Range | −0.095 to 0.1 MPa |
| Power Supply | 220 V, 8 kW, 50 Hz |
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (PRC) |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic |
| Model | JB |
| Price Range | USD 1,400–2,800 |
| Instrument Type | Pendulum Impact Tester |
| Impact Energy | 2.156 J |
| Impact Velocity | Adjustable |
| Pendulum Torque (Impact Constant) | 120 N·mm |
| Load Cell Range | 100 N |
| Maximum Lifting Height | 120 mm |
| Scale Division Value | 0.028 J |
| Pendulum Raise Angle | 120° |
| Distance from Pendulum Pivot to Impact Point | 300 mm |
| Vertical Travel of Test Table | 120 mm |
| Longitudinal Travel of Test Table | 210 mm |
| Sample Dimensions | Flat plates 6–10.5 inches in diameter |
| Net Weight | 50 kg |
| Overall Dimensions | 890 × 370 × 925 mm |
| Key | Origin: Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Regional Origin | Domestic (PRC) |
| Model | SYD |
| Pricing | Available Upon Request |
| Max Load Options | 30 kN, 50 kN, 100 kN, 200 kN, 300 kN |
| Relative Indication Error | ±1% |
| Hydraulic Pump Rated Pressure | 25 MPa |
| Flexural Roller Diameter | 30 mm |
| Max Spacing Between Lower Rollers | 450 mm |
| Center Distance Between Upper Rollers | 150 mm |
| Center Distance Between Lower Rollers | 450 mm |
| Support Plate Length | 155 mm |
| Max Clearance Between Compression Platens | 230 mm |
| Piston Diameter × Stroke | 125 mm × 80 mm |
| Piston Stroke | 120 mm |
| Motor Power | 0.75 kW |
| Overall Dimensions (L×W×H) | 850 × 600 × 1340 mm |
| Compliance | GB/T 3722 |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Model | SKZ-1000B |
| Max Test Load | 1 kN / 5 kN / 10 kN / 20 kN |
| Loading Rate Range | 5–700 N/s |
| Specimen Size Range | 50×60 mm to 1200×1200 mm |
| Power Supply | 220 V, 0.8 kW |
| Data Output | PC-connected digital acquisition with automatic peak detection and storage |
| Display | Dual-mode digital interface showing real-time load, auto-captured peak load, and adjustable loading rate |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | SKZ-1000B |
| Price Range | USD 140–1,400 (FOB) |
| Maximum Test Load | 10 kN |
| Load Application Rate | 5–700 N/s (digitally adjustable) |
| Platen Spacing | 100 mm |
| Platen Dimensions | 1000 × 1000 mm |
| Specimen Size Range | 50 × 60 mm to 1000 × 1000 mm |
| Load Measurement Accuracy | ±0.5% of full scale |
| Power Supply | 220 V AC, 0.8 kW |
| Loading Mode | Constant-rate motor-driven displacement control with real-time digital speed display |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Regional Origin | Domestic (PRC) |
| Model | GTM- |
| Price Range | USD 1,400 – 2,800 |
| Load Capacity Options | 0–5 kN, 0–10 kN, 0–20 kN, 0–50 kN |
| Measurement Accuracy | ±0.15% FS (Load), ±0.5% FS (Deformation) |
| Deformation Range | ±5 mm |
| Displacement Rate | 0–1 mm/min (adjustable) |
| Temperature Capability | GTM-1 — Ambient only |
| Sample Dimension Tolerance | Parallelism ≤0.02 mm, Perpendicularity ≤0.02 mm, Surface Roughness Rz ≤1.60 µm |
| Strain Gauge Length Limits | ≤1 mm (3-point bend), ≤5 mm (4-point bend) |
| Compliance Standards | GB/T 10700–2006, GB/T 6569, GB/T 1182, GB/T 1031 |
