| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic (China) |

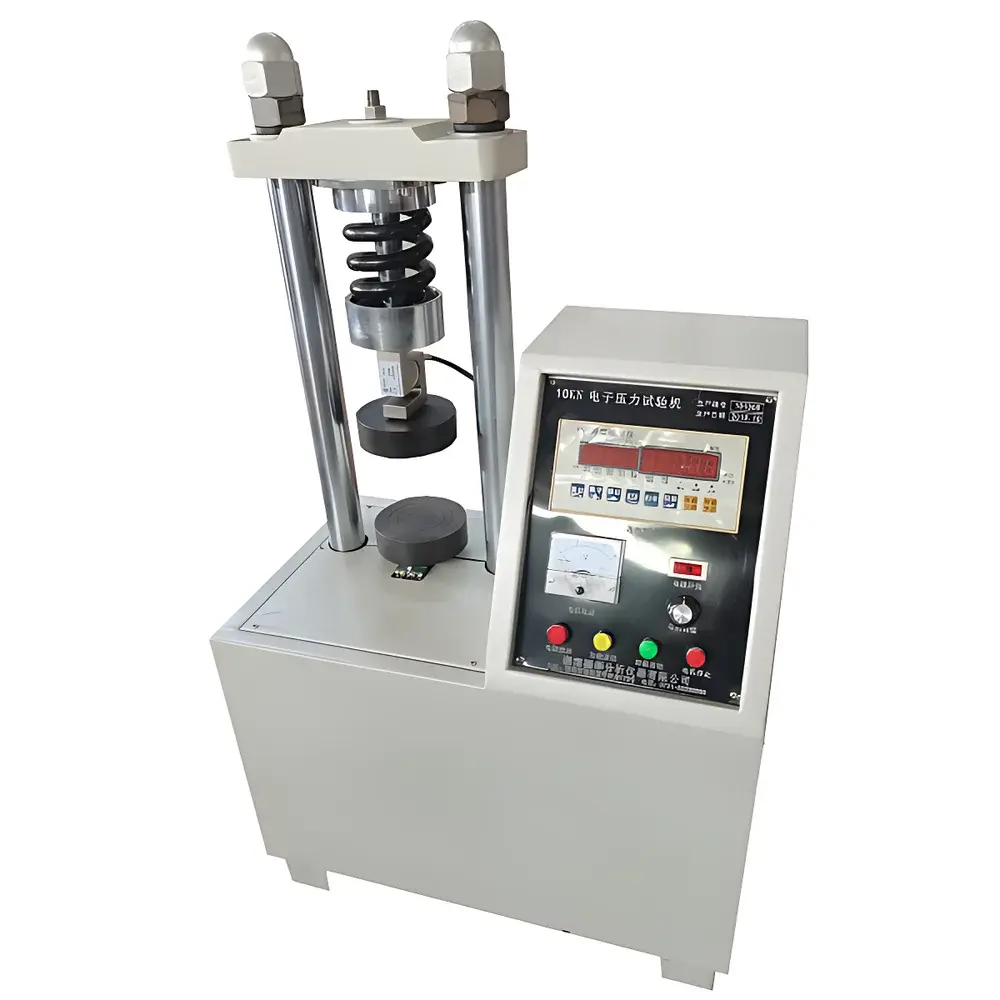

| Model | SKE-10KN |
| Quotation | Upon Request |
| Load Capacity | 10,000 N |
| Platen Diameter | 50 mm |
| Stroke | 150 mm |
| Loading Rate Range | 5–700 N/s |
| Force Accuracy | ±0.1 % FS |
| System Accuracy | 0.5 % |
| Power Supply | 220 V, 50 Hz |
| Motor Power | 800 W |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic |
| Model | LM |
| Pricing | Upon Request |
| Sample Capacity | 2 or 8 tiles (selectable) |
| Sample Size | 100 × 100 mm |
| Rotational Speed Range | 300–3000 rpm |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

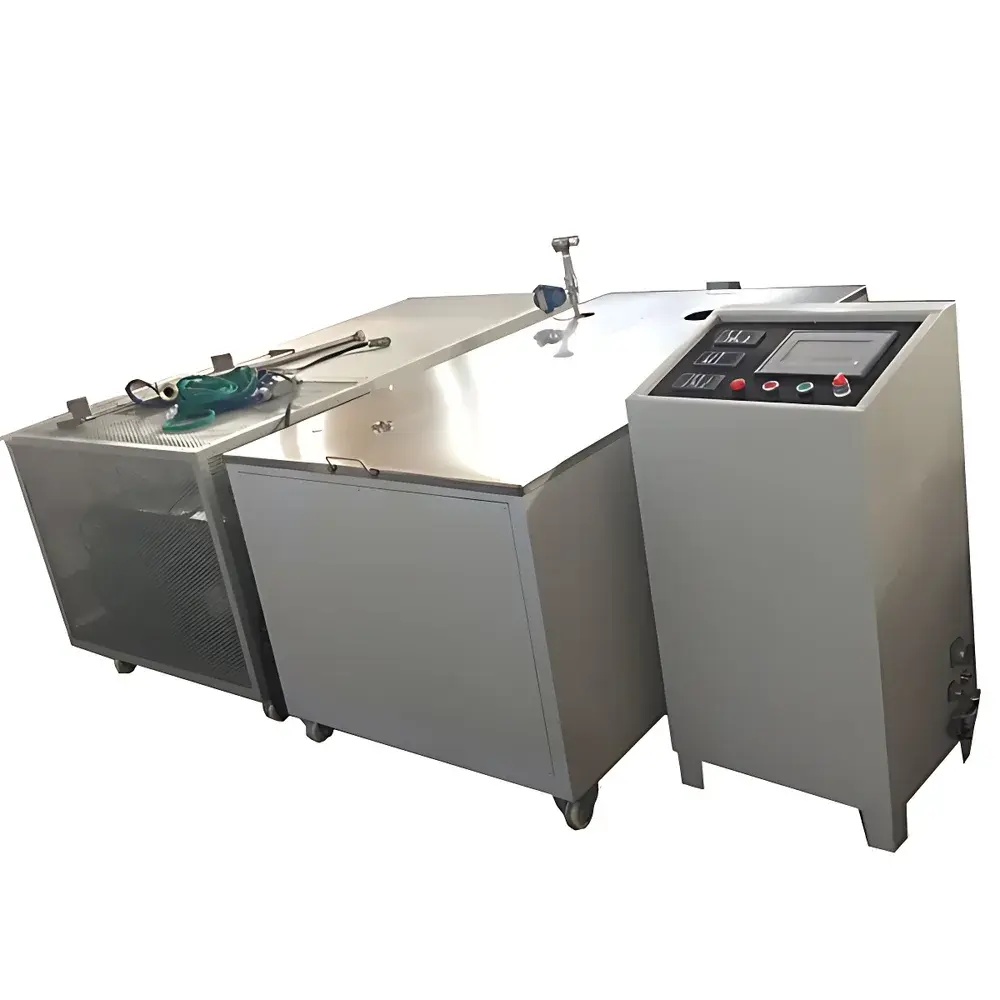

| Model | SQ005B |
| Pricing | Available Upon Request |
| Cold Water Pressure Range | 0.05–0.5 MPa (Accuracy Class 1.0) |
| Hot Water Pressure Range | 0.05–0.5 MPa (Accuracy Class 1.0) |
| Flow Rate Measurement Range | 0.05–0.6 L/s (Accuracy Class 1.0) |
| Power Supply | 380 VAC, 36 kW |
| Cold Water Temperature Control | Ambient to 10 ± 1 °C |
| Hot Water Temperature Control | Ambient to 90 ± 1 °C |
| Cold Water Tank Capacity | 300 L |
| Hot Water Tank Capacity | 350 L |
| Compliant Standards | AS 3588:1996, EN 14688:2015, EN 14516:2006, EN 13310:2015 |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Model | SQ006 |
| Maximum Furnace Temperature | 500 °C |
| Temperature Control Accuracy | ±2 °C at 500 °C |
| Effective Chamber Dimensions | 350 × 350 × 350 mm |
| Cold-to-500 °C Ramp Time | 120 min |
| Heating Power | 5 kW |
| Timer Range | 0–180 min |
| Air Compressor Capacity | 30 L |
| Air Compressor Power | 1 kW |
| Control Interface | 10-inch Industrial Touchscreen HMI with SCADA-based Configuration Software |
| Compliance | GB/T 25994–2010, GB/T 3810.9–2016 |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Model | GDT |
| Temperature Range | Ambient to 900 °C / 1400 °C / 1600 °C (selectable furnace configuration) |
| Constant Current Source | 0–40 A, 0–24 V, stability ±0.01 A |
| Sample Diameter | 20–50 mm |
| Sample Length | 100 mm (customizable) |
| Voltage Tap Spacing | Adjustable |
| Dimensional Measurement | Digital Caliper, 0–150 mm, resolution 0.01 mm |
| Voltage Measurement | Digital Voltmeter, 0–199.99 mV, resolution 0.01 mV |
| Temperature Controller | Japanese imported microcomputer-based programmable controller with SSR solid-state relay drive and universal thermocouple input (K, S, R types supported) |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Model | PM |
| Instrument Type | Portable Green Density Penetrometer |
| Application | Green density evaluation of non-metallic powder compacts (e.g., ceramic, graphite, refractory preforms) |
| Penetrator Tip Diameters | Ø0.5 mm, Ø0.75 mm, Ø1.0 mm (stainless steel) |
| Maximum Penetrator Travel Distance from Worktable | ~100 mm |
| Horizontal Distance from Penetrator Axis to Machine Frame | 210 mm |
| Test Load Options | Selectable dead-weight masses (kg) |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | TXY |
| Pricing | Available Upon Request |
| Immersion Time Range | 1–120 min (adjustable) |
| Water Filling Time Range | 0–99 min (adjustable) |
| Vacuum Pressure Options | –0.1 MPa (–100 kPa), 20 kPa (abs), or 10 kPa (abs) |
| Repeatability Error | <1% |
| Sample Chamber Dimensions | Ø400 × 300 mm or Ø300 × 300 mm (stainless steel or polypropylene construction |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | DCT |
| Max. Applied Force | 300 kg |
| Max. Piston Stroke | 130 mm |
| Current Output Range | 0–5 A (Resolution: 0.01 A) |
| Voltage Measurement Range | 0–200 mV (Resolution: 0.01 mV) |
| Resistivity Measurement Range | 1–1800 µΩ·m |
| Compliant Standards | ISO 10143:1995, YS/T 587.6 |
| Brand | ZHENHUAFENXI |
|---|---|
| Model | TCS-II |
| Power Supply | AC 220 V, 50 Hz |
| Test Pressure Range | 0.05–1.0 MPa |
| Flow Rate Range | 0–100 L/min (Accuracy Class 0.2) |
| Time Setting Range | 0–99999 s |
| Outlet Diameters | Φ20 mm, Φ40 mm |
| Maximum Flush Volume | 13 L |
| Maximum Flush Duration | 60 s |
| Sampling Interval | ≤70 ms |
| Liquid Level Resolution | 0.1 mm |
| Compliance | GB/T 26750–2011, GB 6952–2015, JC/T 931–2003, EN 997:2003, AS 1172.1–2005, AS 1172.2–1999, ATS 5200.016–2005, ATS 5200.017–2005, ASME A112.19.6 |
| Key | Temperature Range: 1000 °C / 1400 °C / 1600 °C selectable |
|---|---|
| Heating/Cooling Rate | 0.01–20 K/min (programmable) |
| Displacement Measurement | LVDT differential inductive transducer |
| Max. Deflection Range | 5000 µm |
| Sample Dimensions | 260 mm (L) × ~12 mm (W) × ~6 mm (T) |
| glazed zone | ~80 mm central segment |
| Sample Holder | Metallic spiral clamping fixture |
| Atmosphere | Ambient air (static) or user-specified gas |
| Heating Power | ≥3 kW |
| Supply Voltage | 220 V or 380 V AC |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | General Distributor |
| Country of Origin | Domestic (China) |
| Model | DMY |
| Pricing | Upon Request |
| Measuring Range | 0–490 N |
| Force Accuracy | ±0.3% F.S. |
| Force Display Resolution | 0.1 N |
| Display | 4-digit LED, unit selectable (N) |
| Sample Size | Three specimens, each 100 mm × 100 mm |
| Measurement Method | Static Sliding Block Method (per GB/T 4100–2015 & JC/T 1050–2007) |
| Automatic � | ₛ Calculation: Yes |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

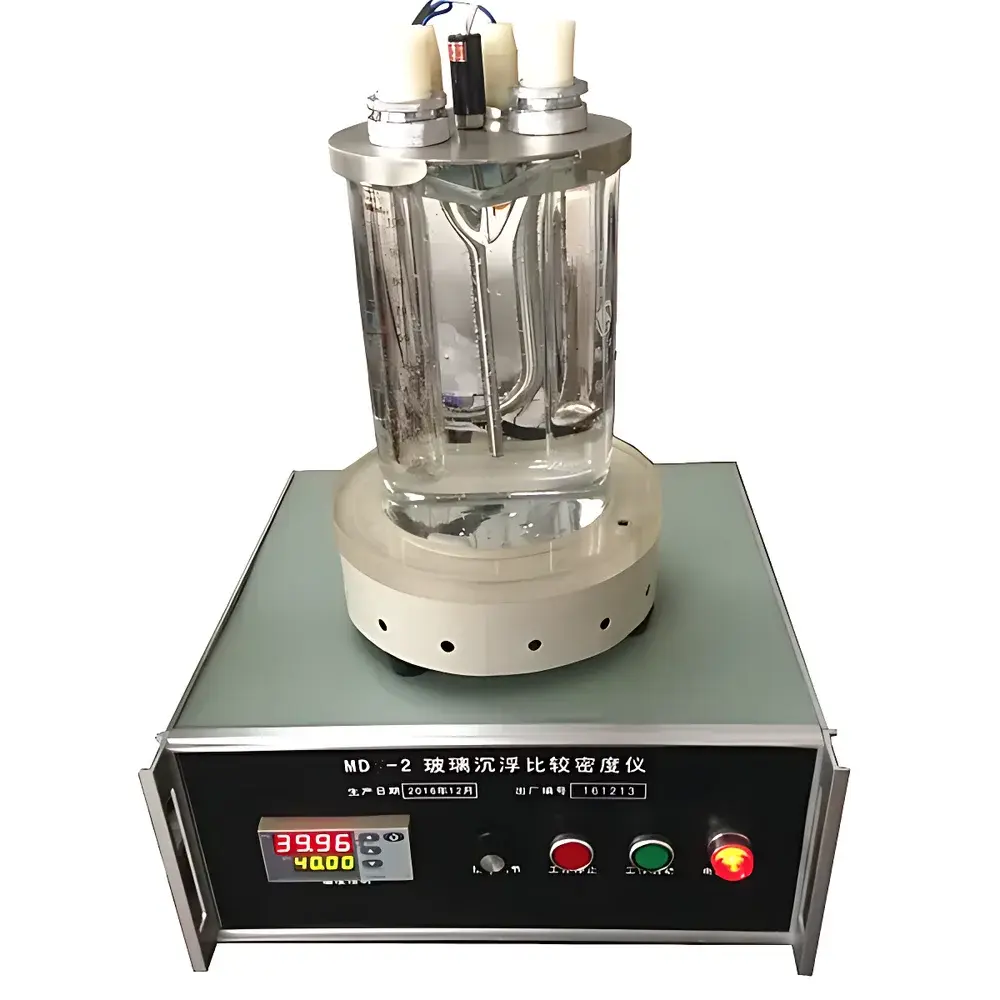

| Model | MD-2 / MD-4 / MD-5 |
| Price Range | USD 700–1,400 (FOB) |
| Application Scope | General-purpose solid density measurement |
| Instrument Type | Buoyancy-based density analyzer |
| Form Factor | Benchtop laboratory instrument |
| Sample Type | Non-porous solids (glass, ceramics, sintered materials) |
| Density Range | 1.1–3.3 g/cm³ |
| Density Resolution | 0.0001 g/cm³ |
| Density Accuracy | ±0.0001 g/cm³ |
| Temperature Control Range | 10–50 °C |
| Temperature Stability | ±0.01 °C |
| Horizontal Bath Uniformity | ±0.01 °C |
| Vertical Bath Uniformity | ±0.03 °C |
| Heating Rate | ≥0.1 °C/min (±0.02 °C/min) |
| Magnetic Stirring | Stepless speed control, 1–1000 rpm |
| Power Supply | 220 V AC, 1000 W |
| Compliance Standard | GB/T 14901–1994 (Glass — Determination of Density by Sink-Float Method) |
| Minimum Sample Mass | 1 g |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | DCY3F |
| Pricing | Available Upon Request |
| Max. Applied Force | 300 kg |
| Max. Piston Stroke | 100 mm |
| Current Output Range | 0–5 A (±0.01 A) |
| Voltage Measurement Range | 0–200 mV (±0.01 mV) |
| Sample Tube Inner Diameter | ≥20 mm (small), ≥30 mm (large) |
| Cross-sectional Area | ≥314 mm² (small), ≥700 mm² (large) |
| Electrode Spacing | 10 mm (small tube), 20 mm (large tube) |
| Resistivity Measurement Range | 1–1800 µΩ·m |
| Compliance | ISO 10143:1995, YS/T 587.6 |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | TZY |
| Pricing | Upon Request |
| Measurement Accuracy | ±0.1 mm |
| Measuring Range Options | 60×60–600×600 mm |
| Optional Extended Ranges | up to 800×800 mm and 1000×1000 mm |
| Standard Reference Plates | Aluminum alloy, custom dimensions (e.g., 152×152 mm to 1000×1000 mm), certified accuracy <0.1 mm with metrological calibration certificate |
| Output Interface | Digital indicator or PC-compatible data acquisition |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic |

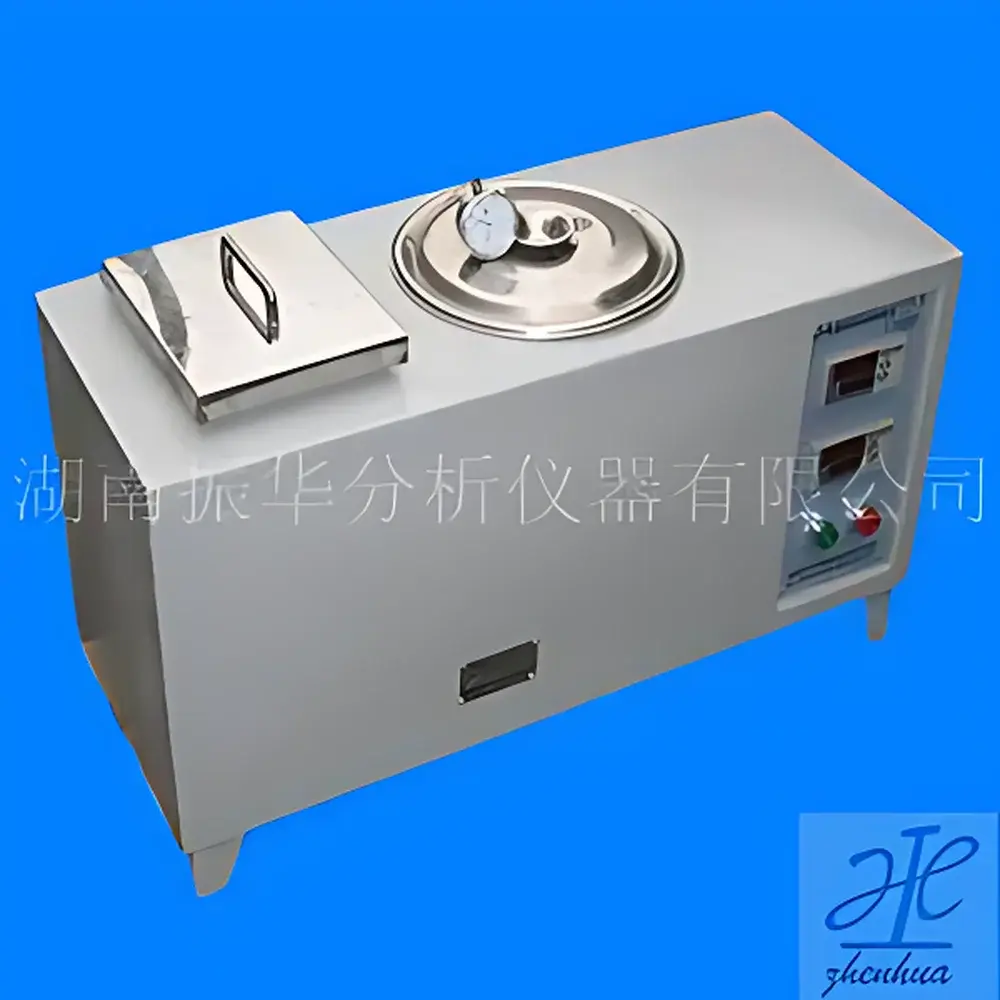

| Model | SPY |
| Pricing | Upon Request |
| Max Furnace Temperature | 1000 °C |
| Heating Rate | Programmable |
| Power Supply | 200 V ±10%, 50 Hz |
| Max Power Consumption | 2 kW |
| Displacement Measurement Error | ≤0.01 mm |
| Temperature Recording Accuracy | ±1% of reading |
| Loading Range | 35–500 g |
| Reproducibility at 1000 °C | Expansion Rate δ ≤0.036% |
| Displacement Indication | Digital or Mechanical (Dial Indicator), Optional Resolution: 1 µm |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Regional Origin | Domestic (China) |

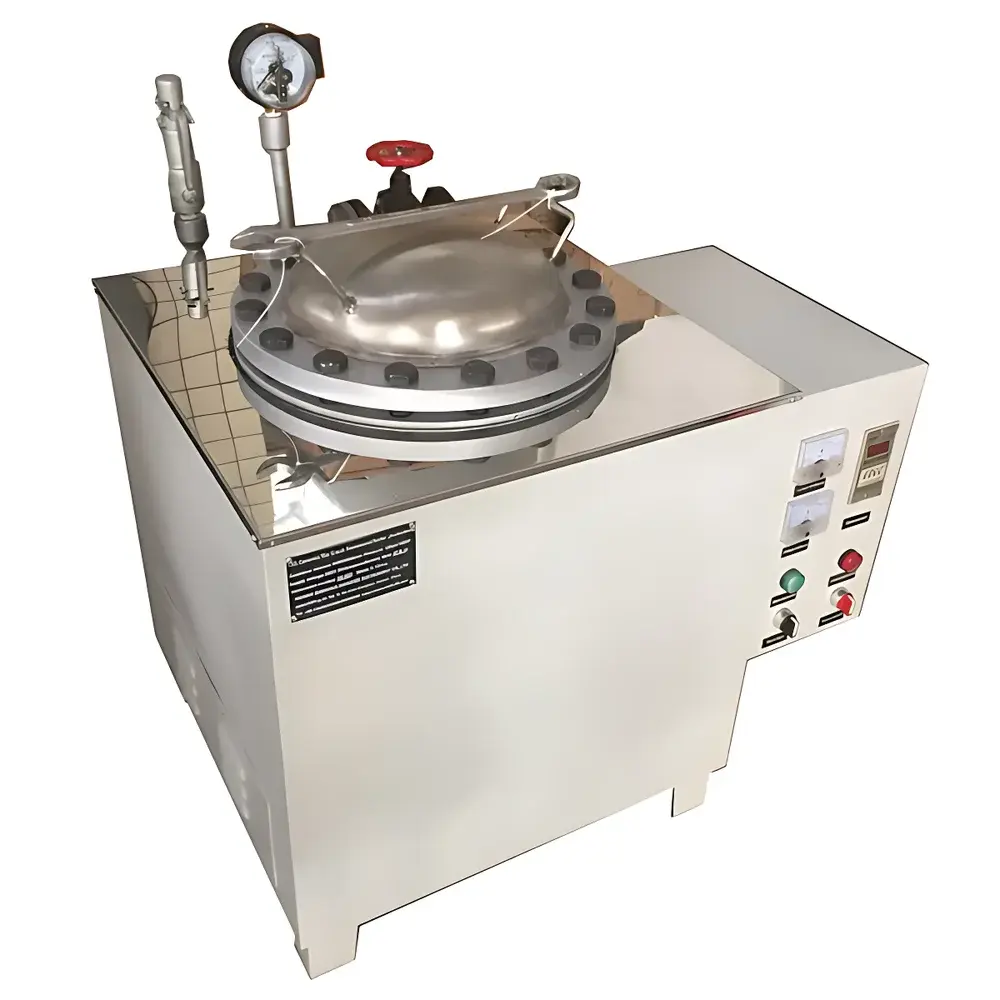

| Model | TKL |
| Voltage | 380 V AC, 2-phase or 3-phase 4-wire |
| Power Rating | 6 kW / 9 kW |
| Chamber Dimensions | Φ300 × 300 mm or Φ500 × 500 mm (custom sizes available) |
| Maximum Rated Pressure | 1 MPa |
| Pressure Control Accuracy | ±20 kPa |
| Control System | Solid-state contactless pressure holding with digital timer setting |
| Compliance | GB/T 3810.11–2006 |
| Brand | ZHENHUAFENXI |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | GM-3 |
| Current Output | 5 A (adjustable constant-current source, resolution 0.001 A) |
| Voltage Measurement Resolution | 0.01 mV |
| Resistivity Resolution | 0.01 µΩ·m |
| Applied Pressure Range | 0–200 kg (motor-driven automatic loading) |
| Power Consumption | <100 W |
| Input Power | 220 V ±10%, 50 Hz |
| Compliance Standard | YS/T 587.6–2006 |
| Origin | Hunan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | MDZ-II |
| Pricing | Available Upon Request |
| Maximum Sample Volume | 40 cm³ |
| Accuracy | ±0.15% |
| Repeatability | ±0.05% |
| Density Resolution | 0.0001 g/cm³ |
| Carrier Gas | High-Purity Helium or Nitrogen |
| Operating Pressure | ~1.25 atm |
| Dimensions | 385 × 335 × 200 mm |
