| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | 8500 Basic |
| Pricing | Available Upon Request |
| Measurement Range | 0–2000 µm (standard), 0–5000 µm (optional) |
| Resolution | 0.1 µm / 1 µm / 0.01 mm |
| Substrate Compatibility | Ferrous (Fe): steel, iron (min. thickness 0.2 mm) |
| Non-ferrous (NFe) | aluminum, zinc, copper, brass (min. thickness 0.05 mm) |
| Measurement Area | 20 × 20 mm² |
| Probe Types | 5 modular interchangeable probes (magnetic induction, eddy current, or dual-mode) |
| Memory Capacity | 100 readings |
| Calibration | Single- or dual-point user-defined curve |
| Display | High-resolution backlit LCD with 180° flip orientation |
| Indicators | Dual-color (red/green) LED status feedback |
| Keypad | Illuminated 4-directional navigation keys |
| Compliance | ISO 2178, ISO 2360, DIN 50981, BS 3900-E7, ASTM B499, ASTM D7091 |
| Certification | Traceable calibration certificate issued by PTB (Physikalisch-Technische Bundesanstalt, Germany) |
| Optional Accessories | QuaNix PC software, USB interface cable |

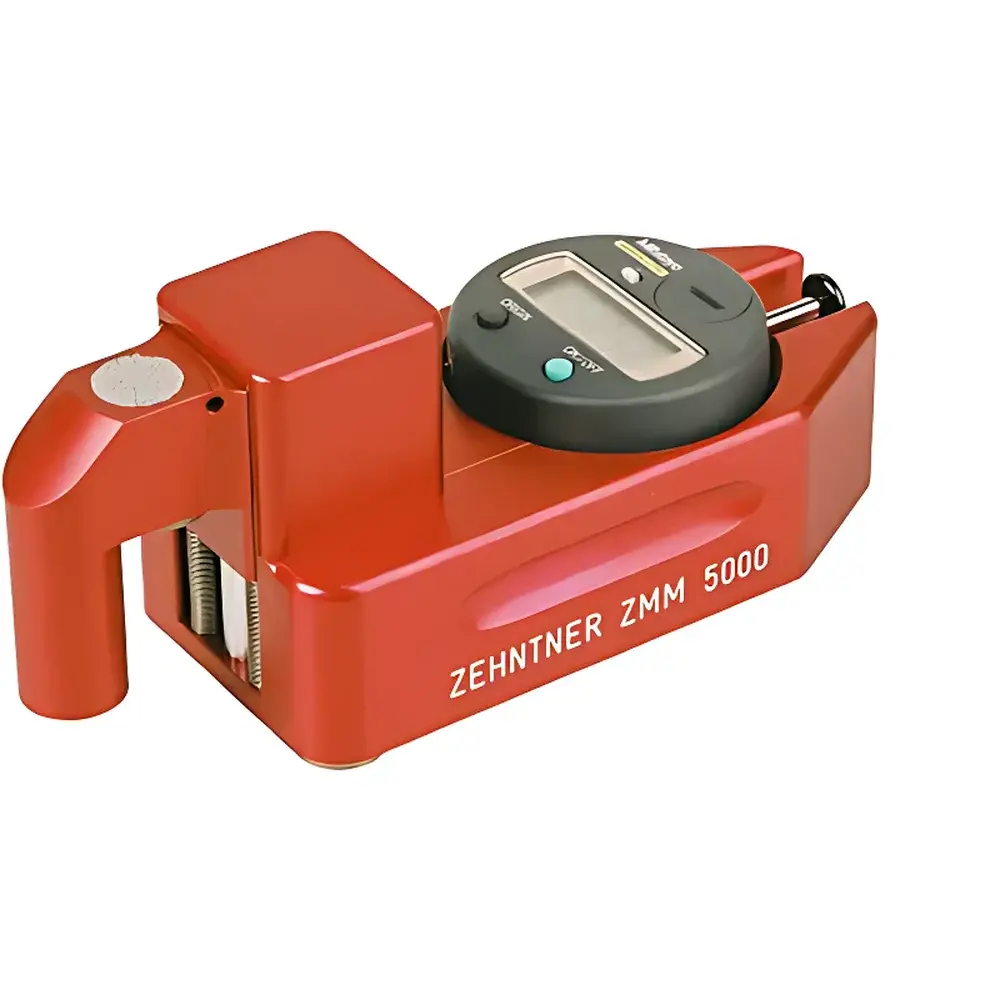

| Brand | Zehntner |
|---|---|
| Origin | Switzerland |
| Model | ZMM5000 |
| Measurement Range | ±12.5 mm |
| Resolution | 0.01 mm |
| Body Material | Anodized Aluminum |
| Dimensions | 180 × 70 × 76 mm |
| Weight | 880 g |
| Compliance | EN 13197, EN 13212 |
| Optional Accessories | Measuring Bridge, Thermal Printer, Unit Conversion Display Module |
| Origin | Switzerland |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | ZMM 5000 |
| Pricing | Available Upon Request |
| Brand | Thwing-Albert |
|---|---|
| Origin | USA |
| Model | ProGage Touch Thickness Tester |
| Measuring Range | 40–500 mil (1–12.7 mm) |
| Accuracy | ±0.00004–±0.0005 in (±0.001–±0.013 mm) |
| Display Resolution | 0.00001–0.0001 in (0.01–0.1 µm) |
| Parallelism | ±0.00004–±0.0005 in (±0.001–±0.013 mm) |
| Pressure Foot Diameter | 0.19–2.221 in (4.83–56.41 mm) |
| Anvil Diameter | 2.5 in (63.5 mm) standard, 4.25 in (107.9 mm) optional |
| Dwell Time | 0–20 s adjustable |
| Measurement Speed | 0.013–12.7 mm/sec |
| Sampling Rate | 128 Hz |
| Power | 120–230 VAC, 50–60 Hz, 36 VA |
| Dimensions | 255 × 318.5 × 403.9 mm |
| Net Weight | 24.7 kg |
