| Origin | Spain |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

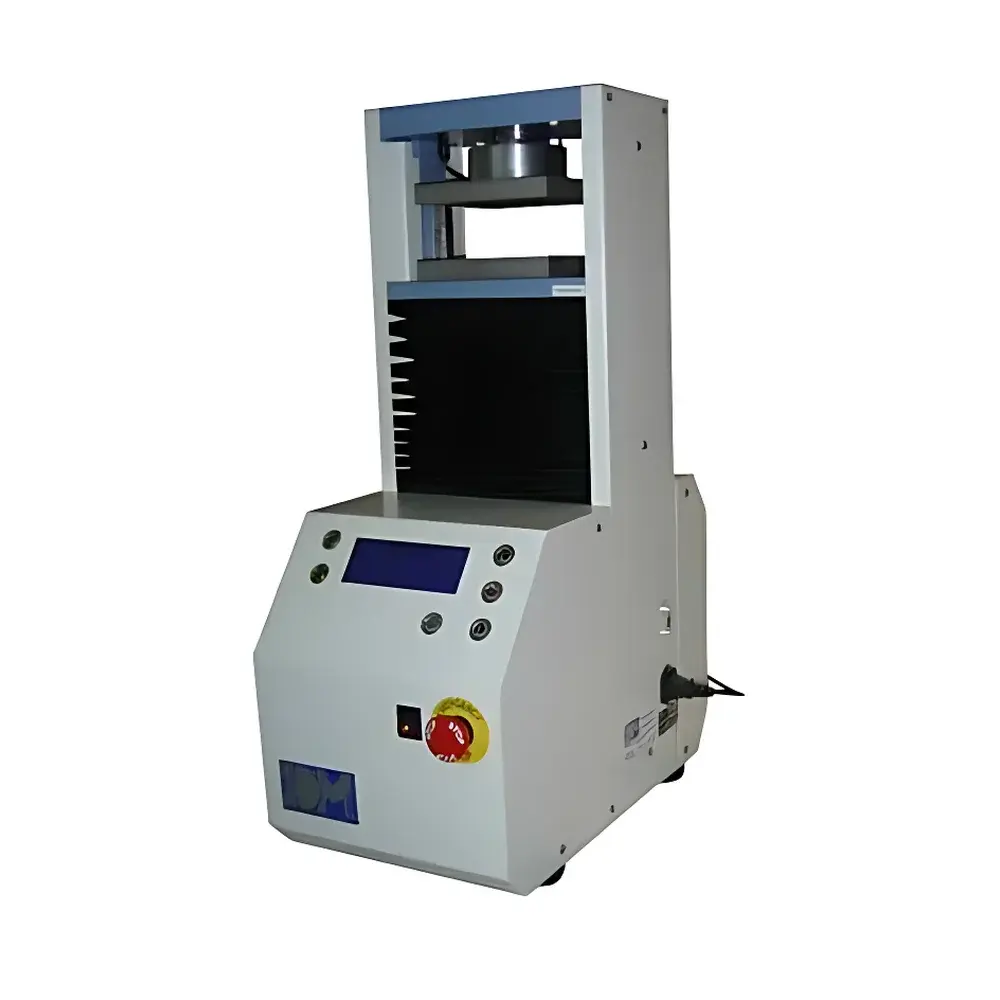

| Model | 040101 |
| Price | Upon Request |
| Load Capacity | 0–5,000 N |
| Force Resolution | 0.5 N |
| Sensor Accuracy | ±0.1% of full scale |
| Measurement Range | 10–5,000 N |
| Test Speed | 3–125 mm/min (electronically controlled, programmable) |
| Test Plate Dimensions | 150 × 150 mm (L × W) |
| Maximum Travel Height | 140 mm |
| Plate Parallelism | ≤1/1000 mm (axial), <0.05 mm (lateral) |
| Return Speed | 125 mm/min |
| Drive System | DC servo motor with low-friction dual-column guidance |
| Overload Protection | Dual fixed + dual movable limit switches |
| Leveling | Four adjustable anti-vibration feet |
| Interface | RS-232 serial port |
| Compatible Software | REGISTRA III |
| Power Supply | 220 V / 50 Hz |
| Dimensions (W×D×H) | 300 × 460 × 720 mm |
| Net Weight | 65 kg |
| Origin | Spain |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | 050101 |
| Price | Upon Request |
| Max Load Capacity | 100 kN (configurable options: 10, 20, 30, 50, 100 kN) |
| Load Accuracy | ±2 N |
| Displacement Resolution | 0.01 mm |
| Crosshead Speed Range | 1–350 mm/min (adjustable) |
| Return Speed | 350 mm/min |
| Platen Dimensions | Up to 1500 × 1500 mm |
| Maximum Test Height | 1500 mm |
| Platen Parallelism | ±1 mm |
| Platen Flatness | <0.25 mm |
| Compliance Standards | DIN EN 22872, ISO 12048, TAPPI T804, UNE 57163/5, FEFCO No. 50, AFNOR H13-001 |
