| Origin | Switzerland |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

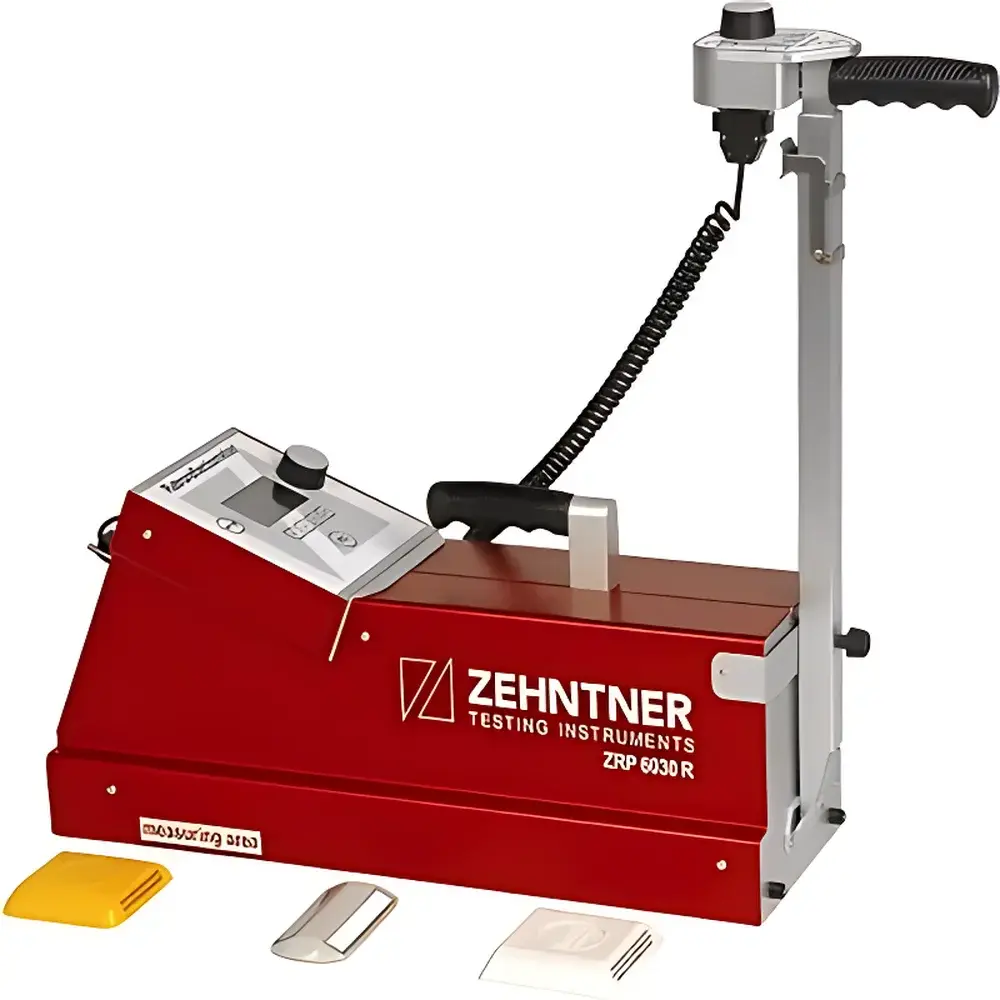

| Model | ZRP 6030 |
| Price | Upon Request |
| Brand | ZEHNTNER |
|---|---|
| Origin | Switzerland |

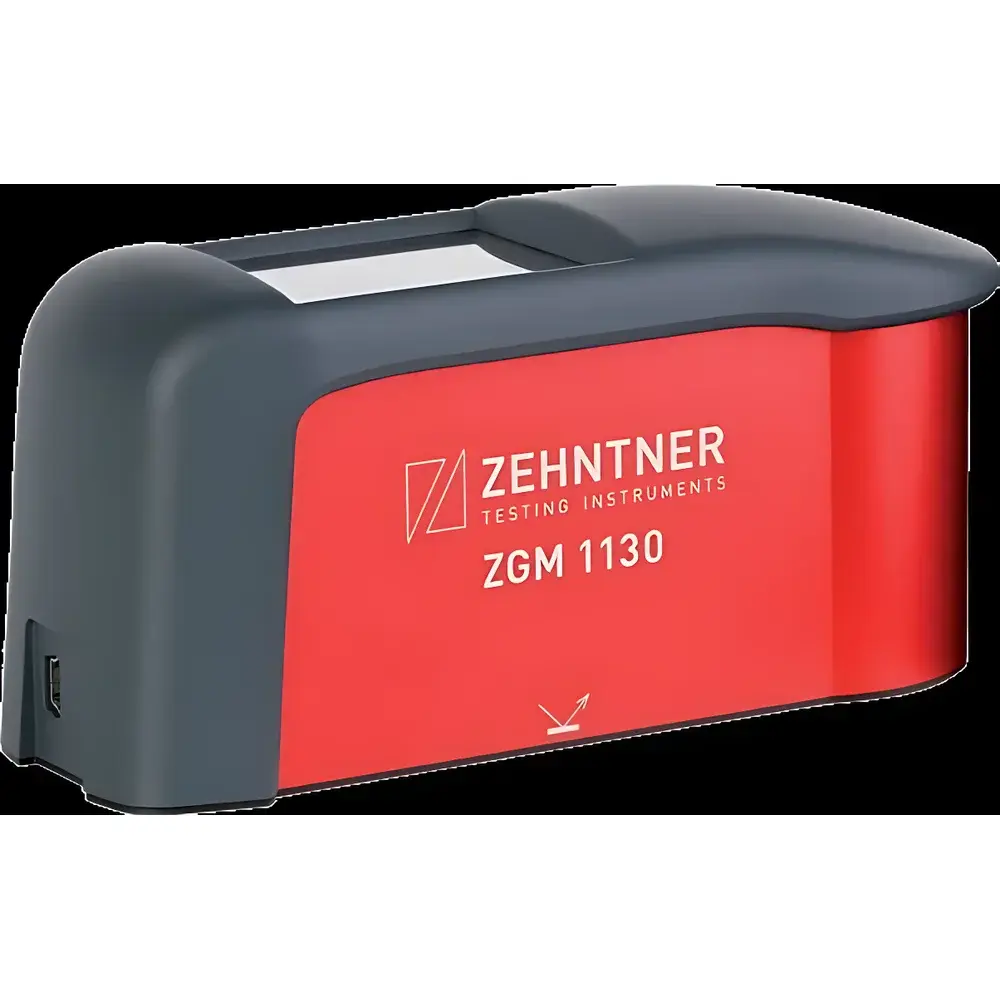

| Model | ZGM1130 |
| Measurement Angles | 20°, 60°, and 85° (user-selectable single/dual/triple-angle modes) |
| Gloss Range | 0–2000 GU |
| Resolution | 0.1 GU (0–199.9 GU), 0.2% (200–2000 GU) |
| Accuracy | ±1% of reading |
| Spot Size | 20° (Ø9.8 mm), 60° (15.5 mm × 8.4 mm), 85° (65.5 mm × 14 mm) |
| Detector | V(λ)-matched photodiode |
| Light Source | Stable LED with spectral compliance to CIE illuminant D65 |
| Power Supply | USB-powered (no internal battery) |
| Dimensions (L×W×H) | ≤150 mm × 52 mm × 71 mm |
| Weight | ≤420 g |
| Calibration Standard | BAM-certified reference tile |
| Compliance | ASTM D523, ASTM D2457, ISO 2813, EN ISO 7668, BS 3900-D6/D13, DIN 67530 |
| Brand | Zehntner |
|---|---|
| Model | ZGM1120 |
| Measurement Angles | 20° / 60° / 85° |
| Gloss Range | 0–2000 GU |
| Accuracy | ±1% of reading |
| Detector | V(λ)-matched photoreceptor |
| Light Source | White LED |
| Power Supply | USB-powered |
| Calibration Standard | BAM-certified reference standards |
| Compliance | ASTM D523, ASTM D2457, BS 3900 Part 5, BS 6161, DIN EN ISO 2813, DIN 67530, JIS Z 8741 |
| Dimensions | ≤99 × 15 × 56 mm (L×W×H) |
| Weight | ≤117 g |
| Warranty | 12 months |
| Software | Gloss Tools v3.x (Windows-based) |
| Brand | Zehntner |
|---|---|
| Origin | Switzerland |
| Model | ZGM1020 / ZGM1022 / ZGM1023 |
| Measurement Angles | 20°, 45°, 60°, 75° (configurable per model) |
| Single-Angle Modes | 20°, 45°, 60°, 75°, 85° |
| Dual-Angle Modes | 20°/60°, 20°/75°, 45°/60°, 45°/45° |
| Mirror-Surface Mode | 20° & 60° |
| Repeatability | ±0.1 GU |
| Calibration Standards Included | Medium-Gloss & High-Gloss Reference Tiles with Precision Alignment Pins |
| Compliance | ISO 2813, ASTM D523, DIN 67530, JIS Z8741 |
| Brand | Zehntner |
|---|---|
| Origin | Switzerland |
| Model | ZRM1013+RL/QD |
| Measurement Principle | CIE Standard Observer (V(λ))–weighted luminance ratio |
| Retroreflection Geometry | RL (RA = 30 m, α = 2.29°, β = 1.24°) and Qd (diffuse illumination, 0°/diffuse viewing) |
| Measurement Area | 50 × 100 mm |
| RL Range | 0–20,000 mcd·m⁻²·lx⁻¹ |
| Qd Range | 0–318 mcd·m⁻²·lx⁻¹ |
| Data Storage | 800 measurements or averaged datasets |
| Display | Backlit LCD |
| Power | Rechargeable Li-ion battery (14.4 V / 5.4 Ah) |
| Dimensions (L×W×H) | 560 × 190 × 280 mm |
| Weight | 7.1 kg (instrument only), 8.4 kg (including ZRC1013+ tripod assembly) |
| Compliance | EN 1436:2018, ASTM E1710-22, ISO 20642:2021 |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

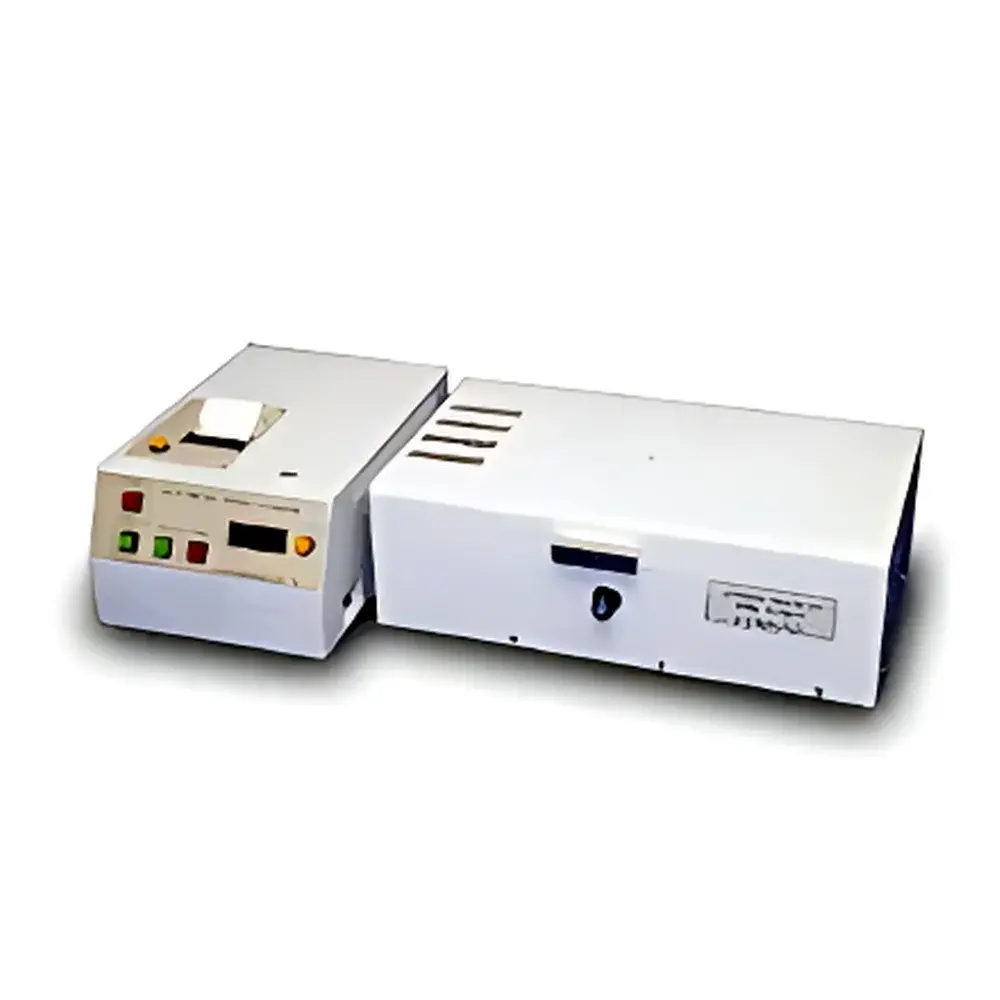

| Model | TC-HIIIDPK |
| Pricing | Available Upon Request |
| Origin | Imported |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Model | TC-HIIIDPK |
| Pricing | Available Upon Request |
| Measurement Principle | Integrating Sphere (60 mm diameter) |
| Compliance | JIS K 6718, JIS K 7105, ASTM D1003 |
| Light Source | Tungsten-Halogen Lamp |
| Detector | Silicon Photodiode |
| Measuring Aperture | Ø10 mm |
| Display | Backlit LCD |
| Output | Built-in Thermal Printer |
| Measured Parameters | Total Transmittance (Tt %), Diffuse Transmittance (Td %), Specular Transmittance (Tp %), Haze (%), Max/Min/Average Statistics |
| A/D Adjustment | User-configurable reference voltage calibration |
| Power Supply | Stabilized DC source for measurement integrity |
