| Origin | Germany |
|---|---|
| Type | Imported Instrument |
| Model | EFM 022 |
| Measurement Distance Ranges | 1 cm (0–8 kV), 2 cm (0–16 kV), 5 cm (0–40 kV), 10 cm (0–80 kV), 20 cm (0–160 kV) |
| Display | Dual-line LCD with backlight (top line: distance in cm |
| bottom line | field voltage in V) |
| Power Supply | 9 V alkaline battery (IEC 6LR61) |
| Dimensions | 122 × 70 × 26 mm |
| Weight | 130 g |
| Operating Mode | CPS (Charged Plate Sensor) compatible (optional external high-voltage converter and flat-plate charger required) |
| Brand | Zehntner |
|---|---|
| Origin | Switzerland |
| Model | ZAA2600 |
| Coating Speed | 1–500 mm/s |
| Coating Length | 1–393 mm |
| Coating Width | 1–300 mm |
| Base Plate Options | Dual-surface (Rubber + Tempered Glass, 553 × 300 × 15 mm) |
| Controller | 5.7-inch Capacitive Touchscreen |
| Construction Material | Anodized Red Aluminum Alloy |
| Weight | 20 kg |
| Compliance | ASTM D823 |
| Warranty | 12 months |
| Brand | Zehntner |
|---|---|
| Origin | Switzerland |

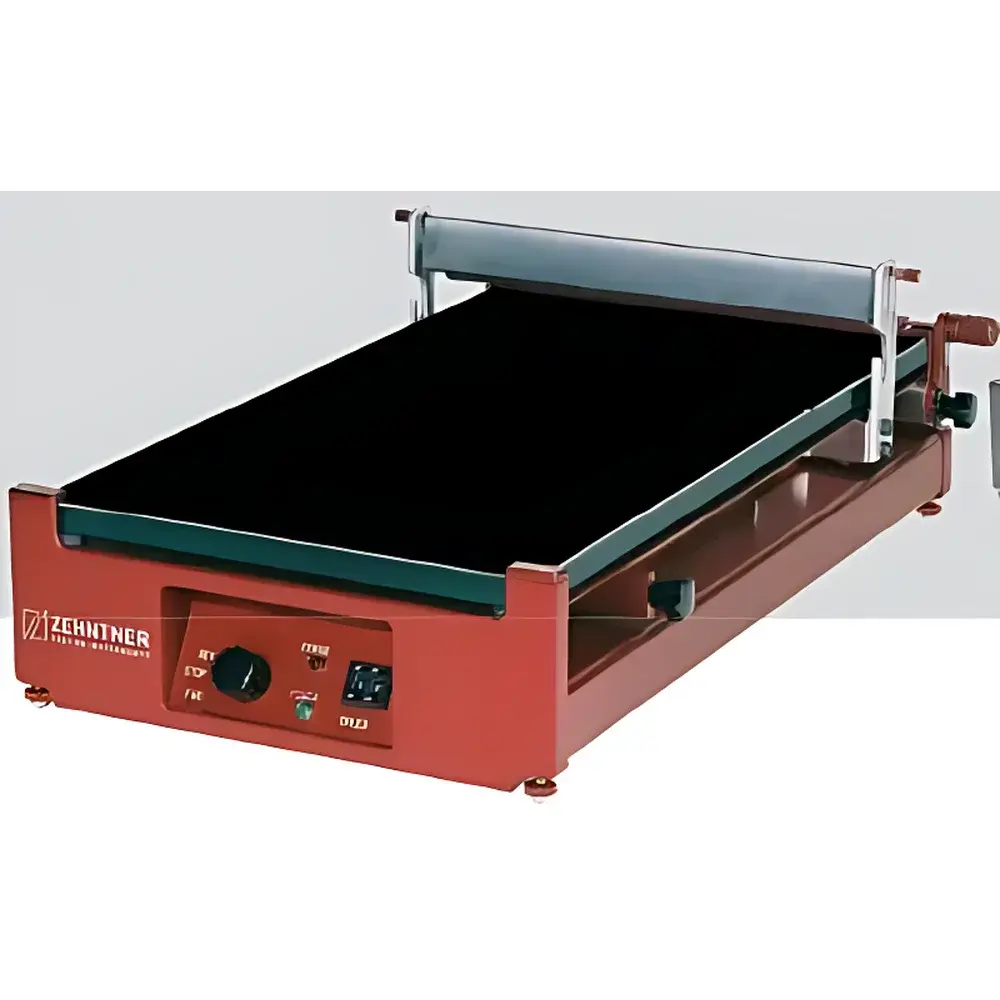

| Model | ZAA2300 |
| Dimensions (L×W×H) | 565 × 382 × 190 mm |
| Glass Plate Dimensions | 553 × 300 × 15 mm |
| Weight | 20 kg (glass plate: 6.4 kg) |
| Coating Speed | 1–99 mm/s |
| Application Length | 1–400 mm |
| Application Width | 1–300 mm |
| Power Supply | 100–230 V, 50–60 Hz |
| Compliance | ASTM D823-95 |
| Coating Head Options | Metal doctor blade, rubber-coated blanket surface, vacuum-assisted substrate holder |
| Included Accessories | Reversible dual-surface glass plate (glass side + rubber-coated printing blanket side), precision leveling device, manufacturer’s certificate of conformance and operation manual, RDS drawdown bars (7 pcs, wet film thicknesses: 4, 6, 12, 24, 40, 50, 60 µm) |
