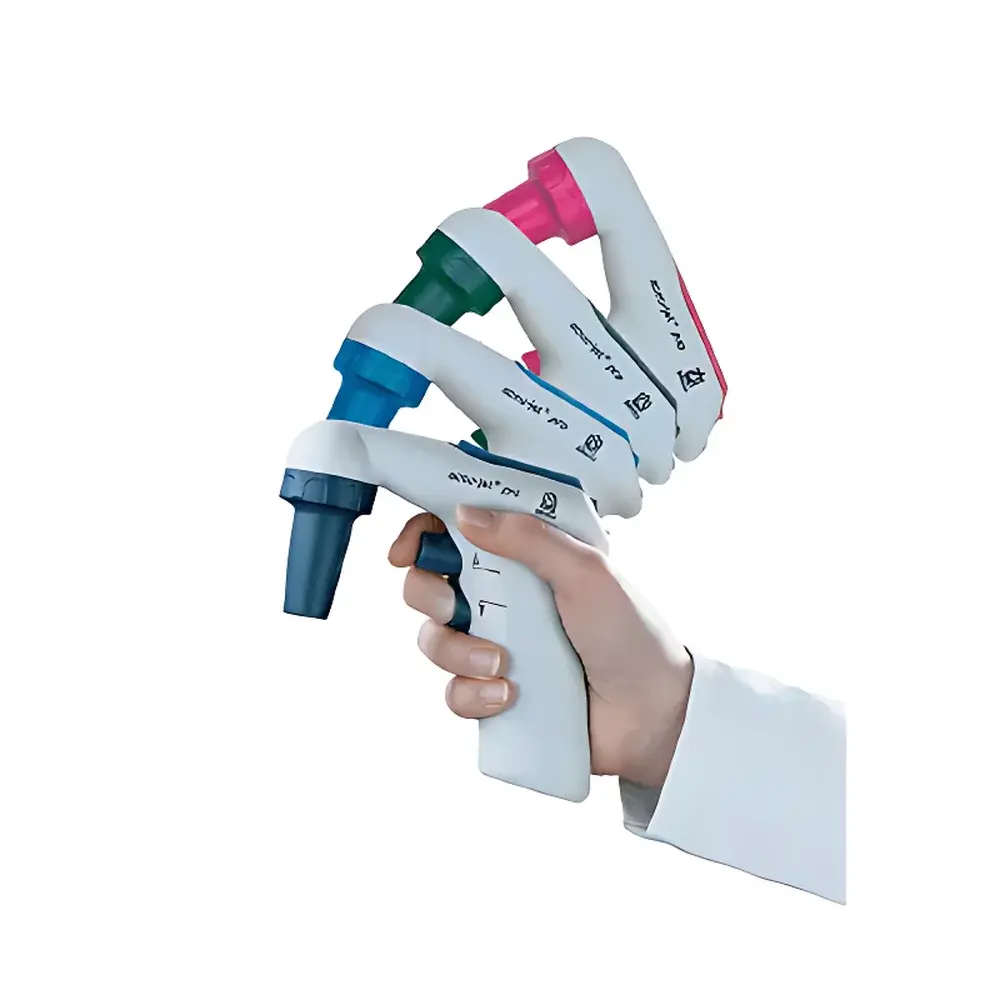

accu-jet® Pro Electronic Pipette Aid

Overview

The accu-jet® Pro Electronic Pipette Aid is a precision-engineered, cordless liquid handling assistant designed for high-throughput and ergonomic laboratory workflows. Operating on the principle of controlled air displacement via an integrated brushless DC motor, it delivers consistent aspiration and dispensing forces across the full volume range of 0.1–100 mL—compatible with both glass and polypropylene serological pipettes. Unlike manual pipette fillers or basic spring-loaded aids, the accu-jet® Pro incorporates real-time motor speed regulation, dual-mode dispensing (gravity-assisted or motor-driven blow-out), and active vapor management to ensure long-term reliability and operator safety. Its design adheres to ISO 8549 (ergonomic requirements for hand tools) and supports GLP-compliant documentation when integrated into validated lab environments.

Key Features

• Ergonomic, balanced housing weighing only 190 g—engineered to minimize wrist flexion and reduce repetitive strain during extended use.
• Thumb-operated variable-speed control: enables fine-tuned aspiration/dispensing rates, especially critical for low-volume (<1 mL) pipetting with high sensitivity.
• Dual dispensing modes: gravity-based release for gentle delivery or motor-assisted blow-out for complete emptying—even with viscous or volatile liquids.
• Integrated 0.2 µm hydrophobic PTFE filter and automatic anti-suction valve prevent liquid ingress under over-aspiration or tip collision events.
• Vapor-resistant internal architecture: non-corrosive airflow path and sealed motor compartment mitigate chemical degradation from organic solvents or acidic vapors.
• Intelligent battery management: LED status indicator flashes two hours prior to depletion; single charge supports up to 8 hours of continuous operation (tested with 10 mL pipettes at moderate duty cycle).
• Two interchangeable battery caps: standard cap for upright storage; secondary cap enables stable inverted placement on benchtops—keeping the pipette cone contamination-free between uses.

Sample Compatibility & Compliance

The accu-jet® Pro accommodates all standard Class A and Class B serological pipettes (ISO 648, ISO 12773) from 0.1 mL to 100 mL, including borosilicate glass and autoclavable polypropylene variants. Its airflow calibration remains stable across ambient temperatures from 15–30 °C and relative humidity up to 80% (non-condensing). The device complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and meets RoHS 2011/65/EU and REACH SVHC criteria. While not a medical device, its construction and filtration performance align with ISO 13485-informed quality practices for laboratories operating under FDA 21 CFR Part 11 or EU Annex 11 frameworks.

Software & Data Management

The accu-jet® Pro operates as a standalone electromechanical instrument without embedded firmware or connectivity interfaces. No software installation, driver dependency, or cloud synchronization is required—ensuring compatibility across Windows, macOS, and Linux workstations without IT validation overhead. All operational parameters (motor speed, mode selection, battery state) are managed via tactile controls and visual LED feedback only. This architecture eliminates cybersecurity risks associated with networked peripherals and simplifies audit readiness in regulated QC/QA labs where electronic record integrity is governed by ALCOA+ principles.

Applications

• Cell culture workflows requiring sterile, repeatable pipetting of media, trypsin, or cryopreservation solutions.
• QC testing in pharmaceutical manufacturing where consistent 50 mL transfers must be completed within ≤10 seconds per pipette (validated per USP ).
• Environmental testing labs processing aqueous extracts containing ethanol, acetone, or dilute HCl—leveraging the hydrophobic filter and corrosion-resistant airflow path.
• Teaching laboratories seeking durable, intuitive pipetting aids that reduce student learning curves while reinforcing proper technique.
• High-volume histology labs performing serial dilutions or buffer exchanges across multi-well plates using 25–100 mL pipettes.

FAQ

Is the accu-jet® Pro compatible with positive-displacement pipettes?

No—it is engineered exclusively for air-cushion (serological) pipettes. Positive-displacement systems require direct piston contact and are incompatible with the accu-jet® Pro’s airflow architecture.
Can the device be sterilized in an autoclave?

The main unit is not autoclavable. Only the removable pipette cone and battery cap may be autoclaved at 121 °C for 20 minutes (verify material compatibility per batch).
What is the expected service life of the internal motor and filter?

Under typical lab use (≤4 hrs/day), the brushless DC motor is rated for ≥50,000 operating cycles; the 0.2 µm PTFE filter should be replaced after every 500 mL of aggressive solvent exposure or annually—whichever occurs first.
Does the accu-jet® Pro meet ISO 8655 calibration requirements?

It is not a measuring instrument per ISO 8655 and does not require volumetric calibration. However, its consistent motor output supports traceable pipette calibration when used with certified reference pipettes.
