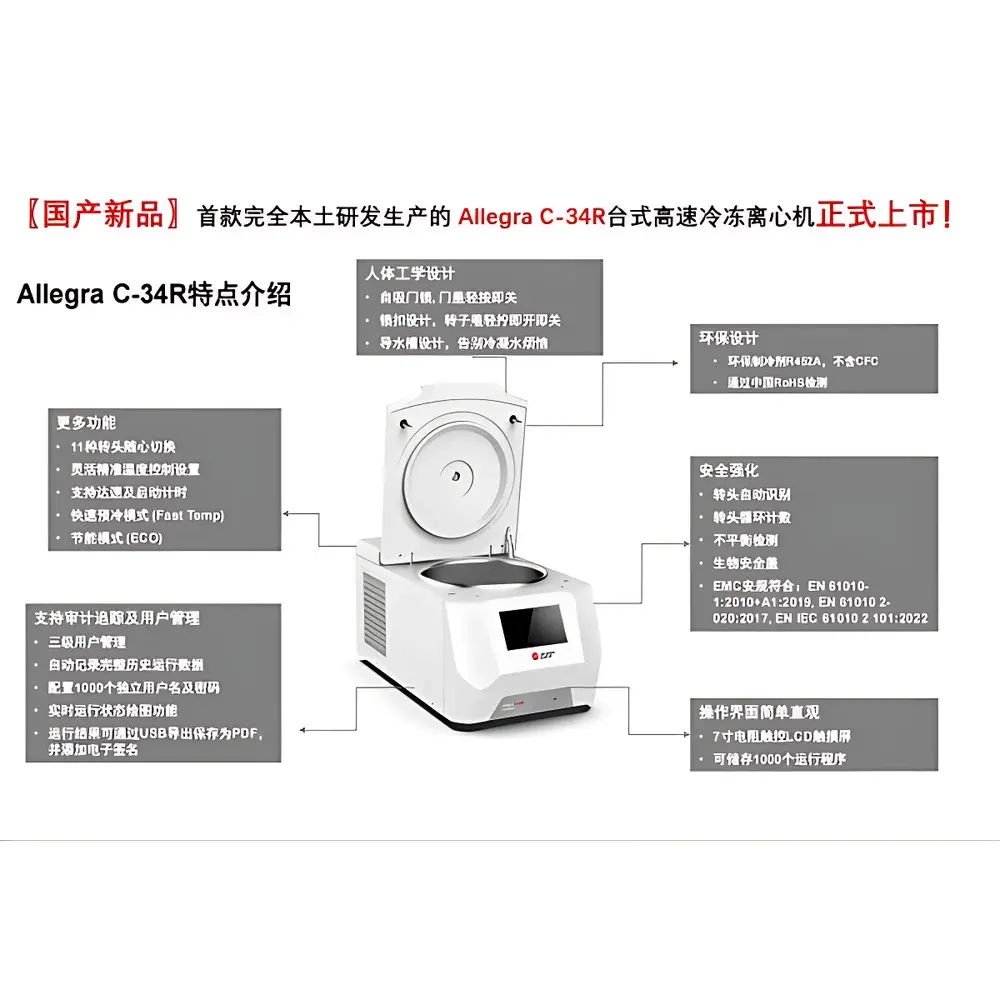

Beckman Coulter Allegra C-34R Refrigerated High-Speed Benchtop Centrifuge

Overview

The Beckman Coulter Allegra C-34R Refrigerated High-Speed Benchtop Centrifuge is an engineered solution designed specifically for laboratories requiring precise, reproducible, and thermally stable separation of biological samples at rotational speeds up to 22,500 rpm. Utilizing fixed-angle and horizontal rotor configurations compatible with standard microtubes, conical tubes, and centrifuge bottles, the system operates on the principle of sedimentation force generation via high-velocity rotation—enabling efficient pelleting of mammalian cells, bacteria, subcellular organelles, and macromolecular complexes. Its integrated refrigeration system maintains sample temperature between –10°C and +40°C, with active pre-cooling capability (Rapid Temp mode) ensuring thermal equilibrium is achieved prior to run initiation—a critical feature for preserving enzyme activity, nucleic acid integrity, and membrane protein conformation during prolonged or high-RCF protocols.

Key Features

• Refrigerated operation with real-time temperature control (–10°C to +40°C), validated to maintain ≤4°C at maximum speed across all 11 supported rotors
• High-speed performance: 22,500 rpm maximum speed delivering up to 34,020 × g RCF
• Large-capacity horizontal rotor configuration supporting up to 6 × 100 mL bottles per run
• RFID-based automatic rotor recognition—eliminates manual selection errors and ensures protocol compatibility
• Integrated rotor lifecycle tracking with cumulative cycle counting and configurable replacement alerts
• Dynamic imbalance detection with immediate deceleration and audible/visual warning upon threshold exceedance
• 7-inch resistive touchscreen interface with intuitive workflow navigation and multi-segment program support (up to 5 sequential steps)
• Dual timing modes: start-time and speed-reached-time options for accurate process synchronization
• Self-latching lid mechanism and ergonomic quick-lock rotor cover design minimizing mechanical wear and operator fatigue
• Condensate management system featuring integrated drainage channels to prevent moisture accumulation in chamber and base housing

Sample Compatibility & Compliance

The Allegra C-34R accommodates a broad range of primary sample containers including 0.2–100 mL conical tubes, microcentrifuge tubes (1.5/2.0 mL), PCR strips, and swing-bucket adapters for blood collection tubes. All rotors are certified to ISO 13485:2016 manufacturing standards and validated for biosafety containment (BSL-2 compliance). The instrument supports GLP/GMP-aligned workflows through built-in audit trail functionality—including timestamped records of user logins, parameter modifications, run execution, and diagnostic events. Data export via USB port complies with FDA 21 CFR Part 11 requirements when paired with appropriate electronic signature implementation and secure user authentication.

Software & Data Management

Equipped with embedded firmware supporting up to 1,000 programmable methods, the Allegra C-34R enables method-driven operation with full parameter recall and version-controlled editing. Each user account (up to 100 configurable profiles) is assigned one of three hierarchical access levels—Operator, Supervisor, and Administrator—with password enforcement and session timeout policies. All runtime data—including RCF profiles, temperature logs, acceleration/deceleration curves, and error codes—are stored locally and exportable as PDF reports with embedded electronic signatures. Real-time graphical visualization of current run status (speed, temperature, time remaining, RCF) is displayed continuously during operation.

Applications

This centrifuge serves core applications in molecular biology, clinical diagnostics, biopharmaceutical development, and academic research laboratories. Typical use cases include: isolation of peripheral blood mononuclear cells (PBMCs) from whole blood; clarification of bacterial lysates prior to protein purification; pelleting of exosomes and extracellular vesicles; preparation of genomic DNA from tissue homogenates; and density gradient separations using sucrose or iodixanol media. Its consistent thermal stability at high rotational velocities makes it particularly suitable for protocols involving heat-sensitive enzymes, RNA-binding proteins, and cryopreserved cell suspensions.

FAQ

Does the Allegra C-34R support validation documentation for IQ/OQ/PQ protocols?
Yes—Beckman Coulter provides standardized qualification templates and test scripts aligned with ISO/IEC 17025 and ASTM E2500-13 guidelines.
Can rotor usage history be exported independently of run logs?
Yes—rotor lifecycle data (total cycles, max speed history, calibration timestamps) is accessible via dedicated menu and exportable as CSV.
Is the refrigeration system compressor-based or thermoelectric?
The system employs a sealed, low-vibration scroll compressor with independent condenser airflow management.
What safety certifications does the instrument carry?
CE marked per IEC 61010-1:2010, UL 61010-1:2012, and RoHS 2011/65/EU compliant.
Are third-party rotors supported?
No—only Beckman Coulter–certified rotors with embedded RFID tags are recognized and enabled by the firmware.
