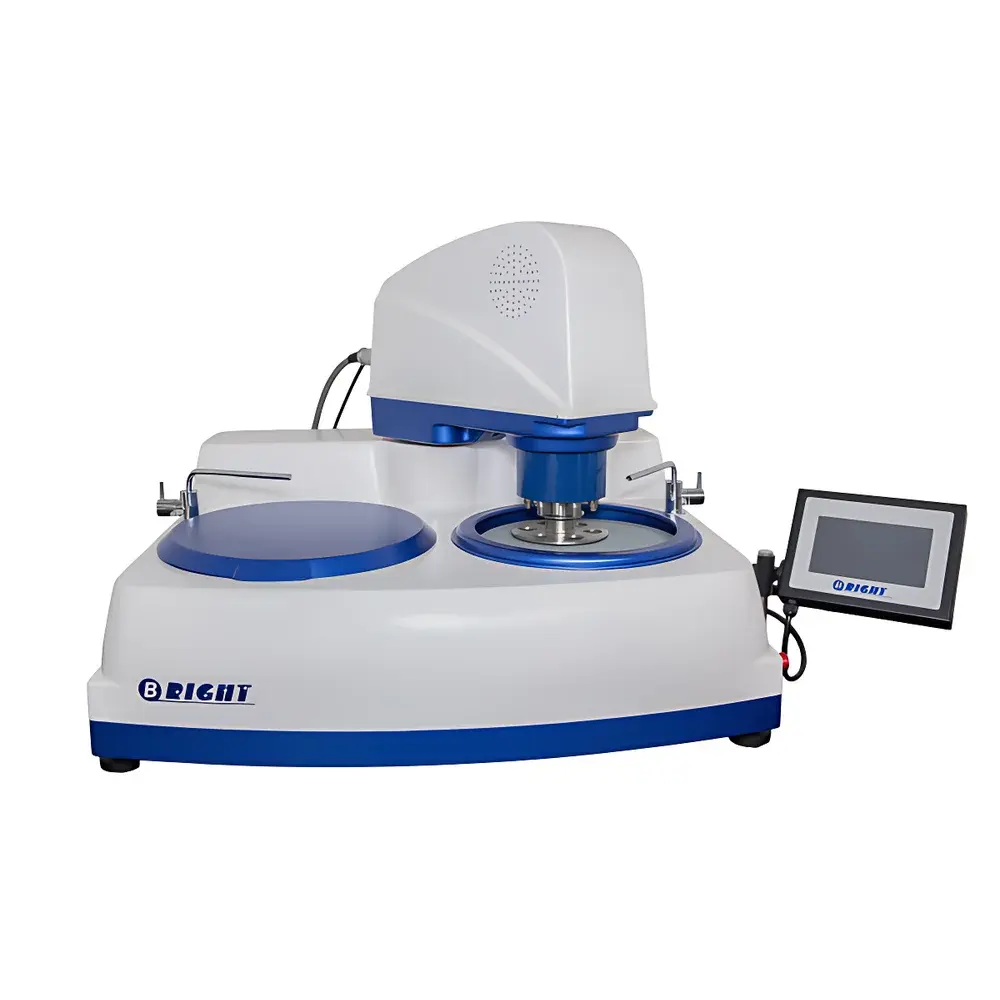

BRIGHT Chiron 300DA Intelligent Fully Automated Metallographic Grinding and Polishing System

Overview

The BRIGHT Chiron 300DA is an intelligent, fully automated metallographic grinding and polishing system engineered for precision sample preparation in metallurgical, materials science, and failure analysis laboratories. It operates on a dual-disc, multi-stage preparation principle—utilizing controlled mechanical abrasion and lubricant-assisted polishing to produce planar, scratch-free, deformation-minimized cross-sections suitable for optical microscopy (OM), scanning electron microscopy (SEM), and electron backscatter diffraction (EBSD). The system integrates closed-loop pneumatic pressure control, high-stiffness Z-axis vertical positioning, and synchronized disc-head kinematics to ensure reproducible material removal rates and surface finish consistency across diverse alloy systems—including ferrous alloys, aluminum composites, titanium grades, and sintered ceramics. Its brushless DC drive architecture eliminates brush wear, ensuring long-term torque stability and rotational accuracy under load—critical for achieving ASTM E3, ISO 16349, and EN 10365-compliant specimen quality.

Key Features

• Dual 300 mm grinding/polishing stations with independent speed control (100–1000 rpm, infinitely variable), enabling simultaneous coarse grinding and fine polishing or parallel processing of two sample sets.
• Motorized Z-axis with 0.1 mm resolution depth increment and programmable dwell time per step—optimized for progressive material removal without subsurface damage.
• Pneumatic loading system offering both single-point (0–50 N) and central (0–160 N) pressure modes, calibrated for consistent normal force distribution across specimen diameters of Φ22 mm, Φ30 mm, and Φ45 mm.
• Integrated 6-position specimen holder with quick-release clamping and automatic centering—ensuring radial runout ≤ 8 µm and eliminating manual alignment errors.
• High-fidelity LCD touchscreen interface with embedded microcontroller firmware, supporting real-time parameter monitoring, alarm logging, and password-protected user access levels.
• Modular quick-change disc system with tool-less mounting and ABS-molded safety shield—designed for rapid abrasive media swaps while maintaining operator protection per EN 61000-6-2 EMC standards.
• Low-noise (<62 dB[A]) enclosure with acoustic damping and sealed bearing housings—meeting ISO 14001 environmental performance benchmarks for laboratory noise management.

Sample Compatibility & Compliance

The Chiron 300DA accommodates rigid, non-porous metallic and ceramic specimens up to 45 mm in diameter and 50 mm in height. It supports standard consumables including silicon carbide papers (P80–P2500), diamond suspensions (1–6 µm), and colloidal silica slurries (0.02–0.06 µm), all compatible with ASTM E407 and ISO 15510 specimen preparation workflows. All pneumatic and electrical subsystems conform to CE marking requirements (2014/30/EU EMC Directive and 2014/35/EU Low Voltage Directive). The control firmware implements audit-trail-capable event logging (timestamped parameter changes, error codes, cycle completions), aligning with GLP documentation practices and facilitating FDA 21 CFR Part 11 readiness when paired with validated networked data export protocols.

Software & Data Management

The embedded controller stores ≥12 complete grinding-polishing protocols—each defining disc speed, head speed, pressure mode, dwell time, Z-step depth, and directional rotation (forward/reverse)—with recall via alphanumeric naming or numeric index. Protocol execution includes automatic sequence validation (e.g., verifying minimum dwell time before pressure application) and real-time deviation alerts. Raw operational logs are exportable via USB 2.0 as CSV files for traceability review. Optional Ethernet connectivity enables integration into LIMS environments through Modbus TCP or OPC UA gateways—supporting centralized instrument monitoring, remote diagnostics, and scheduled calibration reminders.

Applications

• Routine metallographic sectioning of cast iron, stainless steels, and nickel-based superalloys for grain size analysis per ASTM E112.
• Preparation of fracture surfaces for SEM fractography, minimizing smearing and pull-out artifacts in composite matrices.
• Production of TEM-ready thin foils via sequential low-force polishing after ion milling pre-thinning.
• Quality assurance of additive-manufactured components where layer boundary integrity and porosity assessment demand artifact-free surfaces.
• Failure analysis labs requiring strict repeatability across inter-laboratory round-robin studies governed by ISO/IEC 17025 accreditation criteria.

FAQ

What types of abrasive media are compatible with the Chiron 300DA?

Standard 300 mm-diameter abrasive discs—including SiC papers, diamond-impregnated pads, and woven polishing cloths—are fully supported. The system accepts both peel-and-stick and magnetic-backed formats.
Does the system support automatic pressure calibration?

Yes—the pneumatic circuit includes factory-calibrated pressure transducers with zero-point verification routines accessible via service mode; recalibration requires certified pressure test equipment and is documented in the maintenance log.
Can the Chiron 300DA be integrated into a laboratory automation workflow?

It features dry-contact I/O ports and optional industrial Ethernet modules, enabling handshake signals with robotic arms, barcode scanners, and automated storage systems per ISA-88 batch control conventions.
Is the firmware upgradeable in the field?

Firmware updates are delivered as signed binary packages via USB stick, with version rollback capability and checksum validation prior to installation.
What maintenance intervals are recommended for long-term reliability?

Brushless motor inspection every 5,000 operating hours; pneumatic filter replacement every 6 months; Z-axis lead screw lubrication every 1,000 cycles; full system validation against ASTM E1351 annually or after major component replacement.
