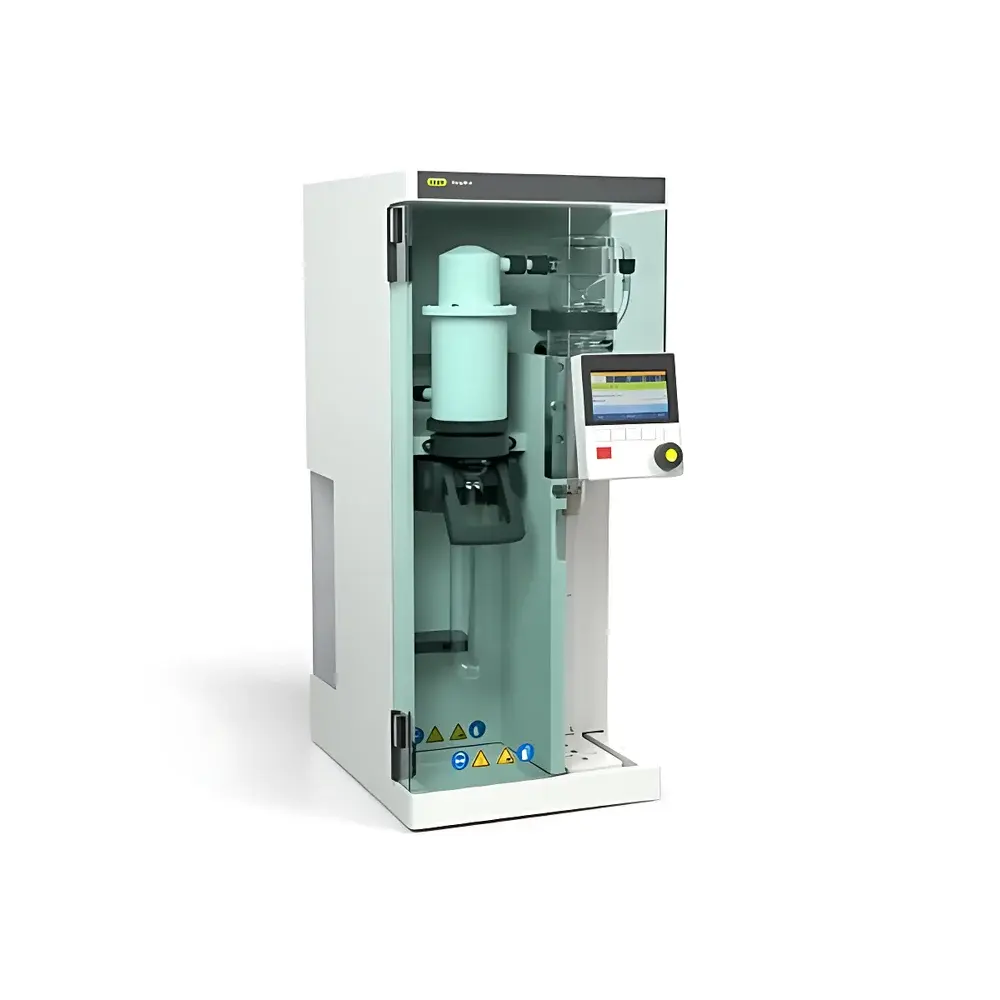

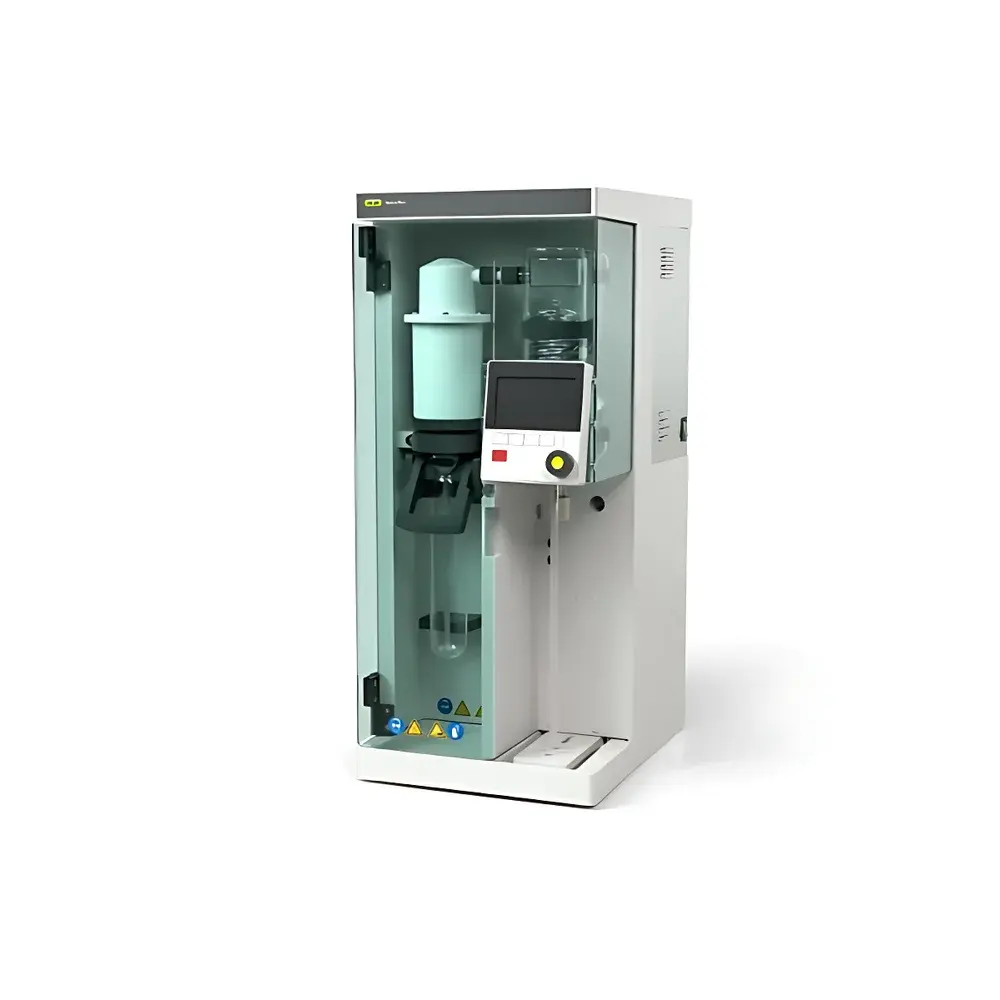

BUCHI K-365 Dist Line Modular Steam Distillation System for Alcoholic Beverage and Food Analysis

Overview

The BUCHI K-365 Dist Line is a modular, fully automated steam distillation system engineered for high-throughput, regulatory-compliant analysis of volatile analytes in food and beverage matrices—particularly alcoholic beverages, soft drinks, dairy products, and fermented foods. Based on classical steam distillation principles, the system thermally separates volatile components—including ethanol, ammonia, volatile acids, and aldehydes—from complex aqueous or semi-solid samples under precisely controlled temperature and pressure conditions. Unlike batch reflux or manual distillation setups, the K-365 employs a closed-loop steam generation architecture with dynamic power modulation and real-time process monitoring, enabling reproducible recovery of target analytes while minimizing co-distillation artifacts. Its design aligns with standardized methods including AOAC 920.117 (alcohol in beverages), ISO 3696 (water quality), and EN 13804 (determination of alcohol in wine), supporting method validation under GLP and GMP frameworks.

Key Features

• Modular architecture allowing configuration as EasyDist (entry-level), BasicDist (routine QC), or MultiDist (full-featured, including Kjeldahl nitrogen determination via steam distillation of ammonium salts)
• Intelligent cooling water management: condenser flow initiates only during active distillation; automatic valve shutoff pre- and post-run reduces water consumption by ~20% and eliminates unattended flow risks
• Integrated voltage stabilization ensures consistent steam output despite ±10% mains voltage fluctuations—critical for maintaining distillation kinetics and inter-laboratory reproducibility
• Comprehensive safety system featuring dual-redundant optical and mechanical interlocks on the transparent safety shield, real-time monitoring of cooling water flow rate, steam generator pressure, sample tube positioning, and reagent/waste/water reservoir levels
• Programmable steam ramping (10–100% power) with gradient control to suppress foaming in high-sugar or protein-rich samples such as must, wort, or fruit purees
• Touchscreen HMI with intuitive workflow navigation, multilingual interface support (EN/DE/FR/ES), and embedded method library for rapid method recall and parameter validation

Sample Compatibility & Compliance

The K-365 Dist Line accommodates standard 100–500 mL digestion tubes and accepts liquid, homogenized slurry, or clarified filtrate samples without preprocessing beyond standard lab filtration or centrifugation. It supports direct integration with BUCHI’s K-435 or K-375 digesters for end-to-end Kjeldahl workflows, and interfaces with titration modules (e.g., Titrando 856) or conductivity/pH meters for automated endpoint detection. All operational parameters—including distillation time, steam ramp profile, cooling duration, and safety event logs—are timestamped and stored with user ID attribution, fulfilling audit trail requirements per FDA 21 CFR Part 11 and EU Annex 11. The system complies with IEC 61010-1 (electrical safety), EN 61326-1 (EMC), and carries CE and CSA certifications for global laboratory deployment.

Software & Data Management

Control and data handling are managed via BUCHI LabX® Distillation Software—a validated, server-based platform supporting role-based access control, electronic signatures, and configurable reporting templates (PDF, CSV, Excel). Raw distillate volume, measured pH, calculated alcohol % v/v, and system diagnostic logs are automatically archived with metadata (operator, date/time, method ID, instrument serial number). Data integrity safeguards include write-once storage, checksum verification, and optional encrypted backup to network drives or cloud repositories compliant with ISO/IEC 27001. Audit trails record all parameter changes, method edits, and user logins—enabling full traceability during internal audits or regulatory inspections.

Applications

• Determination of alcohol content in wines, beers, spirits, and non-alcoholic beverages per AOAC 920.117 and OIV-MA-AS313-01A
• Quantification of total volatile acidity (TVA) and individual organic acids (e.g., acetic, lactic) in fermented products
• Kjeldahl nitrogen analysis for protein content in dairy, cereals, and meat analogs using steam distillation of liberated NH₃
• Recovery and quantification of residual sulfites, dimethyl sulfide (DMS), and other aroma-active volatiles in sensory QA/QC workflows
• pH measurement of distillates for stability assessment of acidic beverages and shelf-life modeling

FAQ

What sample types are compatible with the K-365 Dist Line?

Liquid beverages (wine, beer, juice), clarified extracts, homogenized food slurries, and digested Kjeldahl samples—all within viscosity and particulate limits defined in the operator manual.
Does the system support 21 CFR Part 11 compliance?

Yes—LabX software provides electronic signatures, audit trails, and secure data archiving with configurable retention policies.
Can the K-365 be integrated with third-party titrators or pH meters?

Yes—via RS-232, USB, or Ethernet using standard SCPI or Modbus protocols; BUCHI provides certified drivers for Metrohm, Hanna, and Thermo Fisher devices.
Is method validation documentation available?

Full IQ/OQ/PQ protocols, performance qualification reports, and uncertainty budgets are supplied with each system and updated annually per ISO/IEC 17025 guidelines.
What maintenance intervals are recommended?

Daily visual inspection of seals and tubing; quarterly calibration of steam pressure and temperature sensors; annual preventive maintenance by BUCHI-certified service engineers.
