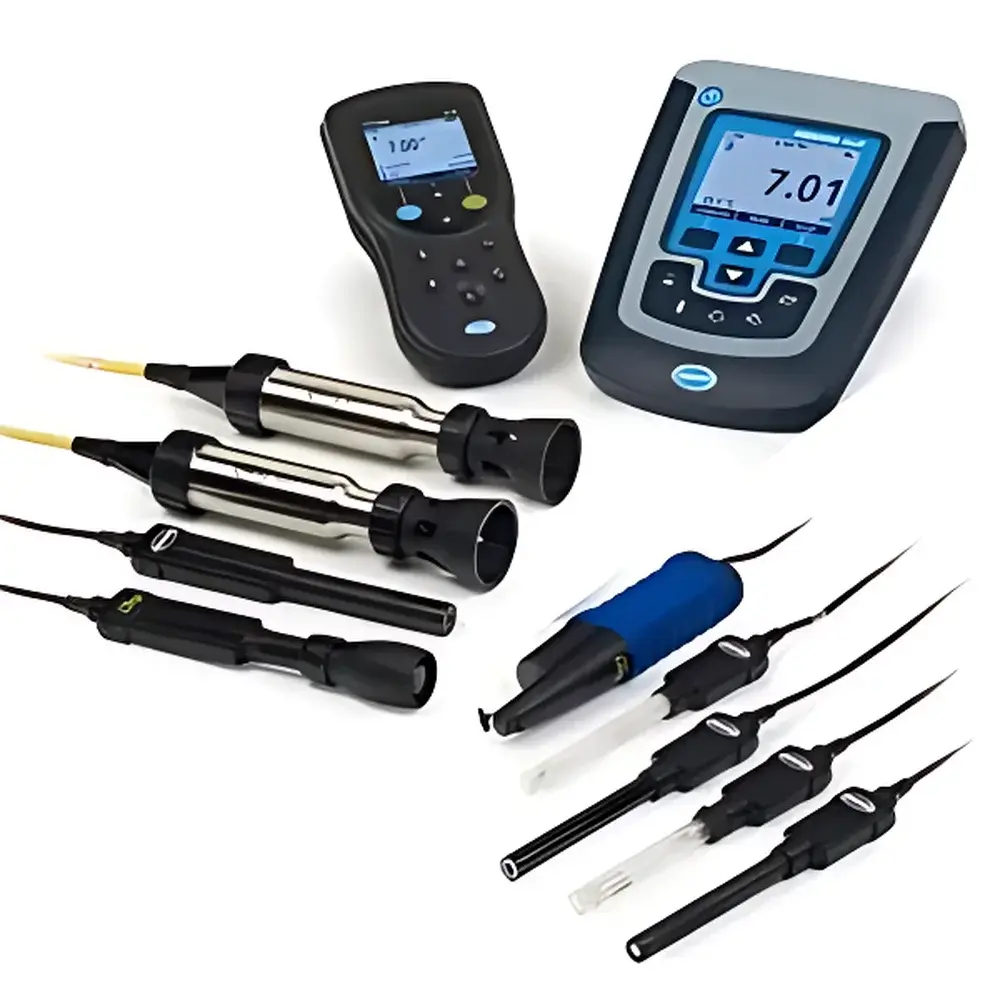

Hach HQd Benchtop/Portable Multiparameter Water Quality Analyzer
| Brand | Hach |
|---|---|
| Origin | USA |
| Manufacturer | Hach Company |
| Product Type | Imported Instrument |
| Model | HQd Series |
| Pricing | Available Upon Request |
Overview
The Hach HQd Benchtop/Portable Multiparameter Water Quality Analyzer is an advanced, field-deployable and laboratory-grade digital platform engineered for precise, reliable, and traceable measurement of up to 11 critical water quality parameters. Built on Hach’s IntelliCAL™ smart electrode architecture, the HQd system employs potentiometric, amperometric, and conductometric sensing principles—enabling accurate determination of pH, oxidation-reduction potential (ORP), specific ion concentrations (Na⁺, NH₄⁺, NH₃, F⁻, NO₃⁻, Cl⁻), conductivity, dissolved oxygen (LDO), and biochemical oxygen demand (BOD) via luminescent-based optical detection. Its dual-mode form factor supports seamless transition between controlled lab environments and demanding field conditions, with IP67-rated connectors, ruggedized housing options, and auto-sensing electrode recognition eliminating manual configuration errors. The analyzer operates under a modular firmware framework compliant with GLP (Good Laboratory Practice) data integrity requirements, ensuring each measurement is intrinsically linked to instrument identity, calibration history, operator credentials, and environmental context.
Key Features
- IntelliCAL™ Smart Electrode Recognition: Automatic detection and configuration of connected electrodes—including pH, ORP, ion-selective, conductivity, and LDO sensors—reducing setup time and minimizing user-induced errors.
- Three Measurement Modes: Instant-read (single-point), timed-hold (indirect), and continuous real-time monitoring—supporting both regulatory grab sampling and process trending applications.
- Intuitive On-Screen Calibration Guidance: Step-by-step prompts with visual status indicators (e.g., green checkmark upon successful calibration), automatic slope/mV offset validation, and configurable calibration reminders ensure adherence to ASTM D1293 (pH), ASTM D5391 (conductivity), and ISO 5814 (LDO) protocols.
- Comprehensive Data Traceability: Each stored reading automatically logs electrode serial number, calibration date/time, user ID, sample ID, ambient temperature, and sensor-specific metadata—fully supporting FDA 21 CFR Part 11 audit trails when paired with Hach’s Lab Software Suite.
- USB Mass Storage Interface: Direct export of CSV-formatted datasets to USB drives or Windows-based PCs without proprietary drivers; compatible with LIMS integration via standard file ingestion workflows.
- Dual-Environment Design: Benchtop cradle with AC power and extended battery life (>100 hours typical); optional field-ready carrying case with shock-absorbing foam, lanyard mount, and waterproof electrode storage compartments.
Sample Compatibility & Compliance
The HQd analyzer is validated for use with natural waters (freshwater, estuarine, wastewater effluents), drinking water distribution systems, industrial process streams, and aquaculture environments. All IntelliCAL™ electrodes meet NSF/ANSI Standard 61 for drinking water contact materials. Conductivity measurements conform to ASTM D1125 and ISO 7888; pH and ORP performance aligns with ISO 10523 and ASTM D5128; LDO sensors comply with ISO 5814:2012 for optical dissolved oxygen determination. The system supports method-defined reporting formats required under EPA Methods 365.2 (phosphate), 365.3 (nitrate), and 365.4 (chloride), and its data structure satisfies EU WFD (Water Framework Directive) reporting templates.
Software & Data Management
Firmware v4.2+ enables full parameter customization: users may define non-standard pH buffer values (e.g., TRIS or borate buffers), select arbitrary reference temperatures for conductivity compensation (not limited to 25°C), and activate auto-salinity correction for LDO using concurrent conductivity-derived salinity estimates—eliminating manual input errors. Data logging supports up to 500,000 readings per session with timestamped GPS metadata (when paired with optional Bluetooth GPS module). Exported files include embedded calibration certificates and sensor health diagnostics (e.g., membrane integrity alerts, electrolyte depletion warnings). Integration with Hach’s PI Connect™ software allows automated report generation compliant with ISO/IEC 17025 documentation standards.
Applications
- Regulatory Compliance Monitoring: Routine testing per EPA Clean Water Act requirements, state NPDES permits, and EU Bathing Water Directive Annex I parameters.
- Drinking Water Treatment: Real-time tracking of disinfectant residuals (free chlorine, chloramine), corrosion control indices (LSI, RSI), and source water stability indicators.
- Wastewater Process Control: Nitrification/denitrification optimization via simultaneous NH₄⁺/NO₃⁻/DO profiling; BOD₅ surrogate estimation using LBOD protocol.
- Environmental Field Surveys: Multi-parameter profiling across vertical water columns using depth-rated probes and portable power solutions.
- Academic & Research Labs: Method development for emerging contaminants (e.g., ammonium-selective electrode interference studies) and sensor validation against certified reference materials (CRMs).
FAQ
Can the HQd analyzer store calibration data for multiple electrodes simultaneously?
Yes—the internal memory retains separate calibration records for each IntelliCAL™ electrode by unique serial number, enabling rapid swapping between pH, conductivity, and ion-selective sensors without recalibration.
Is the system compatible with third-party electrodes?
No—only Hach-branded IntelliCAL™ electrodes are supported due to integrated microcontroller authentication and firmware-level sensor characterization.
Does the HQd meet FDA 21 CFR Part 11 requirements for electronic records?
Out-of-the-box functionality provides audit-trail-capable data logging; full Part 11 compliance requires deployment with Hach’s validated Lab Software Suite and associated administrative controls.
What is the operating temperature range for field use?
–10 °C to +50 °C for analyzer electronics; IntelliCAL™ electrodes are rated for –5 °C to +45 °C, with optional low-temperature LDO probes available.
How does the system handle electrode drift during extended field deployments?
Built-in stability monitoring triggers automated alerts when slope deviation exceeds ±5% or mV offset shifts >±15 mV from baseline—prompting user-initiated verification or recalibration per SOP-defined intervals.
