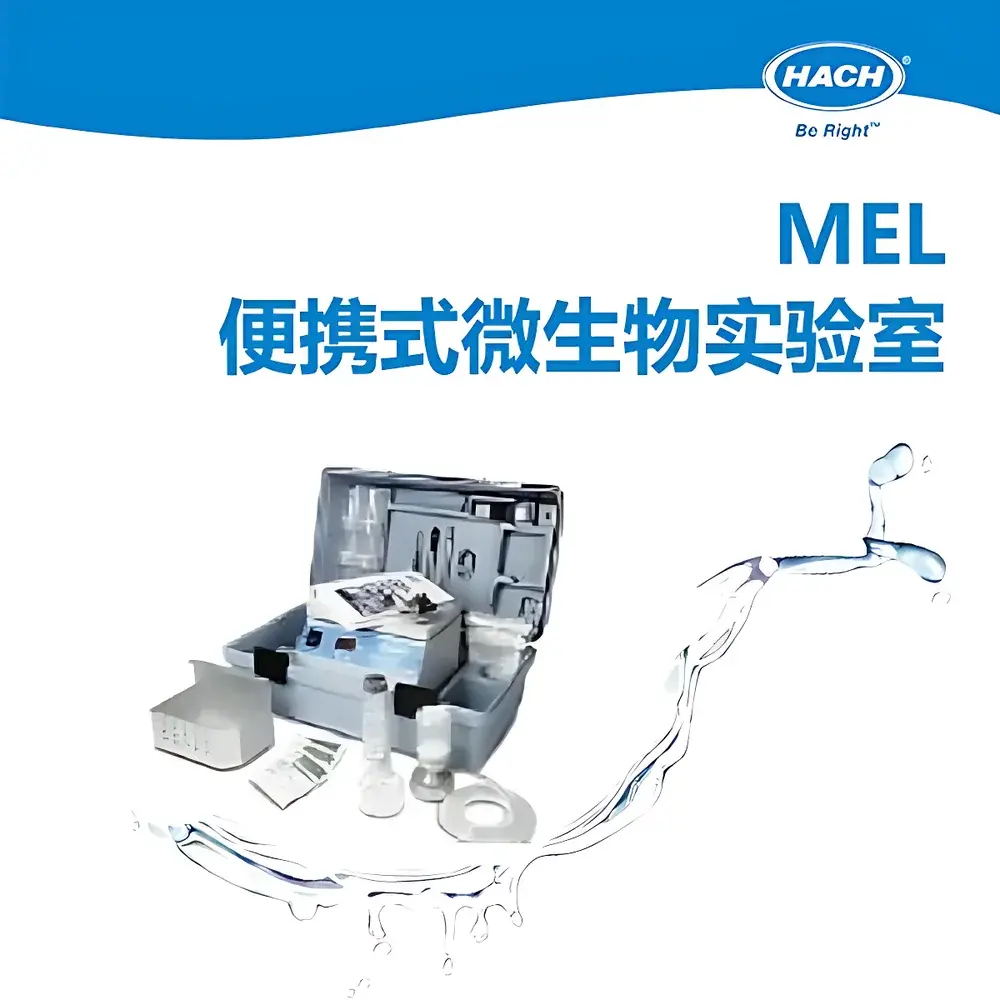

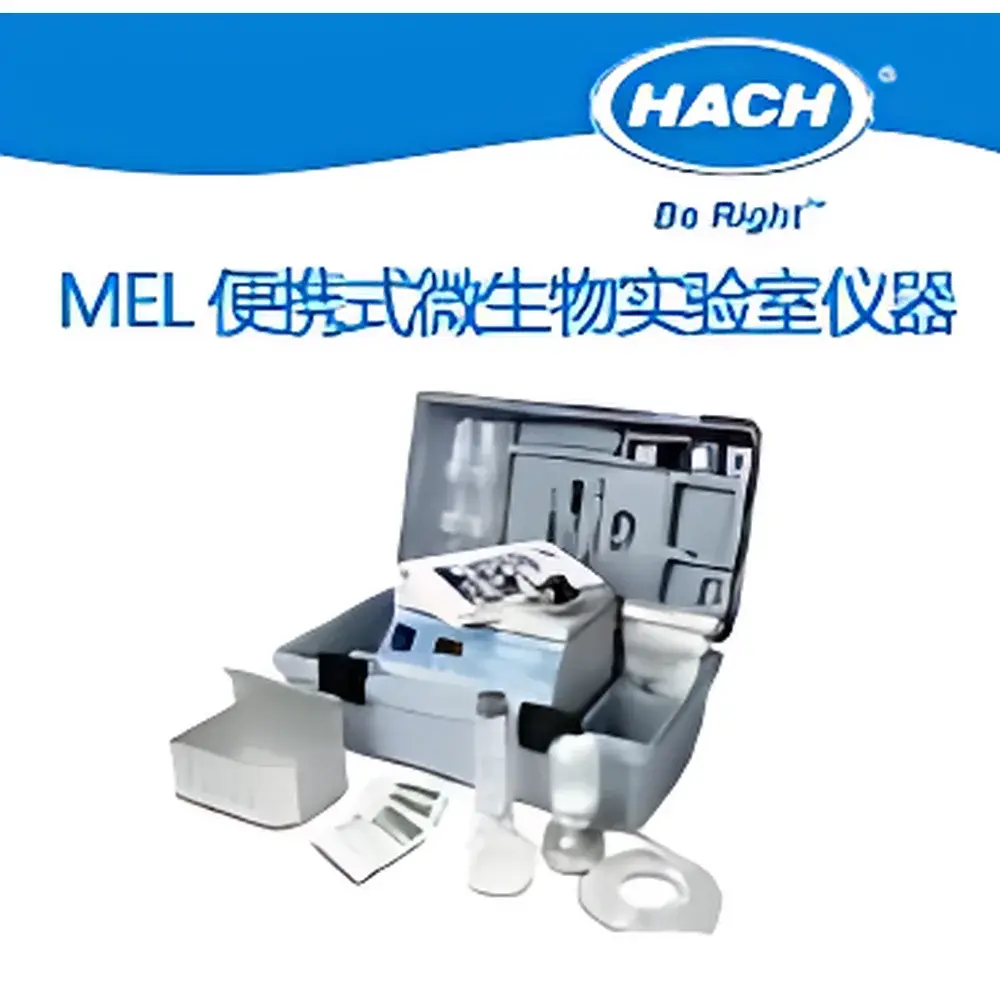

HACH MEL Portable Microbiology Laboratory

Overview

The HACH MEL Portable Microbiology Laboratory is an integrated, field-deployable system engineered for rapid, standardized, and regulatory-compliant microbial analysis of water and liquid samples. Unlike conventional benchtop microbiology setups requiring dedicated laboratory infrastructure, the MEL consolidates all essential components—sterile filtration units, pre-sterilized membrane filters, ready-to-use dehydrated culture media (in petri dishes or absorbent pads), incubation modules, and documentation tools—into a single ruggedized transport case. Its design adheres to core principles of membrane filtration (MF), most probable number (MPN), and presence/absence (P/A) methodologies as defined in ISO 9308-1, ISO 7899-2, ASTM D5465, and US EPA Method 1603/1604. The system enables quantitative enumeration of indicator organisms—including total coliforms, Escherichia coli, enterococci, heterotrophic plate count (HPC) bacteria, and opportunistic fungi (yeasts and molds)—without reliance on centralized lab facilities, making it particularly suited for emergency response, remote site monitoring, and routine surveillance under resource-constrained conditions.

Key Features

• Modular, all-in-one portable configuration with shock-absorbing case, ergonomic handles, and integrated storage compartments for consumables and instruments.
• Pre-sterilized, lot-certified culture media formats—including chromogenic agar pads, IDEXX Quanti-Tray®-compatible reagents (for MPN), and membrane filter assemblies—minimizing preparation time and cross-contamination risk.
• Integrated digital incubator (optional battery-powered or AC-operated) with precise temperature control (±0.5 °C) across 22–44 °C range, validated per ISO 8664 for microbiological incubation performance.
• On-board documentation kit including calibrated timers, logbooks compliant with GLP requirements, sample identification labels, and chain-of-custody forms aligned with ISO/IEC 17025 traceability standards.
• Designed for operational robustness: IP54-rated enclosure, drop-tested to MIL-STD-810G, and validated for ambient operation between 5–40 °C and 20–90% RH non-condensing.

Sample Compatibility & Compliance

The MEL system supports analysis of raw and treated drinking water, wastewater effluents, surface and groundwater, industrial process water, cooling tower fluids, recreational waters, and non-sterile liquid matrices from food, pharmaceutical, and cosmetic manufacturing environments. All consumables meet ISO 11133:2014 specifications for microbiological culture media preparation and performance testing. The membrane filtration workflow complies with ISO 9308-1:2014 for E. coli and coliforms; MPN-based assays align with ISO 9308-2:2012 and US EPA Method 1604. For regulated environments—including those subject to FDA 21 CFR Part 11, EU Annex 11, or WHO GMP—audit trails, user access controls, and electronic signature capability can be implemented via optional HACH DataConnect™ software integration.

Software & Data Management

While the MEL operates as a hardware-centric platform, its data output integrates seamlessly with HACH’s cloud-enabled DataConnect™ ecosystem. Users may record results manually or via Bluetooth-connected digital thermometers, timers, and colony counters. All entries are timestamped, user-ID tagged, and stored with immutable audit logs meeting ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) principles. Export options include CSV, PDF reports, and direct API-driven synchronization with LIMS platforms supporting HL7 or ASTM E1384 standards. Optional QR-code–based sample tracking ensures full traceability from collection through incubation and result interpretation.

Applications

• Drinking water safety verification during infrastructure upgrades, post-disaster recovery, or source water vulnerability assessments.
• Wastewater treatment plant compliance monitoring against local discharge permits (e.g., NPDES, EU Urban Wastewater Directive).
• Pharmaceutical facility environmental monitoring (EM) programs per USP and ISO 14644-1.
• Food and beverage production line rinse water and final product stability testing.
• Regulatory field audits by health departments, environmental agencies, or third-party certification bodies (e.g., NSF, TÜV, BSI).

FAQ

Does the MEL require external power for incubation?
Yes—standard operation uses AC power; however, an optional high-capacity lithium-ion battery pack provides up to 12 hours of continuous incubation at 35 °C.
Are culture media included with the base MEL configuration?
No—media are supplied separately as consumables, available in certified lots with CoA and shelf-life validation per ISO 11133.
Can the MEL be used for ISO 11133 growth promotion testing?
Yes—when configured with reference strains and control media, the system supports growth promotion and inhibition testing per ISO 11133:2014 Annex A.
Is calibration of included instruments traceable to NIST or equivalent NMIs?
All optional digital thermometers and timers ship with individual calibration certificates traceable to NIST or DAkkS-accredited laboratories.
How is sterility assurance maintained during field deployment?
Each consumable batch undergoes terminal sterilization (gamma or EO) with bioburden and sterility testing per ISO 11137 and ISO 11737-1; packaging integrity is verified via dye penetration and seal strength testing.
