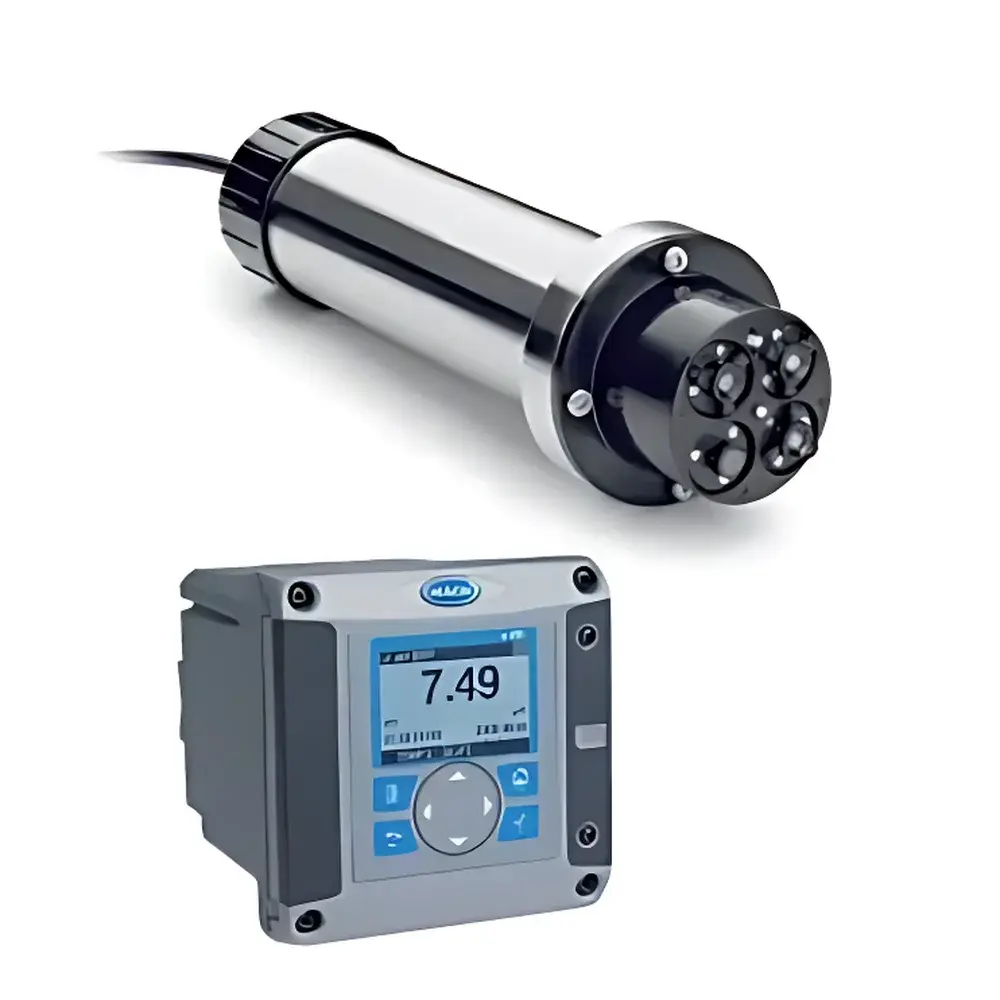

HACH NISE sc Nitrate Analyzer

Overview

The HACH NISE sc Nitrate Analyzer is a robust, field-deployable online analyzer engineered for continuous, real-time quantification of nitrate-nitrogen (NO₃⁻-N) in municipal and industrial wastewater streams. It operates on the principle of ion-selective electrode (ISE) potentiometry, utilizing a proprietary integrated sensor cartridge (CARTRICAL™ technology) that houses three co-located electrochemical elements: a nitrate-selective electrode, a pH-sensitive reference electrode, and a precision temperature sensor. This tri-electrode architecture enables dynamic internal compensation—pH and temperature signals are used in real time to correct the nitrate potential response, significantly mitigating interference from chloride, bicarbonate, and other common ionic species prevalent in activated sludge, denitrification basins, and effluent discharge points. Designed specifically for compliance-critical applications—including regulatory reporting under EPA Method 353.2 (modified), ISO 10304-1, and EU Directive 2006/118/EC—the NISE sc delivers stable, low-maintenance operation across variable influent matrices without sample filtration, acidification, or chemical reagents.

Key Features

• Integrated CARTRICAL™ sensor cartridge with co-located nitrate ISE, pH reference electrode, and Pt1000 temperature sensor for real-time cross-parameter compensation
• Automatic interference correction algorithm calibrated against multi-ion matrix standards, reducing drift caused by chloride fluctuations up to 3,000 mg/L Cl⁻
• Matrix-based calibration routine embedded in firmware—supports up to 5-point non-linear calibration using certified nitrate standards traceable to NIST SRM 3189
• No sample pretreatment required: compatible with raw wastewater, secondary effluent, and tertiary filtrate (TSS ≤ 150 mg/L)
• Dual-layer protective membrane coating (hydrophobic polymer + anti-fouling hydrogel) extends sensor service life to ≥12 months in high-solids environments
• Native digital interface compliant with HACH SC Series controllers (e.g., SC200, SC1000) via RS-485 Modbus RTU or SDI-12 protocol
• Optional ultrasonic or mechanical cleaning module (NISE sc-Clean) programmable for scheduled or demand-driven actuation to minimize manual intervention

Sample Compatibility & Compliance

The NISE sc is validated for direct immersion or flow-cell installation in pipelines and open-channel applications with conductivity ranging from 500 to 15,000 µS/cm and pH between 5.5 and 9.0. It meets performance criteria outlined in ASTM D3370 (Standard Practices for Sampling Water), ISO/IEC 17025:2017 (for laboratory-supported validation), and supports GLP/GMP data integrity requirements when paired with HACH’s DataStream™ software. All firmware and calibration logs include immutable timestamps, user ID tagging, and audit trail export capability compliant with FDA 21 CFR Part 11 for electronic records and signatures. The analyzer is CE-marked per EN 61326-1 (EMC) and EN 61000-6-2/6-3, and rated IP68 for submersion up to 10 m depth.

Software & Data Management

The NISE sc integrates seamlessly into HACH’s SC platform firmware, enabling centralized configuration, remote diagnostics, and alarm management via HACH Link™ web interface or SC1000 controller HMI. Calibration history, sensor health metrics (e.g., slope stability, reference junction potential), and raw mV readings are logged at user-defined intervals (1–60 min) and exportable as CSV or XML. For enterprise-level deployment, DataStream™ software provides automated report generation aligned with NPDES permit requirements, including daily max/min/average nitrate values, calibration verification records, and out-of-spec event notifications via email/SMS. All data transfers use TLS 1.2 encryption; local storage retains ≥30 days of high-resolution data onboard.

Applications

• Real-time monitoring of nitrate concentration in biological nutrient removal (BNR) processes—especially in anoxic zones of A²/O and SBR systems
• Effluent compliance verification prior to discharge to surface waters or reuse systems (e.g., irrigation, industrial cooling)
• Feedforward control of methanol or acetate dosing in post-denitrification reactors
• Performance validation of ion exchange or reverse osmosis polishing trains treating groundwater nitrate contamination
• Long-term trend analysis for watershed management programs under Total Maximum Daily Load (TMDL) frameworks

FAQ

What is the recommended calibration frequency for the NISE sc in continuous wastewater monitoring?
Calibration is typically performed every 7–14 days depending on matrix stability; however, the built-in diagnostic routines automatically flag drift exceeding ±0.5 mg/L NO₃⁻-N, triggering operator alerts.
Can the NISE sc operate in high-chloride seawater-influenced effluents?
Yes—the integrated chloride compensation algorithm maintains accuracy up to 3,000 mg/L Cl⁻; for marine discharges exceeding this, optional chloride-specific ISE pairing is available via HACH Application Engineering support.
Is the CARTRICAL™ sensor cartridge field-replaceable without tools?
Yes—cartridge replacement requires only a single quarter-turn lock ring; no recalibration is needed post-installation due to factory-traceable characterization data stored in the RFID tag.
Does the analyzer meet US EPA approval for compliance reporting?
While not listed as an “EPA-certified method instrument,” the NISE sc satisfies performance specifications of EPA Method 353.2 when operated per HACH’s validated SOPs and supported by documented system suitability testing.
What maintenance is required beyond cartridge replacement?
Annual verification of temperature sensor accuracy (±0.2°C) and reference electrode potential stability (±10 mV) is recommended; full functional checklists are included in the SC1000 diagnostic menu.
