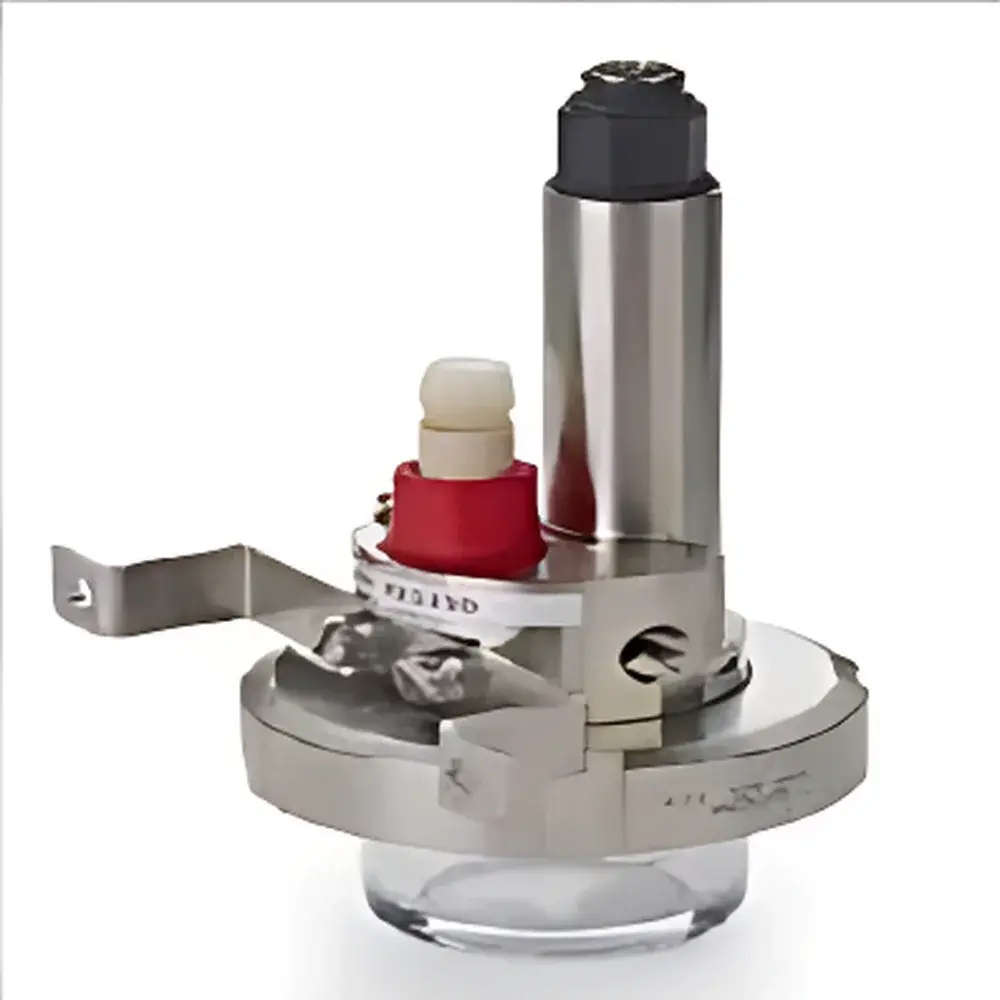

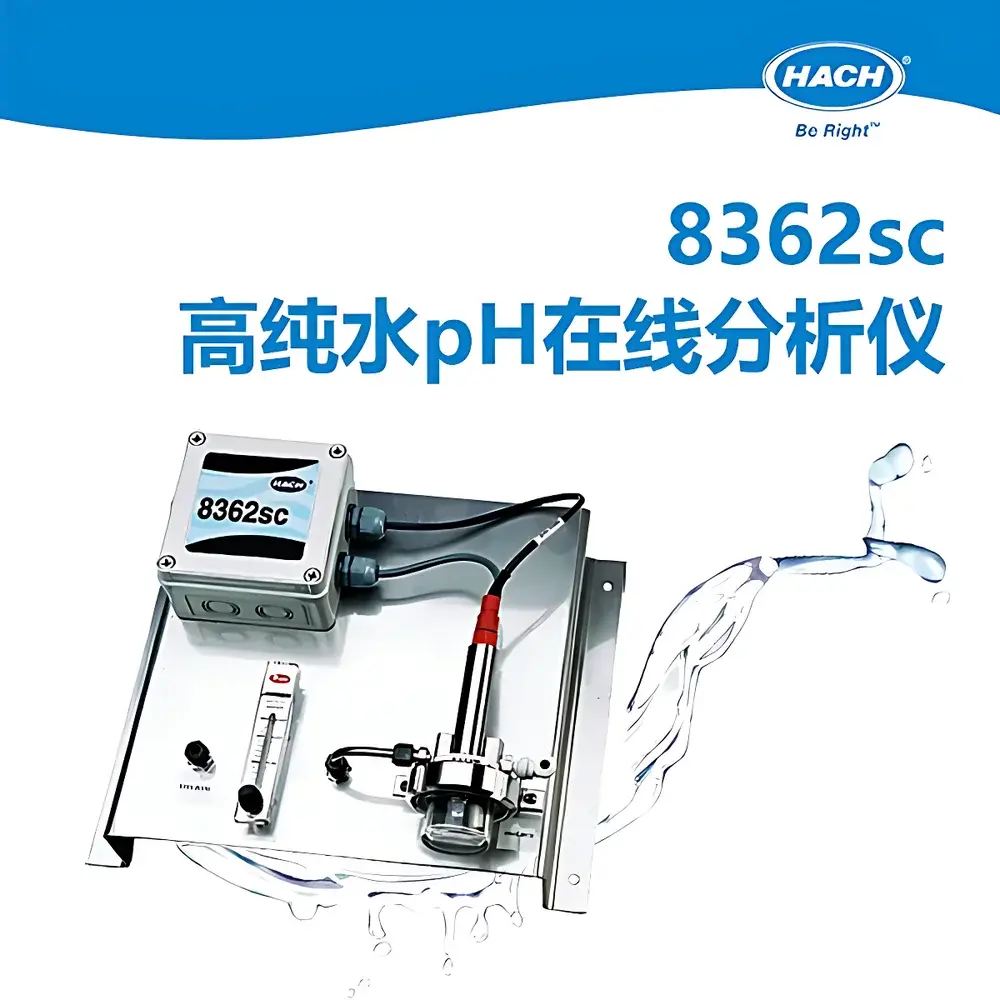

HACH Polymentron 8362SC Ultra-Pure Water pH/ORP Sensor

Overview

The HACH Polymentron 8362SC is a high-precision, inline pH and oxidation-reduction potential (ORP) sensor engineered specifically for ultra-pure water (UPW) applications in critical power generation and semiconductor manufacturing environments. It operates on the principle of potentiometric measurement using a dual-electrode configuration: a glass pH sensing element paired with a noble-metal (platinum or gold) ORP reference electrode, both housed within a single, hermetically sealed, self-pressurized probe body. The sensor employs a pressurized reference system that eliminates liquid junction potential drift—common in conventional refillable electrodes—by maintaining a stable, positive internal pressure differential relative to the process stream. This architecture ensures long-term stability, minimal calibration frequency, and immunity to low-conductivity interference (<0.1 µS/cm), making it compliant with ASTM D5127, IEC 60404-8-11, and EP/USP guidelines for UPW monitoring.

Key Features

• Self-pressurized reference system: No electrolyte refilling, no maintenance during normal operation; eliminates clogging and junction contamination risks in sub-ppb silica and TOC environments.
• Integrated Pt1000 temperature sensor: Enables automatic temperature compensation (ATC) with ±0.1 °C accuracy over 0–100 °C range, traceable to NIST standards.
• Stainless steel 316L flow-through housing with integrated Swagelok®-compatible compression fittings: Designed for sanitary, low-leakage installation in UPW distribution loops and boiler feedwater systems.
• Universal digital interface: Supports HACH’s SC1000/SC200 controllers and third-party PLCs via 4–20 mA analog output (HART® 7 protocol optional); configurable alarm thresholds and diagnostic status reporting.
• Patented low-drift glass membrane formulation: Optimized for conductivity ranges from 0.055 to 1 µS/cm, delivering <±0.02 pH repeatability and <±5 mV ORP reproducibility under steady-state conditions.

Sample Compatibility & Compliance

The Polymentron 8362SC is validated for continuous online monitoring of deionized (DI), reverse osmosis (RO), and mixed-bed polished water streams with resistivity ≥18.2 MΩ·cm at 25 °C. It meets material compatibility requirements per ASTM F2291 (wetted materials: 316L SS, PEEK, FFKM, and borosilicate glass) and complies with ASME BPE-2022 surface finish specifications (Ra ≤ 0.4 µm). Its design supports FDA 21 CFR Part 11-compliant data integrity when paired with HACH’s DataStream™ software, including electronic signatures, audit trails, and secure user access controls. It is routinely deployed in nuclear plant secondary loop monitoring per EPRI TR-102302 and thermal power station condensate polishing systems aligned with ISO 14644-1 Class 5 cleanroom-grade water quality protocols.

Software & Data Management

The sensor integrates natively with HACH’s Instrument Manager™ v5.2 and DataStream™ cloud platform, enabling real-time trend visualization, automated calibration logging, and predictive diagnostics (e.g., glass membrane hydration status, reference junction resistance decay modeling). All calibration events—including buffer recognition (NIST-traceable pH 4.01/7.00/10.01), slope/offset validation, and ORP standard verification (quinhydrone or Zobell’s solution)—are timestamped, digitally signed, and exportable in CSV/PDF formats for GLP/GMP documentation. Firmware updates are delivered via secure HTTPS OTA (over-the-air) with SHA-256 signature verification.

Applications

• Real-time pH/ORP monitoring in turbine condensate, feedwater, and steam cycle chemistry control systems.
• Final polish stage verification in semiconductor fab UPW skids meeting SEMI F63-0318 purity criteria.
• Pharmaceutical WFI (Water for Injection) distribution loop compliance per USP and EU GMP Annex 1.
• Research-grade ultrapure water systems in synchrotron light source facilities and nanomaterial synthesis labs.
• Corrosion potential mapping in closed-loop cooling systems operating under reducing or oxidizing chemistries.

FAQ

What is the recommended calibration interval for the Polymentron 8362SC in ultra-pure water service?

Calibration is typically performed every 7–14 days in continuous operation, depending on system cleanliness and historical drift trends; automated drift detection alerts are available via controller diagnostics.
Can this sensor be installed in vertical or horizontal piping orientations?

Yes—it is orientation-independent due to its self-pressurized reference chamber and optimized flow dynamics; minimum linear velocity requirement is 0.3 m/s for reliable boundary layer stabilization.
Does the sensor support direct connection to non-HACH analyzers?

Yes, via isolated 4–20 mA analog output; HART® digital communication requires compatible field communicators (e.g., AMS Device Manager or FieldCare).
Is replacement of the sensing element possible without removing the entire probe from the line?

No—the Polymentron 8362SC is a sealed, non-serviceable unit; full probe replacement is required per manufacturer’s lifetime specification (typically 18–24 months in UPW service).
How does the sensor handle air exposure during system shutdowns?

The self-pressurized design prevents air ingress into the reference chamber; however, prolonged dry storage (>48 h) is not recommended—maintain wet storage in pH 4 buffer or deionized water with 10 ppm NaCl additive to preserve membrane hydration.
