HACH Polymetron 9210 Online Silicon Analyzer

Overview

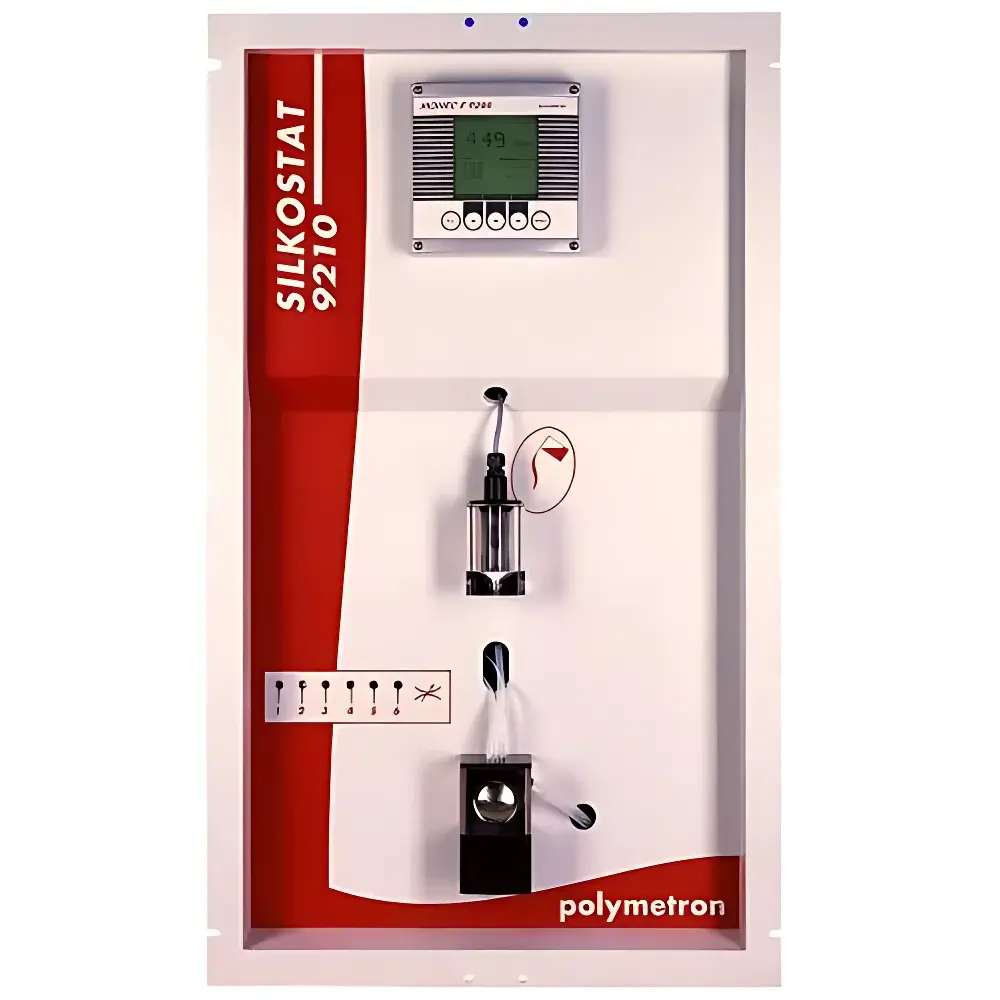

The HACH Polymetron 9210 Online Silicon Analyzer is a laboratory-grade, process-integrated photometric analyzer engineered for continuous, real-time quantification of dissolved silica (SiO₂) in ultrapure water (UPW) systems. It employs the molybdenum blue colorimetric method—standardized under ASTM D859 and ISO 10523—where soluble silicate reacts with molybdate under acidic conditions to form a heteropoly acid complex, subsequently reduced to yield a stable blue chromophore measurable at 815 nm. This principle ensures high selectivity for reactive silica species while minimizing interference from colloidal or particulate silicon. Designed specifically for semiconductor fabrication facilities, power plant boiler feedwater monitoring, and pharmaceutical water-for-injection (WFI) loops, the Polymetron 9210 delivers trace-level sensitivity required to maintain sub-ppb control thresholds critical to preventing wafer defect formation and heat exchanger scaling.

Key Features

• Multi-channel architecture supporting 1–6 independent measurement streams via modular flow cells—enabling centralized monitoring of multiple UPW distribution points without hardware duplication.
• Low-maintenance fluidic design with self-cleaning sample lines and chemically resistant PFA/PEEK wetted materials compliant with SEMI F57 and USP material compatibility guidelines.
• Dual-point calibration capability: automated chemical zero adjustment using deionized water blank and slope verification with NIST-traceable silica standard solutions—ensuring long-term accuracy drift ≤ ±1% per month.
• Integrated data logger with non-volatile memory storing ≥12 months of timestamped concentration values, calibration logs, alarm events, and system diagnostics—formatted for CSV export via USB or serial interface.
• Rugged industrial enclosure rated IP65 with front-panel touchscreen and physical keypad—operable in ambient temperatures from 5 °C to 45 °C and relative humidity up to 95% non-condensing.

Sample Compatibility & Compliance

The Polymetron 9210 is validated for use with ultrapure water matrices meeting ASTM D5127 Class I specifications (resistivity ≥18.2 MΩ·cm, TOC <1 ppb). It accommodates inlet pressures from 0.2 to 2 bar and maintains analytical stability across temperature fluctuations between 5 °C and 50 °C—critical for inline deployment in recirculating UPW loops. All reagents (molybdate, reducing agent, acid buffer) are supplied as pre-formulated, shelf-stable cartridges certified to ISO 9001 manufacturing controls. The analyzer conforms to electromagnetic compatibility standards IEC 61326-1 and safety requirements IEC 61010-1. Its audit trail functionality—including operator ID, timestamp, parameter changes, and calibration history—supports compliance with FDA 21 CFR Part 11 and EU Annex 11 for regulated environments.

Software & Data Management

The embedded firmware supports Modbus RTU over RS-485 for integration into DCS/SCADA platforms (e.g., Siemens Desigo, Honeywell Experion). Analog 4–20 mA outputs are individually configurable per channel for PLC interfacing or hardwired alarm relays. Optional HACH Insight™ software provides remote configuration, trend visualization, predictive maintenance alerts (e.g., reagent depletion, flow deviation), and automated report generation aligned with ISO/IEC 17025 documentation requirements. All data modifications are logged with immutable timestamps and user authentication—meeting GLP/GMP data integrity expectations.

Applications

• Semiconductor front-end processes: monitoring post-EDI and polishing mixed-bed effluent to ensure SiO₂ < 1 ppb prior to wafer rinsing baths.
• Power generation: boiler feedwater surveillance in supercritical units where silica carryover causes turbine blade deposition.
• Biopharmaceutical manufacturing: continuous verification of purified water and WFI systems per USP and EP 2.2.44.
• Microelectronics cleanroom utilities: validation of point-of-use filters and loop integrity testing during qualification protocols.

FAQ

What is the recommended calibration frequency for routine operation?
Typical practice is weekly zero/slope verification using certified standards; however, extended intervals (biweekly) are supported when historical performance data demonstrates ≤0.3 ppb drift over 7 days.
Can the Polymetron 9210 measure total silicon instead of reactive silica?
No—it is optimized for dissolved monosilicic acid (H₄SiO₄); total silicon requires acid digestion pretreatment not supported by this platform.
Is remote firmware update capability available?
Yes—via secure HTTPS connection through HACH Insight™ or local USB drive import following controlled change management procedures.
How does the system handle air bubbles or particulates in the sample stream?
Integrated optical bubble detection triggers automatic purge cycles; optional 0.45 µm in-line filtration is recommended upstream for high-turbidity UPW sources.
Does the analyzer support alarm relay outputs for process shutdown integration?
Yes—two programmable dry-contact relays (SPDT) are provided for high/low limit alarms or maintenance alerts, configurable via the front panel or software.
