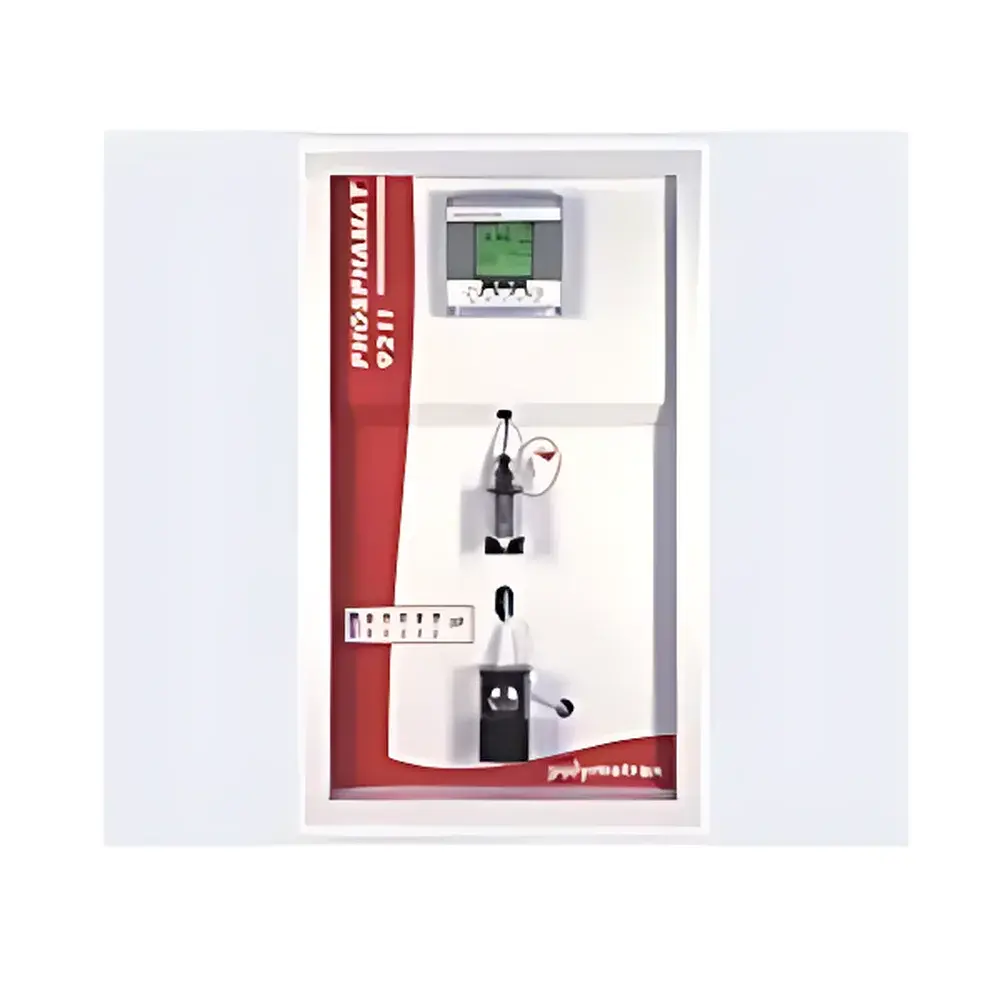

HACH Polymetron 9211 Online Phosphate Analyzer

Overview

The HACH Polymetron 9211 Online Phosphate Analyzer is a fully automated, colorimetric spectrophotometric instrument engineered for continuous, real-time monitoring of orthophosphate (PO₄³⁻) concentration in ultra-pure and process water streams. It operates on the principle of catalyzed molybdenum blue and vanadomolybdophosphoric yellow chemistry—two validated, EPA- and ISO-compliant colorimetric methods widely adopted in power generation and municipal water treatment. The analyzer integrates precise fluidic control, temperature-regulated reaction kinetics, and dual-wavelength photometric detection to deliver high reproducibility across its dual-range operation. Designed for deployment in demanding environments—including boiler feedwater, turbine condensate, desalinated makeup water, and distribution system monitoring—the Polymetron 9211 meets critical requirements for low detection limits, minimal reagent consumption, and long-term unattended operation under GLP and GMP-aligned operational protocols.

Key Features

• Multi-channel capability supporting 1–6 independent sample streams via programmable solenoid valve sequencing
• Dual analytical ranges: 0–5 mg/L PO₄ (using ANSA-based molybdate method) and 0–50 mg/L PO₄ (using vanadomolybdophosphate “yellow” method)
• Micro-piston reagent dosing system replacing traditional peristaltic pumps—enhancing dosing accuracy, reducing tubing wear, and improving long-term volumetric precision
• Integrated heated reaction cell with magnetic stirring ensures consistent temperature control (typically maintained at 45–50 °C) and complete reagent-sample homogenization
• Automatic two-point calibration (chemical zero and span) with user-defined schedule and audit-trail logging compliant with FDA 21 CFR Part 11 requirements
• Onboard data logger storing up to 30 days of 1-minute interval measurements, including timestamps, calibration events, alarm status, and maintenance logs
• Intuitive menu-driven interface with password-protected configuration levels for operator, supervisor, and service access tiers
• Modbus RTU/TCP and 4–20 mA analog outputs for seamless integration into DCS, SCADA, or PLC-based plant automation systems

Sample Compatibility & Compliance

The Polymetron 9211 is optimized for use with low-conductivity, low-turbidity aqueous samples typical of high-purity steam cycles and treated drinking water. It accommodates inlet pressures from 0.1 to 6 bar and sample temperatures between 5 °C and 40 °C without external cooling or pressure regulation. Sample lines require stainless steel 316 or PFA tubing to prevent phosphate leaching or adsorption. The analyzer conforms to ASTM D859 (Standard Test Method for Silica in Water), ISO 6878 (Water Quality — Determination of Phosphorus — Ammonium Molybdate Spectrophotometric Method), and USP for phosphorus testing in purified water used in pharmaceutical manufacturing. All firmware and calibration records support traceability per ISO/IEC 17025 and are compatible with electronic signature workflows required in regulated utilities.

Software & Data Management

The embedded operating system supports local configuration via LCD keypad or remote access through HACH’s PlantWeb® Digital Ecosystem or third-party OPC UA servers. Calibration history, diagnostic codes, and event logs are exportable as CSV files via USB port or Ethernet. Data integrity safeguards include automatic timestamping, write-protected memory sectors, and configurable alarm thresholds with latching and acknowledgment functions. Audit trails record all parameter changes, calibration actions, and user logins—including IP address (for networked units) and role-based permissions. Firmware updates are delivered via signed binary packages to ensure cryptographic integrity and version-controlled deployment.

Applications

• Continuous phosphate monitoring in fossil-fueled and nuclear power plant boiler feedwater and steam condensate to prevent corrosion and scale formation
• Optimization of phosphate dosing in coordinated pH-phosphate treatment programs
• Regulatory compliance verification for phosphate discharge limits in wastewater effluent and surface water intake points
• Process control in membrane desalination plants where residual phosphate indicates antiscalant degradation or biofouling onset
• Validation of pretreatment efficiency in semiconductor-grade ultrapure water (UPW) systems meeting SEMI F63 standards

FAQ

What is the detection limit for the 0–5 mg/L range using the ANSA method?
The practical quantitation limit is 0.02 mg/L PO₄ under standard operating conditions, verified per ICH Q2(R2) guidelines for analytical method validation.
Can the Polymetron 9211 be integrated with a central LIMS?
Yes—via Modbus TCP or OPC UA, it supports bidirectional data exchange including raw absorbance values, calibrated concentrations, and diagnostic flags.
Is manual cleaning of the optical path required?
No; the system performs automatic optical window cleaning during each measurement cycle using pressurized sample flush and integrated wiper mechanism.
How often must reagents be replaced?
Reagent kits (including acid, molybdate, and ANSA/vanadate solutions) typically last 30–90 days depending on sampling frequency and range selection—full consumables life is tracked and reported in the maintenance dashboard.
Does the analyzer meet SIL2 functional safety requirements?
While not certified as a standalone SIL2 device, its architecture complies with IEC 61508 Part 3 for hardware fault tolerance and supports integration into SIL2-rated safety instrumented systems when deployed with appropriate redundancy and voting logic.
