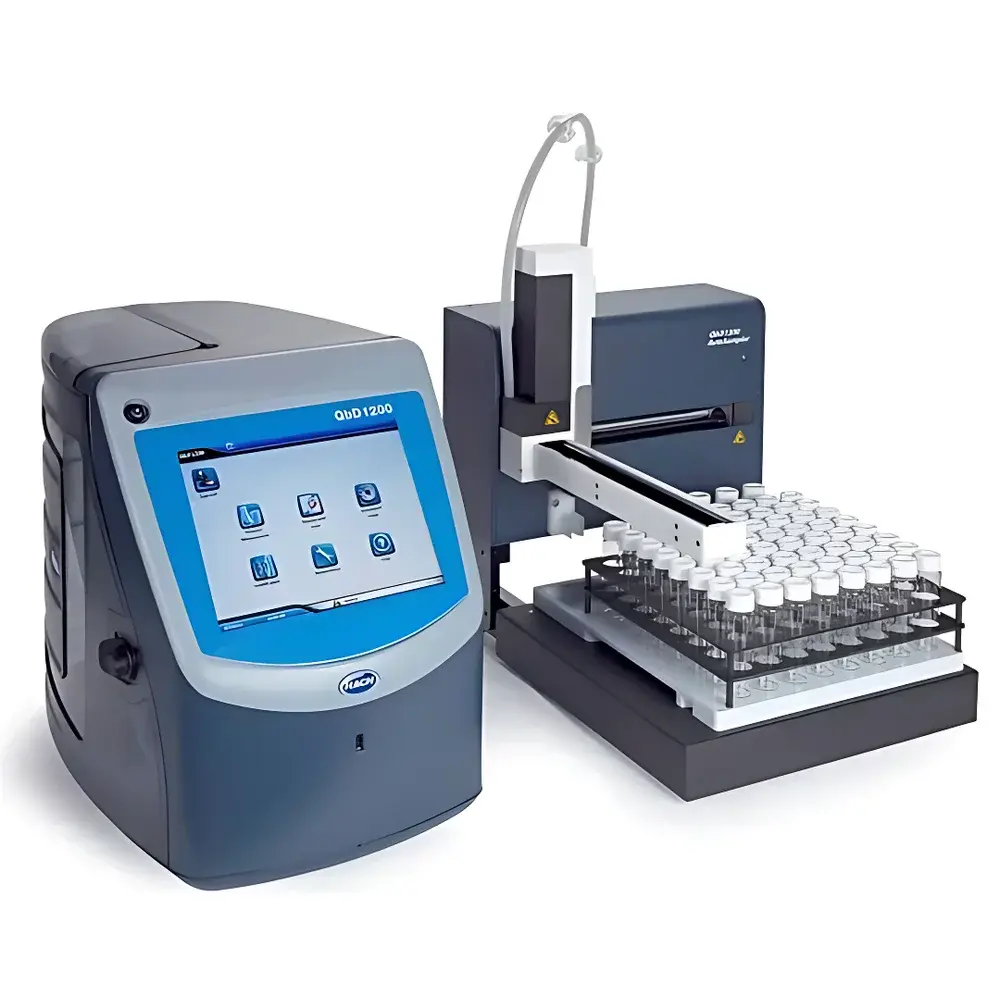

Hach QbD1200 Total Organic Carbon (TOC) Analyzer

Overview

The Hach QbD1200 Total Organic Carbon (TOC) Analyzer is an advanced, regulatory-compliant instrument engineered for precise, reliable, and fully automated measurement of total organic carbon in ultrapure water systems used across pharmaceutical, biotechnology, and medical device manufacturing environments. It employs high-efficiency high-temperature catalytic oxidation (680 °C) coupled with non-dispersive infrared (NDIR) detection to ensure complete oxidation of organic compounds and quantitative CO₂ measurement. Unlike traditional TOC analyzers requiring separate inorganic carbon (IC) removal steps, the QbD1200 integrates dynamic endpoint detection—automatically distinguishing between IC and TOC oxidation phases within a single reaction chamber—eliminating carryover, minimizing sample-to-sample memory, and removing the need for external acidification or sparging modules. Its architecture is purpose-built for GMP/GLP environments, supporting continuous operation in purified water (PW), water for injection (WFI), and clean-in-place (CIP) rinse monitoring applications up to 100 ppm TOC.

Key Features

• Dynamic endpoint detection technology ensures complete oxidation of organics and full removal of inorganic carbon in a single, integrated oxidation cycle.
• Digital NDIR detector with real-time background compensation and drift correction enables long-term signal stability without manual recalibration.
• 10.4-inch color touchscreen interface with guided workflow navigation—no reference to printed manuals required during routine operation or system qualification.
• Automatic range adjustment and on-board dilution capability eliminate pre-analysis concentration estimation; supports direct analysis of samples up to 10× the upper measurement limit (1000 ppm).
• Self-health diagnostics: 7 sensor types distributed across 10 critical monitoring points continuously verify UV lamp intensity, gas/liquid flow rates, pressure, temperature, and NDIR baseline integrity.
• Integrated hard drive with AES-256 encryption stores all raw data, audit trails, calibration logs, and reports for the instrument’s operational lifetime.
• One-reagent chemistry reduces consumable complexity and lowers cost of ownership; annual maintenance interval replaces legacy monthly service requirements.

Sample Compatibility & Compliance

The QbD1200 is validated for use with USP , EP 2.2.44, JP 17, IP, KP, and ICH Q5A/Q5C-compliant water matrices. It meets the stringent performance criteria for System Suitability Testing (SST) as defined in USP for bulk water and sterile water, JP SDBS validation protocols, and KHP-based calibration traceability. Its embedded software architecture is designed and verified to satisfy FDA 21 CFR Part 11 requirements—including electronic signatures, role-based access control, immutable audit trails, and secure data export via encrypted FTP over Ethernet. IQ/OQ/PQ documentation packages are pre-validated per ICH Q9 and Q10 principles, significantly reducing implementation timelines in regulated facilities.

Software & Data Management

The onboard operating system provides fully automated calibration, system suitability testing, and report generation without external PC dependency—thereby eliminating the need for separate computer system validation (CSV). All user actions, parameter changes, and instrument events are timestamped and logged with operator ID. Reports—including SST summaries, calibration certificates, and trending dashboards—are generated at the touch of a button and exportable in PDF or CSV format. Data resides exclusively on the internal encrypted SSD; no cloud storage or third-party servers are involved. Audit trail review functionality allows authorized users to filter by date, event type, or operator, supporting internal audits and regulatory inspections.

Applications

• Real-time TOC monitoring of purified water and water for injection (WFI) distribution loops.
• Cleanliness verification of process equipment, piping, and tanks following CIP/SIP cycles.
• Validation support for pharmaceutical water systems per FDA, EMA, and PMDA expectations.
• Environmental monitoring of ultrapure water used in cell culture media preparation and final fill operations.
• Trending of TOC baselines for predictive maintenance and root cause analysis of contamination events.

FAQ

Does the QbD1200 require external computers for operation or data management?

No—the analyzer operates autonomously with embedded computing, eliminating dependencies on external PCs and associated CSV efforts.
How does the instrument handle samples exceeding the 100 ppm TOC specification?

It automatically initiates on-board dilution and reanalysis; post-measurement chamber rinsing ensures recovery from 10× over-range conditions without service intervention.
Is the QbD1200 compliant with 21 CFR Part 11 for electronic records and signatures?

Yes—its firmware includes role-based authentication, electronic signature capture, and tamper-evident audit trails meeting all technical and procedural requirements.
What maintenance frequency is recommended?

Annual preventive maintenance is sufficient under normal operating conditions, supported by continuous self-diagnostics and predictive alerts.
Can the QbD1200 be integrated into a facility’s LIMS or SCADA system?

Yes—via Modbus TCP or OPC UA protocols over Ethernet, enabling bidirectional data exchange and centralized alarm handling.
