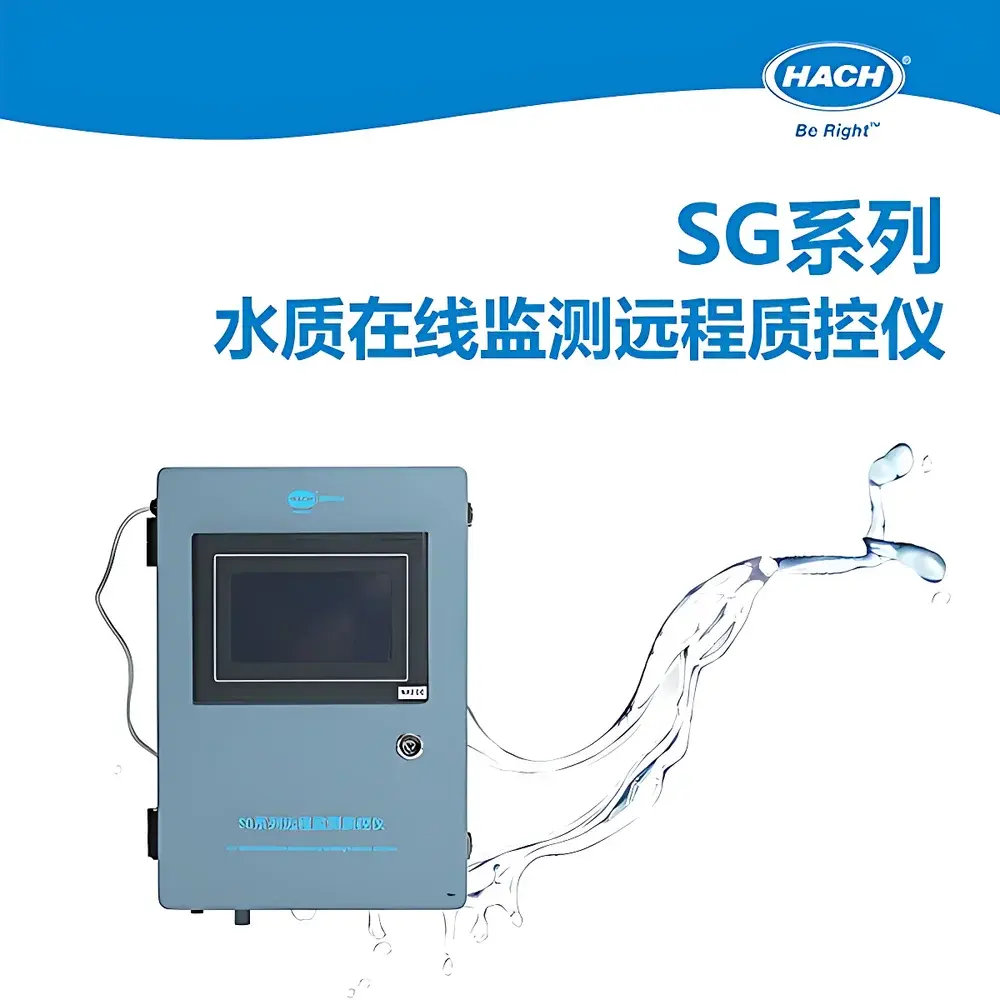

HACH SG1000 Series Remote Monitoring Quality Control System

Overview

The HACH SG1000 Series Remote Monitoring Quality Control System is an engineered solution for automated, traceable, and auditable quality assurance in continuous water quality monitoring applications. Designed to operate in tandem with online analyzers—including but not limited to UV-Vis spectrophotometers, ion-selective electrode (ISE) sensors, and amperometric chlorine analyzers—the SG1000 implements a controlled, closed-loop calibration verification and spike recovery protocol based on gravimetrically consistent sample preparation. Its core architecture integrates a programmable human-machine interface (HMI) with industrial-grade digital I/O modules to orchestrate precise fluid handling via peristaltic dosing pumps, calibrated sample cells, and pneumatic actuated valves. Each operational cycle begins with full system purge and rinse of the sample chamber using deionized water, followed by volumetric dispensing of certified stock solutions into a fixed-volume cell—ensuring metrological integrity for zero-point verification, span validation, blank assessment, and dynamic spike recovery testing per EPA Method 1631 and ISO 5667-3 guidelines.

Key Features

• Automated Standard Preparation: Configures multi-level calibration standards (zero, low, mid, high) and blanks with ≤0.3% relative standard deviation (RSD) in dilution repeatability—validated across ≥10 consecutive cycles using certified reference materials.
• Real-Time Dynamic Spiking: Interfaces bi-directionally with host analyzers via Modbus RTU or TCP/IP to retrieve live measurement values, then calculates and prepares concentration-matched spiked samples for recovery assessment without manual intervention.
• Self-Maintaining Fluid Pathway: Executes scheduled or event-triggered internal cleaning sequences—including air purging, reverse-flow rinsing, and complete chamber evacuation—to mitigate carryover, biofilm formation, and memory effects in long-term unattended operation.
• Intuitive Local Operation: Features a 7-inch high-brightness TFT resistive touchscreen with IP65-rated front panel, supporting multilingual UI (English, Spanish, French), password-protected configuration access, and real-time status visualization including pump duty cycles, valve positions, and error logs.
• Ruggedized Enclosure Design: Constructed with stainless steel 316L wetted parts and NEMA 4X / IP66-rated housing for deployment in outdoor kiosks, wastewater lift stations, and riverbank telemetry shelters under ambient temperatures from −20 °C to +50 °C.

Sample Compatibility & Compliance

The SG1000 supports aqueous matrices compliant with ASTM D511, D1129, and ISO 7027 standards, including surface water, treated effluent, groundwater, and municipal drinking water. It accommodates standard stock solutions of nitrate, phosphate, ammonia, fluoride, and total chlorine at concentrations ranging from 0.1 mg/L to 100 mg/L as primary reference materials. All fluidic components meet USP Class VI and FDA 21 CFR Part 11 requirements for material compatibility. The system generates ALCOA+–compliant audit trails—including operator ID, timestamp, parameter changes, and QC result exports—for integration into LIMS and GLP/GMP workflows. Full traceability aligns with ISO/IEC 17025:2017 clause 7.7 (Sampling) and EN 15235:2007 for environmental monitoring QA/QC systems.

Software & Data Management

Firmware v3.2+ enables local data storage (≥12 months of QC records at 15-minute intervals) and secure remote access via TLS 1.2–encrypted web interface. Export formats include CSV, PDF reports (with embedded digital signatures), and XML structured for EPA STORET and WQX ingestion. Optional HACH DataStream™ cloud integration provides automated synchronization with enterprise dashboards, configurable alert thresholds (e.g., recovery 115%), and role-based user permissions aligned with IEC 62443-3-3 cybersecurity frameworks.

Applications

• Regulatory compliance monitoring at NPDES discharge points and TMDL-impaired watersheds
• Performance verification of online nutrient analyzers in WWTP influent/effluent streams
• Long-term drift compensation for turbidity and COD sensors in reservoir intake networks
• Method validation support for laboratories accredited to ISO/IEC 17025
• Remote QA/QC for distributed sensor networks in flood-prone or low-connectivity regions

FAQ

Does the SG1000 require external calibration gas or reagents beyond standard stock solutions?

No—only certified liquid reference standards and deionized water are required; no compressed gases or consumable cartridges are used.
Can the SG1000 be integrated with third-party SCADA systems?

Yes—via Modbus RTU (RS-485), Modbus TCP, or optional OPC UA gateway firmware upgrade.
What is the minimum maintenance interval under continuous operation?

Scheduled maintenance is recommended every 6 months; however, the system logs all critical component wear metrics (e.g., pump tube revolutions, valve actuation counts) to enable predictive servicing.
Is firmware update capability available over-the-air?

Yes—updates are delivered via HTTPS-secured package download through the embedded web server or HACH DataStream™ portal.
How does the SG1000 handle temperature-induced density variations during dilution?

It applies real-time temperature compensation using integrated PT100 sensors in both stock solution reservoirs and the sample cell, referencing ISO 3696:1987 water density tables.
