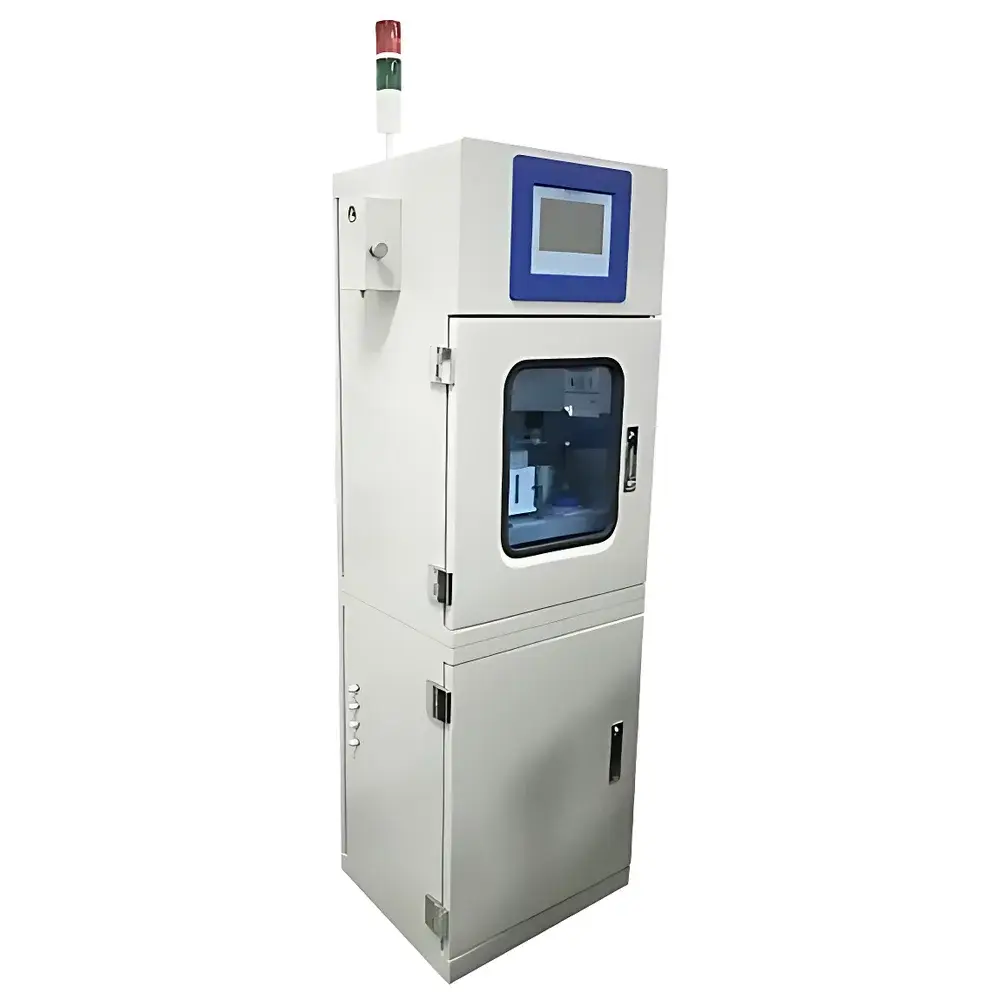

HOGON ALT Online Aluminum Chloride & Aluminum Nitrate Analyzer

Overview

The HOGON ALT Online Aluminum Chloride & Aluminum Nitrate Analyzer is a fully automated,无人值守 (unattended) process analytical instrument engineered for continuous, real-time quantification of aluminum chloride (AlCl₃) and aluminum nitrate (Al(NO₃)₃) concentrations in industrial aqueous process streams. It operates on the principle of potentiometric and photometric endpoint detection in automated titration—leveraging precise electrochemical response (e.g., pH, redox, or complexometric potential shifts) combined with high-resolution colorimetric monitoring to determine stoichiometric equivalence points. Designed for integration into closed-loop chemical dosing control systems, the analyzer eliminates manual sampling and lab-based titration, enabling dynamic feedback control of reagent addition (e.g., AlCl₃ or Al(NO₃)₃ stock solutions) to maintain bath composition within narrow工艺 windows (e.g., ±0.1 g/L tolerance) required in surface treatment, anodizing, wastewater coagulation, and catalyst synthesis processes.

Key Features

• Embedded ARM A8 processor with deterministic real-time task scheduling for synchronized sample handling, titrant delivery, endpoint detection, and control output generation
• Modular architecture supporting configurable titration modes: potentiometric (pH, redox, complexometric), photometric (colorimetric endpoint), and hybrid dual-signal validation
• 7-inch full-color capacitive touchscreen HMI with intuitive Chinese/English bilingual interface; supports recipe-based method storage (up to 50 methods), audit-trail-enabled operation logs, and user-level access control
• Dual high-precision burettes (±0.1% volumetric accuracy, 0.01 mL resolution) with integrated electromagnetic switching valves and solvent-resistant peristaltic auxiliary pumps (rated >50,000 cycles)
• Optical detection module featuring 16-bit RGB color sensor array (CIE L*a*b* compliant) and auto-compensated ambient light rejection for robust color endpoint discrimination in turbid or colored matrices
• Multi-channel I/O interface (RS232, TCP/IP, Modbus RTU/TCP) for seamless integration with DCS, SCADA, or MES platforms; supports OPC UA client/server configuration upon request

Sample Compatibility & Compliance

The ALT analyzer accommodates liquid samples with pH 1–12, suspended solids <50 mg/L, temperature 5–45 °C, and conductivity <20 mS/cm—covering typical effluent, plating bath, coagulant feed, and catalyst precursor solutions. It complies with ISO/IEC 17025 calibration traceability requirements for titrimetric analyzers when operated with certified reference materials (CRMs). Method validation documentation aligns with ASTM D1093 (aluminum salt titration), ISO 8288 (complexometric determination of Al³⁺), and USP for quantitative assay validation. Full electronic records—including raw sensor data, titration curves, endpoint timestamps, and operator actions—are time-stamped and cryptographically signed to meet FDA 21 CFR Part 11 and EU Annex 11 data integrity requirements.

Software & Data Management

The embedded titration control software (v3.2+) provides method editor functionality for defining custom calculation formulas (e.g., AlCl₃ = (Vₜ × Cₜ × Mₐₗcₗ₃) / Vₛ), automatic dilution factor compensation, and multi-point calibration curve management. All analysis results—including titrant consumption, calculated concentration, confidence interval estimates, and QC flag status—are exported via configurable JSON/CSV payloads to SQL Server, MySQL, or cloud-hosted time-series databases (e.g., InfluxDB). Audit trails record every parameter change, login event, and alarm activation with immutable SHA-256 hashing. Remote firmware updates and diagnostic telemetry are supported over TLS 1.2-secured HTTP(S) channels.

Applications

• Real-time monitoring and closed-loop dosing control in aluminum sulfate–free coagulation systems for municipal wastewater treatment
• In-line quality assurance of AlCl₃ concentration in pharmaceutical excipient synthesis (e.g., antiperspirant active ingredient manufacturing)
• Automated bath chemistry maintenance in hard-anodizing and chromate-free conversion coating lines
• Process analytical technology (PAT) deployment for continuous API crystallization where Al(NO₃)₃ serves as a templating agent
• Regulatory-compliant release testing of aluminum-based flocculants per ISO 10523 and EN 872

FAQ

What titration methods does the ALT analyzer support for aluminum speciation?
It supports direct EDTA complexometric titration (with xylenol orange indicator), back-titration after excess fluoride addition, and pH-stat titration using standardized NaOH—configurable via method templates.
Can the system interface with legacy PLCs in existing production lines?
Yes—Modbus RTU (RS485) and Modbus TCP are natively supported; custom protocol gateways (e.g., Profibus DP, CANopen) are available as optional add-ons.
How is calibration traceability maintained across extended unattended operation?
Daily auto-calibration using onboard CRM vials (NIST-traceable AlCl₃ standards) is scheduled; drift correction algorithms apply linear regression to historical endpoint voltage/color shift trends.
Is the analyzer suitable for hazardous area installations?
The base unit is rated IP65; explosion-proof enclosures (ATEX II 2G Ex db IIB T4 Gb) and intrinsically safe sensor variants are available under separate model codes.
What cybersecurity measures are implemented in the embedded OS?
The Linux-based firmware includes mandatory password complexity, disabled default accounts, encrypted local storage, disabled Telnet/FTP, and quarterly security patching via signed OTA updates.
