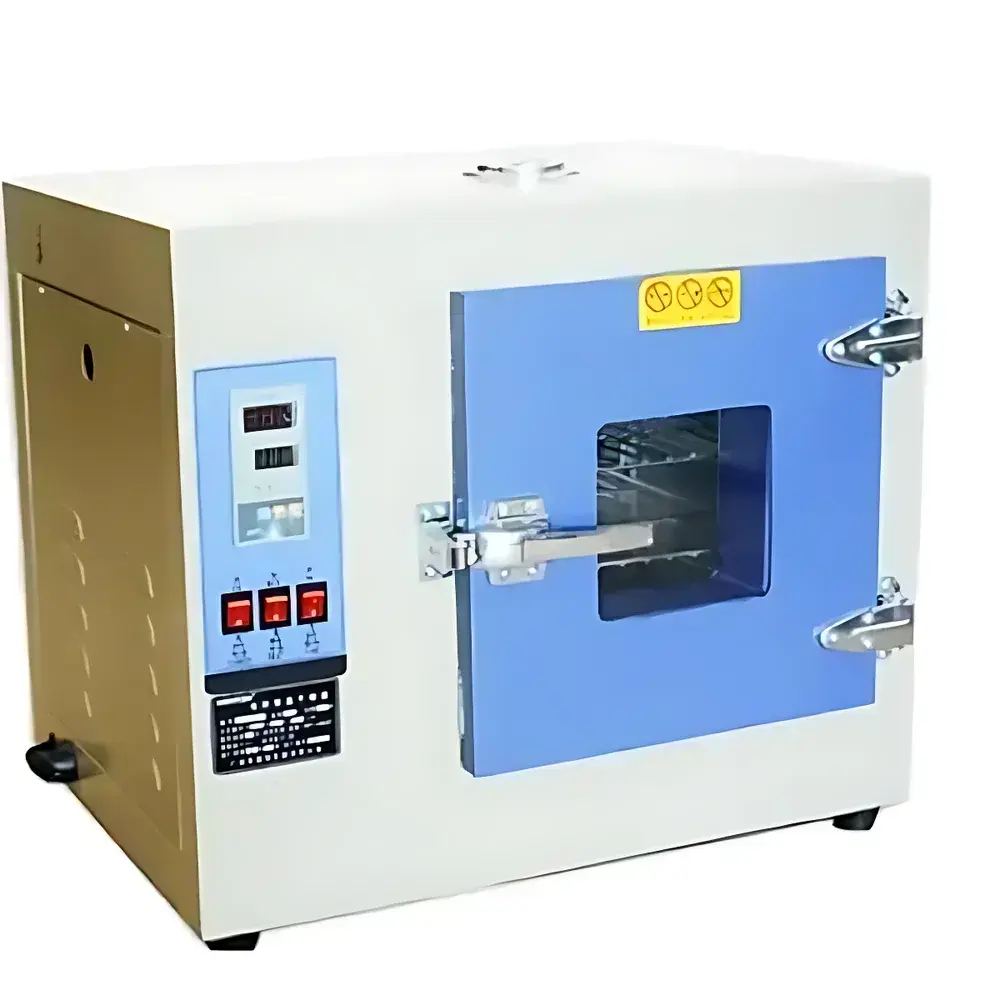

Jianhu Industrial-Grade High-Capacity Vacuum Oven
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | Industrial-Grade High-Capacity Vacuum Oven |
| Price Range | USD 900 – 9,000 |
Overview
The Jianhu Industrial-Grade High-Capacity Vacuum Oven is an engineered thermal processing system designed for continuous-duty operation under deep vacuum conditions. It operates on the principle of vacuum-assisted sublimation and desorption—removing moisture and volatile compounds from heat-sensitive materials at reduced pressure and precisely controlled low temperatures (typically 25–120°C). Unlike conventional convection ovens, this system eliminates oxidative degradation, minimizes thermal stress, and ensures uniform drying across large-volume loads—making it suitable for production-scale applications in food processing, battery manufacturing, electronics assembly, and precision tooling maintenance. Its robust stainless-steel chamber, dual-stage vacuum pump interface, and PID-controlled heating system support uninterrupted 24-hour operation with high repeatability and long-term stability.
Key Features
- Industrial-grade 304 stainless-steel vacuum chamber with reinforced door seal and double-glass observation window for real-time process monitoring
- Configurable vacuum range down to ≤10 Pa (equivalent to 0.075 Torr), compatible with external two-stage rotary vane or dry scroll vacuum pumps
- PID temperature control with ±0.5°C accuracy across 25–120°C operating range; independent vacuum and temperature setpoint programming
- Continuous-duty rated heating elements and forced-air circulation system optimized for thermal uniformity (±2°C within chamber volume)
- Integrated over-temperature protection, vacuum loss alarm, and automatic pump shutdown logic for process safety and equipment longevity
- Modular design supporting optional data logging (RS485/Modbus RTU), Ethernet connectivity, and compliance-ready audit trail generation
Sample Compatibility & Compliance
The oven accommodates a broad spectrum of sample types—including hygroscopic powders, coated electrodes, polymer composites, biological specimens, and delicate organic matrices—without compromising structural integrity or chemical stability. Its inert vacuum environment prevents oxidation, hydrolysis, and Maillard reactions during dehydration. The system meets fundamental requirements for ISO 17025-accredited laboratories and supports GMP-aligned workflows when paired with validated protocols. While not pre-certified to FDA 21 CFR Part 11, its architecture allows integration with compliant electronic record systems through configurable I/O and timestamped parameter logging. It complies with CE safety directives (2014/35/EU Low Voltage Directive and 2014/30/EU EMC Directive) and conforms to GB/T 5170.11–2017 (Chinese national standard for environmental testing equipment performance verification).
Software & Data Management
The oven operates via a front-panel touchscreen HMI with intuitive menu navigation and multi-user access levels (operator, engineer, administrator). Optional PC-based software enables remote configuration, real-time graphing of chamber pressure and temperature profiles, and export of CSV-formatted datasets for statistical process analysis. When equipped with data-logging firmware, the system records timestamps, setpoints, actual values, and alarm events—supporting traceability for internal quality audits or regulatory review. All stored data are write-protected and retain integrity during power interruption. Firmware updates are performed via USB interface with version rollback capability and SHA-256 signature verification.
Applications
- Food & Nutraceutical Processing: Low-temperature dehydration of fruits, herbs, and seafood while preserving heat-labile vitamins (e.g., ascorbic acid), pigments (anthocyanins), and volatile flavor compounds
- Lithium-Ion Battery Manufacturing: Solvent removal from cathode/anode slurries and separator films under oxygen-free conditions to prevent transition-metal oxidation and electrolyte decomposition
- Electronics Assembly: Pre-soldering moisture conditioning of PCBs and IC packages per IPC/JEDEC J-STD-033 guidelines to eliminate popcorning and delamination risks
- Precision Tooling & Mold Maintenance: Rapid post-cleaning drying of injection molds and die-casting tools to inhibit flash rust formation and dimensional drift
- Research & Materials Science: Controlled solvent evaporation for thin-film fabrication, catalyst activation, and porous material synthesis (e.g., MOFs, aerogels)
- Conservation & Artisanal Production: Preservation of botanical specimens, archival documents, and wooden substrates without warping, cracking, or pigment migration
FAQ
What vacuum level is required for optimal drying of lithium electrode materials?
For phosphate iron lithium (LiFePO₄) and nickel-cobalt-manganese (NCM) cathodes, a base pressure ≤10 Pa is recommended to suppress oxidative side reactions during thermal treatment at 80–110°C.
Can this oven be integrated into an automated production line?
Yes—it features dry-contact relay outputs, analog 4–20 mA signal interfaces, and Modbus RTU protocol support for PLC synchronization and MES-level data exchange.
Is validation documentation available for IQ/OQ/PQ protocols?
Jianhu provides factory-assembled test reports (including temperature uniformity mapping and vacuum decay tests); full qualification support is delivered by authorized application engineers upon request.
What maintenance intervals are recommended for continuous 24/7 operation?
Vacuum pump oil replacement every 500 operational hours; chamber gasket inspection quarterly; calibration of temperature sensors annually using NIST-traceable reference standards.
Does the system support programmable multi-step drying cycles?
Yes—the controller stores up to 16 user-defined programs, each with up to 8 segments combining ramp-soak-hold logic for pressure, temperature, and dwell time parameters.
