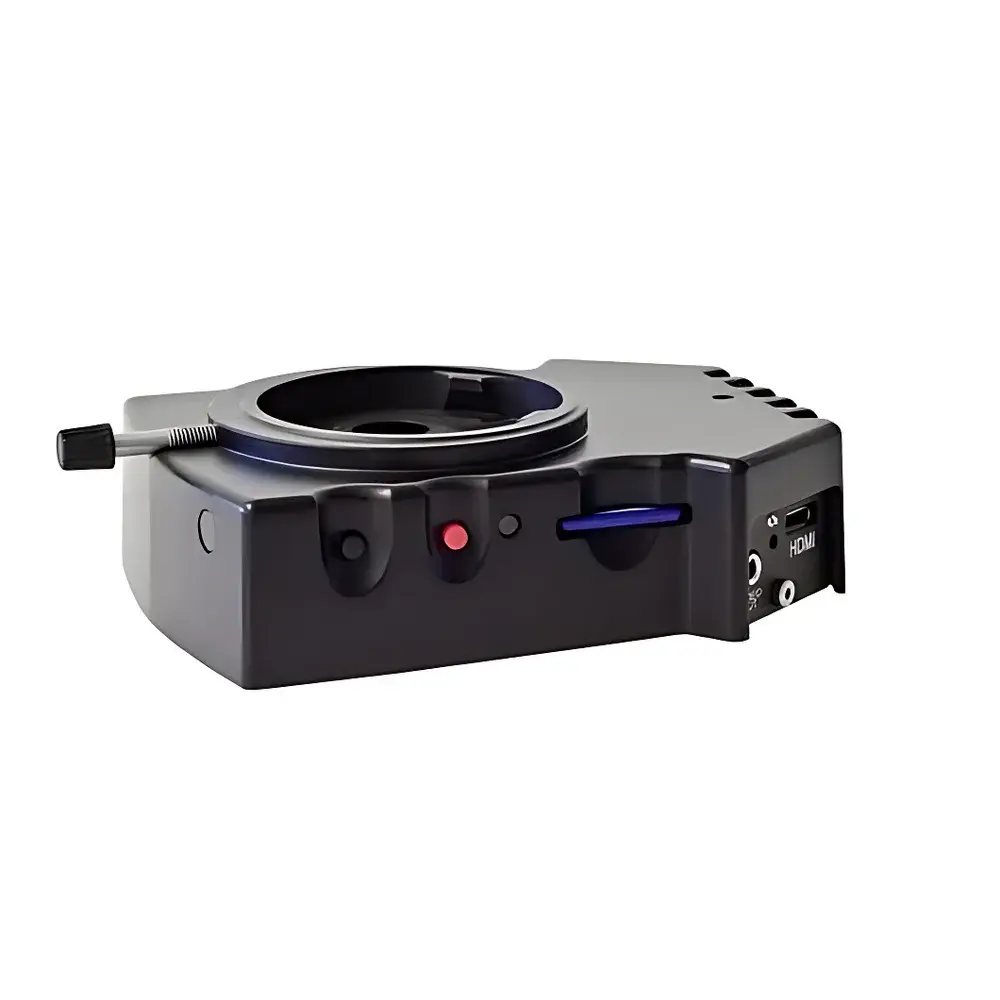

Leica IC80 HD Stereo Microscope Digital Camera

Overview

The Leica IC80 HD is a dedicated digital imaging module engineered specifically for integration with Leica stereo microscopes—including the S4E, M50, M60, S6, M80, S8 APO, M125, M165 C, and M205 series—without requiring a trinocular head or external C-mount adapter. Unlike conventional microscope cameras that rely on optical path splitting or auxiliary ports, the IC80 HD employs a coaxial optical coupling design: it installs directly into the observation light path between the microscope body and the eyepiece tube, preserving native optical performance while delivering real-time, full-resolution imaging. Its core imaging engine utilizes a progressive-scan CMOS sensor with 3.0 megapixel resolution (2048 × 1536), optimized for high signal-to-noise ratio in low-light stereoscopic applications. The device operates on the principle of direct optical path digitization—capturing reflected or transmitted light without intermediate relay optics—ensuring minimal parallax shift and faithful color fidelity (sRGB gamut, 24-bit depth). Designed for routine QC, education, documentation, and pre-screening workflows, the IC80 HD delivers deterministic image acquisition under ambient lab lighting or integrated LED illumination, with no dependency on PC hardware for basic operation.

Key Features

• Standalone imaging capability: Powers on independently via integrated power management; records stills and video directly to removable SDHC card (up to 32 GB) without computer connection.
• Full HD live streaming: Outputs uncompressed 1080p (1920 × 1080) video at 30 fps over USB 2.0 to Windows/macOS/Linux hosts—compatible with standard UVC (USB Video Class) drivers for plug-and-play integration into third-party software (e.g., ImageJ, NIS-Elements, or custom LabVIEW VIs).
• Optical path-integrated mounting: Eliminates need for trinocular heads, beam splitters, or mechanical adapters—reduces optical loss, maintains working distance, and preserves ergonomic viewing posture.
• Embedded calibration metadata: Each captured image stores pixel scale information (µm/pixel), objective magnification, illumination settings, and timestamp—enabling traceable quantitative analysis in regulated environments.
• Intuitive LAS EZ software suite: Includes calibrated linear/distance/angle measurement tools, annotation overlays (text, arrows, ROI boxes), batch export (TIFF, JPEG, AVI), and DICOM-compliant export for medical or academic archiving.
• Rugged industrial housing: Aluminum alloy chassis rated for continuous 8-hour daily operation; ESD-protected circuitry compliant with IEC 61340-5-1.

Sample Compatibility & Compliance

The IC80 HD supports all standard Leica stereo microscope configurations with modular illumination (transmitted, reflected, oblique, polarized) and zoom optics (6.3×–100×). It is routinely deployed in ISO/IEC 17025-accredited testing labs for non-destructive inspection of PCB assemblies, metallurgical specimens, botanical samples, forensic evidence, and pharmaceutical tablet coatings. Its firmware architecture embeds audit-trail-ready metadata per image—supporting GLP/GMP-aligned documentation requirements when used with LAS EZ’s secure user login and session logging. While not FDA 21 CFR Part 11-certified out-of-the-box, the system meets foundational data integrity criteria (ALCOA+ principles) when deployed with controlled software configuration and validated SOPs. CE marking confirms compliance with EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU.

Software & Data Management

LAS EZ is provided as a free, perpetual-license desktop application for Windows 10/11 (64-bit) and macOS 12+. It performs zero-latency preview rendering and supports hardware-accelerated deconvolution for minor out-of-focus blur correction. All measurement operations are geometrically referenced to embedded calibration data—ensuring repeatability across instrument swaps or lab relocations. Export formats include multi-page TIFF (with embedded EXIF and custom XMP metadata), time-stamped AVI (uncompressed), and CSV logs containing coordinate sets and statistical summaries (mean, SD, min/max). For enterprise deployment, LAS EZ integrates with Leica’s optional LAS X Core platform via RESTful API endpoints—enabling centralized image repository synchronization and automated report generation aligned with LIMS workflows.

Applications

• Quality control in electronics manufacturing: Solder joint inspection, component placement verification, and conformal coating uniformity assessment.
• Educational microscopy: Real-time classroom projection of dissection, mineral identification, or entomological specimens with synchronized annotation.
• Forensic documentation: High-fidelity capture of toolmarks, fiber morphology, and gunshot residue patterns under oblique illumination.
• Pharmaceutical development: Visual grading of tablet surface defects, capsule fill consistency, and lyophilized powder cake structure.
• Museum conservation: Non-contact monitoring of pigment degradation, textile weave integrity, and parchment micro-cracking over time-series acquisitions.

FAQ

Does the IC80 HD require a trinocular microscope head?
No—it mounts directly between the stereo microscope body and the eyepiece tube, eliminating the need for a trinocular port or optical splitter.
Can images be acquired without a computer?
Yes—the camera operates autonomously: press the hardware shutter button to save JPEG/TIFF images or record AVI clips directly to SD card.
Is calibration data preserved when exporting to third-party software?
Calibration metadata (pixel size, magnification, timestamp) is embedded in TIFF/EXIF headers and remains accessible in compatible viewers or analysis platforms.
What is the maximum supported SD card capacity?
Class 10 SDHC cards up to 32 GB are officially validated; larger capacities may function but are not guaranteed for sustained write performance.
Is LAS EZ compatible with networked or shared storage environments?
Yes—LAS EZ supports UNC paths and mapped drives; project folders and image archives can reside on NAS or Windows Server shares with standard NTFS permissions.
