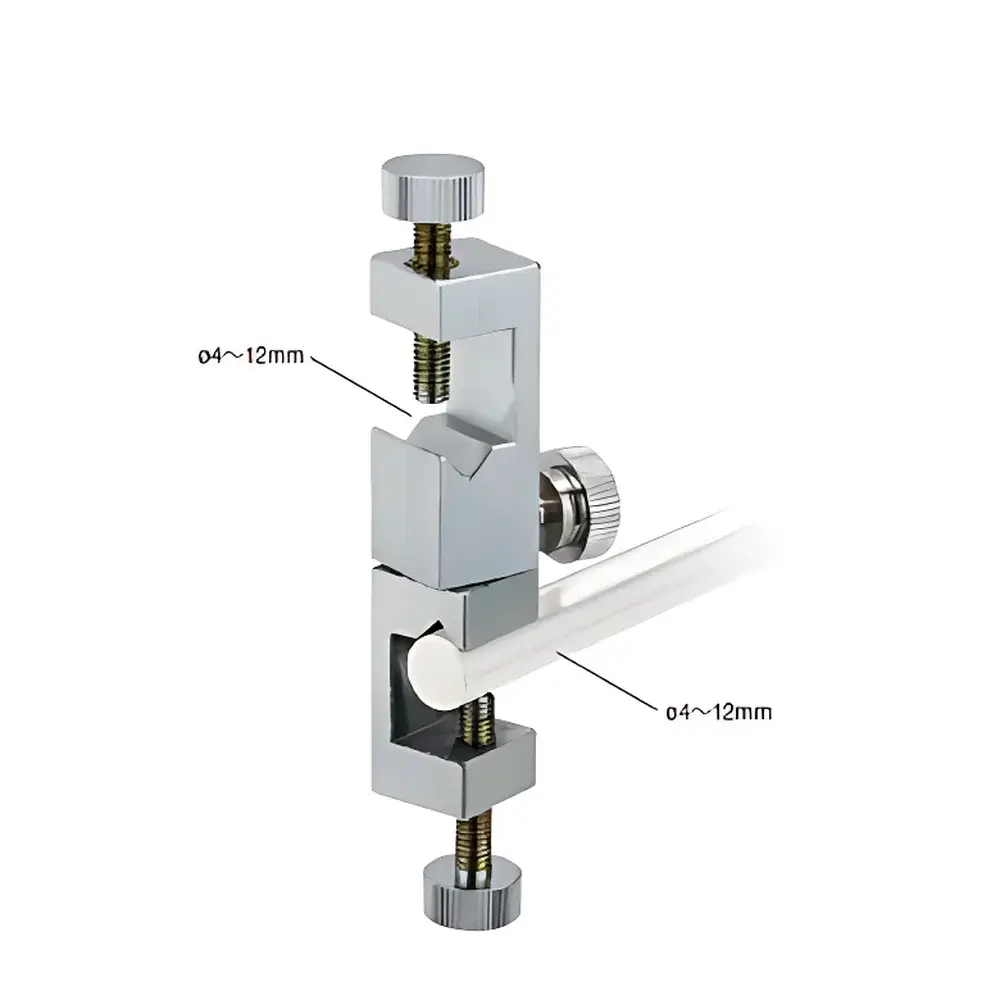

Narishige X-4 Rotating X-Block

Overview

The Narishige X-4 Rotating X-Block is a precision-engineered mechanical positioning component designed for integration into high-accuracy micro-manipulation and optical alignment systems. Unlike motorized or digitally controlled rotational stages, the X-4 operates on a passive, manually actuated principle—leveraging finely tuned mechanical friction and geometric stability to deliver repeatable, backlash-free 360° horizontal rotation. Its function is not measurement-based but rather structural and ergonomic: it serves as an angular articulation node within multi-axis manipulator assemblies, enabling precise orientation of probes, electrodes, optical fibers, or microtools relative to a sample stage or imaging plane. The device is commonly deployed in patch-clamp electrophysiology rigs, microinjection platforms, confocal microscopy sample holders, and microfabrication alignment jigs where sub-degree repeatability and zero electronic interference are critical.

Key Features

• 360° continuous, smooth manual rotation with tactile feedback and consistent torque profile across full travel
• Integrated mechanical locking mechanism providing stable angular fixation without slippage under static load (tested up to 500 g lateral force)
• Compact footprint (28 × 16 × 85 mm) and low mass (153 g) minimize inertial loading and vibration coupling in sensitive optical or electrophysiological setups
• Construction from aerospace-grade anodized aluminum alloy ensures dimensional stability across laboratory temperature ranges (15–30 °C) and resistance to oxidation in humid or saline environments
• Dual-standard mounting interface: pre-tapped M3 and M4 threaded holes conform to Narishige’s proprietary rail system and ISO/ANSI-compatible breadboard and post-mount configurations
• No electrical components or power requirements—ideal for Faraday-cage enclosed electrophysiology suites or MRI-adjacent instrumentation

Sample Compatibility & Compliance

The X-4 Rotating X-Block does not interact directly with samples; instead, it supports sample-facing tools such as glass micropipettes, tungsten electrodes, or fiber-optic cannulas via compatible adapters (e.g., Narishige MO-103 or SM-11). Its mechanical design complies with general laboratory equipment safety standards per IEC 61010-1:2010 for non-electrical laboratory apparatus. While not certified to GLP or GMP regulatory frameworks—given its role as a passive mechanical interface—it is routinely employed in ISO 17025-accredited electrophysiology labs and academic facilities adhering to NIH and ERC experimental protocol guidelines. Surface finish meets ISO 8502-3 cleanliness requirements for non-contaminating hardware used in sterile microinjection workflows.

Software & Data Management

As a purely mechanical, non-instrumented component, the X-4 Rotating X-Block does not incorporate firmware, embedded controllers, or digital communication interfaces. It generates no telemetry, position logs, or audit trails. Consequently, it imposes no software dependencies, licensing constraints, or cybersecurity considerations. This absence of digital functionality ensures full compatibility with legacy and modern acquisition systems—including Axon pCLAMP, HEKA PatchMaster, and National Instruments DAQ platforms—without driver conflicts or timing jitter. For laboratories operating under FDA 21 CFR Part 11 or EU Annex 11 compliance mandates, the X-4 requires no validation documentation beyond standard equipment logbook entries due to its static, non-configurable nature.

Applications

• Electrophysiology: Angular alignment of patch pipettes during whole-cell or cell-attached recordings to optimize seal formation and reduce membrane stress
• Neuroscience: Precise orientation of optogenetic fiber implants or silicon probe arrays in stereotaxic surgery rigs
• Developmental biology: Controlled rotation of zebrafish or C. elegans embryos mounted on agarose pads for multi-angle imaging
• Materials science: Positioning of AFM cantilevers or nanoindentation tips at defined azimuthal angles relative to crystallographic axes
• Microfabrication: Alignment of photomasks or microfluidic interconnects during soft lithography bonding procedures
• Optical trapping: Fine adjustment of objective-mounted microtools in dual-beam optical tweezers configurations

FAQ

Is the X-4 compatible with non-Narishige manipulators?
Yes—the M3/M4 threaded mounting pattern aligns with industry-standard 25 mm and 50 mm grid spacing used by Thorlabs, Sutter Instrument, and Prior Scientific mechanical stages.
Does the rotation mechanism include detents or indexed positions?
No. The X-4 provides infinite adjustability without physical stops or click-stops; angular positioning is determined solely by operator input and secured via manual locking.
Can the X-4 be sterilized for in vivo use?
It is autoclavable at 121 °C, 15 psi for 20 minutes; however, repeated cycles may affect surface anodization integrity—validation per ISO 17664 is recommended for clinical applications.
What is the maximum recommended load capacity?
Static load limit is 500 g applied at the center of the top mounting surface; dynamic loads exceeding 100 g at 1 Hz or higher require supplemental damping.
Is technical support available outside Japan?
Narishige maintains authorized service centers in the US (Narishige America, NJ), Germany (Narishige Europe GmbH), and Singapore (Narishige Asia Pte Ltd), offering calibration verification and replacement part fulfillment.
