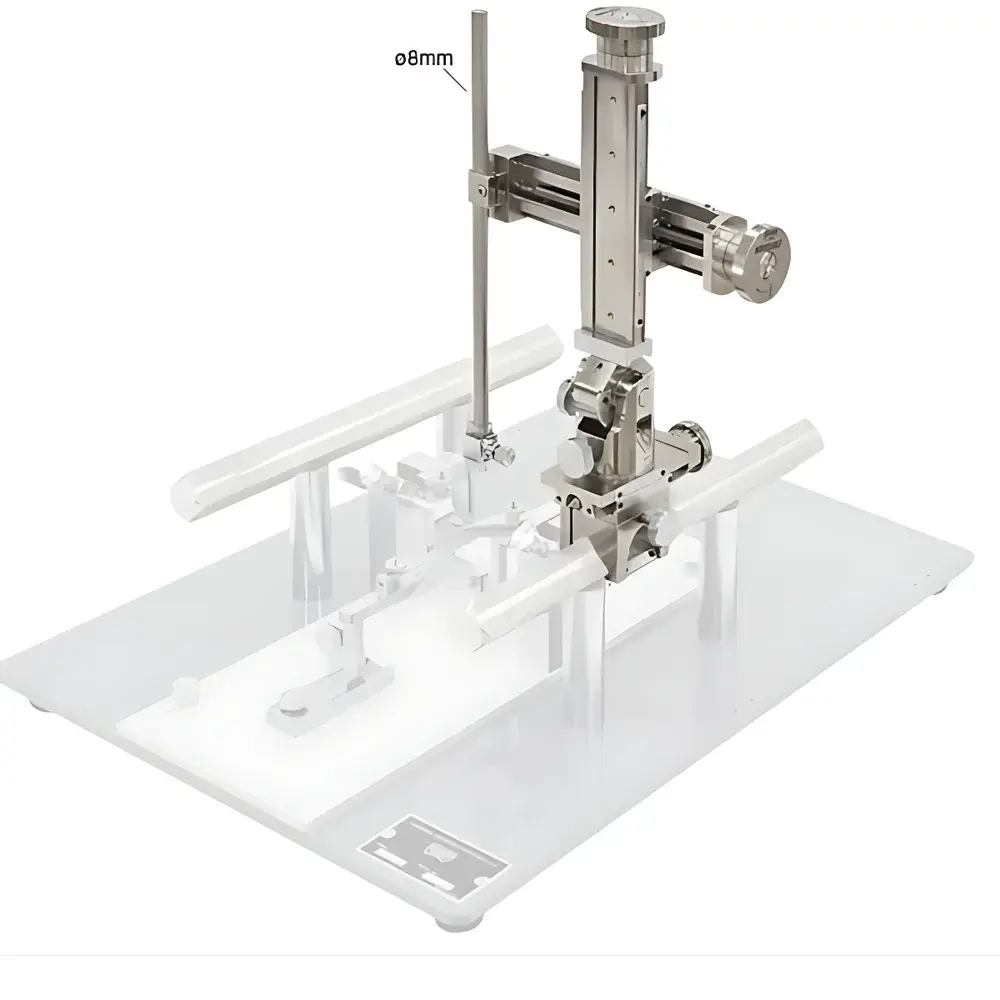

Narishige SMM-100 Stereotaxic Micromanipulator

Overview

The Narishige SMM-100 Stereotaxic Micromanipulator is a precision-engineered mechanical positioning system designed for high-accuracy intracranial and intraspinal interventions in rodent and small-animal neuroscientific research. Built upon Narishige’s decades-long legacy in microsurgical instrumentation, the SMM-100 operates on a robust orthogonal three-axis (X–Y–Z) kinematic architecture, enabling reproducible sub-millimeter placement of electrodes, optical fibers, pipettes, or silicon probes relative to stereotaxic coordinates. Its core functionality relies on friction-free micrometer-driven translation stages with calibrated fine-thread lead screws—each full 360° rotation advancing the stage by exactly 1 mm—coupled with engraved vernier scales permitting manual readout resolution down to 10 µm. Unlike motorized or digital manipulators, the SMM-100 delivers deterministic mechanical feedback and zero electronic latency, making it especially suitable for real-time electrophysiological recording, optogenetic stimulation, and simultaneous multi-probe insertion where tactile control and positional stability are paramount.

Key Features

• Three-axis independent manual control (X: 80 mm, Y: 20 mm, Z: 80 mm) with dual-directional locking levers for vibration-free positioning during acute or chronic experiments
• Dedicated Y-axis adjustment knob for precise anterior–posterior (AP) fine-tuning; upper assembly pivot allows rapid reorientation between AP and medial–lateral (ML) alignment modes without disassembly
• Mechanically indexed 10 µm minimum incremental movement—achieved via high-precision 0.1 mm pitch lead screws and optimized gear ratio—ensuring repeatability across repeated insertions
• Compact footprint (85 × 162 × 256 mm) and lightweight aluminum alloy frame (1.84 kg) facilitate integration onto standard stereotaxic frames, vibration-isolated tables, or custom rig platforms
• Integrated grounding interface—including M3 grounding screw and compliant Belleville washer—supports low-noise electrophysiology setups compliant with IEC 61000-4-2 ESD protection guidelines

Sample Compatibility & Compliance

The SMM-100 is validated for use with common rodent models (mouse, rat, hamster) and avian preparations requiring craniotomy or laminectomy-based access. Its modular electrode holder accepts glass micropipettes (OD 1.0–1.5 mm), tungsten or platinum–iridium microelectrodes (up to 200 µm shank diameter), silica-coated optical fibers (200–400 µm core), and commercial silicon probe arrays (e.g., Neuropixels 1.0/2.0, Cambridge Neurotech). The device conforms to ISO 13485-aligned manufacturing practices as implemented by Narishige Co., Ltd. (Japan), and its mechanical design supports GLP-compliant experimental documentation when paired with standardized SOPs for coordinate registration, depth calibration, and inter-session alignment verification.

Software & Data Management

As a fully manual, non-electronic instrument, the SMM-100 does not require firmware, drivers, or proprietary software. All positional data are recorded manually in lab notebooks or integrated into electronic lab notebooks (ELNs) such as LabArchives or Benchling using standardized coordinate templates. When used in conjunction with digital stereotaxic planning tools (e.g., Allen Brain Atlas API, Paxinos & Watson atlas digitization modules), users can predefine target trajectories and export XYZ offsets directly to physical manipulation logs. Audit trails remain fully traceable under FDA 21 CFR Part 11 requirements when ELN entries include user authentication, timestamping, and version-controlled annotations.

Applications

• In vivo extracellular single-unit and local field potential (LFP) recordings in awake or anesthetized rodents
• Targeted optogenetic fiber implantation with concurrent electrophysiological monitoring
• Multi-site silicon probe insertion for high-density neural ensemble mapping
• Chronic cranial window or spinal cord chamber alignment for longitudinal imaging or stimulation studies
• Calibration and validation of automated robotic micromanipulators (e.g., PatchStar, Scientifica MP-285) against a certified mechanical reference standard

FAQ

Is the SMM-100 compatible with all standard stereotaxic frames?
Yes—it features universal mounting holes (M4 threaded) spaced at 20 mm intervals, matching industry-standard base plates from Kopf, Stoelting, and David Kopf Instruments.
Can the Y-axis knob be used for both coarse and fine positioning?
The Y-knob provides continuous manual control over the full 20 mm AP range; for sub-10 µm adjustments, users combine rotational indexing with visual estimation using the engraved scale and microscope crosshairs.
Does Narishige provide calibration certificates for the SMM-100?
While the SMM-100 is a mechanical device without active sensors, Narishige supplies factory-verified dimensional drawings and tolerance specifications (±5 µm linear deviation over full travel) with each unit; third-party metrology labs may perform traceable calibration per ISO/IEC 17025.
Are replacement parts available for long-term maintenance?
Yes—Narishige maintains global spare parts inventory including lead screws, knobs, locking levers, and electrode holders (Part Nos. SMM-100-KNOB-Y, SMM-100-LEADSCREW-Z, SMM-100-HOLDER-ELEC), with typical lead time under 4 weeks ex-Japan.
How is grounding implemented for low-noise electrophysiology?
A dedicated M3 grounding screw is mounted directly to the aluminum chassis; users connect this point to their amplifier ground bus via shielded coaxial cable, while the included Belleville washer ensures consistent contact pressure across thermal cycles and mechanical vibration.
