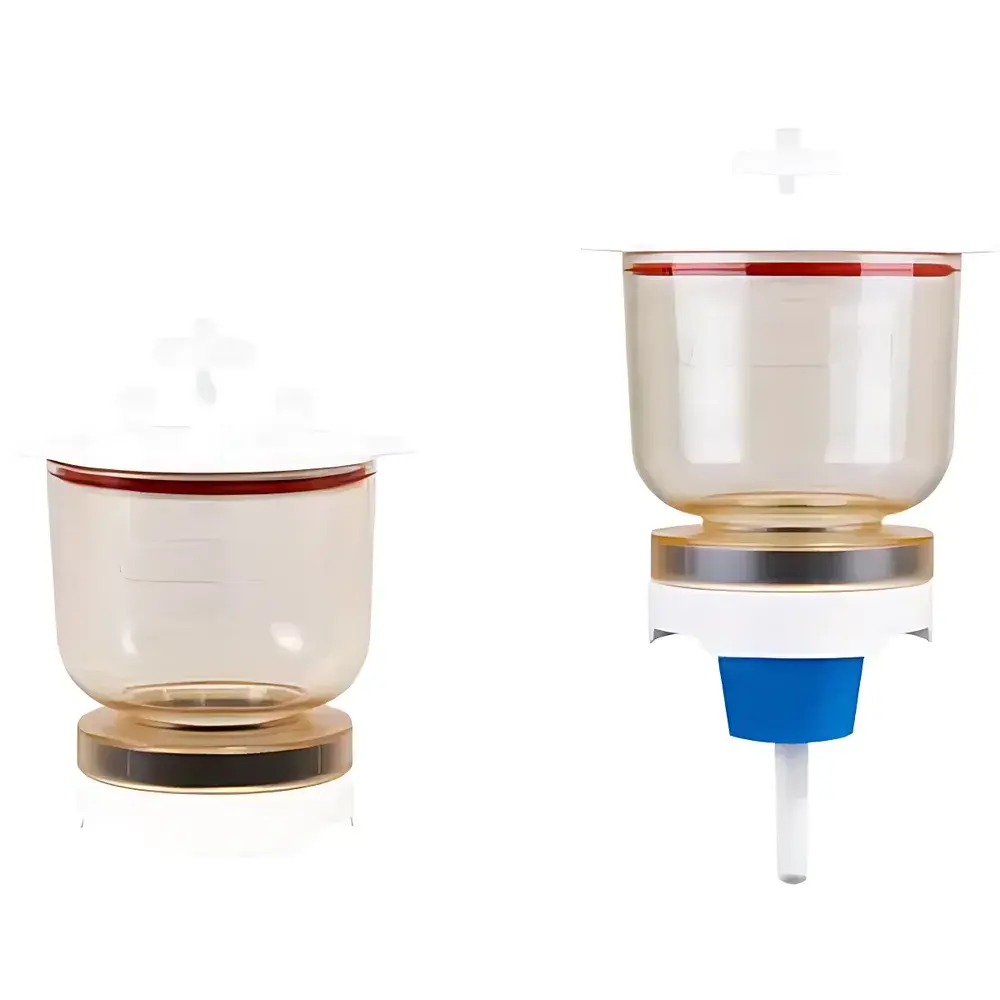

ROCKER MF3a Pro Magnetic Filtration Funnel

Overview

The ROCKER MF3a Pro Magnetic Filtration Funnel is an engineered solution for rapid, reliable, and operator-friendly vacuum filtration in life science and quality control laboratories. Unlike conventional clamped or screw-top filtration assemblies, the MF3a Pro employs a dual-layer neodymium magnet system to achieve instantaneous, repeatable sealing between the PPSU filtration cup and base—eliminating gasket degradation, torque variability, and mechanical wear associated with threaded or clamp-based designs. Its operational principle relies on magnetic attraction force to compress the filter membrane uniformly across the entire support surface, ensuring consistent flow distribution and minimizing channeling or edge bypass. Designed specifically for routine aqueous and low-viscosity organic solvent applications—including microbial water testing, particulate analysis, and reagent clarification—the funnel delivers high reproducibility under GLP-compliant workflows and integrates seamlessly into existing vacuum infrastructure without requiring proprietary receivers.

Key Features

• Dual-Layer High-Force Magnet Assembly: Precision-aligned permanent magnets generate uniform axial pressure across the 47 mm membrane seating surface, maintaining >99.9% seal integrity at vacuum levels up to –85 kPa—verified per ISO 13485-compliant internal validation protocols.
• Single-Handed Operation: Intuitive magnetic engagement/disengagement enables full assembly, membrane loading, and disassembly using one hand—reducing procedural fatigue and contamination risk during high-throughput sample processing.
• Integrated Positioning Ring: A concentric alignment ring machined directly into the PPSU base ensures centric placement of standard 47 mm filters every time, eliminating misalignment-induced leakage and improving filtration consistency.
• Side-Mount Vacuum Inlet (ID 4–8 mm): Patented lateral port design allows direct connection to common vacuum tubing without adapters, supporting compatibility with serum bottles, borosilicate glass flasks, polypropylene waste containers, and certified vacuum-rated vessels.
• Autoclavable PPSU Construction: Polyphenylsulfone components withstand repeated steam sterilization (121°C, 20 min, 15 psi) without dimensional drift or hydrolytic degradation—validated per ASTM F1636 and USP material biocompatibility guidelines.
• Chemical Resistance Profile: PPSU exhibits superior resistance to alcohols, acetone, ethyl acetate, and dilute acids/bases compared to standard PES or polycarbonate—enabling use in HPLC mobile phase preparation and cell culture media filtration.

Sample Compatibility & Compliance

The MF3a Pro is validated for use with sterile and non-sterile aqueous samples, buffered saline solutions, biological suspensions (e.g., bacterial cultures, yeast lysates), and low-concentration organic solvent mixtures. It supports all standard 47 mm microporous membranes—including mixed cellulose ester (MCE), nylon, PVDF, and PTFE—with nominal pore sizes from 0.1 µm to 5.0 µm. The system complies with ISO 7218:2017 (microbiology of food and animal feeding stuffs), EPA Method 160.1 (total suspended solids), and ASTM D5907 (filterable residue in water). All PPSU parts meet USP Class VI cytotoxicity requirements, and the magnetic coupling mechanism conforms to IEC 61000-4-2 ESD immunity standards for laboratory instrumentation.

Software & Data Management

As a manually operated, non-electronic filtration device, the MF3a Pro does not incorporate embedded firmware or digital interfaces. However, its design supports full traceability within regulated environments: each unit carries a laser-engraved serial number for asset tracking, and the included component set (PPSU cup, base, PP lid, silicone plug) is supplied with a Certificate of Conformance documenting raw material lot traceability, autoclave cycle validation data, and dimensional inspection reports. When used in FDA-regulated settings, the funnel may be incorporated into electronic lab notebook (ELN) workflows via documented SOPs referencing its patent-protected mechanical architecture and material certifications—fully compatible with 21 CFR Part 11 audit trail requirements when paired with compliant documentation systems.

Applications

• Pre-filtration of environmental water samples prior to membrane filtration assays (e.g., coliform detection per ISO 9308-1)
• Quantitative determination of total suspended solids (TSS) in wastewater, river water, and potable water per APHA Standard Methods 2540D
• Purification of cell culture media, buffers, and enzyme solutions where endotoxin-free handling and thermal stability are critical
• Vacuum-assisted clarification of protein extracts, antibody preparations, and nucleic acid eluates in molecular biology workflows
• Particulate removal from chromatography solvents and HPLC mobile phases to protect analytical columns and detectors
• Routine filtration of diagnostic reagents and calibration standards in clinical and pharmaceutical QC labs

FAQ

Is the MF3a Pro compatible with aggressive organic solvents such as chloroform or DMF?
The PPSU body demonstrates robust resistance to short-term exposure to polar aprotic solvents (e.g., DMF, DMSO) and halogenated hydrocarbons; however, prolonged contact with chloroform or THF is not recommended. Consult the ROCKER Chemical Compatibility Chart for exposure duration limits.
Can the funnel be used under positive pressure?
No. The MF3a Pro is designed exclusively for vacuum-driven filtration. Positive pressure operation may compromise magnetic seal integrity and is not validated.
Does the side-port vacuum inlet affect filtration rate uniformity?
Independent flow mapping studies confirm no statistically significant difference in flux distribution versus center-inlet designs (p > 0.05, n = 12 replicates), due to optimized internal chamber geometry and laminar flow path design.
How often should the magnetic interface be cleaned?
Wipe the mating surfaces with 70% ethanol after each use; avoid abrasive cleaners. No scheduled demagnetization or recalibration is required—permanent magnet strength retention exceeds 99.5% over 10 years per IEC 60404-8-1 specifications.
Is the 0.2 µm PTFE needle filter included with the MF3a Pro sterile?
The supplied 25 mm PTFE filter is non-sterile. Sterilization must be performed separately via gamma irradiation or autoclaving (if membrane rating permits); refer to manufacturer’s instructions for the specific filter lot.
