Shenkai SKY2002-II Automatic Reid Vapor Pressure (RVP) Analyzer

Overview

The Shenkai SKY2002-II Automatic Reid Vapor Pressure (RVP) Analyzer is a precision-engineered instrument designed for the standardized determination of vapor pressure in volatile petroleum products—including gasoline, reformulated fuels, oxygenated blends (e.g., ethanol-gasoline), and light crude oils—according to the classical Reid method. Based on ASTM D323, GB/T 8017, ISO 3007, and IP 69, this analyzer quantifies the absolute vapor pressure exerted by a liquid sample at 37.8 °C (100 °F) in a sealed, air-saturated chamber under equilibrium conditions. The measurement principle relies on the thermodynamic equilibrium between liquid and vapor phases within a calibrated, single-port horizontal stainless-steel bomb immersed in a precisely controlled water bath. Unlike manual or semi-automated systems, the SKY2002-II integrates closed-loop PID temperature regulation, high-fidelity pressure transduction, and synchronized mechanical agitation to ensure repeatability and compliance with regulatory testing protocols required in refinery QC, fuel certification, and regulatory submissions (e.g., EPA Tier 3, CARB, EN 228).

Key Features

• Triple-bomb configuration enabling simultaneous, independent RVP determinations—improving throughput while maintaining inter-unit comparability per ASTM D323 Annex A3.
• iSKvator™ intelligent automation platform: one-touch start, fully autonomous sequence control (pre-conditioning, agitation, pressure equilibration, data capture, and result validation).
• Horizontal 350° bidirectional rotation mechanism for uniform sample agitation—optimized to replicate the standardized hand-shaking motion defined in ASTM D323 without operator variability.
• PID-controlled stainless-steel water bath with dual heating elements and forced circulation: achieves and sustains 37.8 °C ±0.1 °C across all three bomb positions, minimizing thermal gradient-induced bias.
• High-stability pressure sensing architecture: primary measurement via traceable 0–200 kPa pressure sensor (0.2% full-scale accuracy), cross-validated against a certified 0–160 kPa mechanical gauge (Class 0.25).
• Integrated calibration correction algorithms: automatic application of temperature and pressure corrections per ASTM D323 Section 9 and ISO 3007 Annex B—ensuring final RVP values are mathematically traceable to reference standards.
• Comprehensive safety subsystems: real-time water-level monitoring with automatic heater cutoff and audible/visual alarm; hardware-enforced interlocks preventing operation below minimum bath volume.
• Modular diagnostics interface: individual functional verification of motor drive, solenoid valves, temperature sensors, and pressure transducers—supporting preventive maintenance and GLP-compliant instrument qualification (IQ/OQ).

Sample Compatibility & Compliance

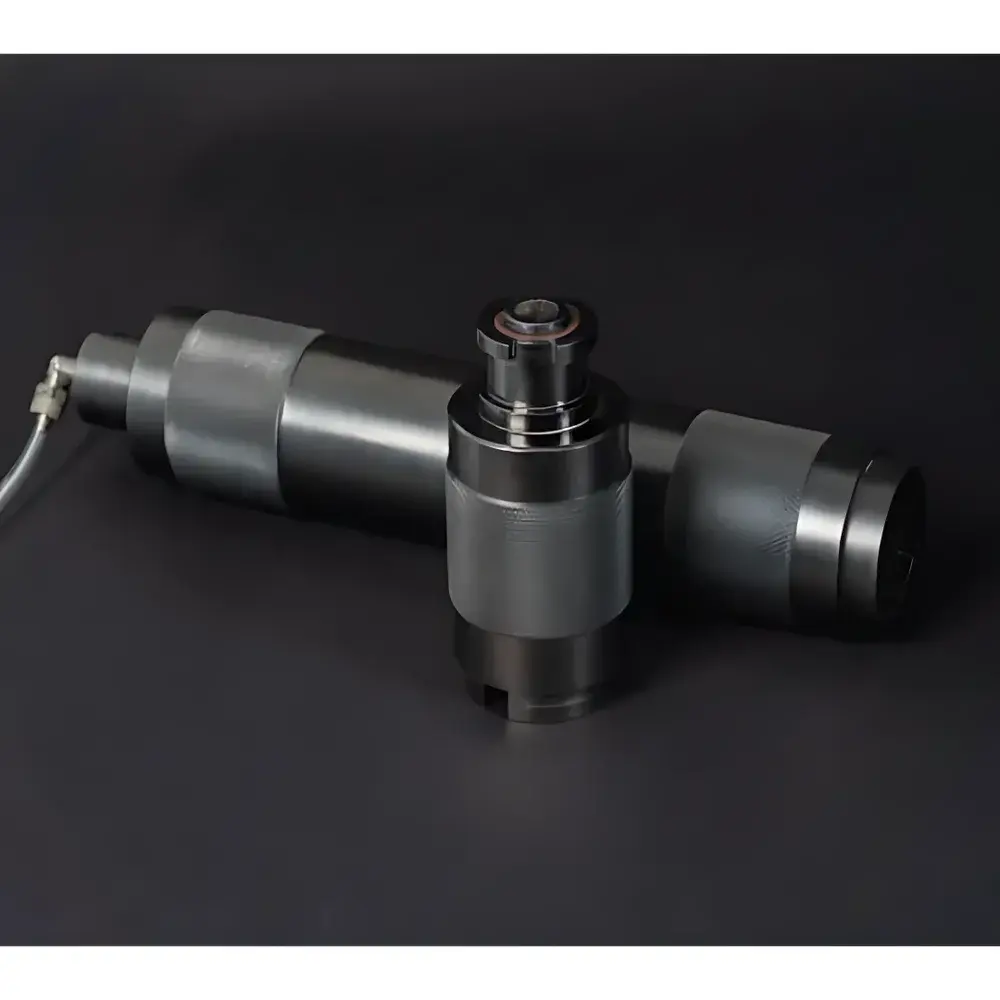

The SKY2002-II accommodates a broad range of volatile hydrocarbon matrices, including conventional gasoline, ethanol-blended E10/E15, MTBE-containing fuels, naphthas, and stabilized light crudes. Its single-port horizontal bomb design meets dimensional and material specifications outlined in ASTM D323 Section 6 and ISO 3007 Clause 5. All wetted surfaces—including bombs, caps, and vapor lines—are constructed from corrosion-resistant 316 stainless steel, validated for compatibility with oxygenated compounds and low-sulfur formulations. The system supports full auditability: each test record embeds timestamped raw pressure curves, bath temperature profiles, agitation status, and operator ID (where configured). Data integrity complies with FDA 21 CFR Part 11 requirements when deployed with user-authenticated access controls and electronic signature capability.

Software & Data Management

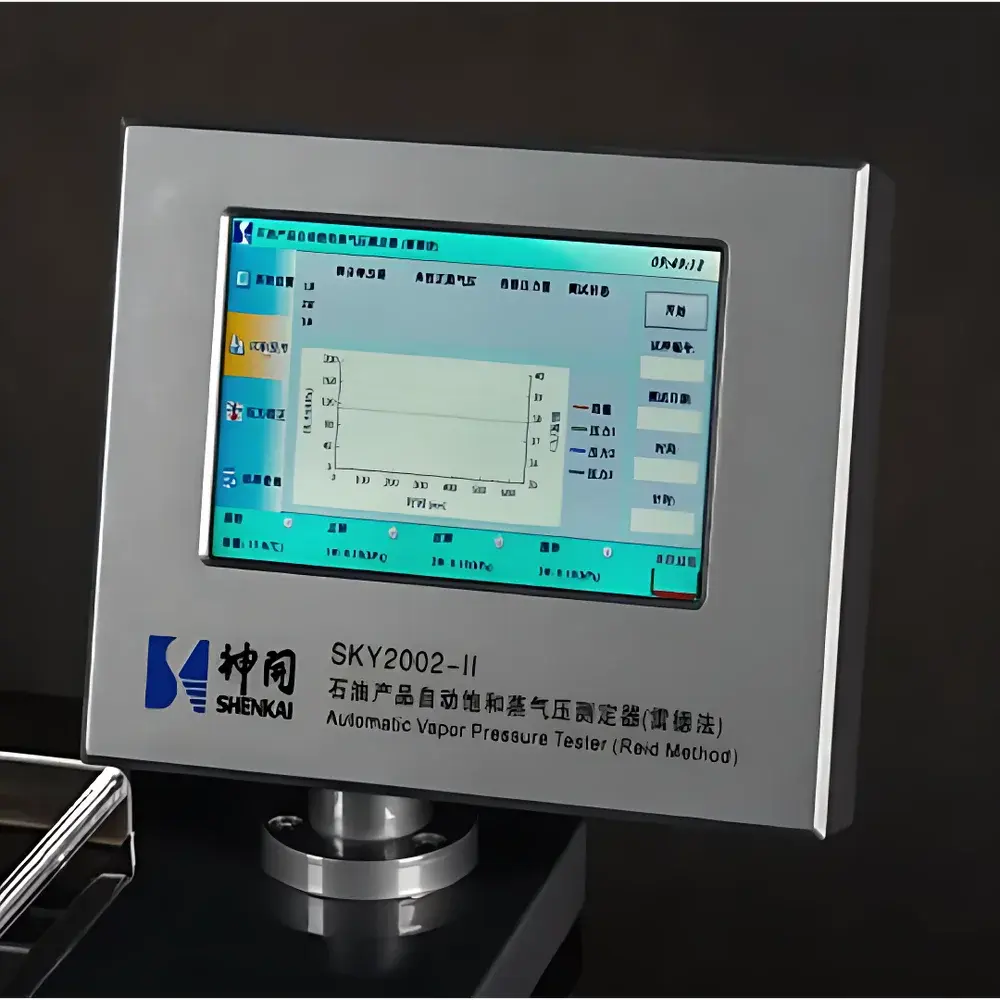

The embedded Linux-based firmware delivers a responsive 7-inch capacitive touchscreen interface with multilingual support (English, Chinese, Spanish). Real-time graphical overlays display concurrent bath temperature stability and dynamic pressure rise across all three bombs. Test reports conform to ASTM D323 reporting conventions and include uncorrected vapor pressure, temperature-corrected value, final RVP (kPa or psi), sample ID, analyst, and calibration certificate references. Results are stored in an encrypted local SQLite database (capacity: ≥500 tests) with export options via USB or Ethernet (RJ-45) to LIMS using standard HL7 or ASTM F2171-compliant protocols. Audit trails log all critical events—including parameter changes, calibration actions, and user logins—with immutable timestamps.

Applications

• Refinery quality assurance: rapid RVP verification of gasoline blending streams prior to tank farm transfer.
• Fuel certification labs: supporting ASTM D323 compliance for EPA, CARB, and EU EN 228 regulatory reporting.
• Research & development: evaluating volatility impact of novel oxygenates, bio-components, or additive packages.
• Contract testing laboratories: delivering accredited test data under ISO/IEC 17025:2017 with full measurement uncertainty documentation.
• Storage terminal QC: verifying RVP compliance of inbound/outbound gasoline shipments per API RP 2550.

FAQ

What standards does the SKY2002-II fully comply with?
It meets the apparatus, procedural, and reporting requirements of ASTM D323, GB/T 8017, ISO 3007, and IP 69—including dimensional tolerances for the bomb assembly and thermal stability specifications for the water bath.
Can the instrument handle ethanol-blended gasoline samples without degradation?
Yes—the 316 stainless-steel bomb bodies, fluorosilicone O-rings, and non-reactive pressure sensor diaphragms are chemically compatible with up to E25 formulations and have been validated per ASTM D7462 for oxidative stability during repeated testing.
Is remote monitoring and data integration supported?
The RJ-45 port enables secure TCP/IP communication for remote status polling, firmware updates, and automated report push to enterprise LIMS—configured via standard HTTP RESTful APIs or Modbus TCP.
How is measurement traceability maintained?
Each pressure sensor is supplied with NIST-traceable calibration documentation; the system applies real-time corrections per ASTM D323 equations and stores raw sensor outputs alongside final RVP values to support full metrological traceability.
What maintenance intervals are recommended for GLP compliance?
Daily verification of bath level and seal integrity; quarterly pressure sensor zero/balance check; annual full calibration against certified deadweight tester—documented in the integrated maintenance log module.
