Shimadzu GC-2010A (Red-Black Label) Used Gas Chromatograph
| Brand | Shimadzu |
|---|---|
| Origin | Japan |
| Model | GC-2010A (Red-Black Label) |
| Category | Imported Used Analytical Instrument |
| Distribution Type | Authorized Distributor |
| Price Range | USD 6,800 – 19,000 (FOB Asia) |
Overview

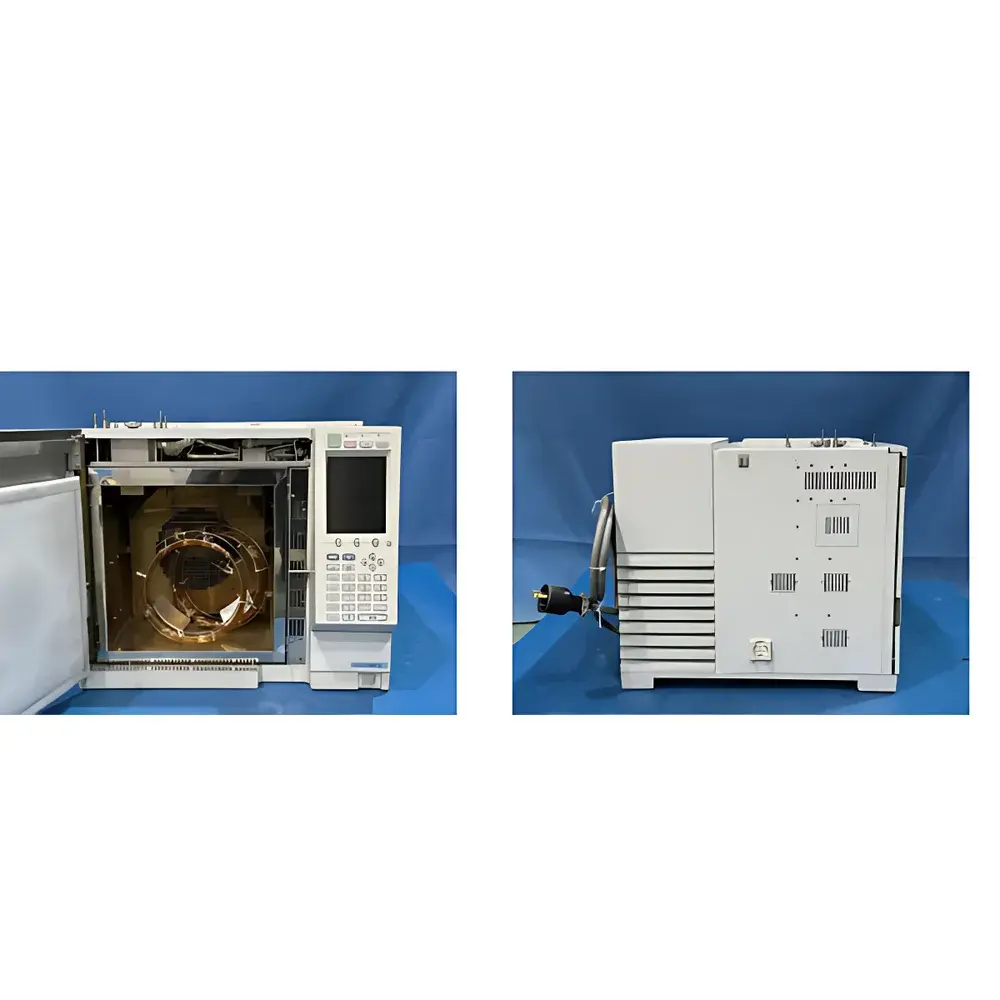

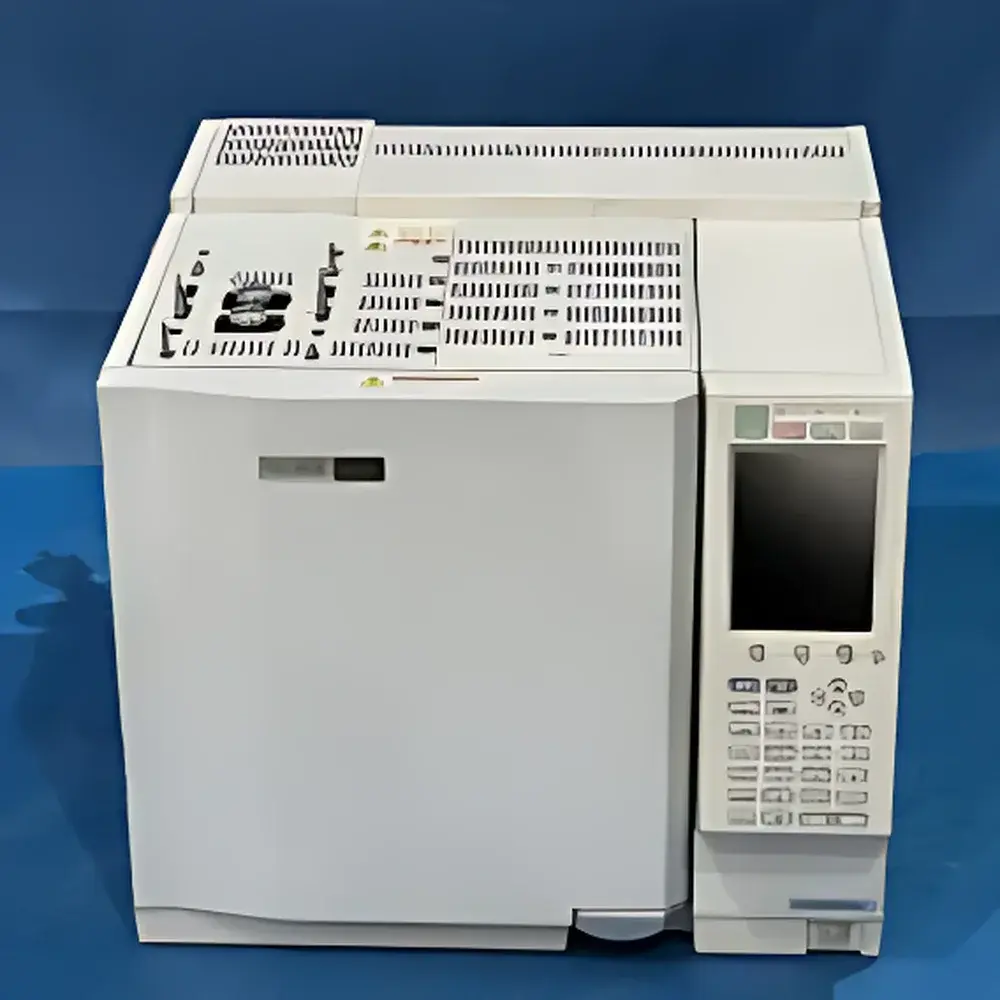

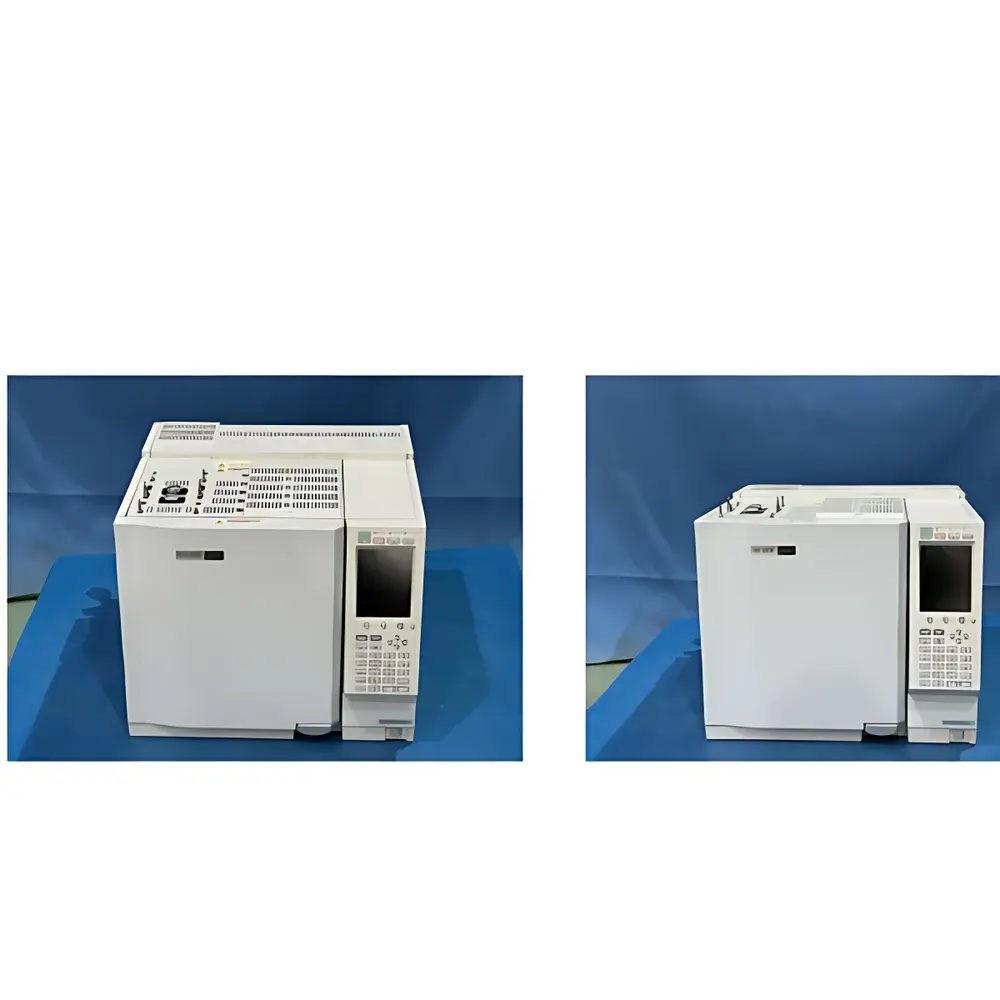

The Shimadzu GC-2010A (Red-Black Label) is a high-performance, benchtop gas chromatograph originally engineered for routine and research-grade volatile and semi-volatile organic compound analysis. Built on Shimadzu’s proven dual-beam optical design and advanced temperature-programmed oven architecture, the GC-2010A employs capillary column separation coupled with flame ionization detection (FID), thermal conductivity detection (TCD), or electron capture detection (ECD) — depending on configuration — to deliver robust retention time reproducibility, baseline stability, and quantitative accuracy across diverse sample matrices. As a legacy platform manufactured in Japan during the early-to-mid 2010s, this instrument reflects Shimadzu’s adherence to JIS and ISO/IEC 17025-aligned design principles for analytical instrumentation. Its Red-Black Label designation indicates factory-certified conformance to original Shimadzu performance specifications at time of manufacture — a critical differentiator among used GC systems in the secondary market.
Key Features
- Temperature-controlled oven with ramp rates up to 40 °C/min and operating range from ambient +10 °C to 450 °C, enabling precise method transfer and multi-step thermal programming.
- Dual independent inlet systems (split/splitless) with electronic pressure control (EPC) for consistent carrier gas flow management and enhanced method reproducibility.

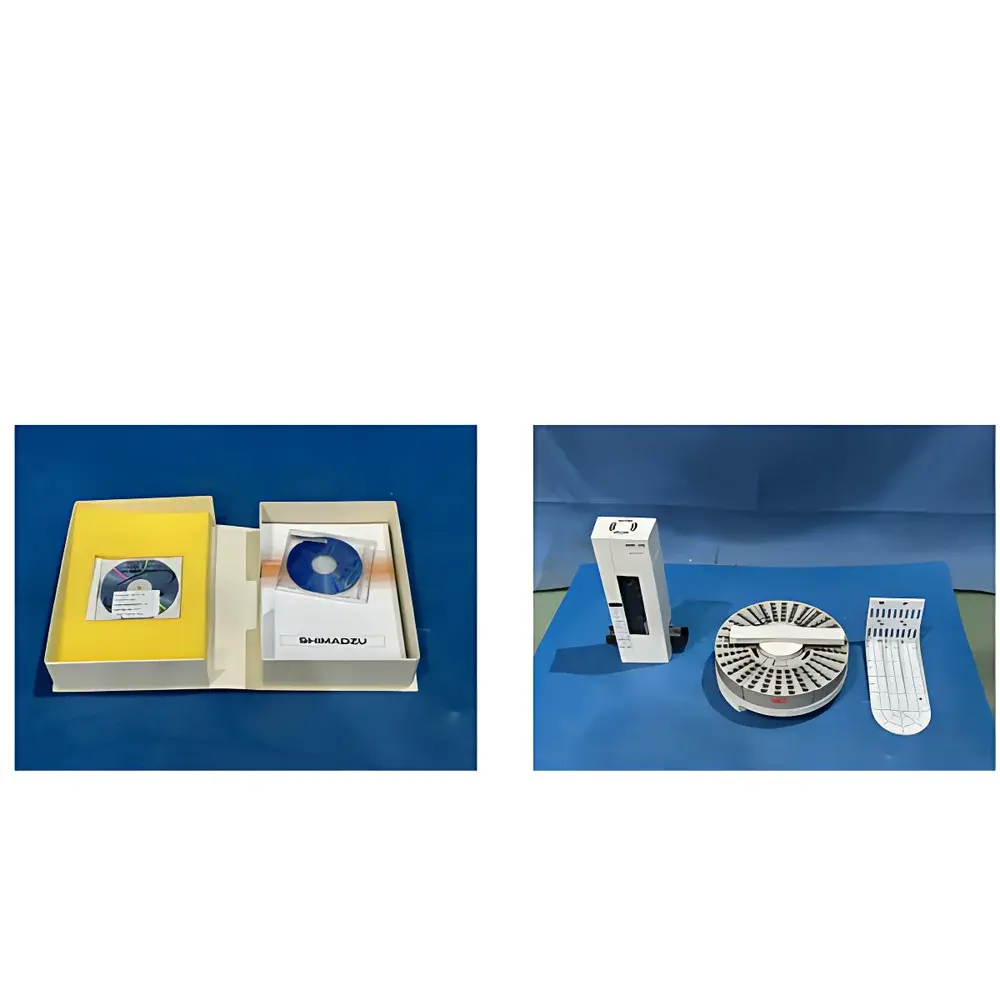

- Integrated auto-sampler compatibility (e.g., AOC-20i or AOC-5000 series) supporting up to 150 vials per sequence; all units undergo functional verification of injection precision (RSD < 1.5% for n-decane).
- Robust hardware architecture featuring solid-state power supplies, sealed detector compartments, and corrosion-resistant internal plumbing — optimized for long-term reliability under regulated laboratory conditions.
- Original Shimadzu GCsolution software suite (v2.x or v3.x) pre-installed and validated for data acquisition, peak integration, calibration curve generation, and audit trail logging compliant with basic GLP documentation requirements.
Sample Compatibility & Compliance
The GC-2010A accommodates liquid, gaseous, and headspace-derived samples via standard 4–5 mm OD fused-silica capillary columns (e.g., DB-5ms, HP-INNOWAX, Rtx-1). It supports ASTM D3606 (benzene/toluene in gasoline), USP <467> (residual solvents), EPA Method 8260D (VOCs in environmental matrices), and ISO 11843-2 (detection limit validation) when operated with appropriate column chemistry and detector selection. All refurbished units undergo full system qualification including leak testing (helium leak rate < 1×10⁻⁸ atm·mL/s), retention time verification using NIST-traceable standards (e.g., Supelco 37 Component FAME Mix), and detector linearity assessment over three orders of magnitude.
Software & Data Management
Each unit ships with licensed GCsolution software (no dongle required for single-workstation use), configured with validated method templates and user-accessible audit trail settings. Raw data (.gcd files) are stored in native binary format with embedded metadata (operator ID, instrument ID, date/time stamp, method version). Export options include CSV, PDF reports, and XML for LIMS integration. While not fully 21 CFR Part 11 compliant out-of-the-box, the system supports manual signature logs, password-protected method editing, and configurable user roles — providing a foundation for laboratories implementing internal SOPs aligned with FDA or EMA expectations for legacy instrument data integrity.
Applications
- Quality control of pharmaceutical excipients and active ingredients for residual solvent profiling per ICH Q3C guidelines.
- Environmental monitoring of chlorinated hydrocarbons, BTEX compounds, and pesticides in soil/water extracts.
- Food safety testing for flavor volatiles, adulterants (e.g., melamine derivatives), and packaging migration analytes.
- Petrochemical QA/QC of hydrocarbon distribution (PIONA analysis), sulfur species, and oxygenates in refined fuels.
- Academic and contract research requiring stable, low-maintenance GC platforms for method development and teaching laboratories.
FAQ
Is the GC-2010A compatible with modern Windows OS versions (e.g., Windows 10/11)?
Yes — GCsolution v3.3 and later support Windows 10 (64-bit) and Windows 11 (64-bit) with appropriate driver updates; legacy v2.x requires Windows 7 SP1 or virtualized environments.
What documentation accompanies each unit?
A full refurbishment report, post-calibration certificate (traceable to NMIJ/JCSS), electrical safety test record, and original Shimadzu operation manual (English translation included).
Can this instrument be upgraded with a mass spectrometer?
No — the GC-2010A lacks the vacuum interface and electronics required for direct GC-MS coupling; GC-2014C or GC-2030 platforms are recommended for MS compatibility.
What warranty and service support is provided?
All units include a 12-month parts-and-labor warranty, remote diagnostics support, and access to certified Shimadzu-trained field engineers for on-site intervention within 72 business hours in major APAC/EU hubs.
