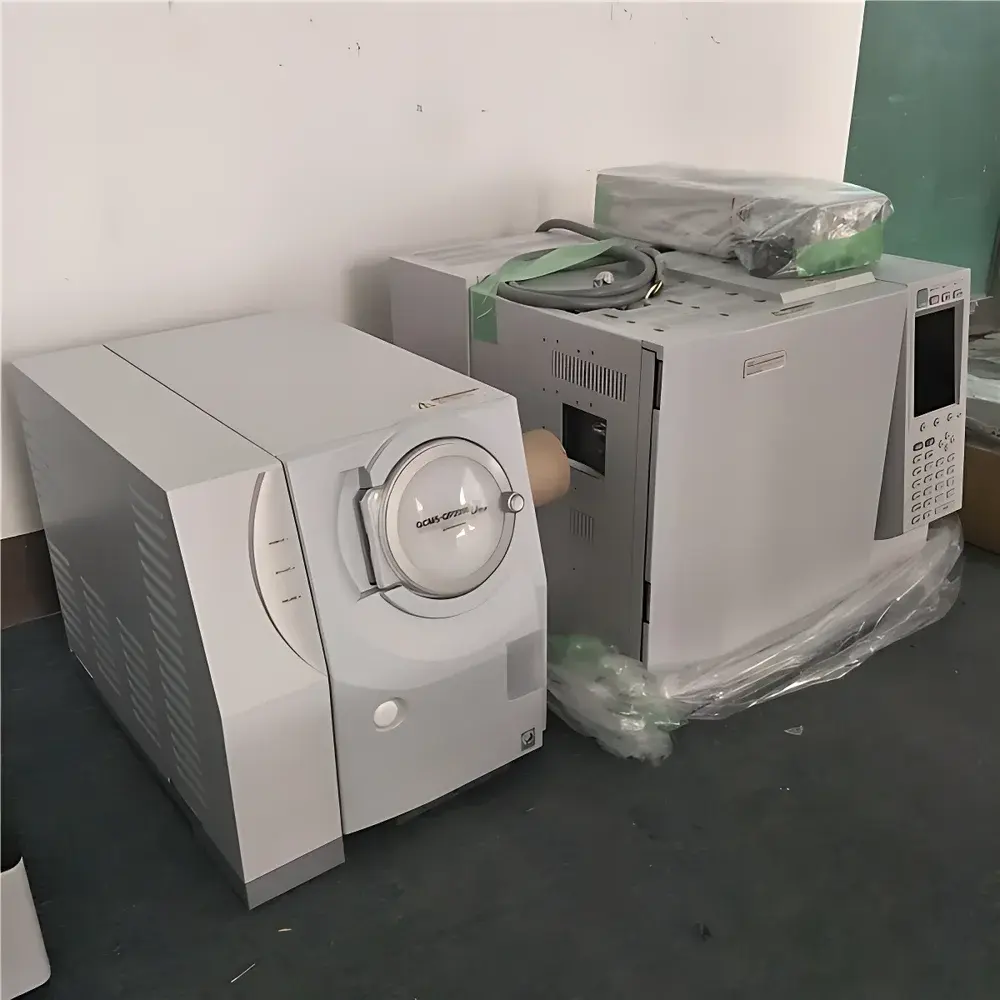

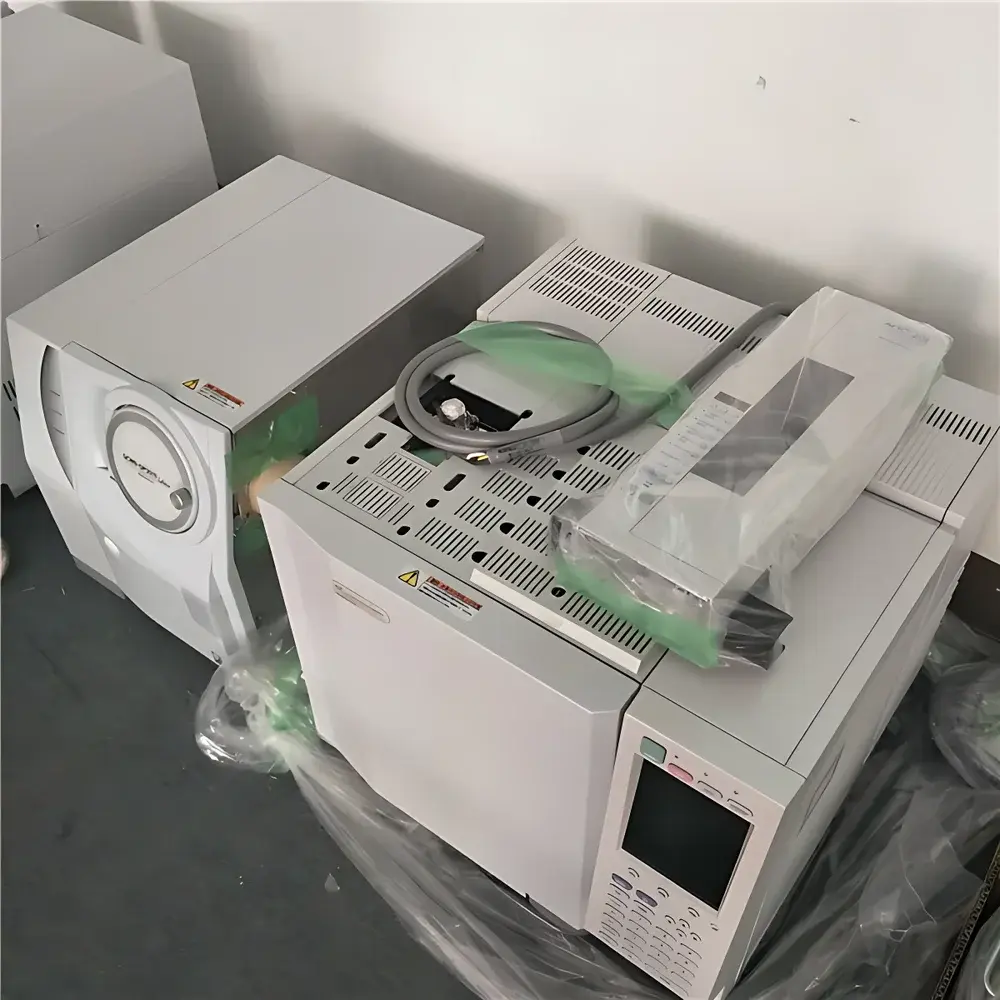

Shimadzu QP2010 Ultra Used Gas Chromatography-Mass Spectrometer (GC-MS)

Overview

The Shimadzu QP2010 Ultra is a high-performance, single quadrupole gas chromatography-mass spectrometry (GC-MS) system originally engineered for robust routine analysis in regulated and research laboratories. Designed with Shimadzu’s proprietary ion source geometry, high-efficiency electron impact (EI) ionization, and optimized vacuum architecture, the QP2010 Ultra delivers stable signal intensity, low chemical noise, and consistent mass calibration over extended operational cycles. Its core measurement principle relies on the separation of volatile and semi-volatile compounds by capillary gas chromatography, followed by mass-selective detection via quadrupole mass filtering under controlled electron energy (typically 70 eV). This configuration supports both full-scan and selected ion monitoring (SIM) acquisition modes, enabling reliable qualitative identification and quantitative trace analysis across diverse sample matrices.

Key Features

• Single quadrupole mass analyzer with high transmission efficiency and thermal stability
• Advanced EI ion source with self-cleaning capability and extended lifetime
• Fast scan speed exceeding 10,000 atomic mass units per second (u/sec), supporting high-resolution peak sampling in fast GC gradients
• Integrated GC oven with precise temperature control (±0.1 °C) and rapid cooling capability
• Dual-stage turbomolecular pumping system ensuring stable high-vacuum conditions (<1 × 10⁻⁵ Pa) during extended runs
• Robust hardware architecture designed for 24/7 operation in QC and environmental testing labs
• Compatible with standard 0.25–0.32 mm ID capillary columns and common GC inlet types (split/splitless, PTV)

Sample Compatibility & Compliance

The QP2010 Ultra accommodates a broad range of volatile and thermally stable organic compounds, including pesticides, polycyclic aromatic hydrocarbons (PAHs), phthalates, residual solvents, and environmental contaminants. It supports direct injection, headspace, and purge-and-trap sample introduction methods when interfaced with compatible autosamplers or auxiliary modules. The system meets fundamental design requirements for compliance with ISO/IEC 17025:2017 for testing laboratories and aligns with method validation frameworks outlined in EPA Methods 8270D, 8082A, and ASTM D5845. While the instrument itself does not inherently enforce electronic record integrity, its data acquisition software (GCMSsolution) supports audit trail logging and user access controls—key prerequisites for laboratories operating under GLP or GMP environments subject to FDA 21 CFR Part 11 assessment.

Software & Data Management

Controlled exclusively through Shimadzu’s GCMSsolution software (v2.x or later), the QP2010 Ultra enables method development, real-time spectral acquisition, library searching (NIST/EPA/WHO libraries), and quantitative report generation. The software architecture includes built-in calibration curve fitting (linear, quadratic, weighted), integration algorithms compliant with USP , and customizable reporting templates. Raw data files (.qgd) are stored in a structured binary format with embedded metadata (instrument parameters, acquisition time, operator ID), facilitating long-term archival and reprocessing. For enterprise-level deployment, GCMSsolution integrates with LIMS platforms via ODBC or CSV export, and supports automated backup routines aligned with ISO 27001 data governance principles.

Applications

• Residual solvent analysis in pharmaceutical active ingredients (ICH Q3C guidelines)
• Pesticide multiresidue screening in food commodities (EU MRL regulations)
• Volatility profiling and impurity identification in polymer and coating formulations
• Environmental monitoring of VOCs and SVOCs in soil, water, and air samples
• Forensic toxicology screening for drugs of abuse and metabolites
• Academic research in natural product isolation and reaction mechanism studies

FAQ

Is the QP2010 Ultra compatible with modern data systems and LIMS?
Yes—GCMSsolution supports standardized data export formats (CSV, TXT, PDF) and ODBC connectivity for seamless integration with laboratory information management systems.
What maintenance intervals are recommended for sustained performance?
Ion source cleaning every 2–4 weeks (depending on sample load), quadrupole tuning every 3 months, and annual vacuum pump oil replacement and turbomolecular pump inspection are advised per Shimadzu’s original service documentation.
Does this used unit include factory calibration certificates or IQ/OQ documentation?
As a pre-owned system, formal installation qualification (IQ) or operational qualification (OQ) documentation is not included by default; however, third-party qualification services and traceable calibration verification can be arranged prior to delivery.
Can the QP2010 Ultra operate with helium, hydrogen, or nitrogen carrier gases?
Yes—the system supports all three carrier gases; hydrogen offers optimal speed and resolution, while helium remains preferred for method transfer compatibility with legacy SOPs.
What is the typical warm-up and stabilization time after cold start?
Full system stabilization—including GC oven, MS source, and detector—typically requires 90–120 minutes under standard ambient lab conditions (20–25 °C, <60% RH).
