Solinst Model 408 Dual-Valve Groundwater Sampler

Overview

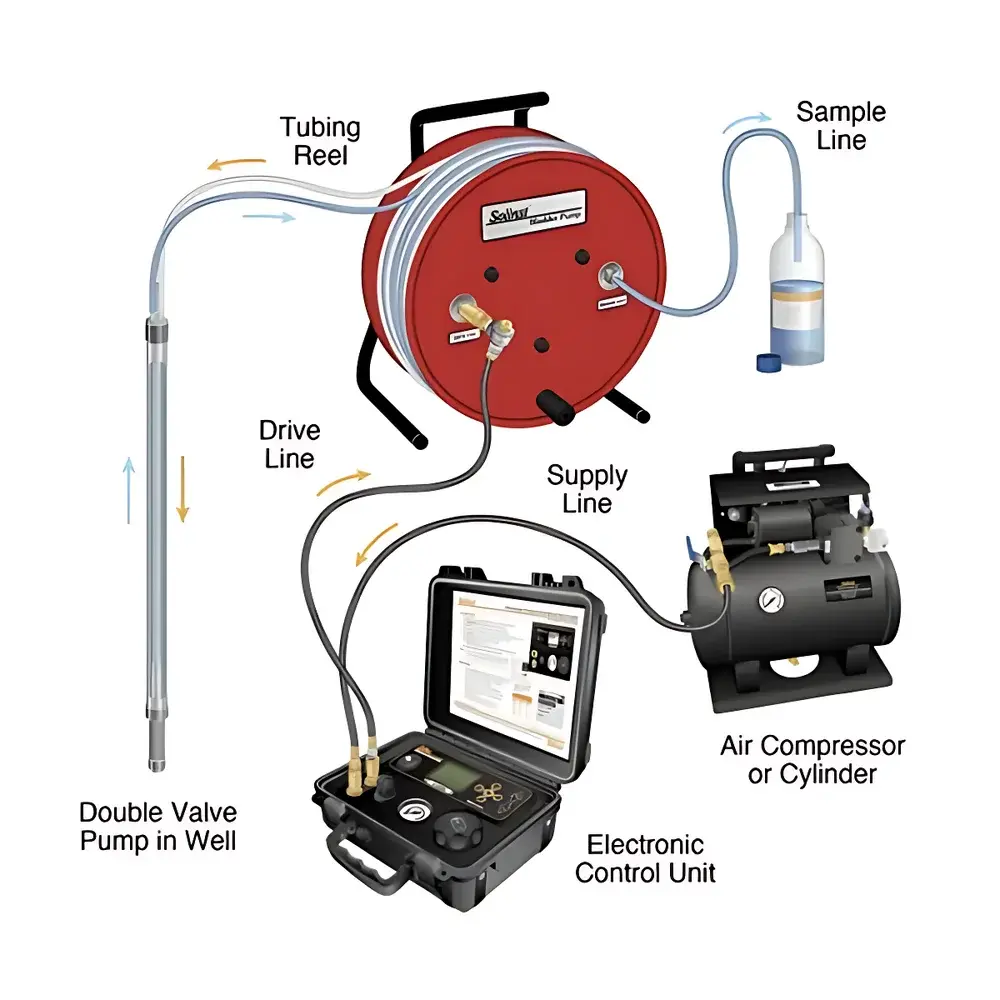

The Solinst Model 408 Dual-Valve Groundwater Sampler is a pneumatically actuated, low-flow sampling device engineered for precision, reproducible collection of groundwater samples from monitoring wells up to 150 meters deep. Unlike peristaltic or submersible electric pumps, the Model 408 operates on a dual-valve positive displacement principle: compressed air alternately pressurizes and vents two independent check valves to draw and discharge discrete water volumes without internal wetted electronics or moving parts in the fluid path. This architecture eliminates cross-contamination risk, prevents sample shear degradation, and ensures chemical inertness—critical for volatile organic compound (VOC), trace metal, and isotopic analyses where sample integrity is governed by regulatory standards such as U.S. EPA SW-846 Methods, ASTM D5088–22 (Standard Practice for Purging and Sampling of Volatile Organic Compounds from Groundwater Using Low-Flow Techniques), and ISO 5667-3:2018 (Water Quality — Sampling — Part 3: Guidance on the Preservation and Handling of Water Samples). Its valve-based design enables stable flow rates below 100 mL/min—well within the low-flow purging thresholds recommended for minimizing wellbore disturbance and achieving representative aquifer characterization.

Key Features

• Pneumatic dual-valve mechanism with no internal elastomers or bladder components—ideal for aggressive solvents, high-TDS, or sulfide-rich groundwater
• Two standard configurations: compact 16 mm × 300 mm probe (PVC or 316 SS) for narrow-diameter wells; robust 42 mm × 610 mm probe (316 SS only) supporting optional conversion to bladder-pump mode using Solinst Model 420 accessories
• Modular, tool-free disassembly: all wetted components—including inlet/outlet valves, piston sleeve, and cylinder—are accessible for cleaning, inspection, or replacement in the field
• Integrated manual winch system with disc brake lock—enables stable, hands-free depth positioning during extended low-flow sampling sessions, even with >100 m of sampling tubing
• Direct compatibility with Solinst Model 464 Electronic Controller: programmable duty cycle, pressure ramping, and multi-step flow profiles stored onboard for unattended operation at variable depths and hydraulic conditions
• No battery or power requirement at the pump head—only compressed air supply (typically 0.3–0.7 MPa) needed, ensuring intrinsic safety in explosive atmospheres per IEC 60079-0

Sample Compatibility & Compliance

The Model 408 is validated for use with potable, brackish, saline, and contaminated groundwater matrices, including those containing suspended solids (<50 mg/L), iron precipitates, or moderate hydrogen sulfide concentrations. Its stainless steel (ASTM A276 Grade 316) construction resists pitting and crevice corrosion in chloride-rich environments. All PVC variants comply with NSF/ANSI Standard 61 for drinking water system components. The sampler supports GLP-compliant field documentation when paired with the Model 464 controller’s audit-trail logging (time-stamped start/stop events, pressure cycles, and user-defined sampling parameters), satisfying data integrity requirements under 21 CFR Part 11 when used with validated software workflows. It meets the mechanical and operational criteria outlined in EPA QA/G-5S (Field Sampling Procedures for Groundwater Monitoring) and is routinely deployed in sites subject to RCRA, CERCLA, and state-level groundwater monitoring programs.

Software & Data Management

While the Model 408 itself is hardware-only, its integration with the Solinst Model 464 Electronic Controller introduces digital control and traceability. The 464 unit features an LCD interface, non-volatile memory for up to 20 custom sampling protocols, real-time pressure monitoring, and USB-C data export for CSV-formatted logs (including timestamp, applied pressure, cycle count, and total elapsed sampling time). These logs are compatible with LIMS platforms via standard import templates and support automated QA/QC flagging—for example, identifying deviations from target flow rate (>±15% tolerance) or unexpected pressure drop indicating filter clogging or valve wear. Firmware updates are delivered via Solinst’s secure web portal, maintaining alignment with evolving field method revisions.

Applications

• Low-flow VOC sampling per EPA Method 502.2 and ASTM D6711–21
• Long-term trend monitoring in municipal and industrial well networks
• Isotopic tracer studies requiring minimal drawdown and undisturbed geochemical equilibrium
• Regulatory compliance sampling for PFAS, metals, and nutrients under state-certified laboratory reporting frameworks
• Geotechnical investigations involving pore-water pressure equilibration prior to piezometer installation
• Emergency response scenarios where rapid deployment, chemical resistance, and operator safety are paramount

FAQ

Can the Model 408 be used in wells deeper than 150 m?

No—the maximum rated depth is 150 m due to pneumatic line pressure loss and tubing column weight limitations. For deeper applications, Solinst recommends the Model 410 High-Pressure Dual-Valve Pump.

Does the 42 mm stainless steel version require modification to function as a bladder pump?

Yes—it accepts Solinst’s Model 420 bladder cartridge kit, which replaces the dual-valve assembly. Conversion requires factory calibration verification and is documented in Solinst Technical Bulletin TB-408B.

Is the Model 408 compliant with FDA or pharmaceutical groundwater monitoring requirements?

While not a GMP-certified instrument per se, its design—non-shedding surfaces, cleanable geometry, and absence of lubricants—supports qualification under ICH Q5C and EU Annex 11 when incorporated into a validated sampling SOP with documented cleaning and calibration records.

What compressed air quality is required for reliable operation?

Oil-free, desiccated air meeting ISO 8573-1 Class 2:2:2 (solid particles ≤0.1 µm, dew point ≤−40 °C, oil content ≤0.01 mg/m³) is recommended to prevent valve stiction and ensure long-term seal integrity.

How often should the dual valves be inspected or replaced?

Under typical field use (≤500 sampling cycles/year), visual inspection every 6 months and functional testing per Solinst Maintenance Guide MG-408 is sufficient. Valve kits are field-replaceable; service life exceeds 2,000 cycles when operated within specified pressure and particulate limits.
