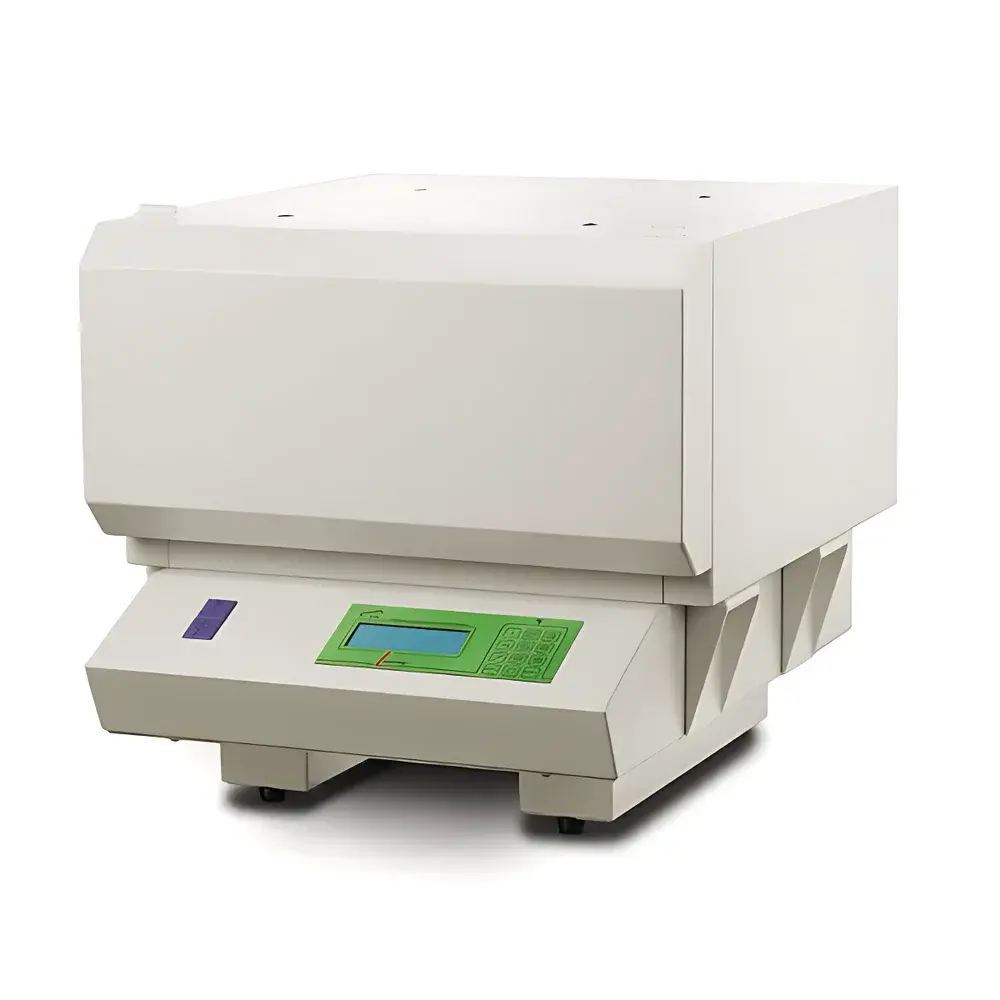

TA Instruments FOX 314 Thermal Conductivity Analyzer

Overview

The TA Instruments FOX 314 Thermal Conductivity Analyzer is a precision heat flow meter (HFM) system engineered for reliable, repeatable measurement of thermal conductivity and thermal resistance of low-conductivity solid materials—particularly flexible and rigid foams, elastomers, textiles, insulation boards, and thin polymer films. Operating on the steady-state principle defined in ASTM C518 and ISO 8301, the instrument applies a controlled temperature gradient across a sample sandwiched between two isothermal plates. Heat flux is measured directly via dual calibrated thin-film heat flux sensors, while sample thickness is determined in situ using high-resolution digital displacement transducers (±0.025 mm resolution). The system’s solid-state Peltier-based heating and cooling architecture enables precise temperature control within ±0.1°C stability, supporting both standard (–20°C to 75°C) and extended (–30°C to 95°C) operating ranges—critical for evaluating temperature-dependent thermal transport behavior in R&D and production environments.

Key Features

• Dual thin-film heat flux sensors with NIST-traceable calibration for enhanced signal-to-noise ratio and long-term stability
• Integrated digital thickness measurement system with sub-25-µm resolution, eliminating manual caliper errors and enabling real-time correction during test execution
• Modular thermal control platform utilizing solid-state Peltier elements—no external chillers or compressors required
• Flexible operation modes: standalone touchscreen interface for rapid single-sample analysis or full PC integration via USB/Ethernet for method-driven workflows
• Compliance-ready architecture supporting audit trails, electronic signatures, and data integrity protocols aligned with FDA 21 CFR Part 11 and GLP/GMP documentation requirements when used with WinTherm™ software
• Optional robotic AutoSampler capable of sequential testing of up to 24 samples without operator intervention—ideal for QC batch verification and comparative screening studies

Sample Compatibility & Compliance

The FOX 314 accommodates specimens up to 305 mm × 305 mm in area and 50 mm in thickness, with optimized performance for low-density cellular materials (e.g., polyurethane, polystyrene, melamine, and aerogel composites) as well as laminated structures and fiber-based insulations. Its low thermal mass design ensures rapid thermal equilibration—even for highly insulating samples (<0.02 W/m·K)—reducing test duration by up to 40% compared to conventional HFM systems. All measurements adhere strictly to the procedural rigor of ASTM C518 (Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus) and ISO 8301 (Thermal Insulation — Determination of Steady-State Thermal Resistance and Related Properties — Heat Flow Meter Apparatus), including mandatory guard-zone validation, edge-loss correction algorithms, and reference material verification routines.

Software & Data Management

WinTherm™ software (v5.x) serves as the central interface for method configuration, real-time monitoring, statistical reporting, and compliance documentation. It supports customizable test templates, multi-parameter trending (k-value vs. temperature, thickness, density), and automated pass/fail evaluation against user-defined specification limits. Raw sensor outputs, thermal profile logs, and calibration metadata are stored in encrypted, timestamped .tdms files compliant with 21 CFR Part 11 requirements—including full audit trail history, role-based access control, and electronic signature capture. Export options include CSV, PDF reports, and direct integration with LIMS platforms via ASTM E1384-compliant data exchange protocols.

Applications

• Quality control of commercial building insulation products (e.g., spray foam, batts, reflective barriers)
• R&D evaluation of next-generation aerogels, vacuum insulation panels (VIPs), and bio-based foams
• Thermal property mapping across temperature-dependent phase transitions in shape-memory polymers
• Validation of thermal models used in building energy simulation (e.g., EnergyPlus, TRNSYS inputs)
• Regulatory submission support for ASTM/ISO-certified thermal datasets in construction material certifications
• Comparative analysis of aging effects on thermal performance after thermal cycling or humidity exposure per ASTM D1729

FAQ

What standards does the FOX 314 comply with for thermal conductivity measurement?

ASTM C518 and ISO 8301 are fully implemented in hardware design, sensor calibration, and software validation protocols.
Can the FOX 314 measure anisotropic materials such as layered composites?

Yes—the dual-sensor configuration and independent plate temperature control allow directional heat flux assessment when samples are oriented perpendicular or parallel to the thermal gradient.
Is third-party calibration certification available?

TA Instruments provides optional NIST-traceable calibration certificates with uncertainty budgets per ISO/IEC 17025, including annual recalibration services and on-site verification.
How does the system handle edge losses in small or irregularly shaped samples?

The WinTherm™ software incorporates ASTM C518-mandated guard-zone compensation and employs iterative finite-difference modeling to correct for lateral conduction artifacts.
What maintenance is required for long-term accuracy?

No consumables or routine sensor replacement is needed; annual verification of thermal plate flatness, sensor linearity, and thickness transducer accuracy is recommended per TA Instruments’ Preventive Maintenance Guide.
