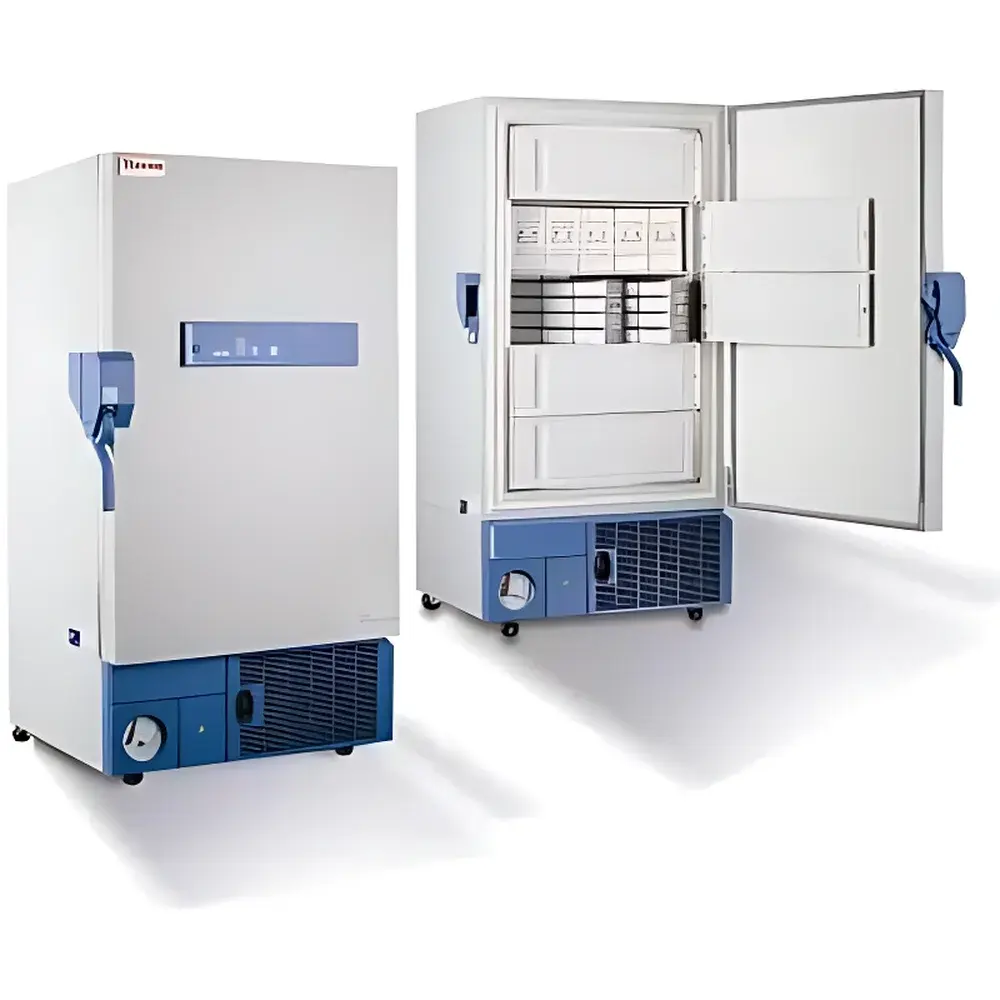

Thermo Scientific Revco ExF Series Ultra-Low Temperature Freezer

Overview

The Thermo Scientific Revco ExF Series Ultra-Low Temperature Freezer represents over four decades of engineering leadership in cryogenic sample preservation. As the inventor of the world’s first −86 °C ultra-low temperature (ULT) freezer, Thermo Fisher Scientific established foundational thermal architecture now adopted industry-wide. The Revco ExF series builds upon this legacy with a rigorously validated dual-compressor refrigeration system engineered for continuous operation under demanding laboratory conditions. It operates reliably across ambient temperatures up to 32 °C—critical for facilities lacking climate-controlled mechanical rooms—and maintains stable setpoints from −40 °C to −86 °C with high reproducibility. Its structural design integrates 127 mm in-situ foamed polyurethane insulation in the cabinet walls and 76 mm in the doors, eliminating CFCs while achieving exceptional thermal resistance (R-value > 30). This architecture minimizes cold loss during routine access and ensures long-term stability of sensitive biological materials including primary cell lines, stem cells, genomic DNA, RNA, and clinical biospecimens.

Key Features

• Dual independent 1 HP hermetic compressors with dedicated condenser fan arrays—enabling load balancing, extended service intervals, and redundancy during maintenance cycles
• Legaci™ refrigeration technology (patented): Optimized refrigerant flow dynamics and enhanced heat transfer surface area improve cooling efficiency by up to 20% versus prior-generation ULT systems
• Touch-sensitive control panel with real-time digital temperature display, lockable power switch, and automatic voltage regulation to mitigate line fluctuations common in shared lab circuits
• Battery-backed audible/visual alarm system with non-volatile memory logging—retains alarm history during power interruption and supports remote notification via dry-contact relay interface
• Five hinged inner doors with magnetic gaskets reduce cold air displacement per access event; combined with pressure-equalization ports, they minimize door-opening effort and thermal shock to stored samples
• Washable, front-accessible condenser filter prevents dust accumulation—a leading cause of compressor overheating and premature failure in multi-user environments
• Four height-adjustable stainless-steel shelves and standardized 25.4 mm process port for integration with external temperature monitoring probes (e.g., NIST-traceable Pt100 sensors)

Sample Compatibility & Compliance

The Revco ExF series is validated for long-term storage of temperature-sensitive life science specimens requiring strict thermal integrity. Its performance aligns with ISO 13485:2016 requirements for medical device manufacturing environments and supports GLP/GMP workflows where sample chain-of-custody and environmental traceability are mandated. While not inherently FDA 21 CFR Part 11 compliant, its analog alarm interface and optional data logger compatibility enable integration into validated systems meeting 21 CFR Part 11 audit-trail requirements when paired with compliant software platforms. The unit conforms to IEC 61010-1:2010 safety standards and complies with RoHS and REACH directives. All insulation materials are CFC-free and use zero-ozone-depletion-potential (ODP) blowing agents.

Software & Data Management

The Revco ExF operates as a standalone hardware platform with embedded firmware—not cloud-connected or app-dependent. However, its remote alarm interface (dry-contact relay output) allows seamless integration with third-party building management systems (BMS), environmental monitoring platforms (e.g., Sensiplus, TempTale, or Monnit), and laboratory information management systems (LIMS). Optional analog voltage output (0–5 V or 4–20 mA) can be configured for continuous temperature telemetry to SCADA or PLC networks. For regulatory documentation, users may log temperature excursions manually or via external dataloggers connected through the standard 25.4 mm process port—supporting audit-ready records in accordance with ISO/IEC 17025 and CAP accreditation criteria.

Applications

• Cryopreservation of human and animal primary cells, induced pluripotent stem cells (iPSCs), and embryonic stem cells
• Long-term archival storage of clinical trial biospecimens (serum, plasma, PBMCs, tissue lysates) under biobanking SOPs
• Stabilization of thermolabile reagents including restriction enzymes, polymerases, and CRISPR-Cas components
• Backup cold storage for −80 °C freezers undergoing maintenance or validation downtime
• Secure storage of controlled substances and regulated biological materials requiring dual-access authorization

FAQ

What is the minimum ambient temperature required for optimal Revco ExF performance?

The unit is rated for stable operation at ambient temperatures between 10 °C and 32 °C. Below 10 °C, compressor oil viscosity increases and may impair startup reliability; supplemental heating of the compressor compartment is not supported.
Can the Revco ExF be installed in a standard laboratory room without dedicated HVAC?

Yes—its reduced heat rejection profile (15% lower than predecessor models) and dual-fan condenser design allow installation in typical lab spaces. Ensure ≥10 cm clearance on all sides and ≥30 cm above the unit for unimpeded airflow.
Is the 25.4 mm process port compatible with standard temperature probes?

Yes—it accepts industry-standard 3.2 mm OD stainless-steel probe sheaths (e.g., Omega HH309, Fluke 80PK-26), enabling independent verification of internal temperature uniformity per ISO 14644-3 or ASTM F2653-21 protocols.
Does the dual-lock mechanism meet institutional biosafety requirements for restricted-access storage?

The mechanical dual-lock system supports two independent keys—enabling separation of duties per NIH, CDC, or institutional biosafety office policies for Category 3/4 pathogens or select agents.
How often does the condenser filter require cleaning?

Under typical lab conditions (no animal housing or high-dust environments), quarterly inspection and cleaning are recommended; monthly in core facilities with >50 users/day.
