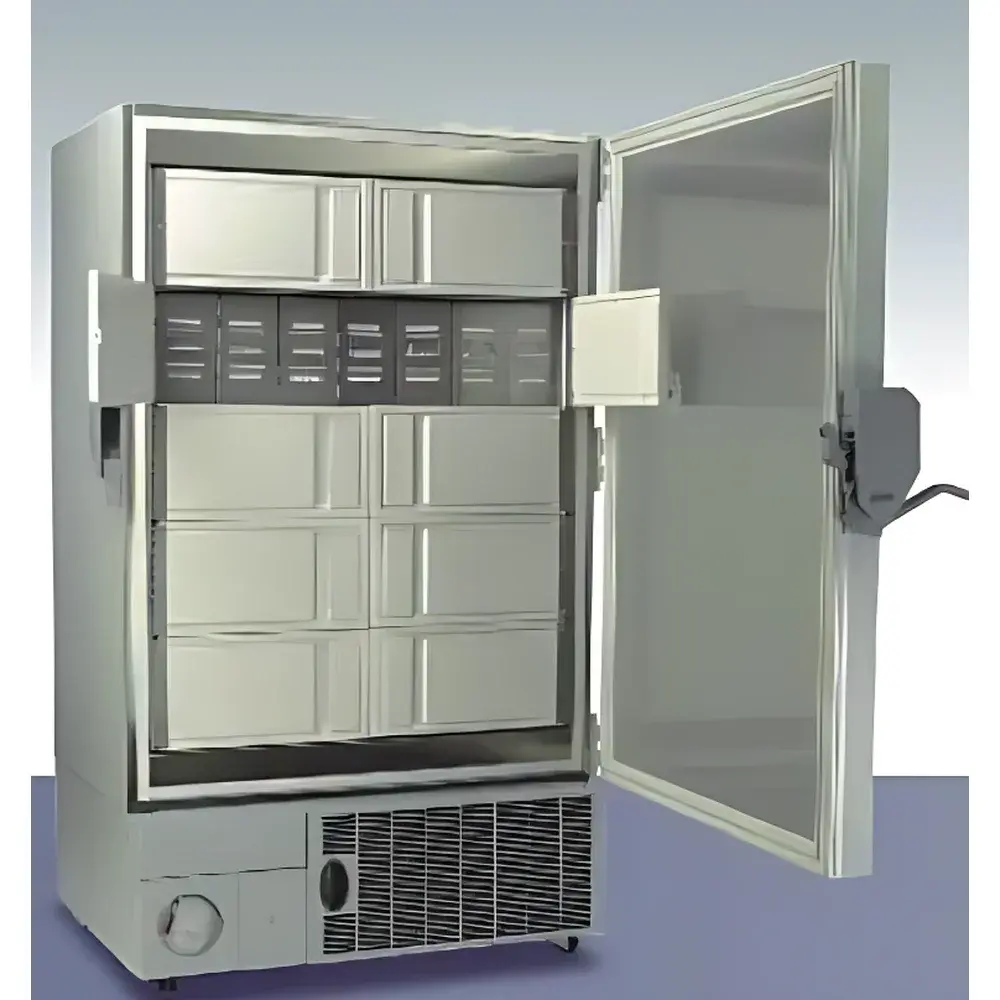

Thermo Scientific Revco HD Series Ultra-Low Temperature Freezers

Overview

The Thermo Scientific Revco HD Series Ultra-Low Temperature Freezers represent the highest-capacity, laboratory-grade cryogenic storage solution engineered for long-term biobanking, clinical trial sample archiving, and high-throughput research repositories. Operating at a stable –86 °C nominal setpoint, these freezers employ a cascade refrigeration system with dual compressors and environmentally optimized HFC-free refrigerants (R-23/R-508B blend), delivering consistent thermal performance across ambient conditions ranging from 10 °C to 32 °C. With internal volumes of 702 L (ULT2586-10HD-V) and 889 L (ULT3280-10HD-V), the HD series holds the distinction of being the largest commercially available upright ultra-low temperature freezer globally—capable of storing up to 70,000 vials (2 mL) across 35 standardized cryoboxes per unit. Its compact footprint-to-volume ratio (702 L internal volume occupying only 24.8 cu ft of floor space) reflects an architecture optimized for space-constrained core facilities and GMP-compliant biorepositories.

Key Features

• Independent Dual-Door Hinge Architecture: Each inner door operates on its own heavy-duty hinge mechanism, minimizing thermal intrusion during partial access and preventing cross-contamination of temperature stability across compartments.
• Modular Shelf Configuration: Five full-width shelves—three adjustable in 25.4 mm (1 in) increments—support flexible configuration for 2″, 3″, or microplate-based storage systems (up to 700 × 2″ boxes, 525 × 3″ boxes, or 3,430 × 96-well plates per unit).
• PLUS Power Management System: Integrates automatic voltage regulation (boost/buck), low-line compensation, and continuous battery-backed operation of controller logic and alarm circuitry—even during extended power outages.
• CryoLatch™ Integrated Handle: Ergonomic, one-handed opening mechanism with factory-installed mechanical lock and optional secondary key-lock provision for dual-authentication access control.
• Real-Time Environmental Monitoring: Life-Guard™ intelligent alarm suite continuously monitors cabinet temperature, ambient room temperature, door status, power integrity, condenser filter status, and battery health—with configurable thresholds and multi-level notification escalation.
• Compliance-Ready Data Integrity: Onboard 7-day temperature logger stores timestamped readings at user-defined intervals (1–60 min), generating CSV-exportable logs with embedded audit trail metadata required under FDA 21 CFR Part 11, ISO 20387, and EU Annex 11 frameworks.

Sample Compatibility & Compliance

The Revco HD series accommodates standard cryogenic storage formats—including Nunc™, Corning®, and Thermo Scientific™ cryoboxes (2″ and 3″), rack-mounted vial holders, and ANSI/SLAS-format microplates—without requiring adapter trays. All interior surfaces are constructed from electropolished stainless steel (AISI 304), passivated and powder-coated for corrosion resistance and ease of decontamination. The insulation system utilizes >150 mm thick, CFC-free polyurethane foam with vacuum-insulated panel (VIP) reinforcement along vertical seams, achieving a U-value ≤0.18 W/m²·K. Units comply with IEC 61000-6-3 (EMC emissions), IEC 61000-6-2 (immunity), and UL 61010-1 safety standards. Optional IQ/OQ documentation packages support validation under ISO/IEC 17025 and cGMP environments.

Software & Data Management

No proprietary software installation is required for basic operation; all configuration, calibration, and alarm management occur via the front-panel microprocessor interface with password-protected administrator mode. For centralized monitoring, the RS-485 port enables integration into facility-wide Building Management Systems (BMS) or third-party environmental monitoring platforms (e.g., SensiNet, TempTale®, or custom SCADA). Analog voltage output (0–5 V) provides real-time temperature feedback to external recorders. Audit logs—including user login history, parameter changes, alarm acknowledgments, and door-open events—are stored internally with tamper-resistant timestamps. Exported CSV files include digital signatures and hash verification fields compatible with electronic quality management systems (eQMS).

Applications

• Long-term preservation of primary human tissues, PBMCs, stem cells, and induced pluripotent stem cell (iPSC) lines in biobanks and translational research centers
• Stability storage of reference standards, assay reagents, and diagnostic kits under ICH Q5C guidelines
• Secure archival of clinical trial biospecimens meeting ISBER Best Practices and NCBI dbGaP submission requirements
• High-density storage for CRISPR library screens, single-cell sequencing sample cohorts, and spatial transcriptomics workflows
• Backup cold chain infrastructure for vaccine development labs operating under WHO prequalification or FDA Emergency Use Authorization (EUA) protocols

FAQ

What is the minimum ambient temperature required for stable operation?
The Revco HD series is rated for continuous operation in rooms maintained between 10 °C and 32 °C (50–90 °F) at ≤80% non-condensing relative humidity.
Can the freezer be installed flush against a wall?
No. Stand-off feet and rear pressure-equalization ports require ≥100 mm clearance behind the unit and ≥50 mm on each side to ensure unrestricted airflow and optimal condenser performance.
Is remote temperature monitoring supported without additional hardware?
Yes—RS-485 serial interface and analog voltage output are built-in; no add-on modules are needed for integration with existing facility monitoring networks.
How often must the condenser filter be cleaned?
The controller displays a service alert every 30 days under normal lab conditions; frequency increases in dusty or high-particulate environments.
Does the 7-day data logger meet 21 CFR Part 11 requirements for electronic records?
Yes—the logger enforces role-based access control, generates immutable audit trails with operator ID and timestamp, and supports cryptographic hash export for integrity verification.
