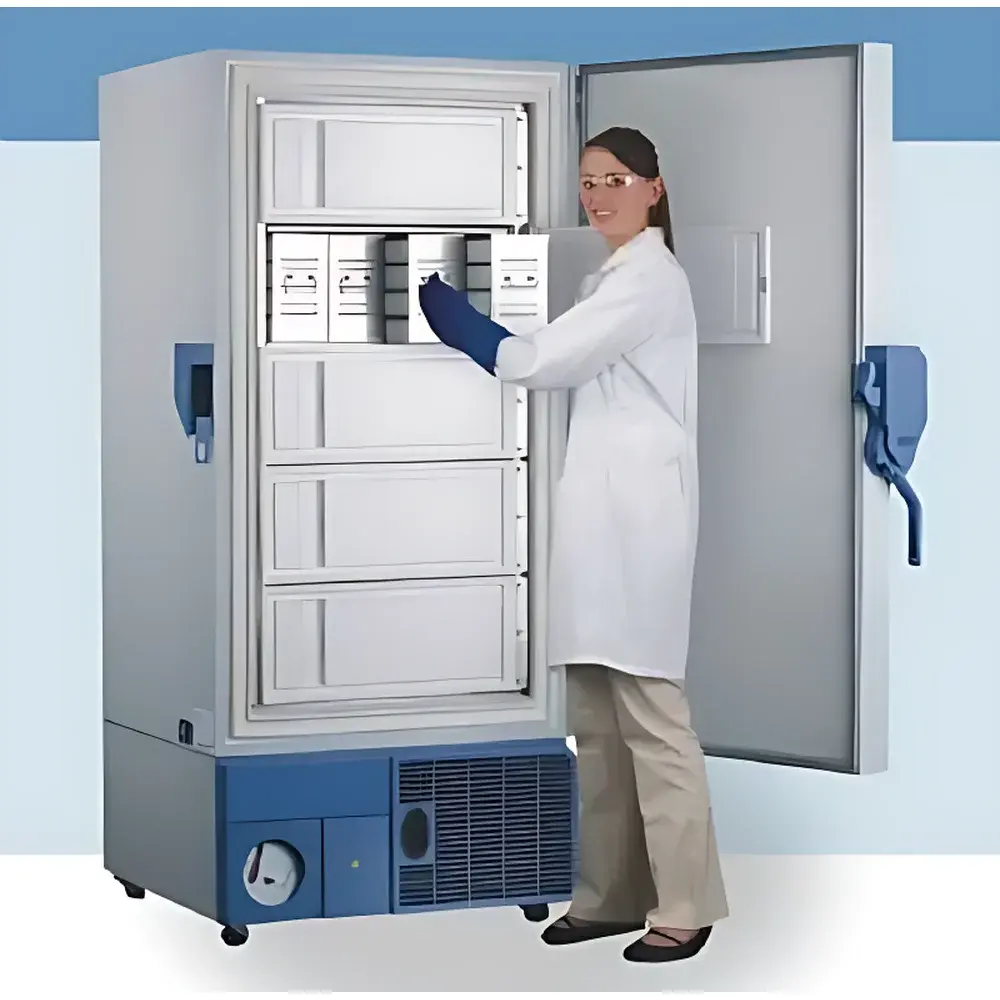

Thermo Scientific Revco ULT-1786-6V Ultra-Low Temperature Freezer

Overview

The Thermo Scientific Revco ULT-1786-6V Ultra-Low Temperature Freezer represents over four decades of engineering leadership in cryogenic sample preservation. As the inventor of the world’s first –86 °C ultra-low temperature (ULT) freezer, Thermo Fisher Scientific established foundational benchmarks for reliability, thermal stability, and long-term sample integrity in biomedical research, biobanking, and clinical diagnostics. This model employs the proprietary Legaci™ refrigeration architecture — a dual-compressor, dual-fan system engineered for continuous operation at –86 °C with high reproducibility and minimal thermal fluctuation. Its design prioritizes fail-safe thermal containment: 127 mm thick in-situ foamed polyurethane insulation in the cabinet and 76 mm in the door ensure low heat leak rates, while the CFC-free DuPont™ refrigerant blend complies with Montreal Protocol requirements and modern environmental stewardship mandates.

Key Features

• Legaci™ dual 1 HP hermetic compressor system with independent fan-assisted condenser cooling — enhances redundancy and extends service life
• AIM™ (Automatic Incident Monitor): logs transient temperature excursions during unattended operation, including peak deviation and duration, supporting GLP/GMP traceability
• PLUS™ Power Management System: integrated voltage stabilizer with automatic boost/buck functionality maintains stable compressor operation across ±15% input voltage variation
• Five insulated inner doors minimize cold air loss during routine access; door seal integrity verified per IEC 61000-4-2 ESD standards
• 25.4 mm process port enables integration with external temperature validation probes (e.g., NIST-traceable Pt100 sensors) for 21 CFR Part 11–compliant monitoring
• Remote alarm interface (dry contact + RS-485) supports centralized lab monitoring systems and building management integration
• Washable, front-access condenser filter reduces maintenance downtime and preserves cooling efficiency under typical laboratory particulate loads
• Lockable power switch and dual-key mechanical lock meet institutional biosafety and controlled-access policy requirements
• Pressure-equalization vent prevents vacuum lock during rapid door closure, ensuring consistent operability in high-humidity environments

Sample Compatibility & Compliance

The Revco ULT-1786-6V is validated for storage of primary human tissues, cryopreserved cell lines (including iPSCs and PBMCs), viral vectors, mRNA-LNPs, and other thermolabile biologics requiring sustained –80 °C stability. Its thermal uniformity profile (±2.5 °C at –80 °C, per ASTM F745-22 mapping protocol) meets ISO 13485:2016 requirements for medical device storage and aligns with FDA guidance for biorepository temperature control. The unit supports audit-ready documentation: AIM™ event logs are time-stamped and non-volatile; optional data logger integration enables electronic records compliant with 21 CFR Part 11 Subpart B (electronic signatures and record retention). All materials in direct contact with stored samples conform to USP and cytotoxicity testing standards.

Software & Data Management

While the ULT-1786-6V operates via an embedded microcontroller with tactile keypad interface and digital LED display, its data infrastructure is designed for interoperability. The standard RS-485 port supports Modbus RTU protocol for integration into third-party environmental monitoring platforms (e.g., SensiNet, TempTale, or LabVantage LIMS). AIM™ event history is exportable as CSV via USB interface (optional accessory). Alarm logs include timestamp, temperature deviation magnitude, duration, and recovery status — enabling root-cause analysis per CAP/CLIA corrective action workflows. Optional Thermo Fisher Connect™ cloud gateway enables encrypted TLS 1.2 transmission of critical alerts to designated email/SMS endpoints, with configurable escalation rules and audit trail retention up to 12 months.

Applications

• Long-term archival of clinical trial biospecimens under ISBER Best Practices guidelines
• Cryopreservation of stem cell banks requiring ISO 20387:2018-compliant infrastructure
• Storage of reference standards and calibration materials for QC labs operating under ISO/IEC 17025
• Backup cold chain for pandemic response repositories (e.g., WHO BioHub network specifications)
• Supporting GMP manufacturing of ATMPs where temperature excursions must be documented per Annex 1 revision (2022)
• Academic core facilities managing multi-user access with role-based security and usage logging

FAQ

What is the validated temperature uniformity across the 487 L chamber?
Per ASTM F745-22, the unit achieves ±2.5 °C at setpoint –80 °C when mapped with nine calibrated thermistors on a 3×3 grid at three vertical levels.
Does the ULT-1786-6V support 21 CFR Part 11 compliance?
Yes — with optional Thermo Fisher Connect™ gateway and configured user roles, it supports electronic signatures, audit trails, and secure data export meeting Subpart B requirements.
Can the internal temperature be validated using external probes?
Yes — the standard 25.4 mm process port accommodates NIST-traceable PT100 or thermistor probes for independent verification per ISO/IEC 17025 calibration protocols.
Is the refrigerant blend compatible with current EPA SNAP regulations?
Yes — the DuPont™ hydrofluoroolefin (HFO)-based blend has zero ozone depletion potential (ODP = 0) and global warming potential (GWP) < 10, satisfying EPA SNAP Acceptance Criteria for ULT freezers.
What maintenance intervals are recommended for optimal performance?
Condenser filter cleaning every 3 months; annual verification of door gasket compression force and alarm system functionality per manufacturer’s PM checklist (PN 97001-001).
