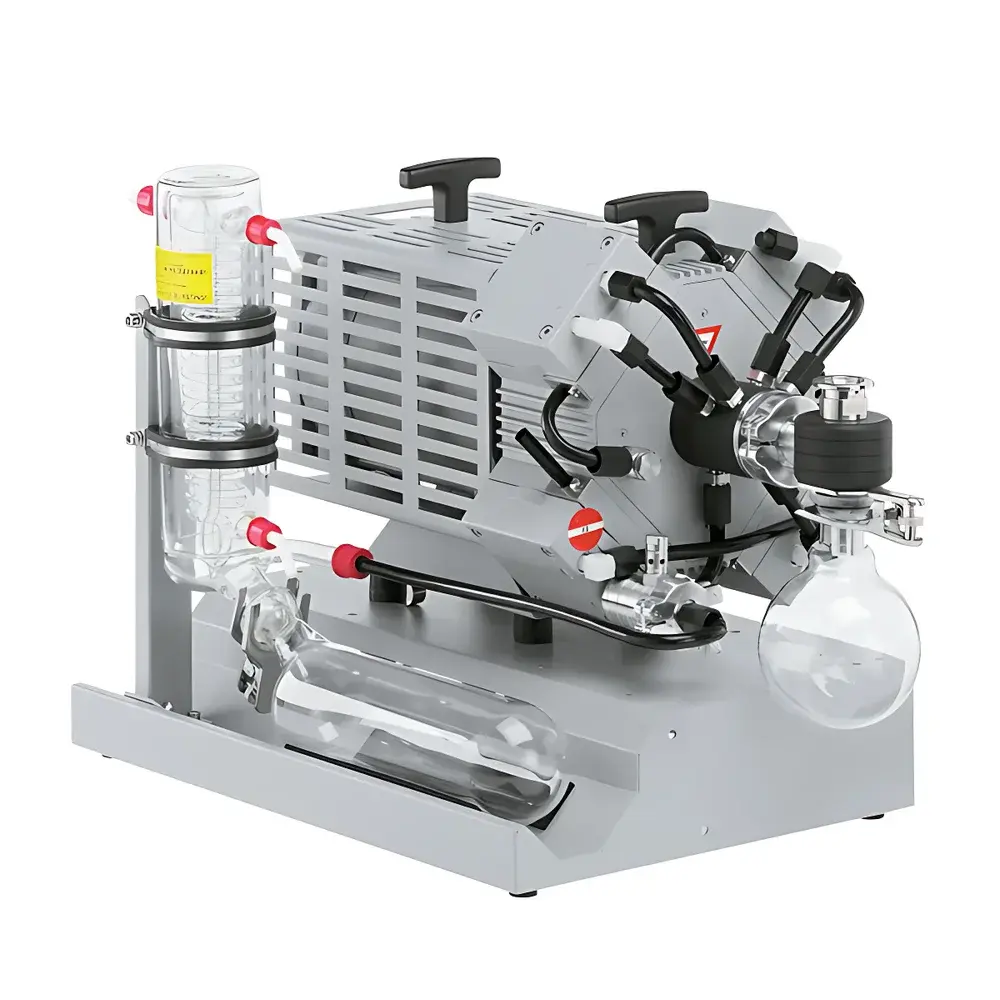

VACUUBRAND MD 4C EX VARIO +AK +EK ATEX-Certified Chemical-Resistant Explosion-Proof Diaphragm Vacuum Pump System

Overview

The VACUUBRAND MD 4C EX VARIO +AK +EK is a fully ATEX-certified, oil-free diaphragm vacuum pump system engineered for safe and reliable operation in potentially explosive atmospheres (Zone 1 and Zone 2). Designed in accordance with Directive 2014/34/EU (ATEX), it integrates four-stage diaphragm pumping technology with integrated gas ballast (AK) and exhaust condensation trap (EK) to deliver high chemical resistance, precise vacuum control, and intrinsic safety in demanding laboratory applications—including rotary evaporation, vacuum drying, solvent recovery, and distillation under hazardous conditions. Its core operating principle relies on oscillating PTFE-coated diaphragms driven by an explosion-proof induction motor, eliminating lubricants and minimizing contamination risk. Unlike oil-sealed pumps, the MD 4C EX VARIO generates clean, dry, hydrocarbon-free vacuum without oil carryover or vapor backstreaming—critical for sensitive analytical workflows and GMP-compliant processes.

Key Features

• ATEX-certified dual-zone protection: II 2G IIC T3X for pumped gas space; II 2G/II 3G IIB T4X for external environment—with optional inert gas purging via dedicated gas ballast interface (AK)
• Vario® speed-controlled drive: Continuously adjustable motor speed (0–1500 rpm) via 4–20 mA analog signal, enabling dynamic vacuum regulation and energy optimization
• Four-stage diaphragm architecture with three compression stages: Delivers stable ultimate vacuum down to 3 mbar (2.3 torr) and enhanced vapor handling capacity
• Chemically inert wetted parts: Diaphragms, valves, and housings constructed from PTFE, FPM (Viton®), and EPDM—resistant to aggressive solvents including acetone, chloroform, THF, and concentrated acids
• Integrated exhaust condensation trap (EK): Captures condensable vapors before discharge, reducing emissions and protecting downstream exhaust lines
• IP54-rated enclosure with antistatic housing materials: Prevents electrostatic charge accumulation in flammable environments
• Low-noise operation (53 dBA at 50 Hz) and extended service intervals due to brushless motor design and wear-optimized diaphragm kinematics

Sample Compatibility & Compliance

The MD 4C EX VARIO +AK +EK is validated for continuous duty with vapors and gases commonly encountered in organic synthesis, pharmaceutical R&D, and fine chemical manufacturing. It is compatible with solvents classified under ATEX Group IIC (e.g., hydrogen, acetylene, carbon disulfide) and Group IIB (e.g., ethylene, propane), meeting surface temperature limits per T3X (≤200°C) and T4X (≤135°C) classifications. All wetted components comply with USP Class VI and FDA 21 CFR Part 11–ready documentation protocols when paired with CVC 3000 controller (optional). The system supports GLP/GMP audit trails when integrated with I/O modules and ATEX-rated vacuum sensors (e.g., VACUU·SELECT EX). No silicone, hydrocarbons, or halogenated lubricants are used—ensuring compatibility with ASTM D2622 (XRF sulfur analysis), ISO 8573-1 (compressed air purity), and EU GMP Annex 15 validation requirements.

Software & Data Management

While the base MD 4C EX VARIO operates as a stand-alone analog-controlled unit, full digital integration is achieved via the optional CVC 3000 vacuum controller. This microprocessor-based system enables programmable vacuum ramps, setpoint hold, real-time pressure logging (0.1 mbar resolution), and RS485 Modbus RTU communication for SCADA or LIMS linkage. The controller supports 21 CFR Part 11–compliant user access levels, electronic signatures, and immutable audit trails—including timestamped event logs for pump start/stop, overpressure events, and thermal warnings. Optional I/O modules allow analog feedback of actual vacuum level, remote emergency stop, and interlock signaling with reactor jackets or cold traps. All firmware updates are performed via secure USB interface with cryptographic signature verification.

Applications

• Solvent removal under explosion-hazard conditions: Rotary evaporation of low-flashpoint solvents (diethyl ether, pentane, ethyl acetate) in chemical synthesis labs
• Vacuum drying of thermally labile APIs and intermediates in pharmaceutical development suites
• Distillation and fractional crystallization in pilot-scale process chemistry
• Gas-phase sampling and headspace analysis where hydrocarbon-free vacuum is mandatory (e.g., GC-MS sample prep)
• Operation inside fume hoods, gloveboxes, or ventilated enclosures requiring certified Zone 1/2 equipment
• Integration into automated reaction stations (e.g., ChemSpeed, Uniqsis) requiring intrinsically safe vacuum actuation

FAQ

Is the MD 4C EX VARIO +AK +EK suitable for continuous operation in Zone 1 classified areas?

Yes—it carries II 2G IIC T3X certification for the pump chamber and II 2G IIB T4X for the external housing when operated with inert gas purging (via AK interface), satisfying IEC 60079-0 and EN 60079-15 requirements for Zone 1.
Can this pump handle water vapor or high-boiling solvents without performance degradation?

The integrated EK condensation trap significantly improves tolerance for condensables; however, sustained exposure to >40 °C saturated steam or glycols requires auxiliary cooling or upstream cold traps to prevent diaphragm fatigue.
What is the expected maintenance interval under standard lab use?

With Vario® speed modulation reducing mechanical stress, typical diaphragm service life exceeds 10,000 hours; recommended inspection every 6 months includes valve seat integrity, PTFE diaphragm visual check, and gas ballast orifice cleaning.
Does the system support automated process sequencing?

When configured with the CVC 3000 controller and optional I/O module, it supports full recipe-driven vacuum profiles—including ramp-to-setpoint, dwell time, and pressure-triggered step transitions—compatible with LabVIEW, Python pySerial, and Siemens S7 PLCs.
Is calibration traceable to national standards?

Vacuum measurement accuracy is verified against NIST-traceable reference manometers during factory acceptance testing; certificate of conformance (CoC) and as-built drawings are supplied with each unit.
