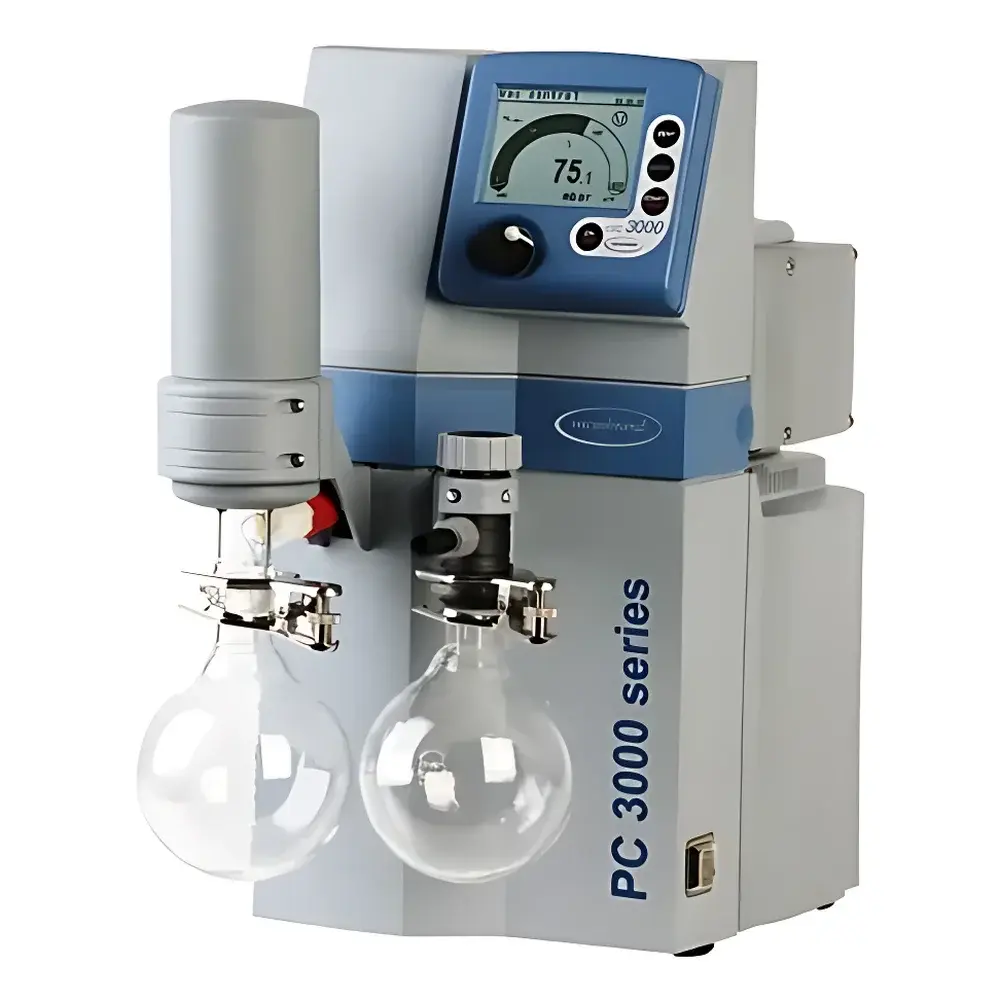

Vacuubrand PC 3002 VARIO Variable-Speed Chemical Vacuum System

Overview

The Vacuubrand PC 3002 VARIO is an integrated, variable-speed chemical vacuum system engineered for precision-controlled solvent removal in rotary evaporation, distillation, freeze drying, and other laboratory-scale vacuum processes. At its core lies the MZ 2C NT VARIO dual-stage chemically resistant diaphragm pump — a robust, oil-free solution designed to handle aggressive solvents including acetone, methanol, ethyl acetate, dichloromethane, and hydrochloric acid vapors without degradation. Unlike fixed-speed vacuum pumps, the PC 3002 VARIO employs real-time motor speed modulation via its built-in CVC 3000 vacuum controller, enabling dynamic pressure regulation across the full operational range (7–1000 mbar abs). This closed-loop control architecture eliminates pressure overshoot and hysteresis, delivering stable, repeatable vacuum conditions essential for sensitive thermal processes where boiling point elevation or bumping must be avoided. The system operates without lubricating oils or seals susceptible to chemical attack, ensuring long-term reliability and eliminating cross-contamination risks in multi-user labs.

Key Features

• Variable-frequency motor drive (30–2400 rpm) for continuous, stepless vacuum adjustment with zero lag response
• Integrated CVC 3000 controller with intuitive text-based menu, programmable setpoints, and automatic venting sequence
• Two-stage diaphragm pump head with PTFE-coated membranes and EPDM elastomers for broad chemical compatibility
• Inlet trap (glass collection bottle) prevents liquid carryover and particulate ingress into the pump chamber
• Condenser-equipped exhaust line achieving >95% solvent recovery under typical rotary evaporation conditions (e.g., 40 °C bath, 200 mbar setpoint)
• Low-noise operation (43 dBA at 50 Hz) suitable for shared laboratory environments
• Extended diaphragm service life (>10,000 hours under standard load) due to reduced mechanical stress at partial-load speeds
• ATEX-certified configuration available for use in Zone 2 explosive atmospheres (II 3G IIC T3 X, 230 V only)

Sample Compatibility & Compliance

The PC 3002 VARIO is validated for continuous duty with volatile organic compounds (VOCs), halogenated solvents, and mildly corrosive vapors. Its wetted materials — PTFE, FPM (Viton®), EPDM, and borosilicate glass — comply with USP Class VI and FDA 21 CFR §177.2600 requirements for lab-grade fluid contact surfaces. The system meets IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity) standards. When operated with optional liquid-level sensors (Order No. 699908) and automated vent valves (VBM-B), it supports GLP-compliant process documentation when paired with third-party LIMS or ELN platforms. While not inherently 21 CFR Part 11 compliant, audit trails and electronic signatures can be implemented at the software layer through validated integration protocols.

Software & Data Management

The CVC 3000 controller features a non-volatile memory capable of storing up to 10 user-defined vacuum profiles, each with ramp rates, hold times, and final setpoints. Real-time pressure data is output via analog 0–10 V signal (±0.5% FS accuracy) and RS-232 interface (ASCII protocol), enabling direct acquisition by LabVIEW, MATLAB, or custom SCADA systems. Optional USB-to-RS232 adapters allow connection to Windows/Linux hosts for logging via Vacuubrand’s free VACUU-VIEW software (v3.2+), which supports CSV export, trend visualization, and alarm-triggered email notifications. All parameter changes are timestamped and logged internally for traceability — a prerequisite for ISO/IEC 17025-accredited testing laboratories.

Applications

• Rotary evaporation of heat-sensitive natural product extracts (e.g., terpenes, alkaloids) under controlled sub-boiling conditions
• Concentration of aqueous and organic reaction mixtures prior to HPLC or NMR analysis
• Vacuum-assisted filtration of crystalline APIs under GMP-aligned workflows
• Drying of lyophilized biological samples with precise residual moisture control
• Distillation of high-purity solvents for semiconductor-grade cleaning applications
• Environmental lab workflows involving EPA Method 502.2 (halogenated organics) and Method 8021B (aromatics) sample preparation

FAQ

What vacuum range does the PC 3002 VARIO support, and how is stability maintained?
It delivers absolute pressures from 7 mbar (ultimate) to atmospheric, with ±0.5 mbar repeatability over 8-hour continuous operation. Stability is achieved via PID-controlled motor speed feedback, not mechanical throttling.
Can this system be used with water-cooled condensers?
Yes — two DN 6–8 mm cooling water ports are provided; flow rate should be 0.5–1.2 L/min at ≤25 °C inlet temperature for optimal condensation efficiency.
Is remote monitoring supported out of the box?
RS-232 serial communication is standard; Ethernet or Wi-Fi connectivity requires external protocol converters certified for industrial lab networks.
How often does the diaphragm require replacement under typical rotary evaporation use?
With average daily usage (6 h/day, 50% speed setting), replacement intervals exceed 24 months — verified via accelerated lifetime testing per DIN EN ISO 14644-1 cleanroom-class maintenance logs.
Does the system include validation documentation for IQ/OQ protocols?
Factory test reports (including ultimate vacuum, pumping speed, and noise verification) are supplied. Full 3Q documentation packages are available upon request with additional lead time and qualification support fees.
