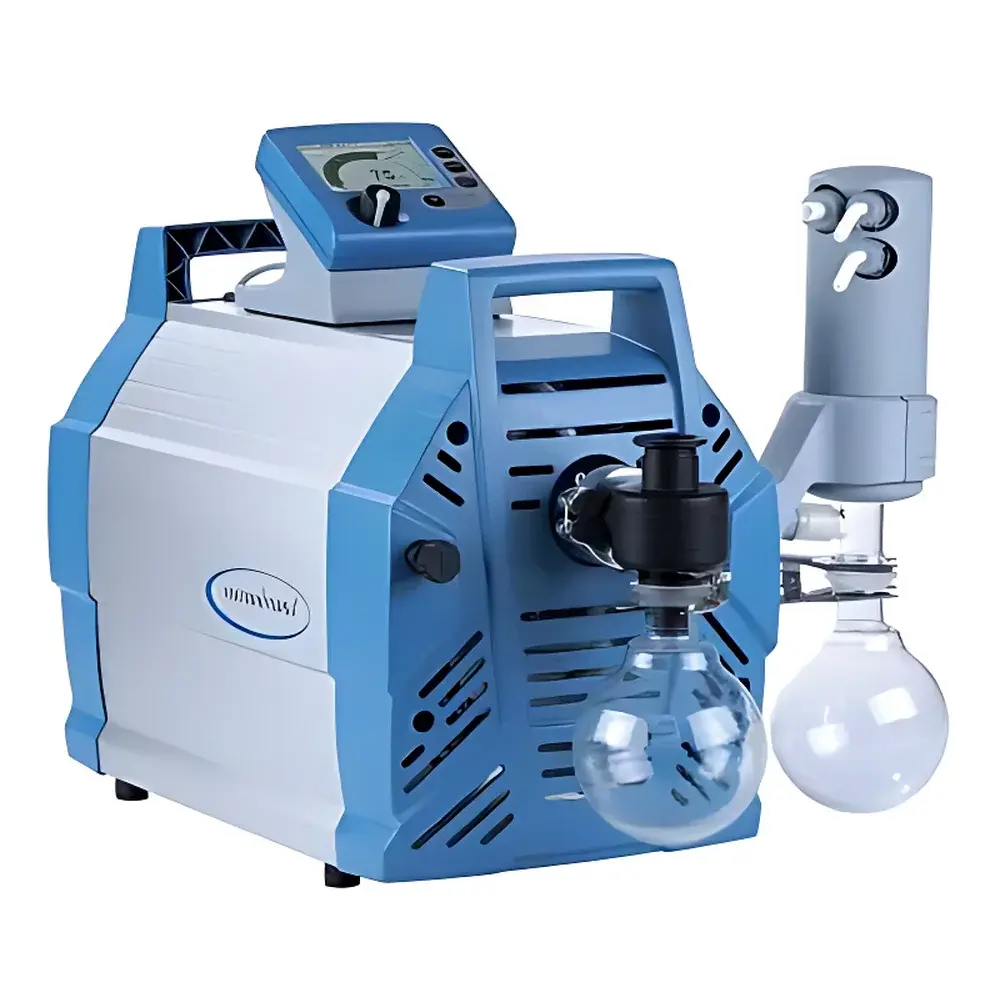

Vacuubrand PC 3012 NT VARIO Chemical Vacuum System
| Brand | VACUUBRAND® |
|---|---|
| Origin | Germany |
| Pump Type | Diaphragm Vacuum Pump |
| Model | PC 3012 NT VARIO |
| Compliance | CE, RoHS, ISO 9001-certified manufacturing |
| Control Principle | Variable-Speed DC Motor with Integrated Pressure Feedback Loop |
| Ultimate Vacuum | ≤ 2 mbar (absolute) |
| Max. Flow Rate | 12 m³/h (at atmospheric pressure) |
| Chemical Resistance | PTFE-coated diaphragms, FKM elastomers, stainless steel housing |
| Safety Features | Overheat protection, stall detection, automatic shutdown on condensate overflow |
| Accessories Supported | AK inlet separator bottle, EK exhaust condenser, MD 12C NT VARIO upgrade path |
Overview
The Vacuubrand PC 3012 NT VARIO is a high-performance, oil-free chemical vacuum system engineered for precision-controlled evaporation, distillation, and solvent recovery in demanding laboratory environments. Based on proven diaphragm pump architecture, it employs a brushless DC motor with real-time pressure feedback to deliver continuous, stepless speed regulation across the full operating range — from rough vacuum (1000 mbar) down to an ultimate vacuum of ≤ 2 mbar (absolute). Unlike fixed-speed systems, the VARIO® control logic dynamically adjusts motor RPM to maintain setpoint vacuum with zero hysteresis and sub-mbar stability, eliminating pressure overshoot or oscillation during load changes. This closed-loop regulation is critical for reproducible rotary evaporation of heat-sensitive compounds, high-boiling solvents (e.g., DMF, DMSO, ethylene glycol), and multi-step concentration protocols where vacuum drift compromises yield or compound integrity. The system operates without lubricants or hydrocarbon vapors, ensuring contamination-free operation essential for pharmaceutical QC, analytical sample prep, and GLP-compliant synthesis workflows.
Key Features
- Variable-speed diaphragm pump with integrated digital controller enabling true setpoint-driven vacuum regulation — no manual valve adjustment required
- PTFE-coated multi-layer diaphragms and FKM-sealed valves provide broad chemical resistance against aggressive solvents (halogenated hydrocarbons, strong acids, bases, and oxidizers)
- Stainless steel pump head and corrosion-resistant internal gas path ensure long-term reliability in chemically hostile environments
- AK inlet separator bottle intercepts aerosols, particulates, and liquid carryover before reaching the pump chamber — preventing diaphragm fatigue and extending service intervals
- Compact EK exhaust condenser achieves >95% solvent recovery efficiency at typical lab-scale evaporation rates, reducing VOC emissions and disposal costs
- Integrated thermal overload protection, stall detection, and condensate-level monitoring enable unattended overnight operation under validated SOPs
- Modular design supports field-upgrade to MD 12C NT VARIO configuration for enhanced flow capacity and expanded accessory compatibility
Sample Compatibility & Compliance
The PC 3012 NT VARIO is compatible with standard laboratory glassware (ISO 29771 taper joints) and integrates seamlessly with rotary evaporators, vacuum ovens, freeze dryers, and Schlenk lines. Its chemically inert wetted materials comply with USP Class VI and FDA 21 CFR Part 11 requirements for data integrity when paired with optional logging software. The system meets IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity) standards and carries CE marking for use within the European Economic Area. It supports audit-ready operation in GMP/GLP-regulated labs through configurable event logging (pump status, temperature alerts, vacuum deviation) and user-access-level controls.
Software & Data Management
While the PC 3012 NT VARIO operates autonomously via its front-panel interface, optional Vacuubrand VARIO Connect software enables remote monitoring and parameter archiving via USB or RS-232. Logged data includes real-time vacuum trace, motor RPM, runtime, and fault codes — exportable as CSV for integration into LIMS or ELN platforms. The controller supports up to 10 programmable vacuum ramps per method, each with dwell time and slope constraints, facilitating automated multi-stage evaporation sequences compliant with ASTM E2654 and ISO 17025 documentation requirements.
Applications
- Controlled rotary evaporation of thermolabile natural products and API intermediates
- High-boiling solvent removal in polymer synthesis and catalyst recovery
- Vacuum drying of hygroscopic powders and crystalline APIs under inert atmosphere
- Distillation of viscous reaction mixtures containing residual catalysts or salts
- Preparative chromatography fraction collection under reduced pressure
- Environmental analysis sample concentration (e.g., EPA Method 525.3, 8270)
FAQ
Does the PC 3012 NT VARIO require oil changes or routine lubrication?
No — it is a fully oil-free diaphragm system with maintenance limited to periodic diaphragm replacement (typically every 12–18 months under normal use) and filter cleaning.
Can this system be used with aggressive solvents like chlorine-containing compounds or concentrated nitric acid?
Yes — its PTFE/FKM/stainless steel construction provides documented resistance to such agents per VACUUBRAND’s chemical compatibility database (Ref: ChemiLine® Guide v4.2).
Is the vacuum setpoint adjustable in real time during operation?
Yes — the controller accepts live adjustments via keypad or external analog signal (0–10 V), with response time < 2 seconds to new setpoints.
What safety certifications does the unit hold for use in regulated pharmaceutical labs?
It complies with IEC 61010-1 (Safety Requirements for Electrical Equipment), carries CE/UKCA marking, and supports 21 CFR Part 11 compliance when used with validated VARIO Connect software and access-controlled user accounts.
