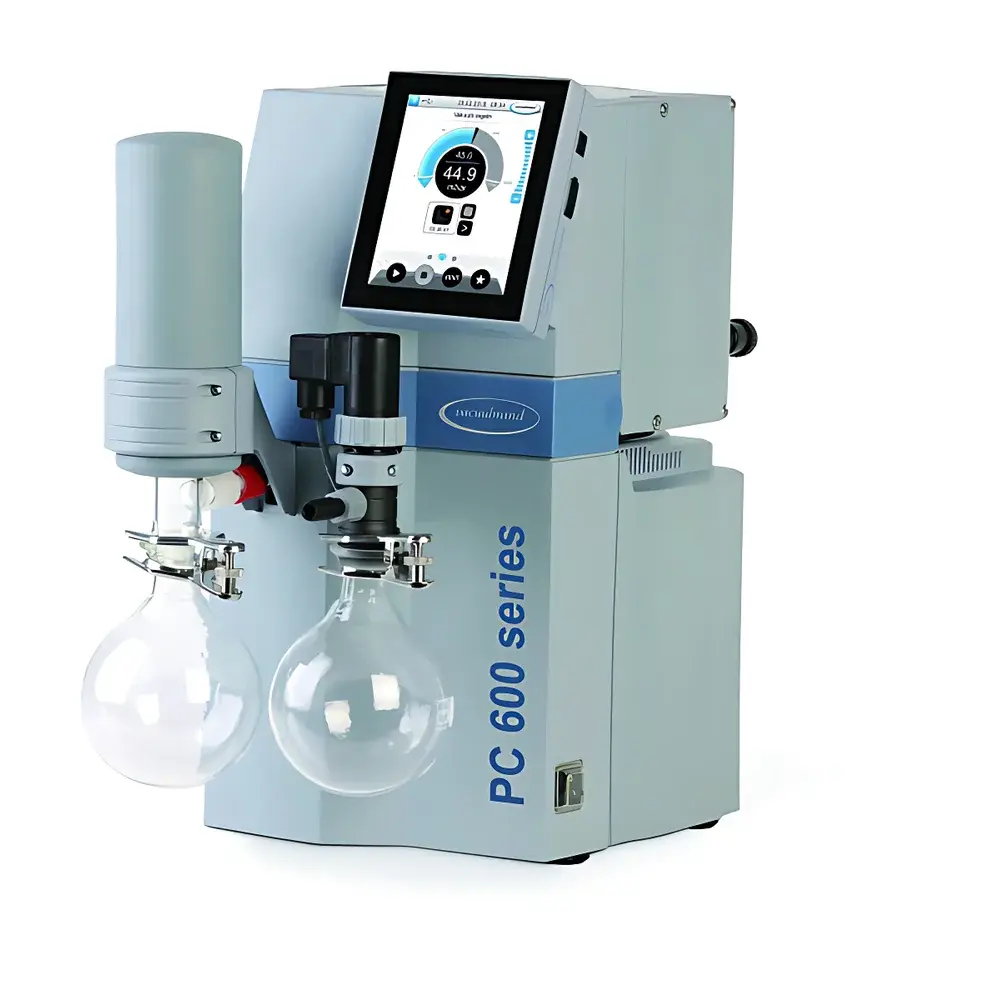

VACUUBRAND PC 610 select Chemical Vacuum System

Overview

The VACUUBRAND PC 610 select is a fully integrated, microprocessor-controlled chemical vacuum system engineered for precision, reliability, and solvent compatibility in demanding laboratory applications. At its core resides the MD 4C NT three-stage chemically resistant diaphragm pump — a robust, oil-free vacuum source designed specifically for aggressive vapors and high-boiling solvents. Unlike rotary vane or scroll pumps, the diaphragm architecture eliminates lubricant contamination risks and ensures long-term stability under corrosive load. The system operates on the principle of positive displacement via elastomeric diaphragms driven by an eccentric shaft, delivering consistent suction performance without internal oil exposure. Its ultimate vacuum of 1.5 mbar enables efficient operation across a broad spectrum of evaporation and drying protocols — particularly where thermal sensitivity, solvent recovery, or regulatory compliance (e.g., GLP, ISO 17025) are critical. Designed and assembled in Germany, the PC 610 select meets stringent CE and RoHS directives and conforms to IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity) standards.

Key Features

• Integrated VACUU·SELECT digital vacuum controller with full-color graphical user interface (GUI), supporting intuitive application-based operation
• Preset, validated vacuum profiles for common workflows: rotary evaporation, vacuum drying, fractional distillation, and lyophilization pre-treatment
• Intelligent two-point pressure control mode automatically engages upon detection of solvent boiling point — maintaining stable setpoint pressure during phase transition
• Chemically inert PTFE-coated diaphragms and EPDM valves ensure compatibility with acetone, chloroform, DMF, DMSO, THF, and other polar/non-polar solvents
• Front-mounted glass inlet trap with protective polymer coating prevents particulate ingress and liquid carryover into the pump head
• Condensate recovery module compatible with external chiller or tap-water cooling circuits; achieves >95% solvent capture efficiency under optimized conditions
• Modular design allows field-serviceable components including motor assembly, diaphragm kits, and valve blocks — minimizing downtime

Sample Compatibility & Compliance

The PC 610 select is validated for use with volatile organic compounds (VOCs), halogenated solvents, and moderately acidic/basic vapors encountered in synthetic chemistry, pharmaceutical QC, and analytical sample preparation. It complies with ASTM D86 (distillation range), USP (vacuum drying validation), and ISO 20517 (laboratory vacuum equipment safety requirements). Its oil-free architecture satisfies FDA 21 CFR Part 11 data integrity prerequisites when paired with VACUUBRAND’s optional audit-trail-enabled software package. All wetted parts meet USP Class VI biocompatibility criteria, and the system supports GMP-aligned documentation workflows including IQ/OQ templates and calibration traceability to DAkkS-accredited standards.

Software & Data Management

The embedded VACUU·SELECT controller stores up to 20 user-defined vacuum programs, each configurable via drag-and-drop logic sequencing (e.g., ramp-to-setpoint → hold → auto-release). Real-time pressure curves, runtime logs, and event timestamps are exportable as CSV files via USB port. Optional VACUUBRAND LabManager software (Windows/macOS) enables remote monitoring, multi-system synchronization, electronic signature support, and automated report generation compliant with ALCOA+ principles. All parameter changes are logged with operator ID, timestamp, and reason-for-change metadata — fulfilling GLP audit trail requirements.

Applications

• Controlled solvent removal from heat-sensitive APIs and natural product extracts using rotary evaporators (e.g., Büchi R-300, IKA RV 10)
• Vacuum-assisted drying of catalysts, MOFs, and battery electrode slurries under inert atmosphere glovebox integration
• Pre-concentration of environmental water samples prior to GC-MS analysis per EPA Method 525.3
• High-vacuum degassing of polymer precursors and resin formulations prior to casting or injection molding
• Low-temperature freeze-drying cycle optimization where precise sublimation pressure control improves cake morphology and residual moisture uniformity

FAQ

What vacuum level is achievable with the PC 610 select when handling chlorinated solvents?

The system maintains ≤1.5 mbar ultimate vacuum across its full operating temperature range (15–35 °C), even with continuous chloroform or dichloromethane vapor load, thanks to its triple-stage diaphragm configuration and cold trap integration.
Can the VACUU·SELECT controller be calibrated in-house?

Yes — the controller supports two-point pressure calibration using NIST-traceable reference gauges; procedure is documented in the included Technical Manual Rev. 4.2.
Is the pump suitable for continuous 24/7 operation in a central lab environment?

Rated for Class II duty per DIN EN 60034-1, the motor and diaphragm assembly are qualified for uninterrupted operation at ≤80% of maximum pumping speed for ≥5,000 hours between maintenance intervals.
Does the system meet explosion-proof requirements for solvent-rich environments?

While not ATEX-certified, the PC 610 select carries intrinsic safety certification (IECEx SIRA 22.0020X) for Zone 2/22 use when installed with approved grounding and static-dissipative tubing per IEC 60079-14.
How is firmware updated?

Via USB flash drive using signed .ufw files distributed through VACUUBRAND’s secure customer portal; updates preserve all stored applications and calibration records.
