| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | CCS |
| Operating Mode | Steady-State |
| Spectral Range | 350–2400 nm |
| Correlated Color Temperature | 5250 K |
| Beam Divergence | <3° |
| Illuminated Area Diameter at 3 m | 20 cm |
| Irradiance Uniformity | ≥98% |
| Typical Irradiance at 3 m | ~1000 W/m² (AM1.5G equivalent) |
| Control Interface | Software-Driven Digital Control System |
| Light Source Technology | Multi-Lamp Plasma-Based Architecture |
| Compliance | Designed to meet ASTM E927-23, IEC 60904-9 Ed. 3, ISO 9276-2 for spectral match and spatial uniformity requirements |
| Brand | Labsphere |
|---|---|
| Model | UV1800F |
| Wavelength Range | 250–450 nm |
| Wavelength Accuracy | ±1 nm |
| Spectral Bandwidth (FWHM) | < 4 nm |
| Wavelength Step | 1 nm |
| Optical Geometry | d/0 (diffuse illumination / 0° viewing) with integrating sphere |
| Sphere Port Diameter | 1.27 cm |
| Sample Illuminated Area | 1.26 cm² |
| Light Source | Pulsed Xenon Lamp |
| UV Dose per Measurement | < 0.2 J/cm² |
| Transmittance Range | 0–100% |
| Absorbance Range | 0–2.2 AU |
| UPF Range | 1–200+ |
| Compliance Standards | AS/NZS 4399:2017, EN 13758-1:2007, AATCC TM183:2020, GB/T 18830:2009, JIS L 1925:2019 |

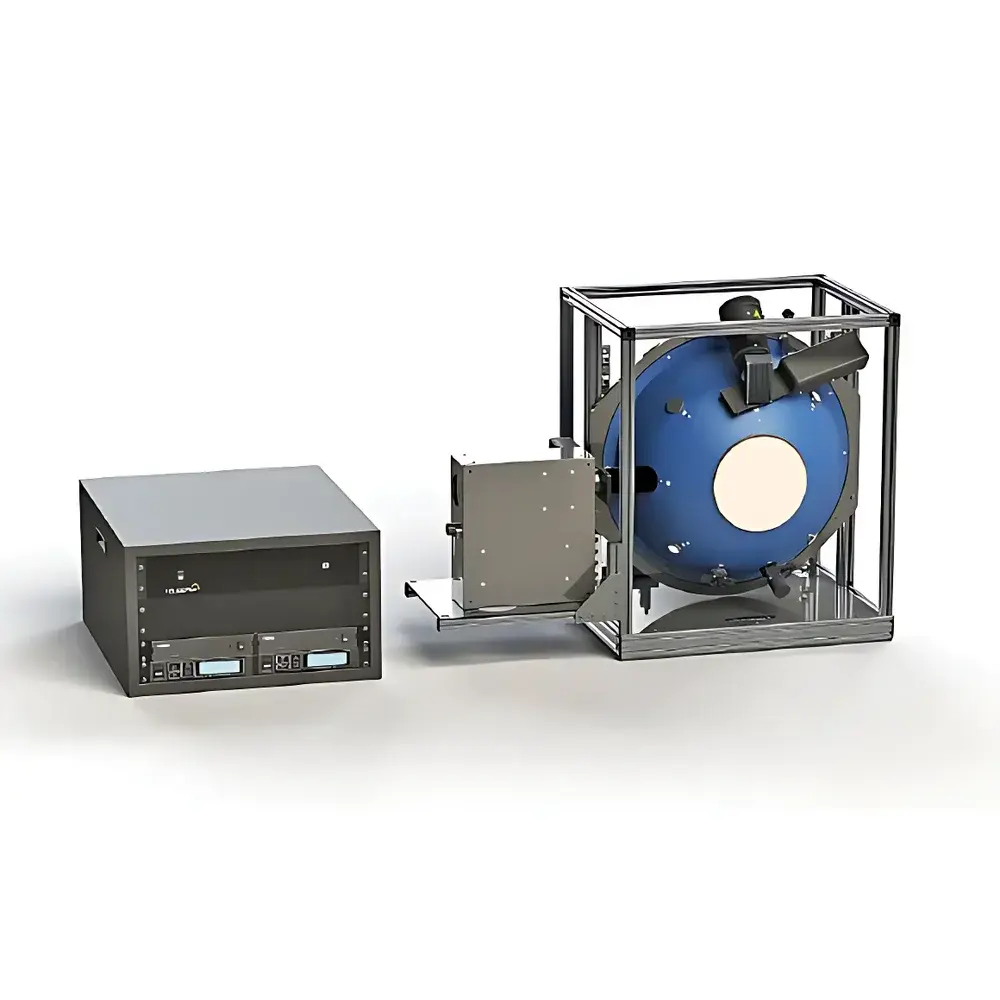

| Brand | Labsphere |
|---|---|
| Model | HELIOS-A |
| Origin | USA |
| Light Source Technology | Electrodeless Plasma Lamp (Primary), Halogen & Xenon Options |
| Spectral Range | 250–2500 nm |
| Color Temperature Range | 3000 K–5300 K (Plasma), 3000 K–6500 K (Xenon), Customizable |
| UV Coverage | Yes (<380 nm) |
| Output Stability | <±0.5% over 1 hour (typical) |
| Dynamic Range | >150 dB (23-bit effective) |
| Calibration Traceability | NIST-traceable spectral irradiance |
| Trigger Mode | Continuous (Steady-State) |
| Compliance | ASTM E927-23, ISO 9022-11, IEC 60904-9 Ed. 3, MIL-STD-810H optical testing sections |

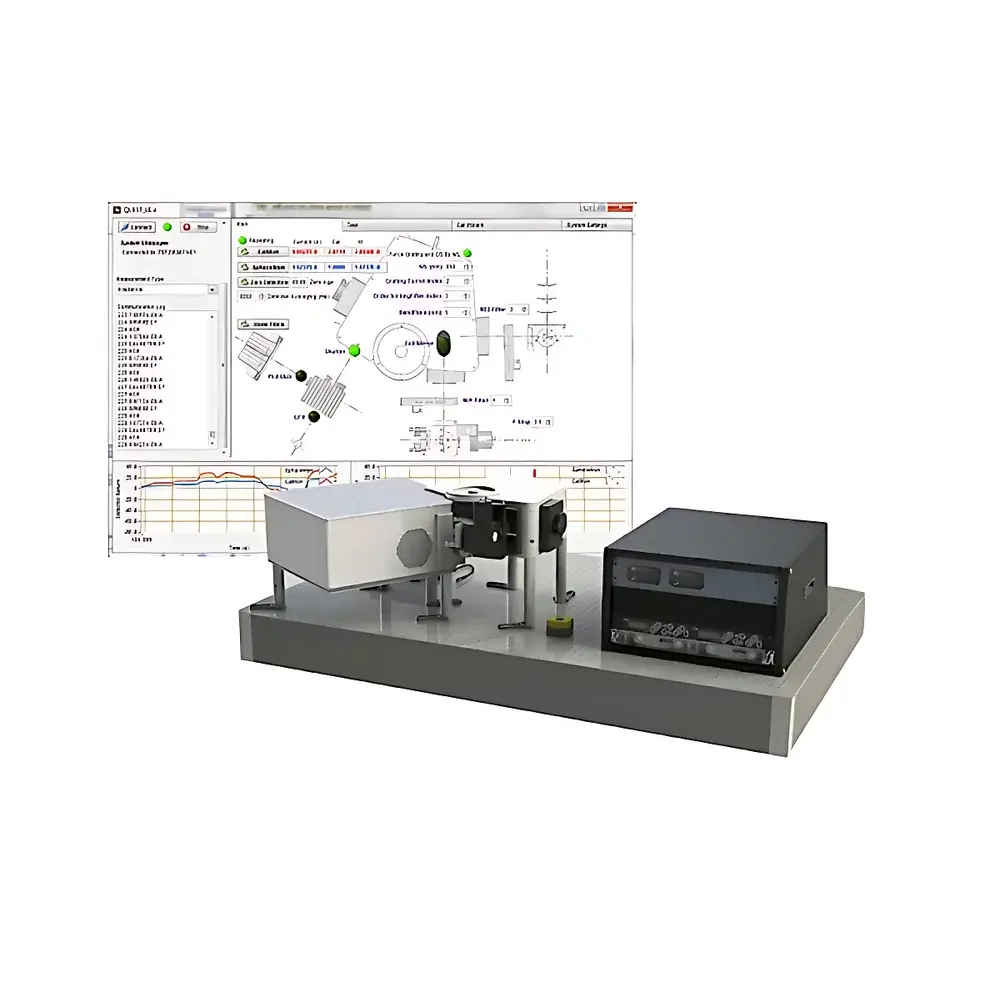

| Brand | Labsphere |
|---|---|
| Model | QES |
| Origin | USA |
| Type | Integrating Sphere-Based Monochromatic Light Source for Quantum Efficiency Testing |
| Measurement Mode | DC |
| Calibration Traceability | NIST-Traceable Spectral Irradiance and Radiance |
| Software Interface | SDK Available for Custom Test Sequence Development |
| Compliance Context | Designed to support ISO 15739, ISO 17850, and ASTM E2724-compliant QE characterization workflows |
| Key Applications | CMOS/CCD Image Sensor QE Mapping, Spectral Responsivity Validation, Pixel-Level Linearity Assessment, Module-Level Uniformity Analysis |
| Brand | Labsphere |
|---|---|
| Model | CSTM-QES |
| Origin | Shanghai, China |
| Excitation Wavelengths | 308, 365, 405, 455, 535, 590, 740 nm |
| Integration Sphere Diameter | 6 inch (152 mm) |
| Internal Coating | Spectraflect® |
| Excitation Spot Size | ≤6 mm diameter at 7 mm working distance |
| Spectrometer | CDS2600 (350–1050 nm, 1 nm spectral resolution) |
| NIST-Traceable Calibration Standard | 2Pi-1-INT-050 |
| Sample Types | Thin films, powders, liquid solutions |
| Measurement Mode | DC (steady-state) |
| Software | Custom-developed PLQE analysis suite supporting direct and AM (Absorption-Modified) methods |
| Compliance | NIST-traceable radiometric calibration, ISO/IEC 17025-aligned measurement traceability framework |
