| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | LPMS-1 |
| Detector Type | Calibrated Photodiode or Thermopile Sensor |
| Spectral Range | Customizable (e.g., 190–1100 nm or 800–1800 nm) |
| Power Range | 100 µW to 100 W (CW), up to 1 kW peak (pulsed, with appropriate attenuation) |
| Input Port Diameter | 25 mm, 50 mm, or 100 mm (configurable) |
| Coating | Spectralon® or custom diffuse reflectance coating (≥99% uniform reflectance) |
| Calibration Traceability | NIST-traceable |
| Compliance | ISO/IEC 17025 accredited calibration available |
| Software Interface | USB 2.0, compatible with Windows-based LPMS Control & Analysis Suite |
| Brand | Labsphere |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | LFPMS |
| Pricing | Available Upon Request |
| Power Range | 100 nW – 100 W |
| Wavelength Range | 350 nm – 1800 nm |
| Calibration Traceability | National Institute of Metrology (NIM), China |
| Integrating Sphere Diameters | 2″ (5 cm), 4″ (10 cm), 6″ (15 cm), 8″ (20 cm) |
| Input Aperture | 0.5″ (12.7 mm) for LFPMS-020 |
| Coating Reflectance | ≥98% (Spectralon®-type diffuse reflectance coating) |

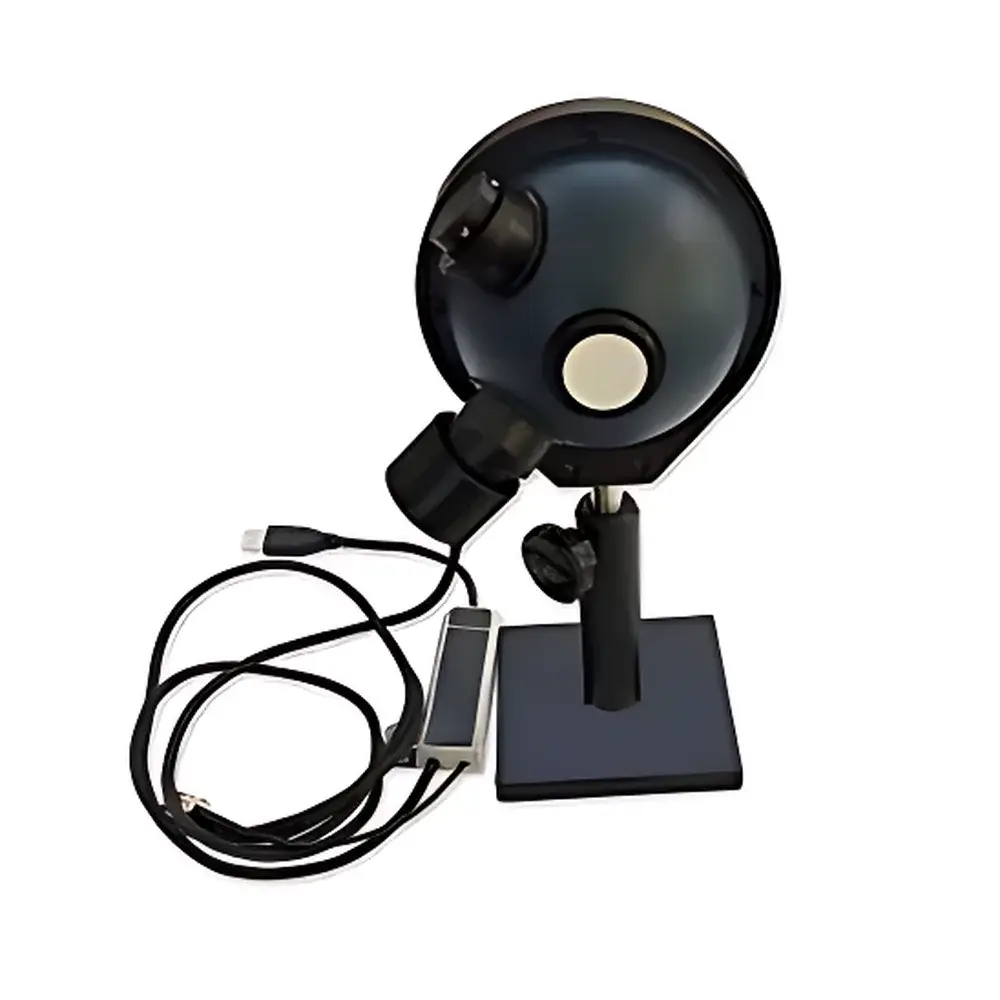

| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | LPMS Laser Power Measurement System |
| Sphere Diameters | 2", 4", 6" |
| Detector Options | Silicon (Si), Indium Gallium Arsenide (InGaAs) |
| Spectral Range | 350–1700 nm |
| Power Range | ~1 nW to ~数百 W (dependent on configuration) |
| Calibration Traceability | NIST-traceable |
| Coating Materials | Spectraflect®, Infragold®, or Spectralon® |
| Input Port Angle | 45° relative to detector axis |
| Metrics Reported | Average Radiant Power (CW), Average Peak Radiant Power (Pulsed), COV (CW), Sampling Rate (Hz), Scan Interval (s), Power Density (W/cm²), Max/Min CW Power, Overrange Alert, Pulse Width, Repetition Rate, Standard Deviation (CW), System Responsivity Thresholds (min/max), Total Measurement Time, Pulse Count, Wavelength Selection (user-defined per calibration data) |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | SpectraBlack |
| Reflectance Range | <5% (250–2500 nm) |
| Surface Type | Micro-porous engineered matte black |
| Compliance | ISO 13694, ASTM E275, NIST-traceable calibration available |
| Material Composition | Carbon-loaded polymer composite with controlled pore structure |
| Operating Temperature | –40°C to +85°C |
| Durability | Abrasion-resistant, non-outgassing, low particulate shedding |

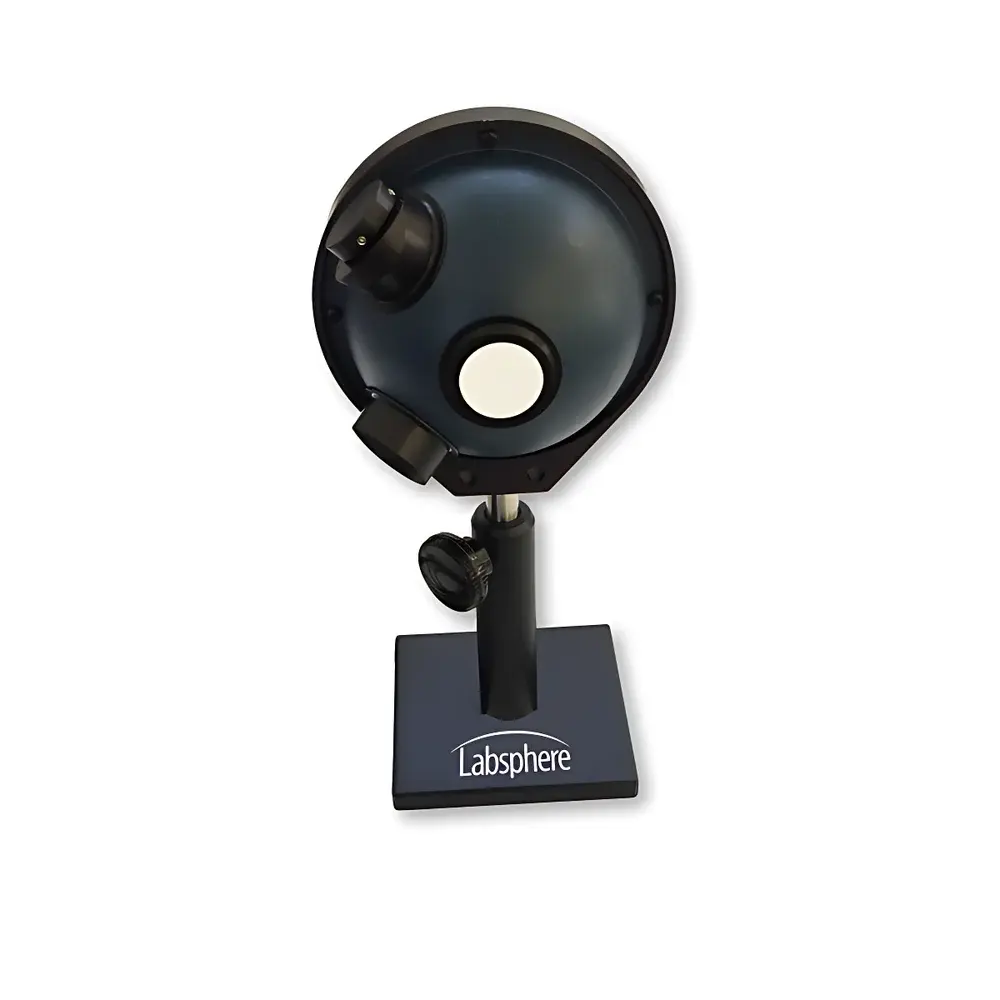

| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | CSTM-LPMS |
| Price Range | USD $1,200 – $65,000 |

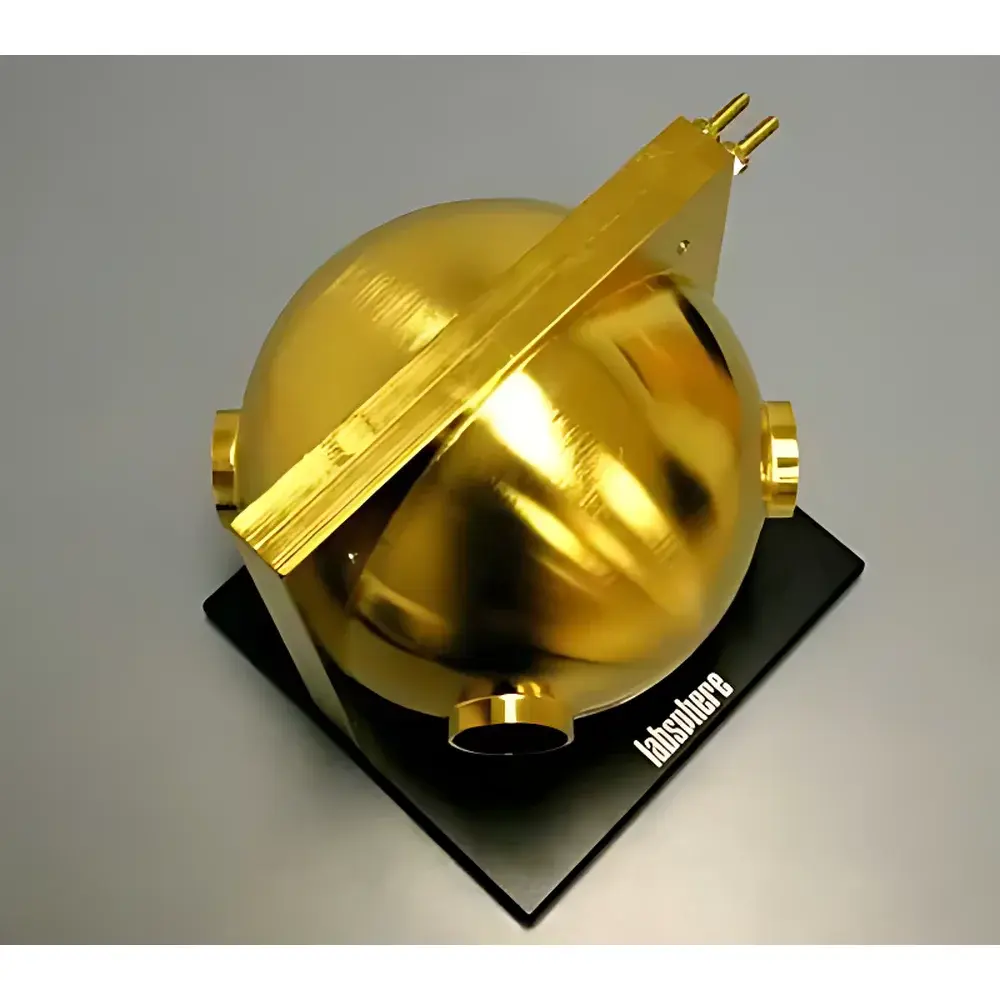

| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | LPMS |
| Coating Material | Infragold® |
| Cooling | Integrated Water-Cooling System |
| Spectral Range | 250 nm – 12 µm |
| Beam Acceptance Angle | Up to ±40° half-angle |
| Detector Compatibility | Dual-detector or spectrometer mounting ports |
| Thermal Management | Active water-cooling with user-selectable chiller interface |
| Target Plate | Integrated laser diffusing target plate |
| Compliance | Designed for ASTM E275, ISO/IEC 17025-aligned optical power measurement workflows |
