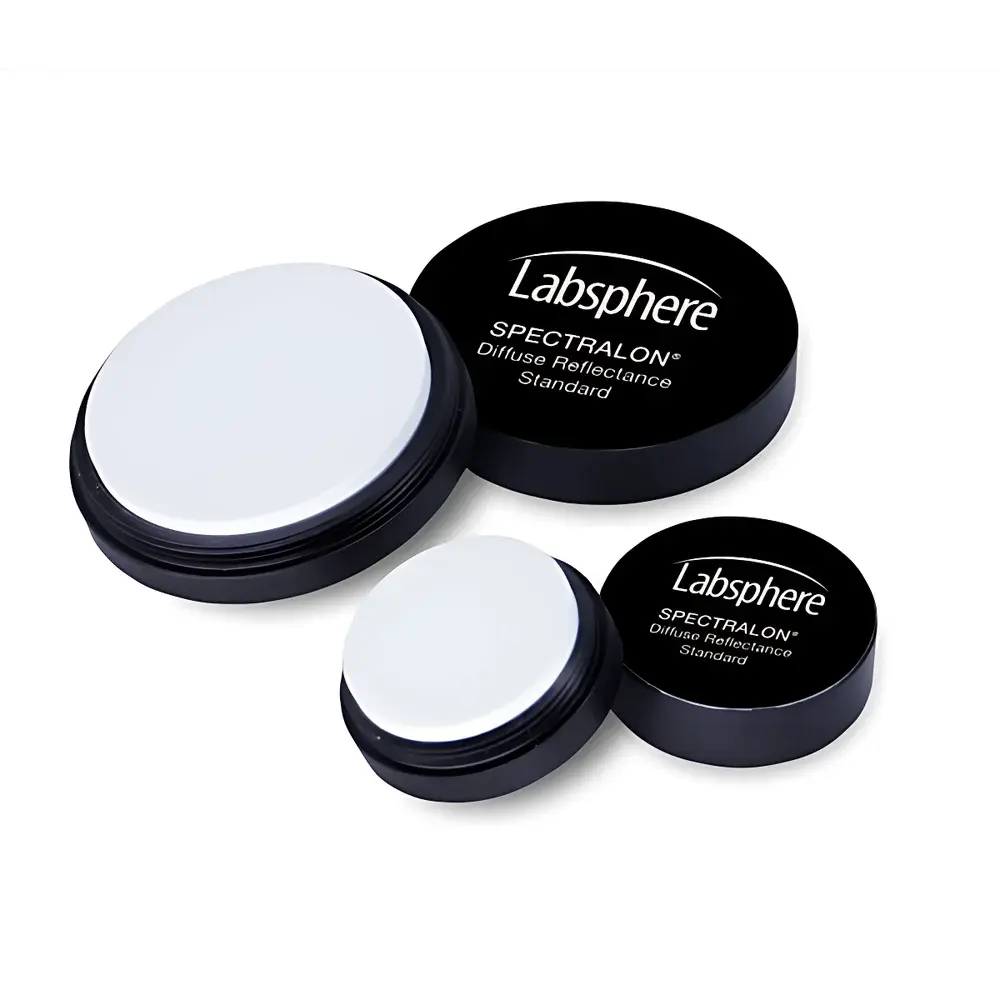

| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | Spectralon® |
| Material | PTFE-based sintered polymer |
| Spectral Range | 250–2500 nm |
| Reflectance Options | 2%, 5%, 10%, 20%, 25%, 40%, 50%, 60%, 75%, 80%, 99% |
| Spectral Flatness | ±1% (400–1500 nm), ±4% (250–2500 nm) |
| Lambertian Character | >99.9% |
| Calibration Traceability | NIST-traceable |
| Physical Form | Circular disk (1.25″ or 2.00″ diameter) |
| Packaging | Polyoxymethylene (POM) protective case with lid |
| Compliance | ASTM E259, ISO 13468-2, USP <857> |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | Spectralon |
| Reflectance | >99% (400–1500 nm), >95% (250–2500 nm) |
| Lambertian Character | Excellent |
| Chemical Stability | Inert |
| Thermal Stability | High |
| UV Resistance | Certified for Space-Grade Exposure |
| Compliance | NASA/JPL, GSFC, TRW, CSEM Qualified |
| Form Factor | Custom-Machinable Solid PTFE-Based Material |
| Brand | Labsphere |
|---|---|
| Model | SPECTRAFLECT |
| Origin | USA |
| Base Material | Barium Sulfate (BaSO₄) with Proprietary Binder System |
| Spectral Range | 300–2400 nm |
| Average Diffuse Reflectance (400–700 nm) | 96–98% |
| Lambertian Character | >99.5% (cosine angular response) |
| Thermal Stability | Up to 100 °C |
| Laser Damage Threshold | 1.7 J/cm² (at 1064 nm, 10 ns pulse) |
| Application Method | Air-spray or HVLP spray |
| Substrate Compatibility | Aluminum, stainless steel, anodized metals, ceramics, and machined polymers |
| Compliance | RoHS-compliant, non-toxic, solvent-based formulation (proprietary low-VOC carrier) |

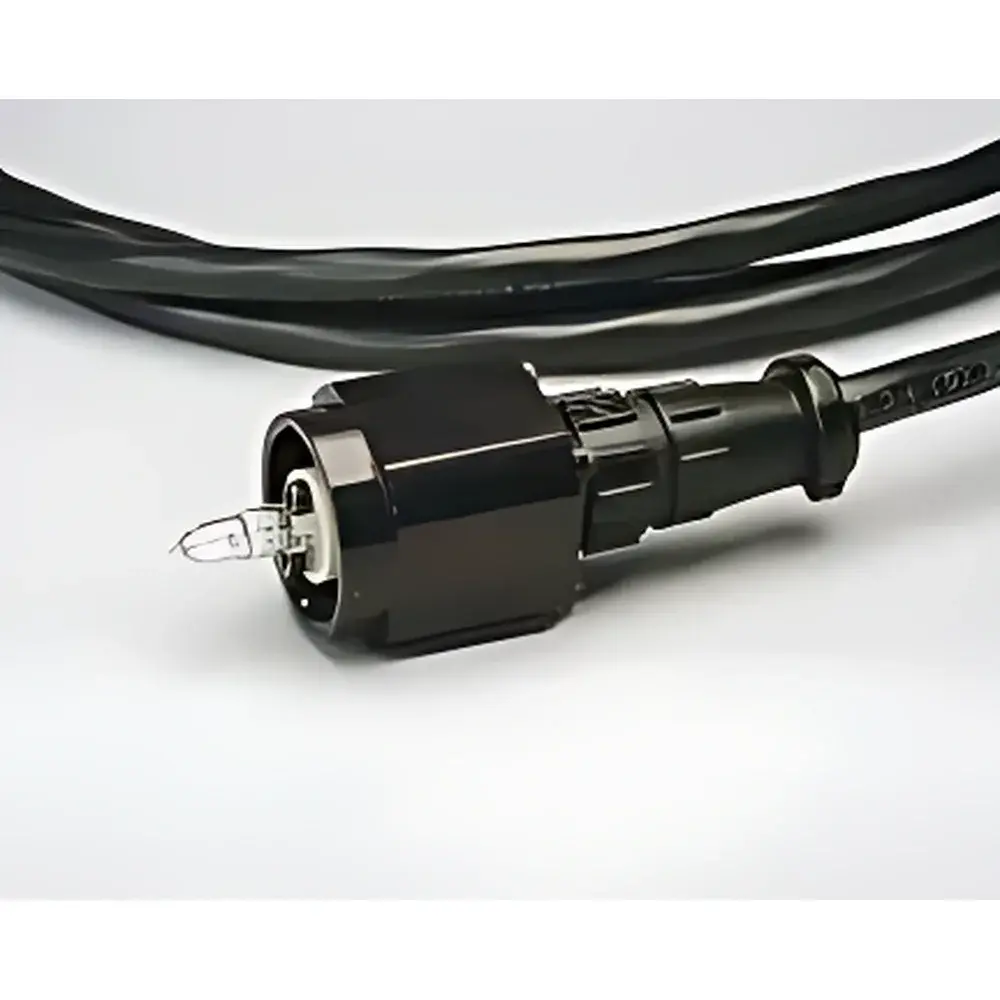

| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | AUX |
| Component Category | Light Source |
| Compatible Power Supply | Adjustable Labsphere Power Supply |
| Software Compatibility | LightMtrx® |
| Nominal Current Ratings | AUX-35 (3.07 A), AUX-50 (4.17 A), AUX-100 (8.33 A) |
| Mounting | 1-inch flange interface |
| Replacement Lamps | OC-03150-000 (AUX-35), OC-03161-000 (AUX-100) |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Model | LPM |
| Coating | Infragold (700 nm – 20 µm) |
| Max Incident Power Density | 2 kW/cm² @ 10.6 µm (CW) |
| Cooling | Water-cooled (NPT 0.25", max 15 psi operating, 35 psi safety relief) |
| Detector Ports | Two standard SMA or flanged ports |
| Spectral Range | UV–Vis–NIR–MIR (compatible with Labsphere calibrated detectors) |
| Target Plate | Integrated energy-diffusing plate |
| Compliance | ASTM E275, ISO/IEC 17025-aligned calibration traceability, GLP-ready documentation support |
