| Brand | Fangyuan |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |
| Model | FY-8122 |
| Measurement Range | 100 kg / 200 kg (selectable) |
| Resolution | 1/100,000 |
| Indication Error | ±1% |
| Repeatability | ≤1% |
| Test Speed | (12.5 ± 2.5) mm/min (adjustable) |
| Parallelism of Upper/Lower Plates | <0.05 mm |
| Maximum Plate Separation | >70 mm |
| Standard Fixture Included | Ring Crush Clamp (adhesive strength fixture supplied as standard |

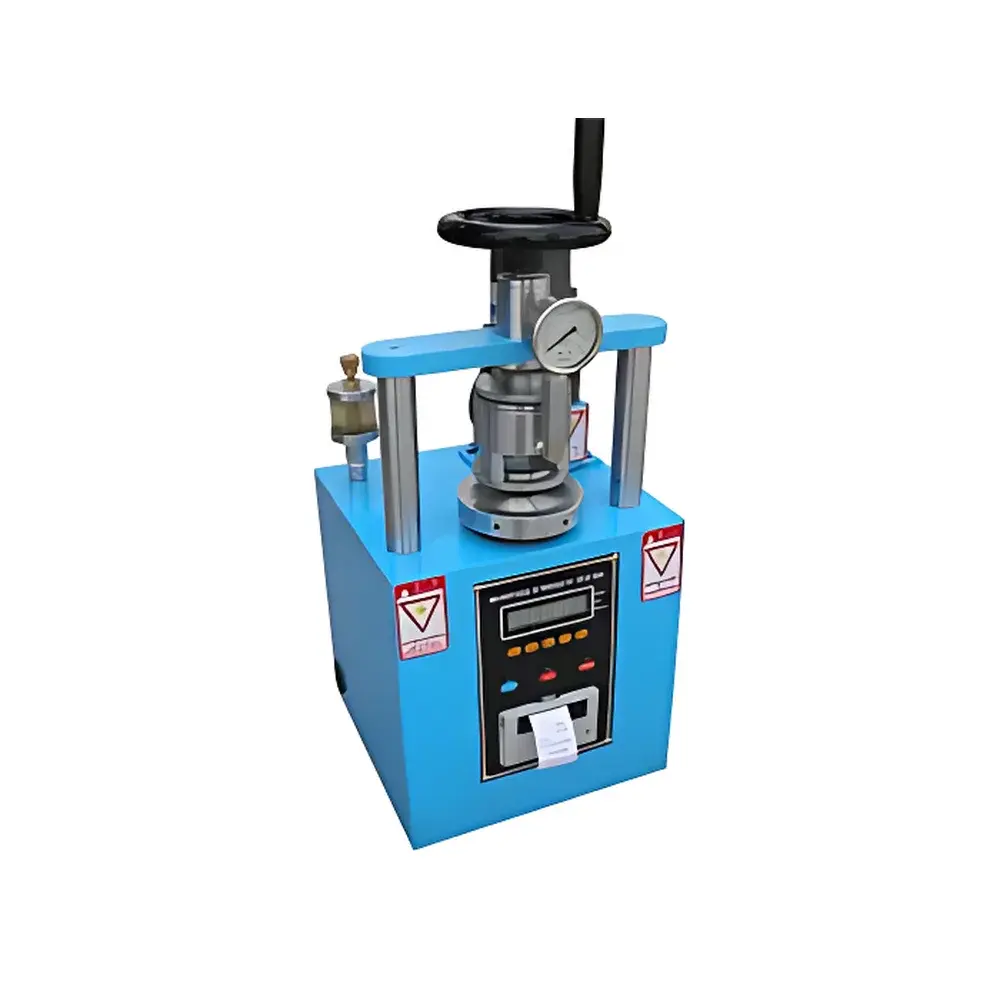

| Brand | Fangyuan |
|---|---|
| Model | FY-630A / FY-630B |
| Measurement Range | 0–100 kgf/cm² (0.01 kgf/cm² resolution) |
| Clamp Ring Diameter | 31.50 mm |
| Hydraulic Fluid | 85% glycerin + 15% distilled water |
| Pressure Rise Rate | 95 ± 10 mL/min |
| Drive Motor | 1/4 HP anti-vibration motor |
| Power Supply | 1-phase, AC 220 V, 2 A |
| Compliance | ISO 2759, GB/T 6545, JIS P8112, L1018, ASTM D2210, TAPPI T403 |
| Brand | Fangyuan |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | FY-5 |
| Price | Upon Request |
| Standard Roller Mass | 2000 g ± 50 g |
| Test Load (including loading plate) | 1000 g ± 10 g |
| Test Plate Dimensions | 60 mm (L) × 40 mm (B) × 1.5 mm (D) |
| Timing Range | 0–100 h |
| Test Stations | 6 |
| Overall Dimensions | 600 mm (L) × 240 mm (B) × 400 mm (H) |
| Power Supply | AC 220 V, 50 Hz |
| Net Weight | 20 kg |
| Compliant Standards | GB/T 4851, JIS Z 0237, ASTM D3654 |
| Brand | Fangyuan |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | FY-6032 |
| Pricing | Upon Request |
| Adjustable Inclination Angle | 0–60° |
| Table Width | 120 mm |
| Test Zone Width | 80 mm |
| Standard Steel Balls | 1/32″ to 1″ (Ball Numbers Corresponding to 32× Inch Diameter) |
| Overall Dimensions | 320(L) × 140(W) × 180(H) mm |
| Weight | 6 kg |
