| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | ProMetric Y |
| Type | Scientific Imaging Photometer |
| Application Focus | Display Luminance & Uniformity Metrology, Mura Analysis, AOI for FPDs and Backlit Components |
| Compliance Context | Designed for ISO/CIE-compliant photometric measurement, supports GLP/GMP-aligned data traceability via TrueTest software audit trails |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | ProMetric I (I2 to I29 variants) |
| Sensor Type | Scientific-grade CCD |
| Resolution Range | 2.0 MP (I2) to 29.0 MP (I29) |
| Measurement Units | cd/m², CIE x,y |
| Compliance | ISO/CIE-compliant photopic and colorimetric response |
| Interface | GigE Vision, USB 3.0, GenICam-compatible |
| Software Platform | TrueTest™ v7+ with automated pass/fail reporting, statistical process control (SPC), and audit trail (21 CFR Part 11 ready) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |

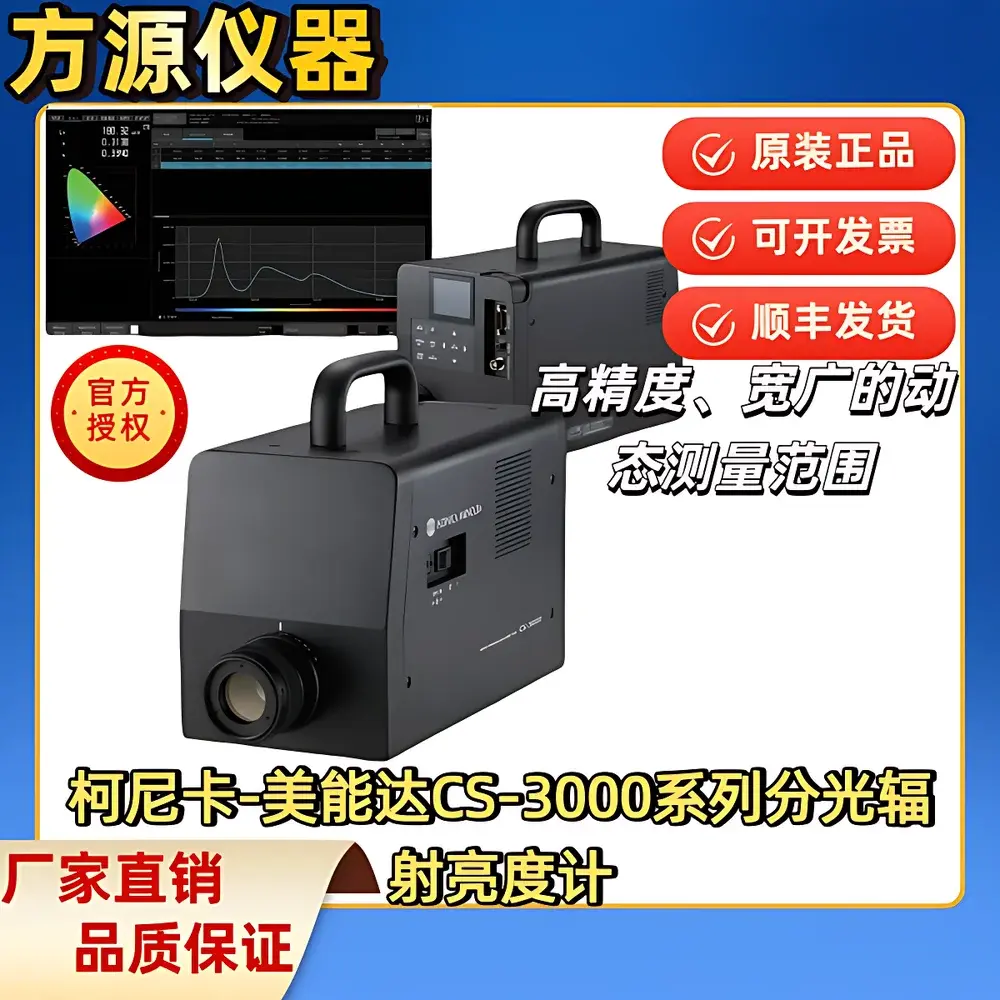

| Model | CS-3000 Series |
| Measurement Principle | Diffraction-grating-based spectroradiometry |
| Luminance Range | 0.0005–3,000 cd/m² (typical, dependent on aperture and lens configuration) |
| Chromaticity Accuracy | ±0.002 in CIE x,y (against NIST-traceable standards) |
| Spectral Resolution | ≤5 nm FWHM |
| Integration Time | 10 ms–10 s (programmable) |
| Interface | USB 2.0, RS-232C, Ethernet (optional) |
| Compliance | ISO/CIE compliant spectral measurement architecture |
| Software Support | Konica Minolta SpectraMagic™ NX v3.x |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |

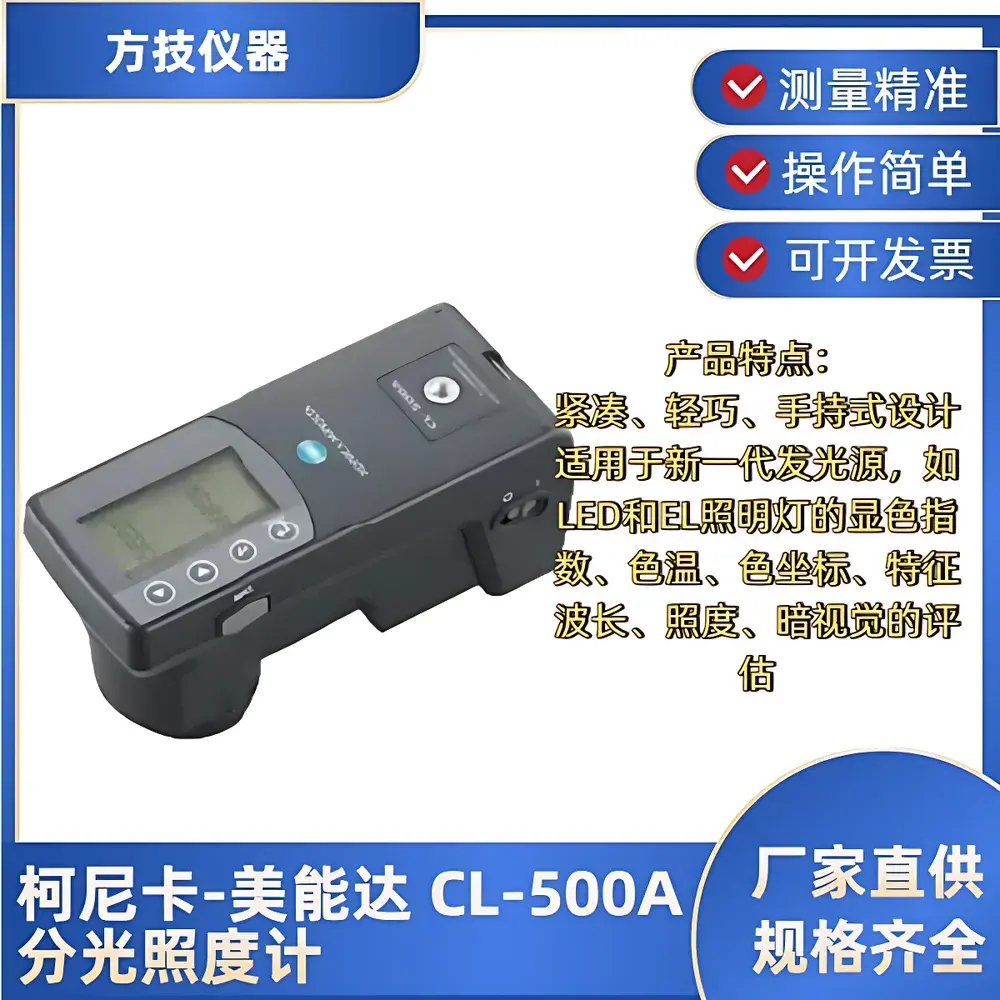

| Model | CL-500A Series |
| Measurement Range | 0.1–99,990 lx (typical) |
| Spectral Resolution | 1 nm |
| Wavelength Range | 380–780 nm |
| Accuracy | ±2% (illuminance), ±0.002 (chromaticity) |
| Interface | USB 2.0 |
| Software Included | CL-S10w Data Management Software & Excel® Add-in |
| Multi-unit Control | Up to 10 units via CL-S10w |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |

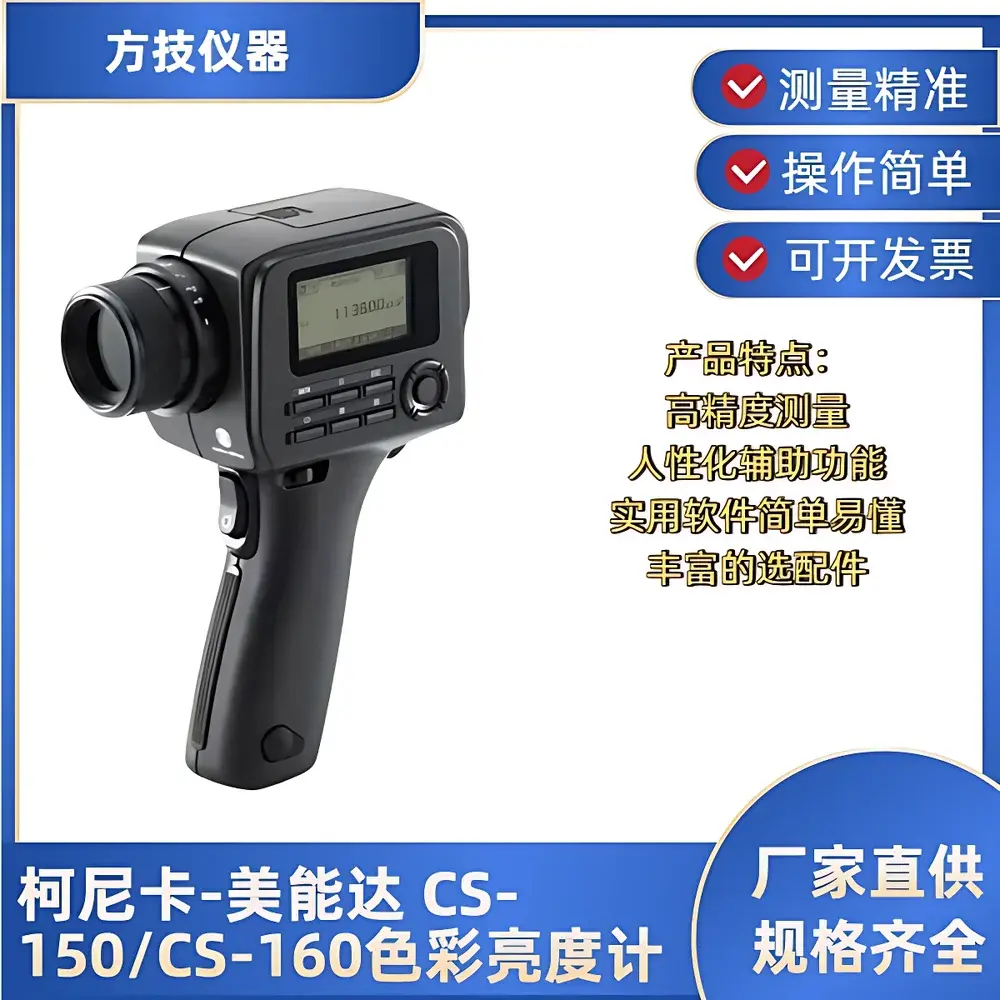

| Model Series | CS-150 / CS-160 |
| Measurement Angles | CS-150 — 1° |
| Luminance Range | CS-150 — 0.01 to 999,900 cd/m² |
| Output | CIE 1931 xy Chromaticity Coordinates, Luminance (Lv), Correlated Color Temperature (CCT), Dominant Wavelength, Excitation Purity |
| Compliance | JIS Z 8722, CIE No. 15, ISO/CIE 11664-3, ASTM E308 |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Type | Imported Instrument |
| Model | CL-200A Series |
| Power Supply | 4 × AA batteries (alkaline or Ni-MH) |
| Display | Backlit LCD with real-time color and illuminance values |
| Measurement Modes | Illuminance (lx), Chromaticity (CIE 1931 xy, u'v'), Correlated Color Temperature (CCT, K), Duv, Color Rendering Index (CRI Ra, R1–R14), LED-specific metrics (Δu'v', TM-30 parameters optional via software) |
| Probe Connectivity | Detachable sensor head with proprietary 1.5 m cable (adapter required for integration into integrating spheres or dark chambers) |
| Data Interface | USB 2.0 (virtual COM port) |
| Software | CL-S10w Data Management Software (included) with Excel®-direct export, JIS Z 9112-compliant CCT calculation, LED binning support, multi-point synchronization (up to 30 probes), user calibration (single-point or RGB-based), audit trail logging, and GLP-compliant report generation |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-23d |
| Illumination/Observation Geometry | di:8°/de:8° (Diffuse Illumination/8° Viewing) |
| Measurement Modes | SCI (Specular Component Included) / SCE (Specular Component Excluded) |
| Compliance | ISO 7724-1, CIE No.15:2004, DIN 5033-7, JIS Z 8722 Condition c, ASTM E1164 (SCI) |
| Integrating Sphere Diameter | Ø54 mm |
| Detector | Dual-row 32-element silicon photodiode array |
| Dispersion Element | Diffraction grating |
| Spectral Range | 400–700 nm |
| Wavelength Interval | 10 nm |
| FWHM | ~10 nm |
| Reflectance Range | 0–175% |
| Display Resolution | 0.01 |
| Light Source | Pulsed xenon lamp ×1 (with UV-cut filter) |
| Illumination Aperture | Ø12 mm |
| Measurement Aperture | Ø8 mm |
| Repeatability | ΔE*ab ≤ 0.08 (SD, 30 measurements on white calibration tile at 5 s intervals post-calibration) |
| Inter-instrument Agreement | ΔE*ab ≤ 0.4 (mean of 12 BCRA Series II tiles, MAV/SCI, vs. Konica Minolta reference standard under standard conditions) |
| UV Adjustment | Fixed 0% (400 nm UV-cut filter) |
| Standard Observers | 2° and 10° |
| Illuminants | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65 (dual-illuminant comparison supported) |
| Color Spaces | L*a*b*, L*C*h*, CMC (1:1), CMC (2:1), Yxy, XYZ, Munsell (C), MI, WI (ASTM E313-73), YI (ASTM D1925), Opacity, User-defined parameters |
| Color Difference Formulas | ΔE*ab (CIE 1976), ΔE94 (CIE 1994), ΔE00 (CIE 2000), CMC (l:c) |
| Measurement Time | ~0.7 s (SCI or SCE mode) |
| Minimum Measurement Interval | ~1.5 s |
| Memory Capacity | 1,000 target + 1,700 sample data sets |
| Battery Life | ~3,000 measurements (10 s interval, 23°C, no Bluetooth) |
| Viewfinder | Integrated white LED |
| Display | 2.7″ TFT color LCD |
| Languages | English, Japanese, German, French, Italian, Spanish, Simplified Chinese, Portuguese, Russian, Turkish, Polish |
| Interfaces | USB 2.0, Bluetooth SPP (optional module CM-A219) |
| Power | Removable Li-ion battery (CM-A235), USB bus power, AC adapter (AC-A305J/L/M) |
| Charging Time | ~6 h |
| Operating Environment | 5–40°C, ≤80% RH (non-condensing at ≤35°C) |
| Storage Environment | 0–45°C, ≤80% RH (non-condensing at ≤35°C) |
| Dimensions | 81(W) × 93(H) × 229(D) mm |
| Weight | ~620 g |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | CL-200 |
| Pricing | Upon Request |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | LS-150 / LS-160 Series Luminance Meter |
| Luminance Range (LS-150, 1° FOV) | 0.001–999,900 cd/m² |
| Luminance Range (LS-160, 1/3° FOV) | 0.01–9,999,000 cd/m² |
| Minimum Measurable Luminance | 0.001 cd/m² |
| Field of View Options | 1° (LS-150), 1/3° (LS-160) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |

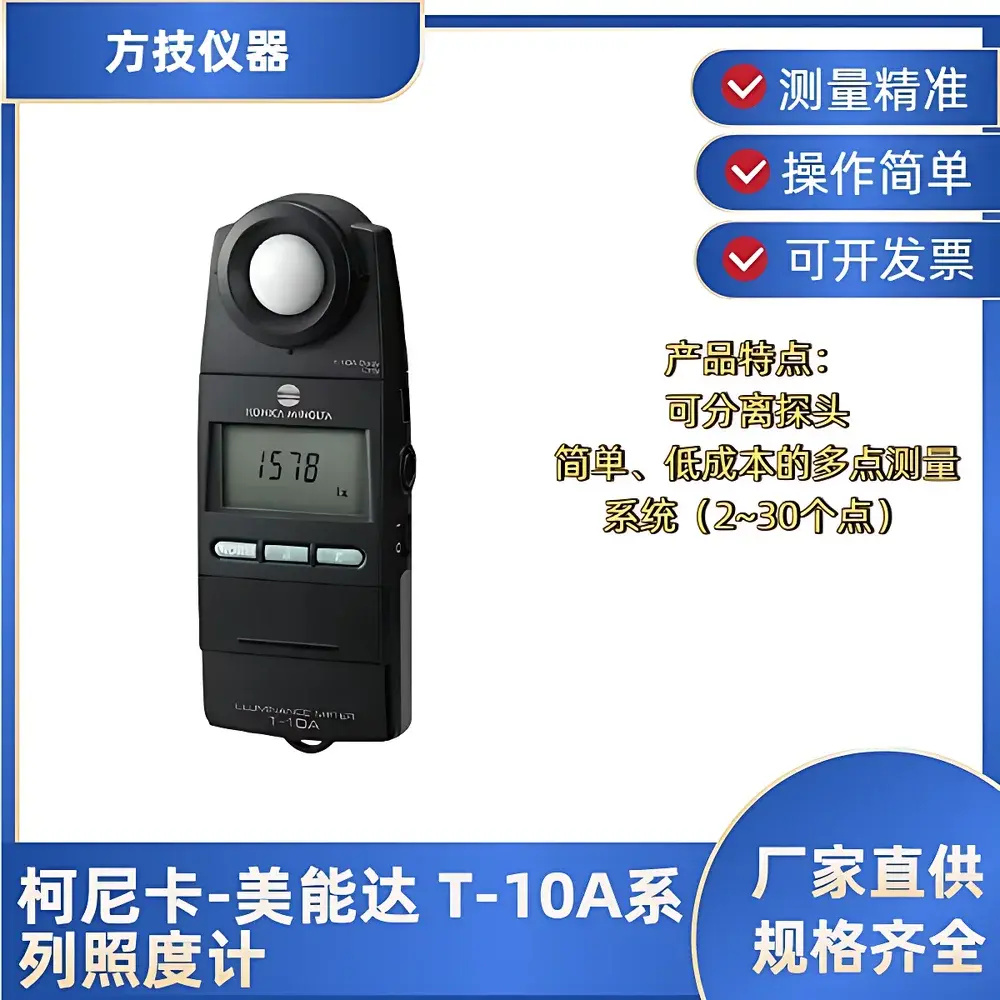

| Model | Konica Minolta T-10A Series Handheld High-Precision Illuminance Meter |
| Price | USD 980 (FOB Yokohama) |
| Compliance | JIS C 1609-1:2006 Class AA |
| Measurement Range | 0.1–299,900 lx (typical, dependent on probe configuration) |
| Spectral Response | f1' ≤ 3.0% (JIS AA-compliant) |
| Cosine Correction Error | ≤ ±2% (up to 75° incidence) |
| Sampling Rate | 10 Hz (standard), configurable up to 100 Hz for PWM analysis |
| Probe Connectivity | Detachable via shielded LAN cable (IEC 61000-4-3 compliant interface) |
| Multi-point Capability | 2–30 independent measurement points (synchronized acquisition) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |

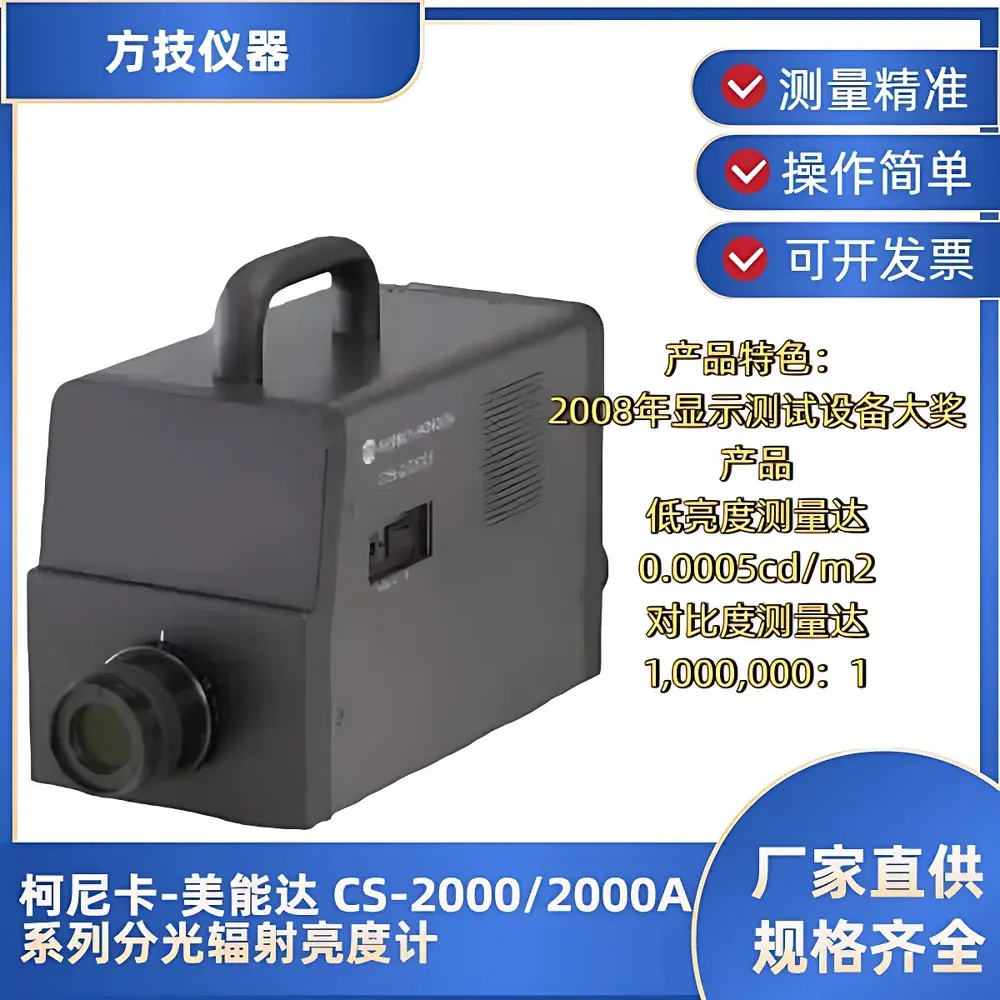

| Model | CS-2000 / CS-2000A Spectroradiometer |
| Wavelength Range | 380–780 nm |
| Wavelength Resolution | 0.9 nm/pixel |
| Spectral Bandwidth (FWHM) | <5 nm |
| Wavelength Accuracy | ±0.3 nm (at Hg-Cd lamp calibration lines: 435.8, 546.1, 643.8 nm) |
| Measurement Angles | 1°, 0.2°, 0.1° (interchangeable optical attachments) |
| Luminance Range (Illuminant A) | CS-2000: 0.003–5,000 cd/m² (1°), 0.075–125,000 cd/m² (0.2°), 0.3–500,000 cd/m² (0.1°) |
| CS-2000A | 0.0005–5,000 cd/m² (1°), 0.0125–125,000 cd/m² (0.2°), 0.05–500,000 cd/m² (0.1°) |
| Minimum Measurable Spot Size | ∅5 mm (standard), ∅1 mm (with close-up lens |
| Minimum Measurement Distance | 350 mm (standard), 55 mm (with close-up lens) |
| Radiant Exitance Detection Limit | 1.0×10⁻⁹ W/(sr·m²·nm) |
| Luminance Accuracy (Illuminant A) | ±2% |
| Chromaticity Accuracy (Illuminant A) | x,y ±0.001 (≥0.05 cd/m² for CS-2000A |
| Chromaticity Repeatability (2σ, Illuminant A) | x,y ≤0.0006 (e.g., 0.1–0.2 cd/m² and 2.5–5 cd/m² ranges) |
| Polarization Error | ≤2% (1°, 400–780 nm), ≤3% (0.1°/0.2°, 400–780 nm) |
| Integration Time | 5 ms–120 s (Normal mode) |
| Interface | USB 1.1, RS-232C |
| Operating Environment | 5–35°C, ≤80% RH (non-condensing) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Power Consumption | ~20 W |
| Dimensions (main unit) | 158 × 262 × 392 mm (W×H×D) |
| Lens | ∅70 × 95 mm |
| Weight | 6.2 kg |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

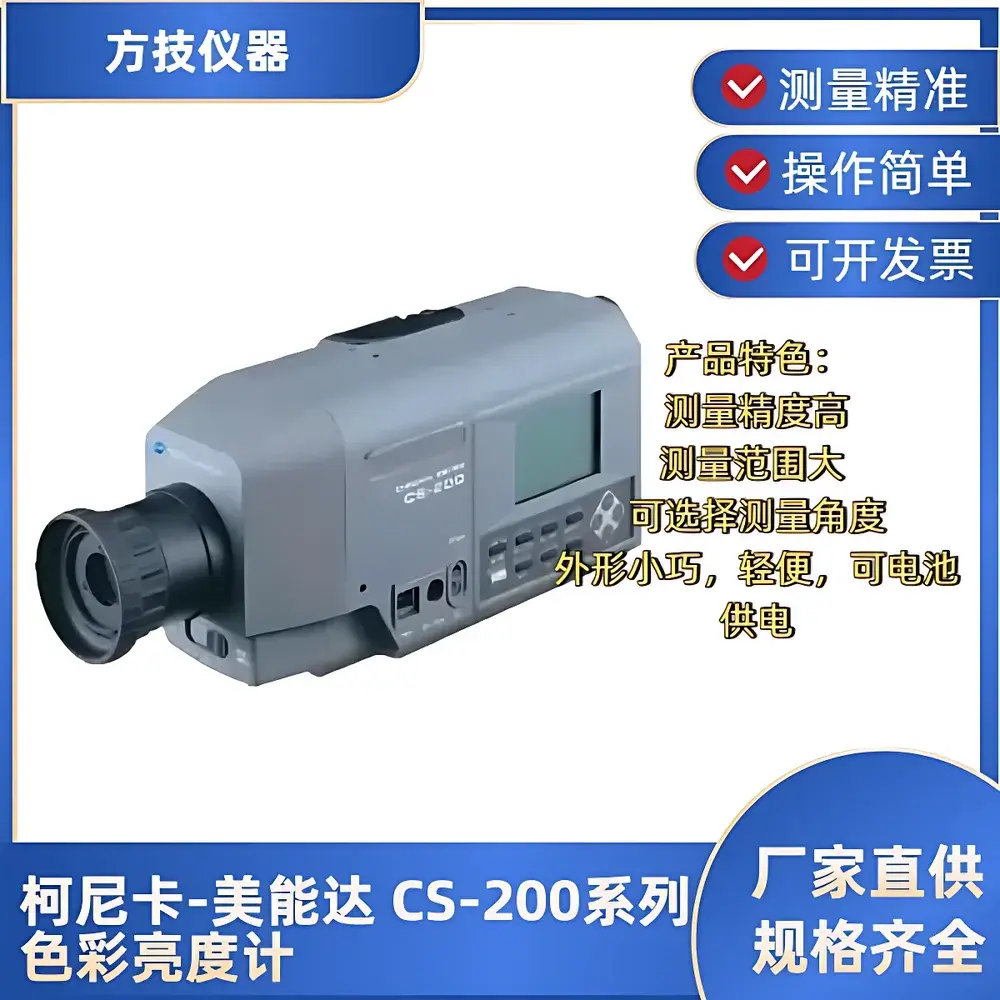

| Model | CS-200 Series |
| Price | USD 16,800 (FOB Yokohama) |
| Measurement Principle | Spectral Response Curve Fitting with 40-Channel Photodiode Array |
| Luminance Range | 0.01 to 20,000,000 cd/m² |
| Field of View Options | 1°, 0.2°, 0.1° |
| CIE Observer Modes | 2° and 10° Standard Observer |
| Compliance | CIE 1931 Color Matching Functions, JIS Z 8722, ISO/CIE 11664-3, ASTM E308-22 |
| Power Supply | Rechargeable Li-ion Battery or AC Adapter |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |

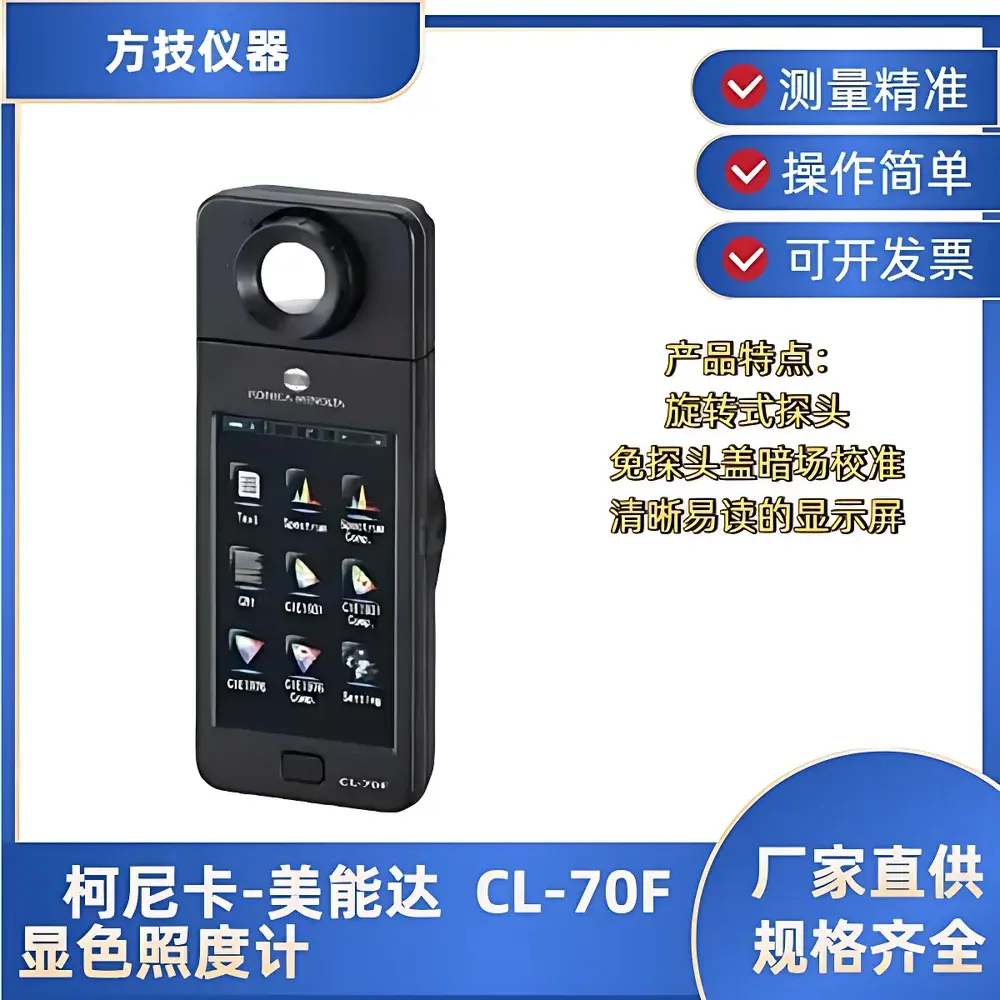

| Model | CL-70F |
| Illuminance Class | JIS C1609-1:2006 Class A / DIN 5032-7 Class C |
| Spectral Range | 380–780 nm |
| Wavelength Resolution | 1 nm |
| Continuous Illuminance Range | 1–200,000 lx |
| CCT Range | 1,563–100,000 K (≥5 lx for chromaticity) |
| Flash Energy Range | 20–20,500 lx·s |
| Ev Accuracy | ±(1% + 1 digit) from 30–200,000 lx |
| Chromaticity Accuracy (xy) | ±0.003 at 800 lx |
| f1' Spectral Mismatch | ≤9% |
| f2 Cosine Error | ≤6% |
| Operating Temp. | −10 to 40 °C |
| Weight | 230 g |
| Interface | USB 2.0 Mini-B |
| Data Storage | 999 records |
