| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CR-10 Plus |
| Instrument Type | Portable Spectrophotometric Colorimeter |
| Illumination/Viewing Geometry | 8°/d (including specular component) |
| Observer Angle | 10° |
| Illuminant | D65 |
| Measurement Aperture | Ø8 mm (MAV), optional Ø5 mm |
| Repeatability | σΔE*ab ≤ 0.1 (measured 30× on white calibration tile at 10 s intervals) |
| Measurement Time | ~1 s |
| Data Storage Capacity | Up to 1,000 sets (standard + sample data) |
| Display | ΔL*a*b*, ΔL*C*H*, ΔE*ab (CIE 1976) |
| Compliance | DIN 5033-7, JIS Z 8722 Condition d, ISO 7724-1, CIE No. 15, ASTM E1164 |
| Interface | USB 2.0 |
| Power | 4× AA alkaline/Ni-MH batteries, USB bus power, or optional AC adapter |
| Dimensions | 66 × 158 × 85 mm |
| Weight | 420 g (body only) |
| Operating Environment | 0–40°C, ≤85% RH (non-condensing at 35°C) |
| Storage Environment | −20–40°C, ≤85% RH |
| Supported Languages | English, Japanese, Simplified Chinese |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Instrument Type | Portable |
| Product Category | Spectrophotometric Colorimeter |

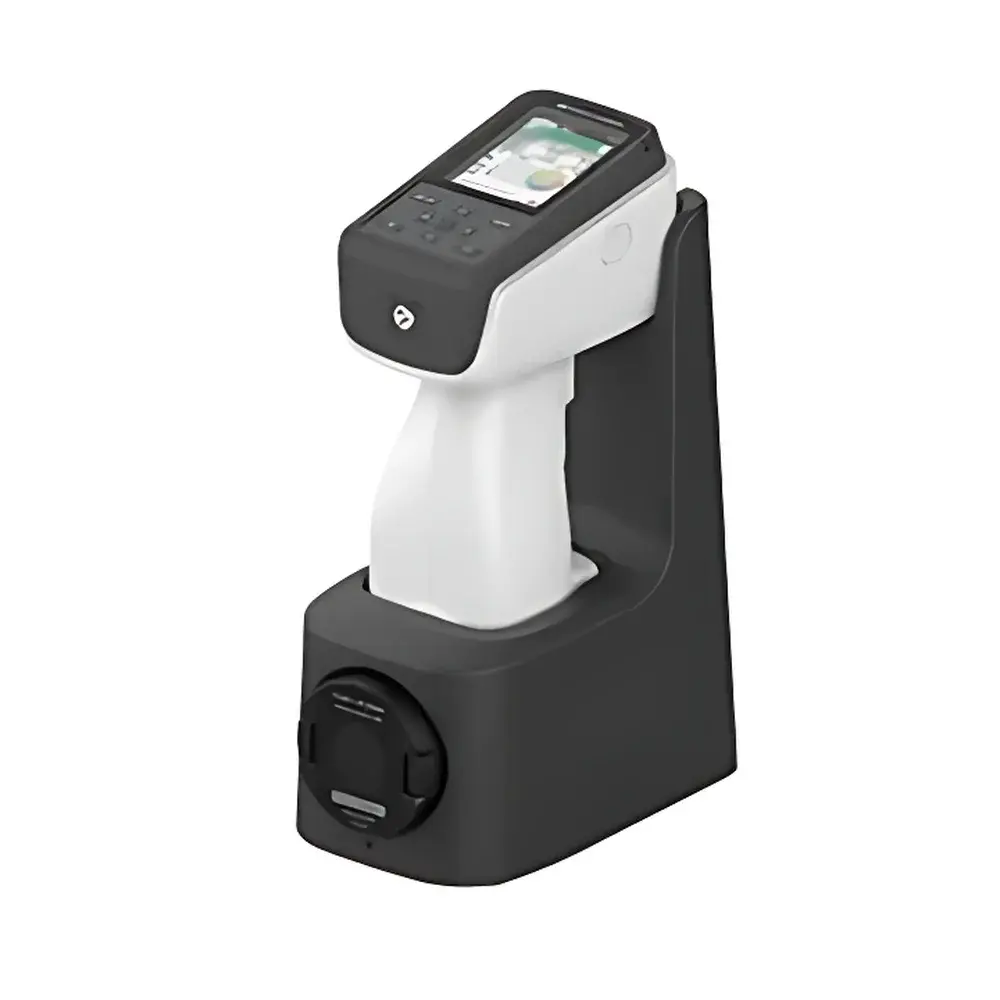

| Model | CM-17d / CM-16d |
| Compliance | ISO 13655:2017 (M0/M1/M2/M3), CIE No. 15:2018, ASTM E308, JIS Z 8722 |
| Illuminant Options | D65, A, C, F2, F7, F11, Custom |
| Observer Angle | 10° |
| Measurement Aperture | Ø8 mm (standard), Ø3 mm (optional) |
| Spectral Range | 400–700 nm |
| Spectral Resolution | 10 nm |
| Repeatability | ΔE*ab < 0.04 (white tile, 20 measurements) |
| Inter-instrument Agreement | ΔE*ab < 0.15 (20 instruments, BCRA Series II tiles) |
| Origin | Shenzhen, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | CS-200 |
| Product Type | Spectrophotometric Colorimeter |
| Instrument Type | Portable |
| Optical Geometry | d/8° integrating sphere (with specular component included, SCI) |
| Light Source | Tungsten Halogen Lamp |
| Spectral Range | 400–700 nm (CIE 10° Standard Observer, CIE D65 Illuminant) |
| Repeatability | ΔE*ab ≤ 0.08 (SD, n=80 on certified white calibration tile) |
| Aperture | Ø8 mm |
| Display Resolution | 0.01 ΔE*ab |
| Standard Sample Storage | 100 reference sets (100 test samples per reference) |
| Measurement Time | ~0.5 s |
| Power Supply | 4×AA 1.5 V alkaline/Ni-MH batteries or DC 5 V adapter |
| Interface | USB 2.0, Bluetooth 4.2 |
| Weight | 550 g |
| Dimensions | 77 × 86 × 210 mm |
| Compliance | Certified per JJG 595–2019 (Chinese National Metrological Verification Regulation for Colorimeters) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Product Type | Spectrophotometric Colorimeter |
| Instrument Type | Portable |
| Measurement Principle | Di: 8°, De: 8° (Diffuse Illumination / 8° Viewing) with SCI/SCE modes |
| Standard Compliance | ISO 7724-1, CIE No. 15:2004, DIN 5033-7, JIS Z 8722 Condition c, ASTM E1164 (SCI), JIS Z 8741, ISO 2813, ASTM D523-08, ASTM D2457-13 |

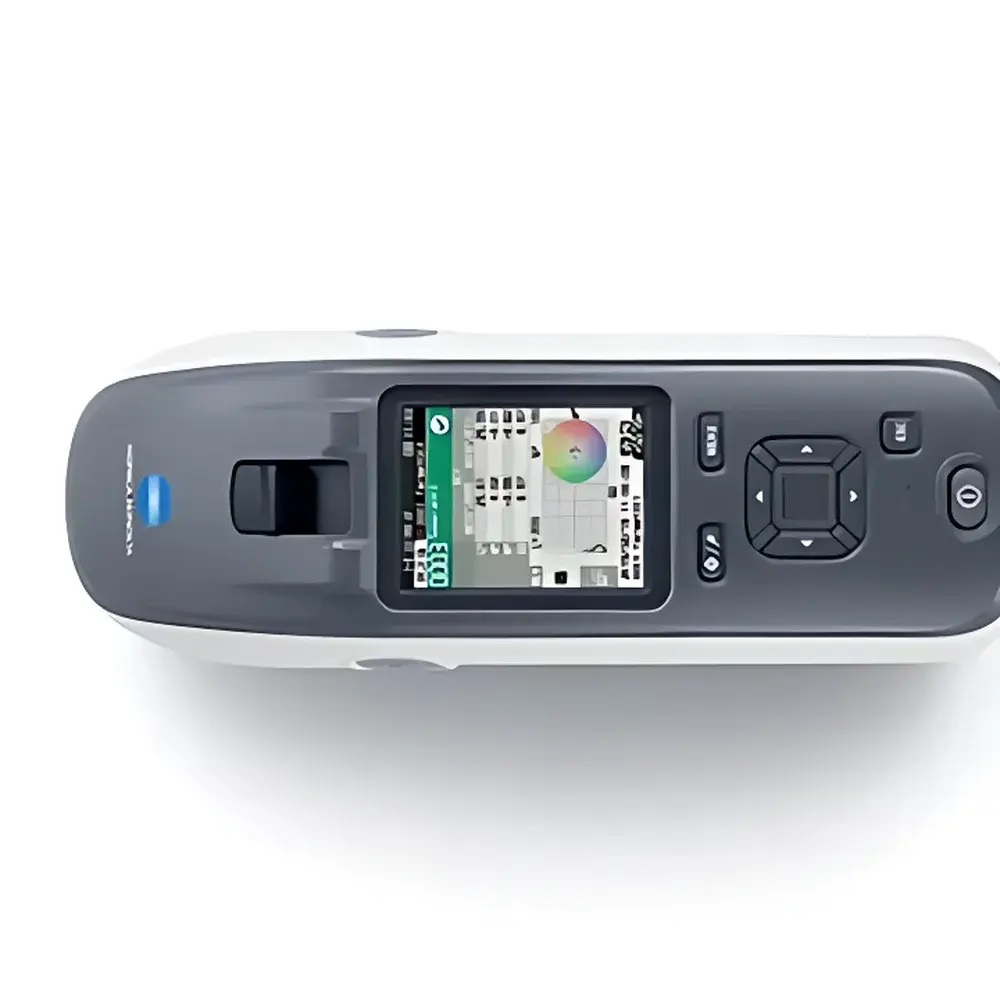

| Spectral Range | CM-26dG: 360–740 nm |
| CM-26d/CM-25d | 400–700 nm |
| Spectral Interval | 10 nm |
| FWHM | ~10 nm |
| Aperture Options | MAV (Ø8 mm or Ø12 mm), SAV (Ø3 mm or Ø6 mm) |
| Repeatability | ΔE*ab ≤ 0.02 (CM-26dG), ≤ 0.04 (CM-26d/CM-25d) |
| Gloss Repeatability | ±0.1 GU (0–9.99 GU), ±0.2 GU (10–99.99 GU), ±0.2% of reading (100–200 GU) |
| Inter-instrument Agreement | ΔE*ab ≤ 0.12 (BCRA Series II, MAV SCI) |
| Gloss | ±0.2 GU (0–9.99 GU), ±0.2 GU (10–99.99 GU) |
| Gloss Measurement | 60° geometry, white LED source, 0–200 GU range |
| Display | 2.7" color TFT-LCD with flip-up vertical viewing |
| Data Storage | 1,000 target + 5,100 sample records |
| Battery Life | ~3,000 measurements (SCI/SCE + gloss mode, 10-sec interval, 23°C), ~1,000 with Bluetooth active |
| Interface | USB 2.0, optional Bluetooth SPP module |
| Operating Environment | 5–40°C, ≤80% RH (non-condensing) |
| Dimensions (W×H×D) | ~81×93×229 mm |
| Weight | ~660 g (CM-26dG), ~630 g (CM-26d), ~620 g (CM-25d) |

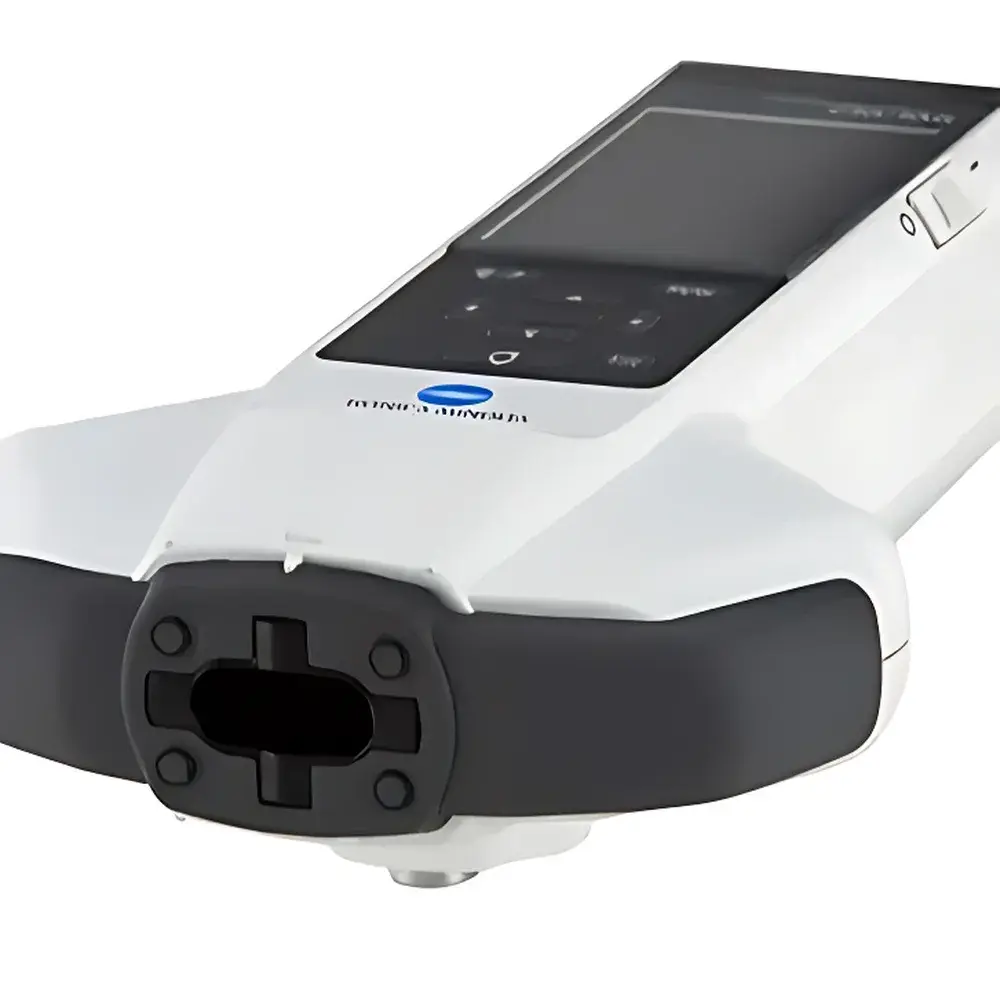

| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-M6 |
| Product Type | Multi-Angle Spectrophotometer |
| Instrument Form Factor | Portable (Handheld) |
| Measurement Geometry | 45° illumination / -15°, 15°, 25°, 45°, 75°, 110° multi-angle specular-reception |
| Illumination Area | 17 × 12 mm |
| Measurement Aperture Dimensions (varies by angle) | 45°: 6 × 6 mm (circular φ6 mm) |
| 25° | 6.4 × 6 mm |
| 15° & 75° | 7 × 6 mm |
| -15° & 110° | 14 × 6 mm (elliptical, reduced effective area in deep/small-bore applications) |
| Optical System | Mirror-Symmetric Dual-Optical-Path Architecture |
| Compliance | ISO 7724, ISO/CIE 11664, ASTM E308, JIS Z 8722 |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |

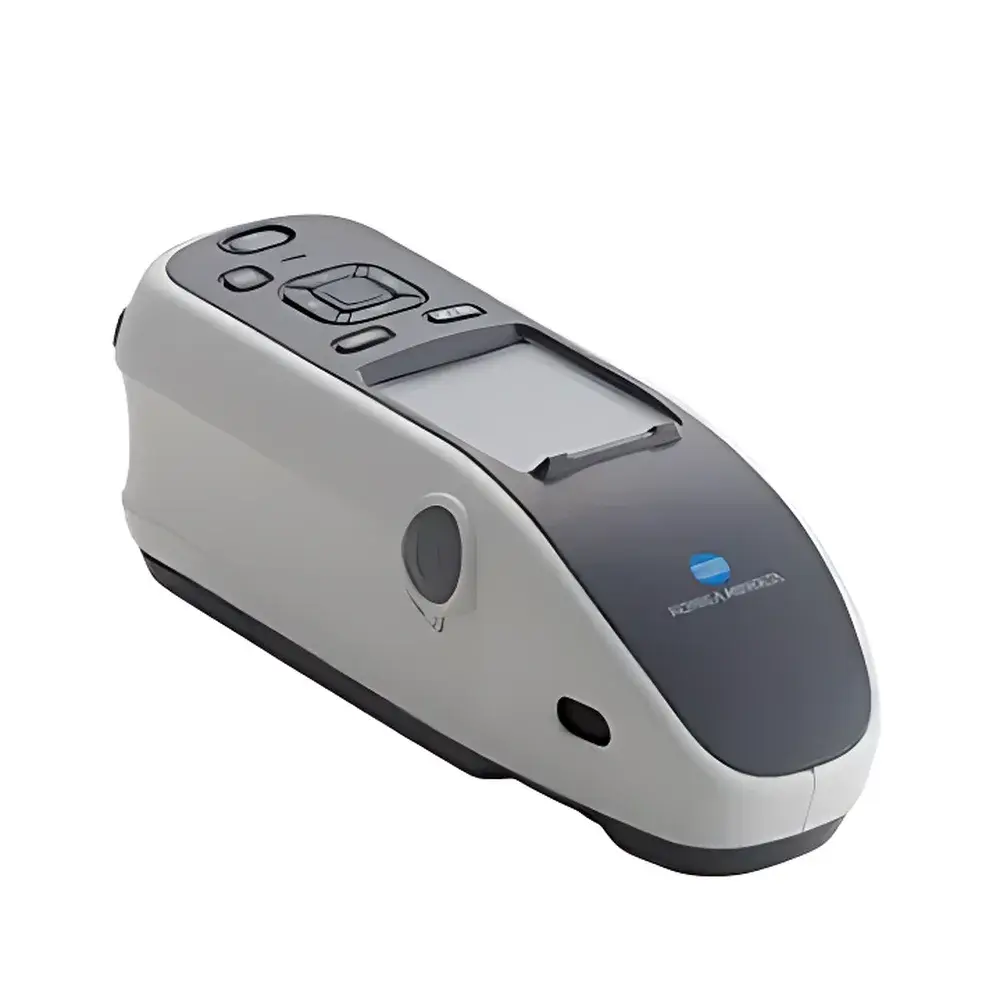

| Model | CM-25cG |
| Type | Portable spectrophotometer |
| Illumination/Viewing Geometry | 45°c:0° (color) / 60° (gloss) |
| Spectral Range | 360–740 nm |
| Spectral Interval | 10 nm |
| FWHM | ~10 nm |
| Color Measurement Repeatability | ΔE*ab ≤ 0.04 (std dev, 30 measurements on white tile) |
| Inter-instrument Agreement | ΔE*ab ≤ 0.15 (MAV, BCRA Series II) |
| Gloss Measurement Range | 0–200 GU |
| Gloss Repeatability | ±0.1 GU (0–10 GU), ±0.2 GU (10–100 GU), ±0.2% (＞100 GU) |
| Gloss Inter-instrument Agreement | ±0.2 GU (0–10 GU), ±0.5 GU (10–100 GU) |
| Observer Angles | 2° / 10° CIE standard |
| Illuminants | A, C, D50, D65, F2–F12, ID50, ID65, user-defined (dual-illuminant comparison supported) |
| Color Spaces | CIE L*a*b*, L*C*h, Hunter Lab, Yxy, XYZ, Munsell MI, WI (ASTM E313), YI (ASTM E313/D1925), ISO Brightness (ISO 2470), WI/Tint (CIE) |
| Color Difference Formulas | ΔE*ab (1976), ΔE94 (1994), ΔE00 (CIE DE2000), CMC (l:c), ΔE (Hunter), ΔE99o (DIN 99o) |
| Compliance | CIE No. 15, ISO 7724-1, ASTM E179, DIN 5033-7, JIS Z8722 (color) |
| Measurement Time | ~1 s (display/output), Minimum Interval: ~2 s |
| Battery Life | ~3,000 measurements per charge (standalone, 10-s interval), ~1,000 with Bluetooth active |
| Display | 2.7″ TFT color LCD |
| Interface | USB 2.0, optional Bluetooth |
| Memory Capacity | 2,500 target + 7,500 sample data points |
| Dimensions | 224 × 81 × 81 mm |
| Weight | ~600 g (with battery) |
| Operating Environment | 5–40°C, ≤80% RH (non-condensing at ≤35°C) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |

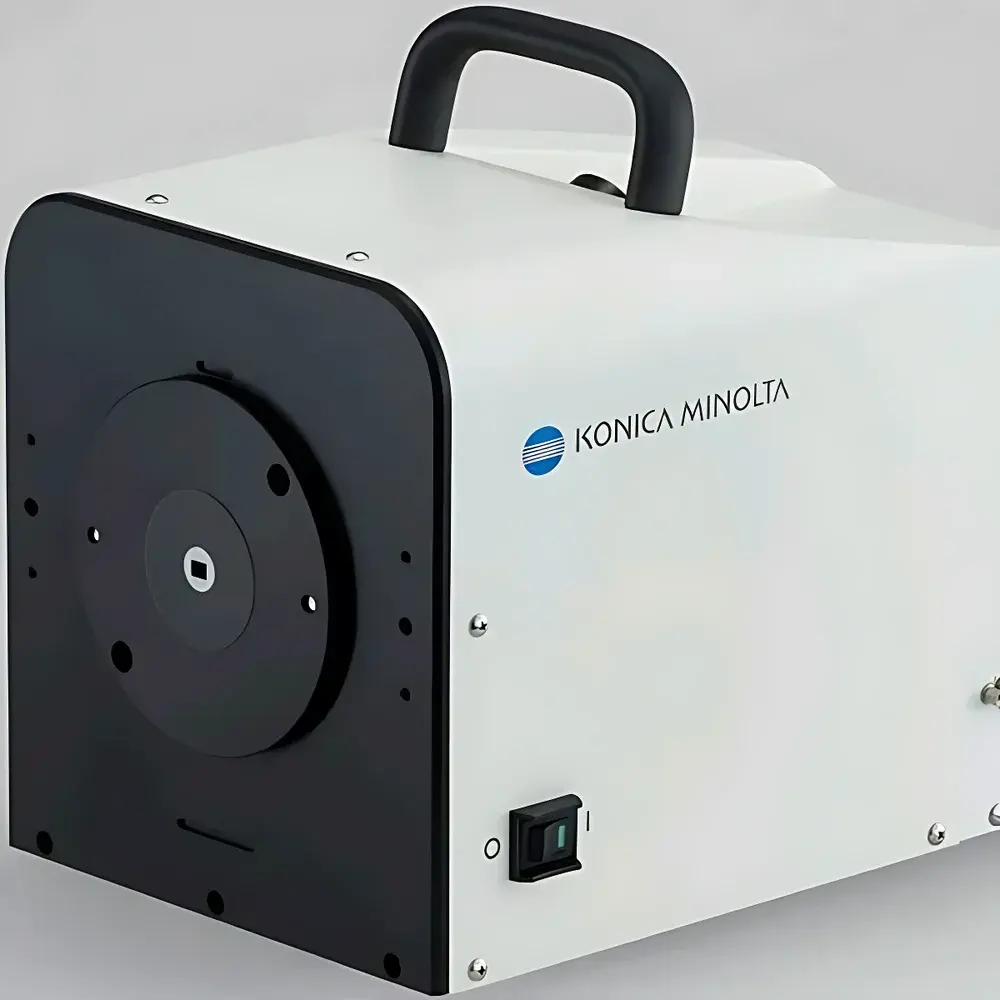

| Model | CF-300 |
| Instrument Type | Benchtop Spectrophotometer |
| Illumination/Observation Geometry | di:8°, de:8° (Diffuse Illumination / 8° Viewing) |
| SCI/SCE Modes | Switchable |
| Compliance | JIS Z 8722 Condition C, ISO 7724-1 |
| Integrating Sphere Diameter | Ø152 mm |
| Detector | Dual-row 40-element silicon photodiode array |
| Dispersion Element | Diffraction grating |
| Spectral Range | 400–700 nm |
| Wavelength Interval | 10 nm |
| Reflectance Range | 0–175% |
| Reflectance Resolution | 0.01% |
| Light Source | High-CRI white LED |
| Measuring Apertures | MAV Ø11 mm |
| Measured Area | Ø8 mm (0.75×1 mm for line-scan mode) |
| Measurement Distance | 0.0 mm (contact), 1.0 mm (NC), 0.7 mm (NC with glass) |
| Measurement Time | Approx. 0.1 s |
| Minimum Measurement Interval | Approx. 0.2 s |
| Repeatability | ΔE*ab ≤ 0.02 SD (MAV/SCI, 30 measurements on white calibration tile at 1 s intervals) |
| Inter-instrument Agreement | ΔE*ab ≤ 0.15 (BCRA Series II 12-color tile set, MAV/SCI, Konica Minolta reference standard conditions) |
| Interface | USB 2.0, RS-232C |
| Power Supply | Dedicated AC adapter (100–240 V AC, 50/60 Hz) |
| Operating Environment | 15–30°C, ≤80% RH (non-condensing) |
| Storage Environment | 0–40°C, ≤80% RH (non-condensing) |
| Dimensions (W×H×D) | 186×202×317 mm (246 mm with handle) |
| Weight | Approx. 7.3 kg |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | Rhopoint IQ-S |
| Instrument Type | Benchtop |
| Measurement Angles | 20°, 60°, 85° |
| Gloss Metrics | Gloss (20°/60°/85°), Reflected Image Quality (RIQ), Reflection Haze (logHaze), Specular Peak Reflectance (Rspec), Distinctness of Image (DOI) |
| Reflectance Curve Acquisition | Yes (20° incident, ±30° angular scan) |
| Compliance | ISO 2813, ASTM D523, ASTM E430, ISO 13803, ISO 10216, ISO 17299 |
| Software | Rhopoint IQ Software v5.0+ with GLP-compliant audit trail, data export (CSV, PDF, XML), statistical reporting (mean, SD, min/max, n≥2), curve overlay & comparative analysis |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Instrument Type | Benchtop |
| Model | CA-2500 |
| Sensor | Monochrome CCD (2/3", 1000 × 1000 effective pixels) |
| Filter System | CIE 1931 Standard Observer matching filters + ND filters |
| Interchangeable Lenses | Standard, Wide-angle, Telephoto |
| Close-up Adapters | Low-magnification & High-magnification (telephoto-compatible) |
| Measurement Resolution | Up to 980 × 980 pixels (software-selectable: 490 × 490 or 196 × 196) |
| Color Spaces | XYZ, Lvxy, Lvu'v', TΔuv, Dominant Wavelength, Excitation Purity, Lv Contrast |
| Brightness Range | 0.05–100,000 cd/m² (with ND filters) |
| Luminance Accuracy | ±3% |
| Chromaticity Accuracy | ±0.005 (at 23°C ±2°C, RH 40% ±10%) |
| Luminance Repeatability | 0.5% |
| Chromaticity Repeatability | ±0.001 |
| Inter-instrument Agreement | ±2% luminance, ±0.002 chromaticity (typical) |
| Measurement Time | ~5 s (single), ~80 s (256-frame accumulation) |
| Interface | USB 2.0 or higher |
| Operating Environment | 10–30°C, ≤70% RH (non-condensing) |
| Storage Environment | 0–30°C, ≤70% RH (non-condensing) |
| Dimensions (W×H×D) | 160 × 164 × 192 mm (handle height: 211 mm) |
| Weight | ~3.5 kg (with standard lens & cap) |
| Power Supply | AC adapter, 100–240 V, 50–60 Hz |
| Brand | Fangyuan Instruments |
|---|---|
| Origin | Shenzhen, China |
| Manufacturer Type | Authorized Distributor |
| Product Type | Spectrophotometric Colorimeter |
| Instrument Form Factor | Portable |
| Optical Geometry | d/8° Integrating Sphere |
| Illumination/Viewing Condition | 8°/d (8° illumination / diffuse viewing), with Specular Component Included (SCI) |
| Spectral Range | L*: 1–100 |
| Repeatability | ΔE*ab standard deviation ≤ 0.08 (measured 30 times on white calibration tile) |
| Origin | Shenzhen, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | CS-210 |
| Product Type | Color Difference Meter |
| Instrument Form Factor | Portable |
| Optical Geometry | d/8° Integrating Sphere |
| Illumination/Reception | 8°/d (8° illumination / diffuse reception), including Specular Component Included (SCI) |
| Spectral Range | L*: 1–100 |
| Repeatability | ΔE*ab standard deviation ≤ 0.08 (measured 30 times on white calibration tile under controlled conditions) |
| Standard Sample Storage | 100 groups × 100 test records per group |
| Measurement Aperture | Ø8 mm |
| CIE Observer & Illuminant | 10° standard observer, CIE D65 illuminant |
| Display Resolution | 0.01 |
| Measurement Time | ~0.5 s |
| Power Supply | 4×AA 1.5 V alkaline or Ni-MH batteries |
| Interface | USB 2.0, Bluetooth (optional) |
| Weight | 550 g |
| Dimensions | 77 × 86 × 210 mm |
| Color Spaces | CIE L*a*b*, L*C*h*, XYZ, relative RGB |
| Color Difference Metrics | Δ(L*a*b*), Δ(L*C*h*) |
| Whiteness Indices | Hunter Whiteness, Ganz Whiteness |
| Yellowness Index (YI) | ASTM E313 / ISO 2470 compliant |
| Multi-point Averaging | Yes |
| Camera-assisted Targeting | Integrated CMOS viewfinder |
| Calibration | Dual-point (white/black) manual calibration |
| Software Support | PC-based data management suite with statistical analysis, audit trail, and export (CSV, PDF, XLSX) |
| Language Interface | English / Chinese toggle |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Rhopoint TAMS |
| Product Type | Spectrophotometric Color & Texture Analyzer |
| Instrument Type | Benchtop |
| Measurement Principle | Phase Measuring Deflectometry (PMD) + Multi-Angle Spectrophotometry |
| Compliance | ISO 16610, DIN EN ISO 4287, DIN EN ISO 25178, ASTM D7113 |
| Data Export Format | *.res, CSV, PNG, TIFF |
| Software Compatibility | OptiMap Reader v5.2+, Rhopoint Analysis Suite |
| Origin | Shenzhen, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | CS-580A |
| Product Type | Spectrophotometric Colorimeter |
| Instrument Form Factor | Portable |
| Optical Geometry | d/8° Integrating Sphere |
| Illuminant Configuration | D/8 (Diffuse Illumination, 8° Viewing Angle) |
| Spectral Range | 400 nm – 700 nm |
| Repeatability | ΔE*ab ≤ 0.08 |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Instrument Type | Benchtop |
| Measurement Principle | Diffuse Illumination / 8° Viewing (d/8°) for Reflectance |
| Compliance | CIE No.15, ISO 7724-1, ASTM E1164, DIN 5033-7, JIS Z 8722 (Condition C) |
| Spectral Range | 360–740 nm |
| Spectral Interval | 10 nm |
| FWHM | ~10 nm |
| Integrating Sphere Diameter | Ø152 mm |
| Detector | Dual-row 40-element silicon photodiode array |
| Grating | Plane diffraction grating |
| Light Source | Pulsed xenon lamp with UV filter |
| Measurement Time | ~1 s (data output) |
| Minimum interval | ~3 s |
| Repeatability | ΔE*ab ≤ 0.04 (after white calibration, 30 measurements at 10 s intervals) |
| Inter-instrument Agreement | ΔE*ab ≤ 0.15 (typical, BCRA Series II, 23°C) |
| Reflectance Range | 0–170% |
| Resolution | 0.01% |
| Illumination/Aperture Options | LAV (Ø30/Ø36 mm), MAV (Ø8/Ø11 mm, optional), SAV (Ø3/Ø6 mm, optional) |
| Transmittance Aperture | Ø20 mm |
| Transmittance Chamber Max Thickness | 60 mm |
| Display | 5.7″ TFT color LCD |
| Languages | English, Simplified Chinese, Japanese, German, French, Italian, Spanish |
| Observer Angles | 2° and 10° standard observers |
| Illuminants | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65 (dual-illuminant display supported) |
| Color Spaces | CIE L*a*b*, L*C*h*, Hunter Lab, Yxy, XYZ, Munsell (color difference only in non-Munsell spaces) |
| Color Difference Formulas | ΔE*ab (CIE 1976), ΔE94 (CIE 1994), ΔE00 (CIE 2000), ΔE(Hunter), CMC (l:c) |
| Indices | MI, WI (ASTM E313-73/96), YI (ASTM E313-73/96, ASTM D1925), ISO Brightness, B (ASTM E313-73), Gardner, Iodine, Hazen/APHA, EP, USP |
| Tolerance Setting | For color values (except Munsell), color differences, or reflectance indices |
| Data Storage | 4,000 sample measurements + 1,000 standards internally |
| Interface | USB 1.1 (PC & USB memory), RS-232C (printer) |
| Power | AC 100–240 V, 50/60 Hz (with supplied adapter) |
| Dimensions (closed) | 385 × 192 × 261 mm (W × H × D) |
| (open) | 475 × 192 × 261 mm |
| Weight | ~5.8 kg |
| Operating Environment | 13–33°C, ≤80% RH (non-condensing at ≤35°C) |
| Storage Environment | 0–40°C, ≤80% RH (non-condensing at ≤35°C) |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-3700A Plus |
| Type | Benchtop Spectrophotometer |
| Illumination/Observation | di:8°/de:8° (Diffuse Illumination / 8° Viewing) for Reflectance |
| di | 0°/de:0° for Transmittance |
| Compliance | CIE No.15:2004, ISO 7724-1, ASTM E1164, DIN 5033-7, JIS Z 8722 (Conditions c & g) |
| Integrating Sphere Diameter | ∅152 mm |
| Detector | Silicon Photodiode Array (38 channels) |
| Dispersion Element | Diffraction Grating |
| Wavelength Range | 360–740 nm |
| Interval | 10 nm |
| FWHM | ~14 nm (avg.) |
| Reflectance Range | 0–200% (0.001% resolution) |
| Light Source | Pulsed Xenon Lamp |
| Measurement Apertures | SAV (3×5 mm / 5×7 mm), MAV (∅8 / ∅11 mm), LMAV (∅16 / ∅20 mm), LAV (∅25.4 / ∅28 mm) |
| Transmittance Aperture | ∅20 / ∅25 mm |
| Repeatability (White) | ΔE*ab ≤ 0.005, Spectral Reflectance SD ≤ 0.05% |
| (Black) | ΔE*ab ≤ 0.02, Spectral Reflectance SD ≤ 0.02% |
| Inter-instrument Agreement | ΔE*ab ≤ 0.08 (BCRA Series II, 12 tiles, LAV/SCI) |
| UV Adjustment | 0.0–100.0% (1000-step, software-controlled) |
| Sample Temperature Measurement Accuracy | ±0.5°C (LAV), ±0.8°C (MAV/LMAV), ±1.2°C (SAV) |
| Measurement Time | ~2 s (SCI/SCE), ~4.5 s (with temp.), ~5 s (SCI+SCE), ~2 s (Transmittance) |
| Transmittance Chamber Max Thickness | ~50 mm |
| Dimensions (H×W×D) | 307 × 271 × 600 mm |
| Weight | ~20.0 kg |
| Operating Environment | 13–33°C, ≤80% RH (non-condensing) |
| Interface | USB 2.0 |
| Power | Dedicated AC Adapter |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CM-36dG |
| Type | Benchtop Spectrophotometer |
| Optical Geometry | di:8°/de:8° (Diffuse Illumination / 8° Viewing, SCI/SCE Switchable) & di:0°/de:0° (Diffuse Illumination / 0° Viewing for Transmission) |
| Integrating Sphere Diameter | Ø152 mm |
| Spectral Separation | Diffraction Grating |
| Wavelength Range | 360–740 nm |
| Wavelength Interval | 10 nm |
| FWHM | ~10 nm |
| Reflectance Range | 0–200% (0.01% resolution) |
| Illuminant | Triple Pulsed Xenon Lamps (2 with UV-cut filters) + 1 Pulsed Xenon Lamp |
| Aperture Options | LAV (Ø30 mm/Ø25.4 mm), LMAV (Ø20 mm/Ø16 mm), MAV (Ø11 mm/Ø8 mm), SAV (Ø7 mm/Ø4 mm), Transmittance LAV/MAV/SAV |
| Repeatability | ΔE*ab ≤ 0.02 (SCI), ΔE*ab ≤ 0.03 (SCE) |
| Inter-instrument Agreement | ΔE*ab ≤ 0.12 (LAV/SCI, BCRA Series II avg.) |
| UV Control | Digital UV Adjustment (0–100%, no mechanical filter movement), 400 nm & 420 nm UV-cut filters |
| Gloss Measurement | 60° geometry, White LED source, Silicon Photodiode sensor, Range: 0–200 GU (0.01 GU resolution), MAV spot: 10×8 mm elliptical, SAV spot: Ø3 mm |
| Gloss Repeatability | ±0.1 GU (0–10 GU), ±0.2 GU (10–100 GU), ±0.2% (100–200 GU) |
| Gloss Inter-instrument Agreement | ±0.2 GU (0–10 GU), ±0.5 GU (10–100 GU, MAV) |
| Compliance | CIE No.15:2004, ISO 7724-1, ASTM E1164, DIN 5033-7, JIS Z 8722 (Condition C/G), JIS Z 8741, ISO 2813, ISO 7668, ASTM D523-08, ASTM D2457-13, DIN 67530 |
| Measurement Time | ~2.5 s (SCI or SCE), ~3.5 s (SCI+SCE), ~4.0 s (SCI+SCE+Gloss), ~2.5 s (Transmission) |
| Wavelength Analysis & Adjustment (WAA) | Optional licensed feature |
| Interface | USB 2.0 |
| Auto Aperture Detection | Yes |
| Operating Environment | 13–33°C, ≤80% RH (non-condensing) |
| Dimensions (W×H×D) | 248×250×498 mm |
| Weight | ~8.4 kg |
| Standard Accessories | White Cal. Tile, Aperture Masks (LAV/LMAV/MAV/SAV), Gloss Cal. Tile, Zero Cal. Box, USB Cable (2 m), AC Adapter, Dust Cover, Accessory Case, Cleaning Cloth |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | Novo-Gloss 60 KM |
| Measurement Angle | 60° |
| Compliance | ASTM D523, ASTM D2457, ISO 2813, DIN 67530, JIS Z8741 |
| Data Storage Capacity | 2,000 measurements |
| Interface | Bluetooth 4.0 |
| Display | Graphical LCD with intuitive menu navigation |
| Instrument Type | Portable benchtop gloss meter |
| Application Scope | Medium-gloss coatings, automotive paints, plastic surfaces, lacquers, and industrial finishes |
Show next
