| Brand | Thermo Fisher |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (China-manufactured) |

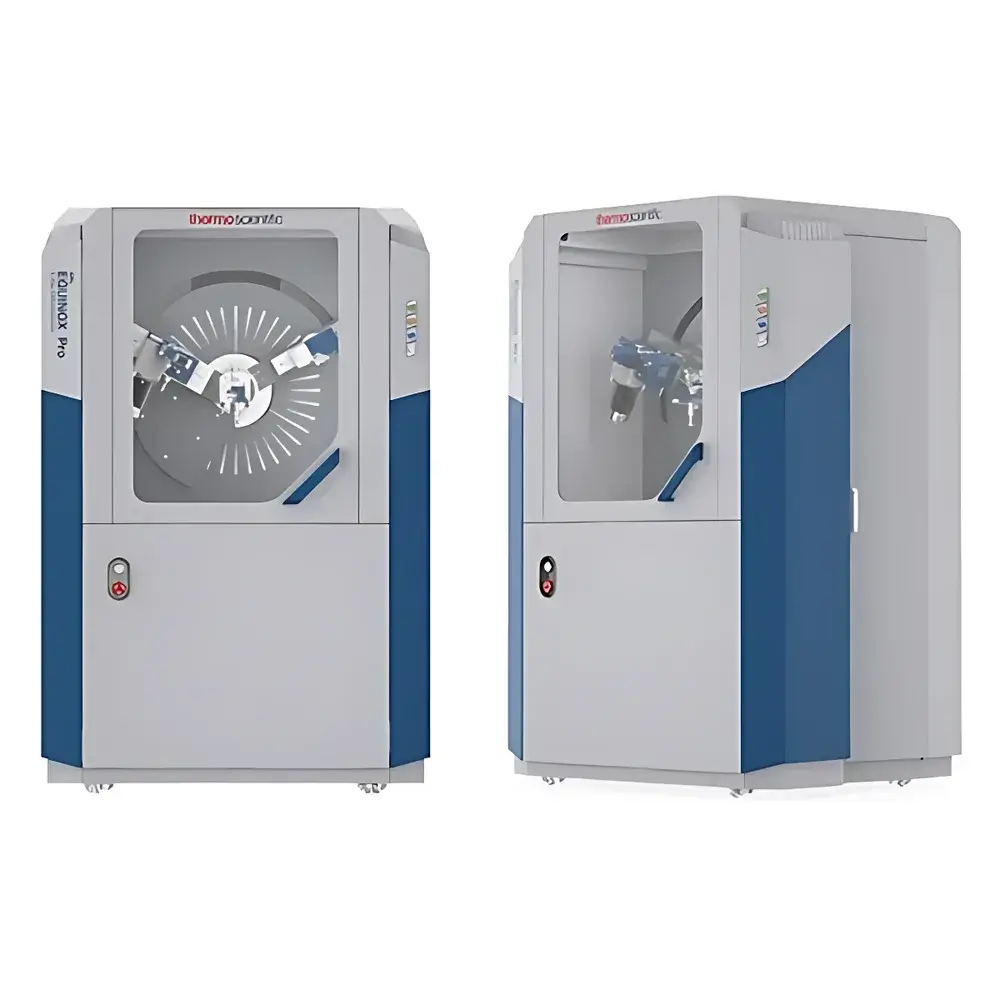

| Model | ARL EQUINOX Pro Vertical X-ray Diffractometer |
| Instrument Type | X-ray Crystal Orientation Analyzer |
| Angular Accuracy | ±0.0001° |
| Resolution | FWHM < 0.026° (2θ, LaB₆ (110)) |
| Brand | Thermo Fisher |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (China-Made) |

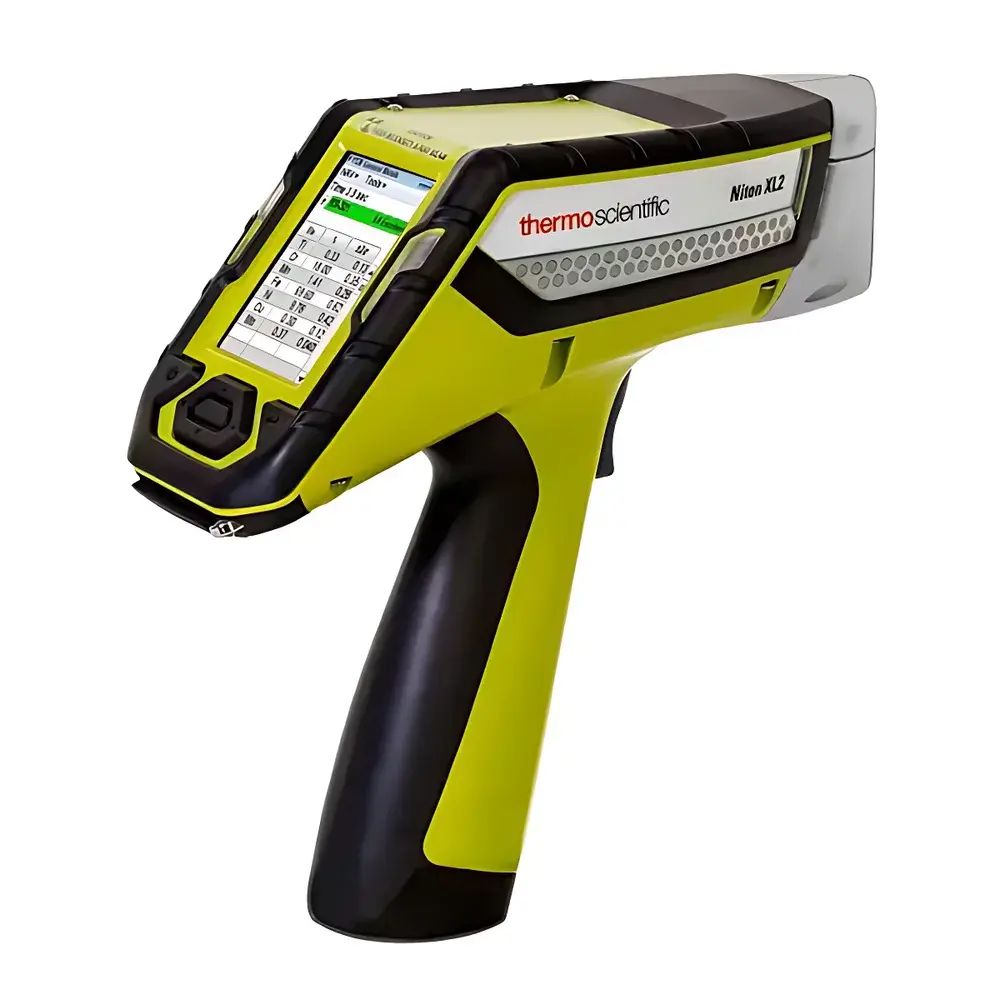

| Model | Niton XL2 Plus Handheld ED-XRF Spectrometer |
| Pricing | Available Upon Request |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Niton XL5 Plus |
| Price Range | USD 42,000 – 70,000 |
| Form Factor | Handheld / Portable |
| Regulatory Compliance | ASTM E1621, ISO 13322-2, IEC 62596, RoHS/WEEE Directive Annex II, CPSIA Section 101, EN 71-3, EU REACH SVHC Screening |
| Brand | Thermo Fisher |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (China-manufactured) |
| Model | ARL X'TRA Companion |
| Pricing | Available Upon Request |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | QuanX |
| Configuration | Benchtop or Floor-Standing |
| Detector Options | Liquid-Nitrogen-Cooled or Electrically Cooled Si(Li) Detector |
| Elemental Range | Na (11) to U (92) |
| Detection Limit | Typically sub-ppm to 100% w/w |
| Compliance | Designed for ISO/IEC 17025-compliant laboratories |
| Brand | Thermo Fisher Scientific |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | Niton XL2 Handheld EDXRF Spectrometer |
| Pricing | Available Upon Request |
| Brand | Thermo Fisher Scientific |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | Niton XL3t Handheld ED-XRF Spectrometer |
| Price | Upon Request |
| Detector Type | High-Performance Silicon Drift Detector (SDD) |
| X-ray Tube | Au anode, 50 kV max, 200 µA max |
| Minimum Detection Limits | Sub-ppm for high-Z elements |
| Elemental Range | S (16) to U (92) — up to 25 elements simultaneously quantified |
| Standard Spot Size | 3 mm collimated beam |
| Display | Tilting full-color capacitive touchscreen (4.3″) |
| Operating Temperature | –10 °C to 50 °C |
| Hot Surface Capability | Up to 450 °C (842 °F) with HotFoot™ adapter |
| Data Connectivity | Integrated USB 2.0, Bluetooth 4.0, RS-232 |
| Software | Thermo Scientific Niton Data Transfer (NDT™) v9.x with user permission management, audit trail, CFR Part 11-compliant reporting options |
| Dimensions (L × W × H) | 244 × 230 × 95.5 mm |
| Weight | 1.3 kg |
| Power | Dual hot-swappable Li-ion battery packs (4-cell or optional 6-cell), 100 µA typical operating current |
| Compliance | CE, RoHS 2011/65/EU, IEC 62471, FDA 21 CFR Part 1020.40, ISO 12885, ASTM E1621–22, ASTM E2857–22 |
| Brand | Thermo Fisher |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | ARL PERFORM'X Sequential WDXRF |
| Pricing | Upon Request |
| Brand | Thermo Fisher |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

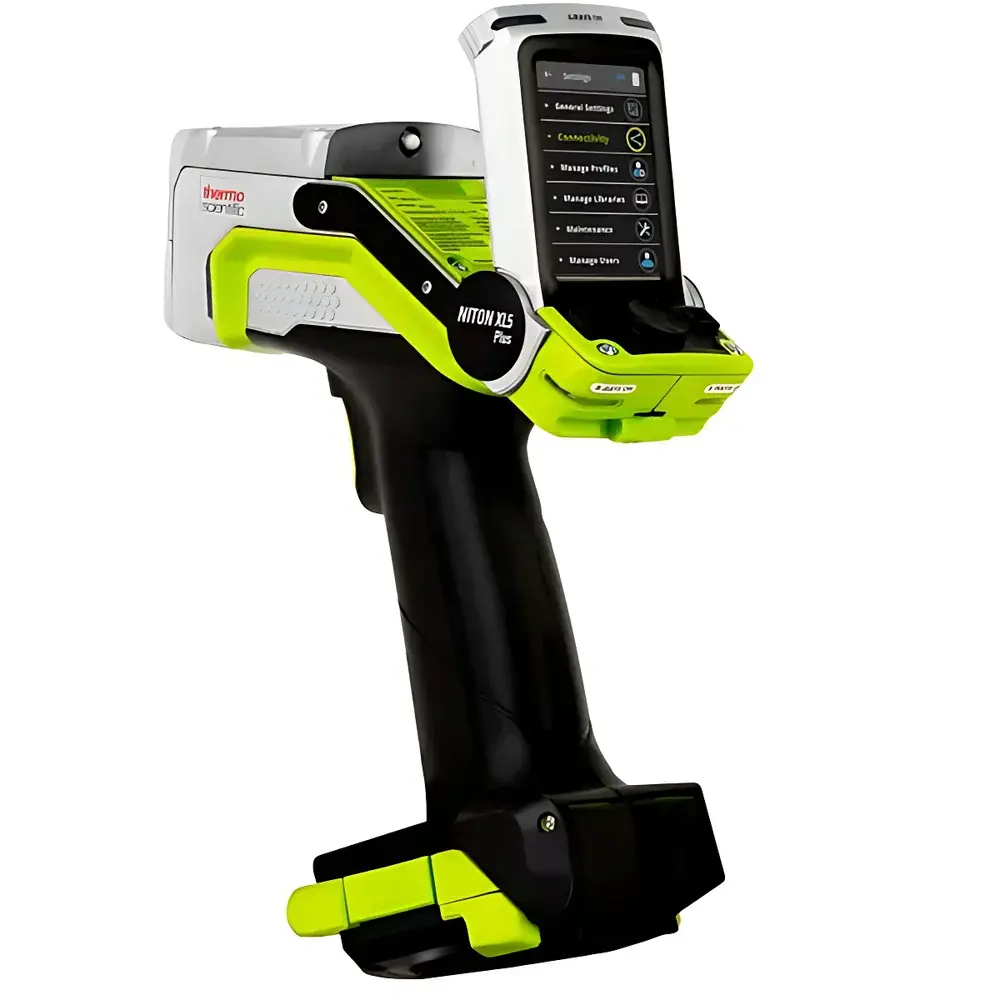

| Model | Niton™ XL5 Plus |
| Price | Upon Request |
| Detector Type | High-Count-Rate, High-Resolution, Large-Area Silicon Drift Detector (SDD) with 1 µm Graphene Window and ProGuard Protection |
| X-ray Source | Silver-Anode X-ray Tube (6–50 kV, 0–500 µA, up to 5 W) |
| Beam Spot Size | Standard 8 mm |
| Filtration | 6-Position Filter Wheel |
| Sample Interface | Micro & Macro Cameras, Reversible Scattering Shield Support, Optional Soil Guard Sleeve |
| Display | Tilt-Adjustable Color Resistive Touchscreen |
| Weight | 1.3 kg (2.8 lb) with Battery |
| Dimensions (L×W×H) | 24.23 × 20.8 × 6.78 cm (9.54 × 8.19 × 2.67 in) |
| Environmental Rating | IP54 (Dust-Resistant & Splash-Protected) |
| Operating Temperature | 0–50 °C (External fan recommended above 33 °C) |
| Relative Humidity | 10–90% RH (non-condensing) |
| Power | Hot-Swappable 12 V Li-ion Battery or 12 V DC/3 A Input |
| Data Storage | 512 MB RAM / 16 GB Industrial-Grade Flash (≈130,000 spectra + metadata |
| Connectivity | Wi-Fi, USB-C, Bluetooth (optional GPS, barcode scanner) |
| Software | NitonConnect PC Software with Audit Trail, Report Generation, and Library Management |
| Compliance | CE, RoHS, FCC, ISED (Canada), IEC 61010-1:2010 |
| Safety | Password-Protected User Access, Interlock Logic, Real-Time Dose Monitoring, Regulatory Licensing Support per Regional Authority |
| Brand | Thermo Fisher |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China-manufactured under Thermo Fisher technology transfer & quality oversight) |

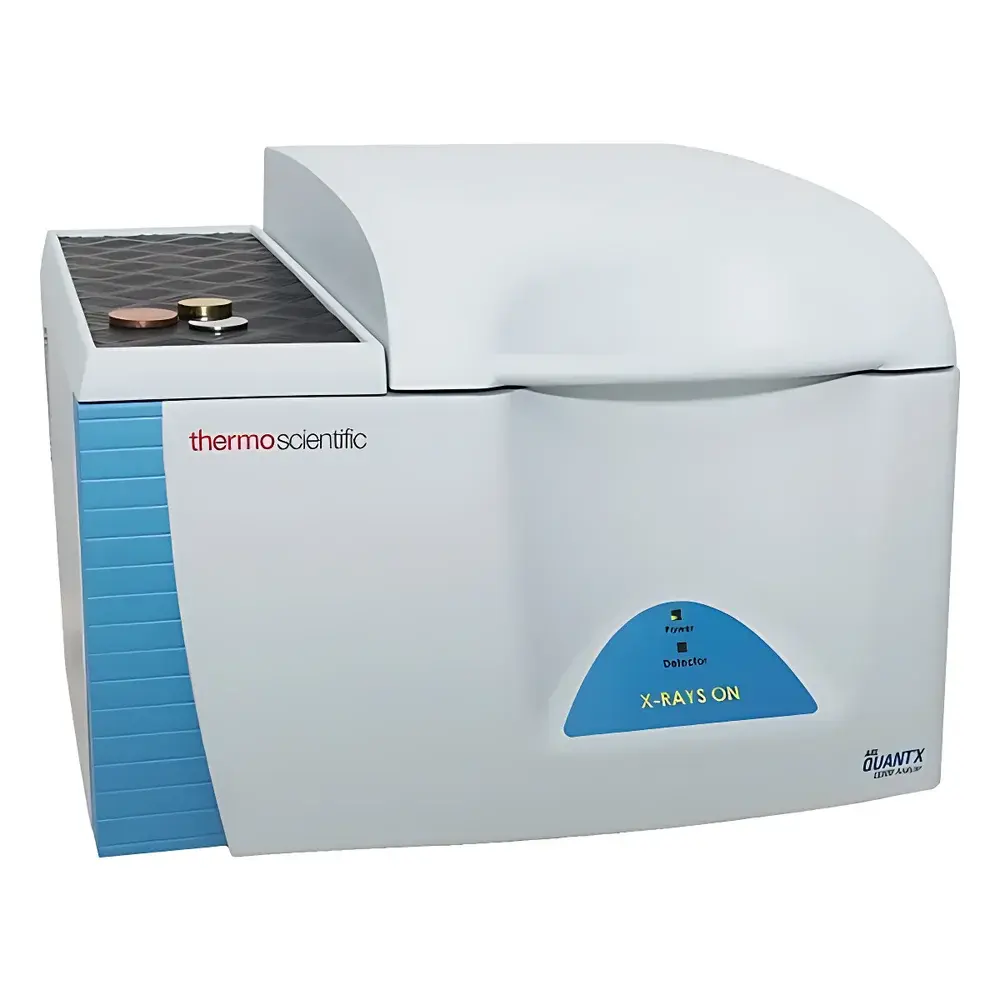

| Model | ARL™ QUANT EDXRF |
| Pricing | Available upon consultation |
| Brand | Thermo Fisher |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China-manufactured) |
| Model | ARL EQUINOX Pro Vertical X-ray Diffractometer (XRD) |
| Pricing | Upon Request |
| Brand | Thermo Fisher Scientific |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestically Manufactured |
| Model | NextGuard X-Ray Inspection System (Domestically Manufactured) |
| Pricing | Available Upon Request |
| Radiation Compliance | FDA 21 CFR Part 1020.40, RED Regulations (Canada), CE Marking (EU) |
| Conveyor Height Options | 800 / 950 / 1100 mm (±75 mm) |
| Max Conveyor Length | 1.5 m standard, extendable up to +1.0 m (in 200 mm increments) |
| Max Product Weight | 11 kg (25 lbs) |
| Detector Pixel Size (Optional) | 0.4 mm |
| Processor Speed | 6× faster than 1st-generation NextGuard |
| Detector Resolution Gain (Optional) | 3.2× improvement vs. baseline |
| Software Modules | Product Verification, Density-Based Contaminant Detection, VersaWeigh™ Mass Estimation, Dual-Rejection Logic |
