| Brand | AIWEI |
|---|---|
| Origin | Tianjin, China |
| Model | SF25K-PE / SF30K-PE / SF50K-PE / SF100K-PE / SF150K-PE / SF200K-PE / SF250K-PE / SF300K-PE |
| Power Range | 25–300 kW |
| Channel Configuration | Single-channel electrochemical workstation |
| Current Range | 100 A / 300 A / 600 A / 1000 A |
| Anode Gas Flow (H₂/N₂) | 500–6000 slpm |
| Cathode Gas Flow (Air/N₂) | 500–22,000 slpm |
| Humidification Temperature Range | RT–95 °C |
| Dew Point Control Accuracy | ±1 °C |
| Back Pressure Control Range | up to 3.5 bar (±2 kPa stability) |
| Voltage Monitoring Channels | up to 1000 cells |
| EIS Frequency Range (optional) | 10 mHz–10 kHz |
| MFC Accuracy | ±0.8% of reading + 0.2% of full scale |
| Flow Turndown Ratio | 100:1 |
| Exhaust Cooling & Condensate Capture | Integrated |
| Thermal Management | Air-cooled or water-cooled stack interface with independent heating/cooling control |
| Brand | AIWEI |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

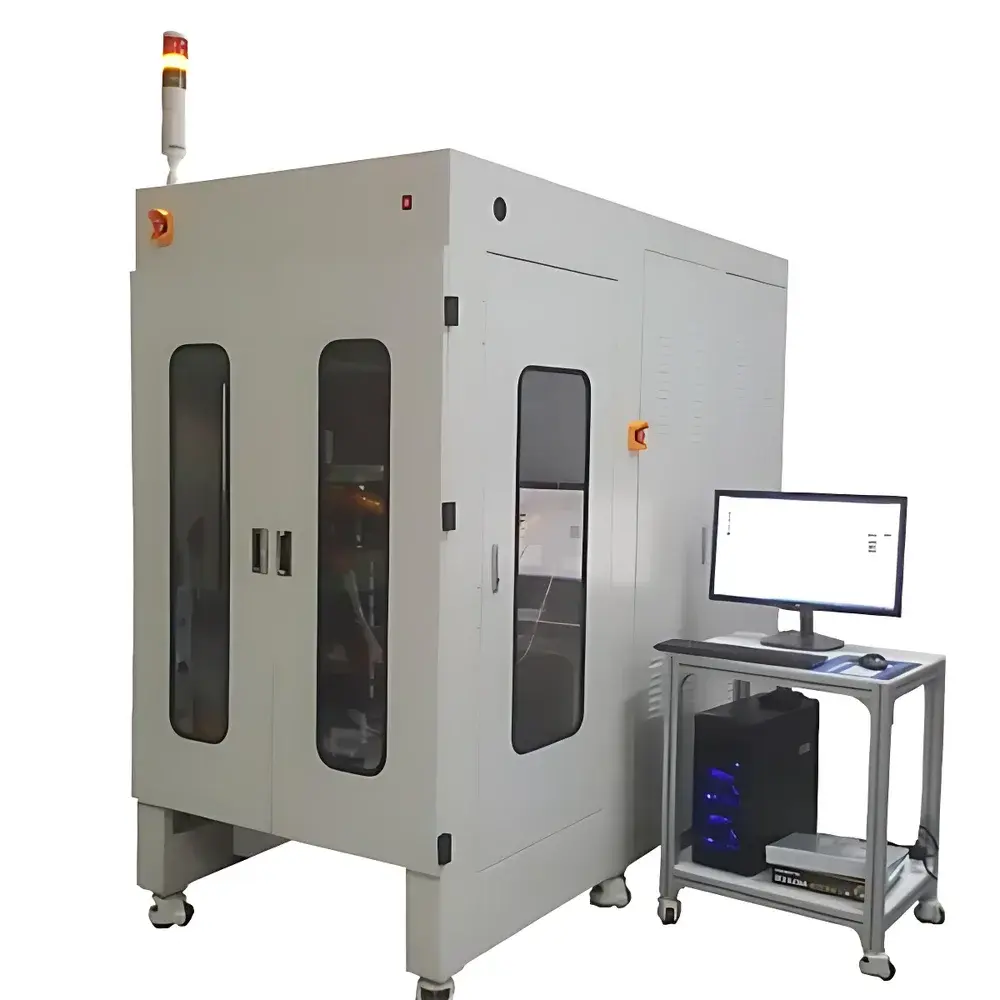

| Model | HT-PEMST |
| Instrument Type | Electrochemical Workstation |
| Channel Count | Single-Channel |
| Current Range | 0–600 A |
| Power Rating | 2.5 kW (Electronic Load Module) |
| Voltage Range | 0–120 V |
| Gas Flow Control | Anode (H₂/N₂, up to 20 SLPM) |
| Temperature Control | Liquid-Cooled Thermal Loop with 30 L Reservoir |
| Backpressure Control | 0–3.5 bar |
| Preheater | SUS Tubing (Anode: 1/4″, Cathode: 3/8″) |
| Humidification | Integrated Condensate Trap with Auto-Drain, Radiant Heating & Cooling Fan |
| Software Platform | LabVIEW-Based Control Suite with Real-Time DAQ, Protocol Automation, Load Profiling, and Optional EIS Module (10 mHz–10 kHz), HFR/IR Drop Analysis, and Cell-Voltage Monitoring (±5 V per cell, selectable channels) |
| Brand | AIWEI |
|---|---|
| Origin | Tianjin, China |
| Model | 30kW Fuel Cell Stack Test Station |
| Instrument Type | Electrochemical Workstation |
| Current Range | 0–1500 A |
| Power Rating | 30 kW (DC output) |
| Electronic Load Capacity | 36 kW (optional) |
| Voltage Range | 0–400 V DC |
| AC Input | Three-phase 220/380 VAC, Max 150 A |
| Dimensions (W×D×H) | 1300 × 2500 × 2000 mm |
| Mass Flow Control | Anode (H₂/N₂) up to 500 SLPM |
| Humidification | Direct-injection humidifier with temperature-controlled heating chamber & pressure pump |
| Backpressure Control | 0–3.5 bar, proportional control, ΔP < 2 kPa at max flow |
| Cooling System | 100 L water reservoir, 0–95 °C heating/cooling, conductivity monitoring |
| Software Platform | LabVIEW-based real-time control & data acquisition, ASTM/ISO-compliant test sequencing, FDA 21 CFR Part 11-ready audit trail (optional) |
| Brand | AIWEI |
|---|---|
| Model | 50–200 kW Electrochemical Workstation |
| Type | Regenerative/Energy-Dissipative Stack Test System |
| Power Range | 50–200 kW |
| Current Range | ±1000 A / ±1500 A |
| Voltage Range | 0–400 V / 0–600 V / 0–800 V |
| Enclosure Dimensions | 1500(W) × 3300(D) × 2000(H) mm |
| Input Power | 3-phase 220 VAC or 380 VAC, up to 200 A |
| Anode Gas Flow Control | H₂/N₂, up to 2000/4000 SLPM |
| Cathode Gas Flow Control | Air/N₂, up to 6000/12000 SLPM |
| Humidification | Direct-injection humidifier with temperature-controlled heating chamber & pressure pump |
| Backpressure Control | 0–3.5 bar, proportional control, ΔP < 2 kPa at max flow |
| Cooling/Heating | 100 L water reservoir, 20–95 °C temperature range, conductivity monitoring |
| DI Water System | Integrated deionization filtration with auto-regeneration |
| Condensate Management | Automated drainage with heat-exchange cooling loop |
| Preheater | SUS 316 tubing (anode: 1.5", cathode: 2"), inline gas temperature control |
| Data Acquisition | LabVIEW-based platform with DAQ integration, real-time visualization, automated protocol execution, load-following control, and customizable test sequencing |
| Optional Modules | Individual cell voltage monitoring (±5 V per cell), multi-channel EIS (10 mHz–10 kHz), HFR/IR drop analysis, combined IV + EIS operation |

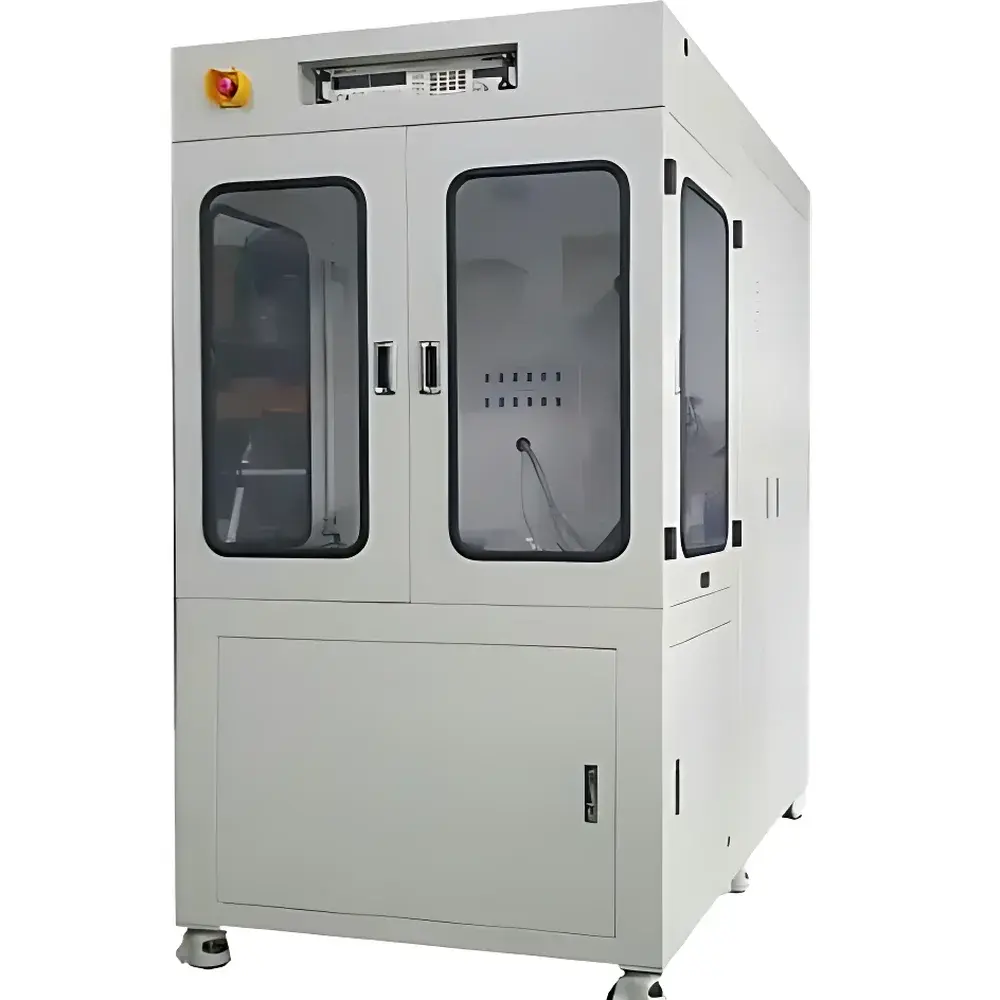

| Brand | AIWEI |
|---|---|
| Model | 7–10 kW Fuel Cell Stack Test Station |
| Category | Electrochemical Workstation |
| Power Rating | 7–10 kW |
| Current Range | ±600 A / ±1000 A |
| Voltage Range | 0–60 V / 0–120 V / 0–400 V (configurable) |
| Cooling | Liquid-cooled electronic load modules (9 kW / 12 kW) |
| Enclosure | Floor-standing modular cabinet (1100 W × 1800 D × 2000 H mm) |
| Input Power | 3-phase 220 VAC or 380 VAC, max. 75 A |
| Anode Gas Flow Control | H₂/N₂, up to 150 SLPM |
| Cathode Gas Flow Control | Air/N₂, up to 500 SLPM |
| Humidification | Bubble-type or membrane-type humidifiers with temperature-controlled water bath, liquid-level monitoring, wet/bypass mode |
| Water Management | Automated DI-water injection, 50 L thermal reservoir with heating (up to 95 °C) and cooling, conductivity monitoring, integrated deionization filtration |
| Backpressure Control | 0–3.5 bar, proportional pressure regulation, ΔP < 2 kPa at max flow, differential pressure control for anode/cathode inlet/outlet |
| Preheater | SUS316 tubing (anode: 1/2″, cathode: 3/4″), inline gas temperature control |
| Condensate Handling | Auto-drain water traps with heat sink & fan cooling |
| Software | LabVIEW-based control suite with real-time DAQ, automated test protocols (load-following, polarization, EIS), GLP-compliant audit trail (optional), FDA 21 CFR Part 11 ready (with optional digital signature module) |
| Optional Modules | Individual cell voltage monitoring (±5 V per cell, channel-selectable), multi-channel EIS (10 mHz–10 kHz), HFR/IR/Ohmic resistance extraction, stack discharge resistive load bank (1–2 kW) |
| Brand | AIWEI |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | ITS550-500 |
| Instrument Type | Electrochemical Workstation |
| Channel Count | Single-Channel |
| Current Range | 0–500 A or 0–1000 A |
| Current Accuracy | ±0.05% FS @ 1000 A |
| Potential Accuracy | 0.1% RDG |
| EIS Frequency Range | 10 Hz to 1.5 MHz |
| Voltage Input Range (Stack) | 500 V or 1000 V |
| Cell Voltage Inputs (Optional) | 5 channels, selectable ranges: 5 V / 50 V / 100 V / 200 V |
| ADC Resolution | 24-bit |
| Maximum Sampling Rate | 100 kHz |
| Voltage Measurement Accuracy | 0.1% RDG |
| Current Measurement Accuracy | ±0.05% FS @ 1000 A |
| AC Excitation Current Range | 1–50 A |
| AC Excitation Accuracy | 0.2% RDG + 0.1% FS |
| Impedance Measurement Range (per cell) | 0.1 mΩ to 15 mΩ |
| Common-Mode Withstand Voltage | 1000 V DC |
| Rated Supply | 220 V AC, 50 Hz |
| Operating Temperature | 0–40 °C |
| Brand | AIWEI |
|---|---|
| Origin | Tianjin, China |
| Model | FCEL-50 / FCEL-100 / FCEL-150 / FCDC-250 |
| Current Range | 167 A / 334 A / 500 A / 834 A |
| Current Accuracy | ±0.2% FS + 5 digits |
| Voltage Accuracy | ±0.2% FS |
| Voltage Range | 24–800 V DC |
| Insulation Resistance Measurement Range | 1 kΩ–1 MΩ |
| Insulation Resistance Accuracy | ±0.2% FS |
| Operating Quadrants | Four-quadrant (bidirectional energy flow) |
| Communication Interfaces | RS485, Ethernet, CAN 2.0B |
| Compliance | GB/T 24554–2009 |
| Brand | AIWEI |
|---|---|
| Origin | Tianjin, China |
| Model | SOFC-1000 |
| Instrument Type | Electrochemical Workstation |
| Channel Count | Single-Channel |
| Current Accuracy | ±0.01 mA |
| Potential Accuracy | ±1 mV |
| Furnace Power | 2 kW |
| Max Operating Temperature | 1000 °C |
| Gas Control | Multi-channel Mass Flow Controllers (O₂, Air, N₂, H₂) |
| Humidification | Optional Bubbling-Type Humidifier |
| Load Capability | Button-cell-compatible Electronic Load |
| Software | Fully Automated Control & Real-time Monitoring Suite |
| Brand | AIWEI |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | PEMFC Fuel Cell Test Station |
| Instrument Type | Electrochemical Workstation |
| Channel Count | Single-Channel |
| Current Range | ±80 A / ±240 A |
| Brand | AIWEI |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | FS-SOFC-1000 |
| Instrument Type | Electrochemical Workstation |
| Channel Count | Single-Channel |
| Current Accuracy | ±0.1 mA |
| Potential Accuracy | ±1 mV |
| Maximum Furnace Power | 22 kW |
| Max Operating Temperature | 1000 °C |
| Internal Chamber Dimensions | 500 × 550 × 500 mm |
| Load Capacity | Up to 5 kW Electronic Load |
| Gas Control | Multi-channel Mass Flow Controllers (O₂, Air, N₂, H₂, etc.) |
| Humidification | Optional Bubble-Type Humidifier |
| Temperature Ramp Rate | Programmable Heating/Cooling Control |
| Brand | AIWEI |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | HMS |
| Instrument Type | Electrochemical Workstation |
| Voltage Compatibility | 12 V & 24 V DC |
| Pressure Rating Compatibility | 35 MPa & 70 MPa Cylindrical Valve Testing |
| CAN Channels | 2 × CAN 2.0B |
| Digital Input (DI) Channels | 16 (12/24 V compatible) |
| Analog Output (AO) Channels | 24 (0–5 V, 0–V range) |
| PWM Outputs | 4 (12/24 V compatible) |
| Digital Output (DO) Channels | 6 |
| Power Input | 9–36 V DC / 20 A |
| DTC Strategy Emulation | Yes |
| Control Command Emulation | Vehicle ECU & FCU Command Simulation |
| HIL Integration | Fully Compatible |
| Offline Production Test Support | Yes |
| DBC File Import | Supported |
| Protocol Configuration | User-Configurable Multi-Protocol Stack |

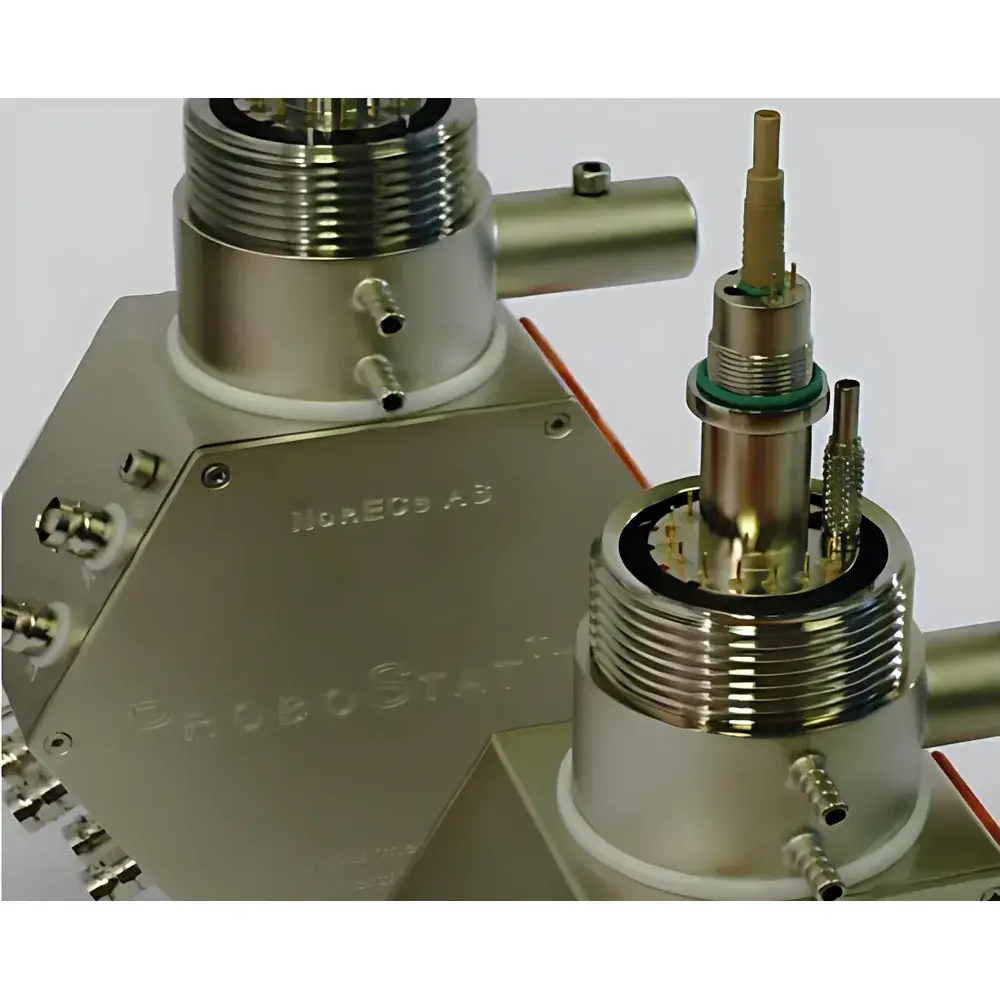

| Brand | NorECs |
|---|---|
| Origin | Norway |
| Model | ProboStat |
| Instrument Type | Electrochemical Sample Holder |
| Operating Temperature (Long-term) | Up to 1400 °C |
| Operating Temperature (Short-term) | Up to 1600 °C |
| Sample Geometry | Disc-shaped (Ø 10–24 mm, thickness 25–50 mm) or Rod-shaped (Ø up to 24 mm, length 30–1500 mm) |
| Electrode Configurations | 2-, 3-, or 4-electrode setups |
| Gas Environment | Oxidizing, inert, reducing, corrosive, humid/dry |
| pressure range | 10⁻² mbar to 1 bar (up to 25 bar in sealed steel tube) |
| Dual-chamber capability | Yes |
| Van der Pauw measurement | Supported (4-point) |
| Seebeck coefficient measurement | Supported (rod geometry) |
| Electrical measurements | DC conductivity, impedance spectroscopy, polarization, dielectric breakdown (HV version), concentration cell, transference number, permeability, fuel cell testing |
