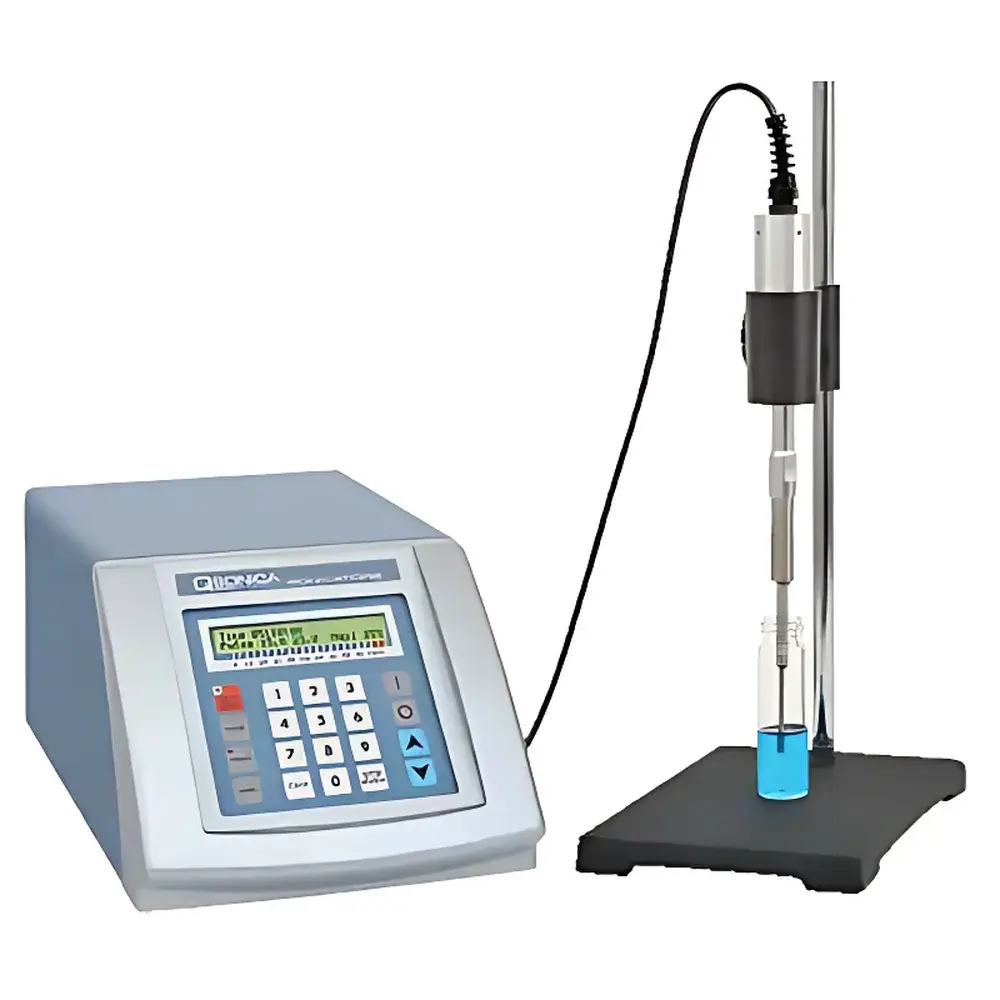

| Brand | Qsonica LLC |
|---|---|
| Origin | USA |
| Model | Q125 |
| Instrument Type | Ultrasonic Cell Disruptor |
| Ultrasonic Power Output | 125 W |
| Operating Frequency | 20 kHz |
| Temperature Range | 1–121 °C |
| Sample Volume Capacity | 5 µL – 100 mL |
| Number of Samples per Run | 1 |
| Pulse Duration Adjustment | 1 s – 60 s |
| Continuous Operation Limit | Up to 10 hours |
| Dimensions (W×D×H) | 20 × 35 × 15 cm |
| Brand | Qsonica LLC |
|---|---|
| Origin | USA |
| Model | Q2000 |
| Instrument Type | Ultrasonic Cell Disruptor |
| Ultrasonic Power Output | 2000 W |
| Operating Frequency | 20 kHz |
| Temperature Range | 0–120 °C |
| Maximum Batch Sample Volume | 5 L |
| Flow-Through Capability | Yes (with Flocell chamber) |
| Amplitude Adjustment Range | 20–100% |
| Pulse Mode | Adjustable (1 s–1 min on/off cycles) |
| Continuous Operation Time | 1 s–10 hr |
| Dimensions (H × W × D) | 178 × 380 × 463 mm |
| Standard Probe | 4677 (1/2″ diameter) |
| Optional High-Capacity Probe | 4777 (1.5″ / 38 mm diameter, 25.4 cm length, 100 µm amplitude) |
| Flow Cell | Flocell with 1/2″ NPT ports, optional water-jacketed cooling and acoustic enclosure |
| Brand | Qsonica LLC |
|---|---|
| Origin | USA |
| Model | Q800R3 |
| Instrument Type | Ultrasonic Cell Disruptor |
| Ultrasonic Power | 750 W |
| Operating Frequency | 20 kHz |
| Temperature Range | 2–45 °C |
| Sample Volume per Tube | < 50 µL |
| Maximum Sample Capacity | 36 tubes |
| Compatible Adapters | 8 × 1.5 mL, 12 × 0.5 mL, 18 × 0.2 mL |

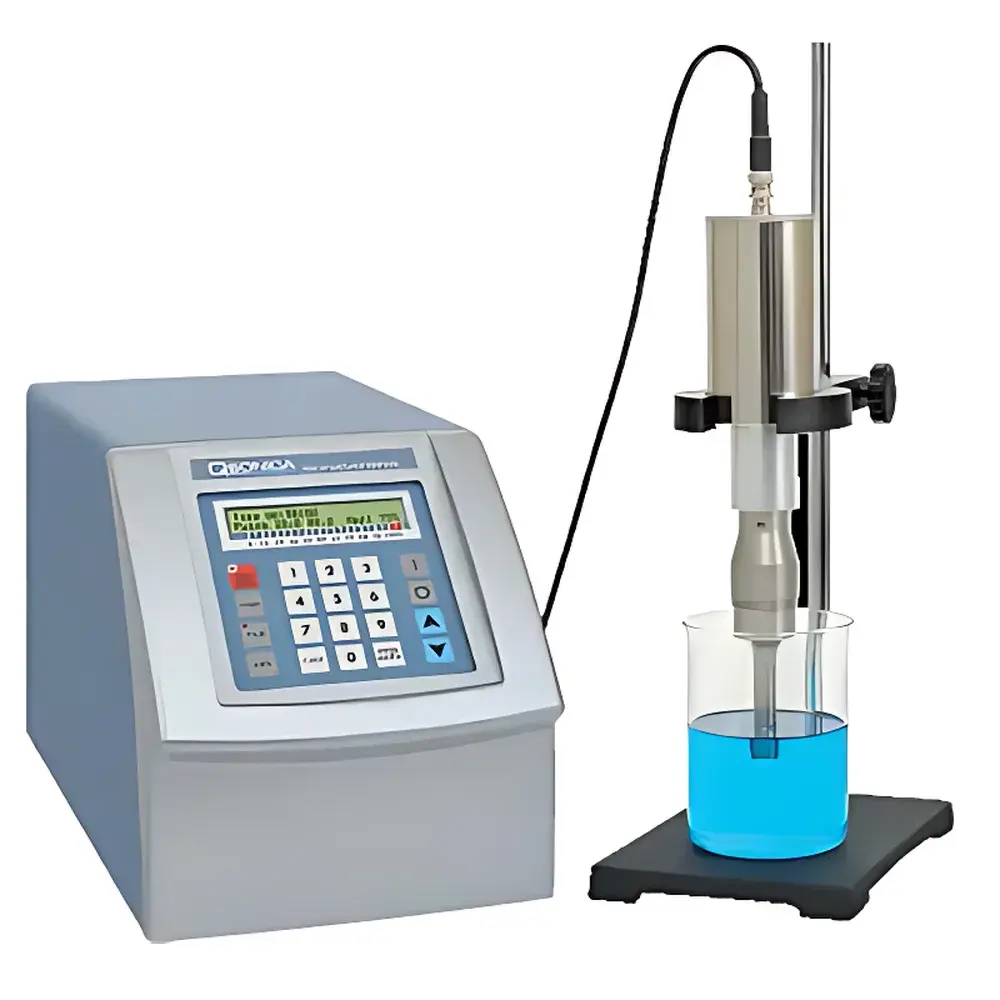

| Brand | Qsonica LLC |
|---|---|
| Origin | USA |
| Model | Q500 |
| Instrument Type | Ultrasonic Cell Disruptor |
| Ultrasonic Power Output | 500 W |
| Operating Frequency | 20 kHz |
| Temperature Range | 1–121 °C |
| Sample Volume Capacity | 5 µL – 1000 mL (batch) / 0.5–20 L/min (flow-through) |
| Throughput | 1–384 samples per run |
| Pulse Duration Adjustment | 1 s – 1 min |
| Continuous Operation Limit | 10 hr |
| Probe Amplitude Range | 30–320 µm (model-dependent) |
| Standard Probe Diameter Options | 1.6 mm, 3.2 mm, 6.4 mm, 12.7 mm, 19.1 mm, 25.4 mm |
| Probe Types | Replaceable-tip, Solid-tapered, High-amplitude, Flow-through, and Cup-horn configurations |

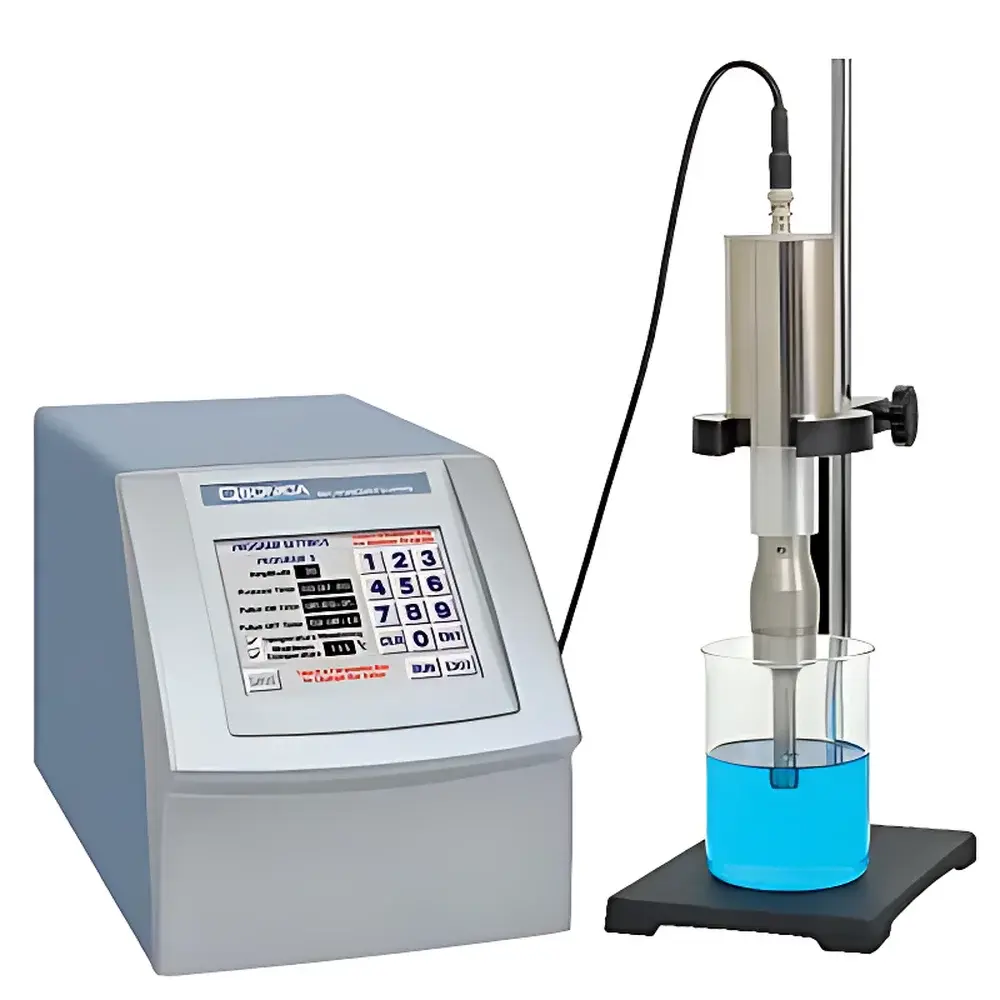

| Brand | Qsonica LLC |
|---|---|
| Country of Origin | USA |
| Model | Q700 |
| Instrument Type | Ultrasonic Cell Disruptor |
| Ultrasonic Power Output | 700 W |
| Operating Frequency | 20 kHz |
| Temperature Range | 1–121 °C |
| Sample Volume Capacity | 5 µL – 1000 L (via flow cell or microtip) |
| Throughput | 1–384 samples per run |
| Compliance | UL, CE, CSA, RoHS |
